Howo heavy-duty 8x4 fire rescue truck

The Howo 8x4 heavy-duty fire fighting truck equipped with a MC13.54-50 engine with a rated power of 540 horsepower and a manual transmission with 12 forward gears and 2 reverse gears. The Howo 8x4 fire tanker truck has a tank capacity of 8000L water and 3000L foam, and is made of PP composite material with anti-corrosion properties. A fire monitor is installed on the roof with a flow rate of 60L/s and a range of more than 65 meters.

Product Origin:
China CEEC
Lead Time:
60 Days
Work capacity:
8000L water +3000L foam
Dimension ( mm ):
11800*2580*3360
Wheelbase ( mm ):
1950+4825+1350
Engine power:
540HP
Engine type:
MC13.54-50
Axle drive:
8x4
Gear box:
12-Speed Manual
Remarks:
Large capacity water tank

Inquiry now

The Howo 8x4 fire fighting truck is a perfect combination of powerful performance, exquisite craftsmanship and practical application advantages. This Howo fire fighting truck is equipped with powerful MC13.54-50 engine, with an output of 540 horsepower and a 8x4 drive system that is enough to cope with various emergencies. Its maximum speed can reach 95 km/h, ensuring that firefighters can reach the fire scene quickly. The extinguish fire capacity of The Howo 4x4 fire tanker - 65 liters/second pumping flow and 65 meters of range are enough to deal with most fires. The 8000 liter water tank capacity and 3000 liter foam tank provide sufficient guarantee for continuous combat. The chassis made of high-strength special steel ensures the stability of the vehicle structure. The equipment compartment made of aluminum alloy is not only lightweight, but also never rusts, greatly extending its service life. The liquid tank made of PP composite material is both light and durable. Every detail shows exquisite craftsmanship, from the rolling shutter door with rain gutter design to the pedal with anti-slip design, all of which reflect the careful consideration of firefighters' safety and convenience.

Howo 8x4 fire fighting truck

● China best fire fighting truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Professional sales team which will help you to choose suitable truck
● We can offer your a good after-sell service

Specification:

Howo 8x4 Fire Fighting truck
Model	CEEC52503HXFS
Dimension	11800mm2580mm3360mm
GVW	25000 KG
Number of the Crew	3 (include driver)
Max. Speed	95km/h
Capacity	8000L Water & 3000L Foam. PP composite material liquid tank
Flow rate	60L/s @ 10bar
Fire monitor	60L/s flow rate with 65m shoot range
Painting	Red color of U.S. PPG
Howo 8x4 Chassis
Manufacturer	Howo
Drive type	8*4
Wheelbase	1950+4825+1350mm
Engine model	MC13.54-50
Engine type	Inline 6-cylinder, turbocharged, inter-cooled diesel engine
Rated power	540 hp
Gearbox form	Manual gearbox, 12 forward gears + 2 reverse gear
PTO	Full power sandwich type
Fuel tank capacity	400L
Superstructure
Standardized Sub-frame
Material	High-strength rectangular tube made of special steel
Performance	The liquid tank and the sub-frame are connected by elastic connecting seats
Compartment
Material	High-strength aluminum alloy profiles (Never Rust)
Structure	Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear
Roller Shutter Door
Material	Aluminum alloy profiles with anodized surface
Structure	With rain-proof groove on the top, lever-type bar, lock handle, pull strap, two-point fixed seat, LED light and sensors.
Foot Pedals
Material	High quality aluminum alloy
Structure	50cm width, bear more than 300kg, anti-slip design, with double lock function. Mounted on the both sides of compartment.
Superstructure Electric Appliance
Warning Light and Siren	Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin.
Strobe Light	Mounted on the both sides of the compartment
External Lighting	LED lights are mounted on the both sides of the compartment
Roof Lighting	LED lights are mounted on the inside of the roof
Side Indicator Light	Inline yellow warning light is mounted on the side of the compartment and pedals

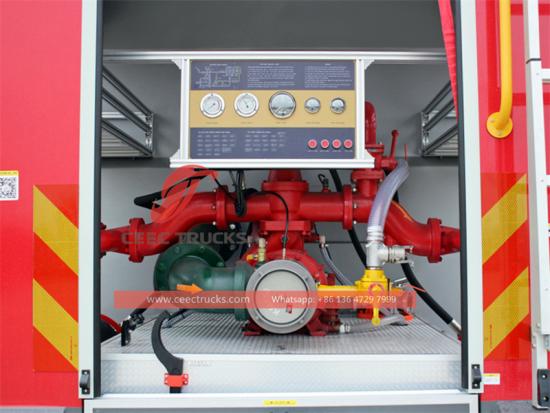

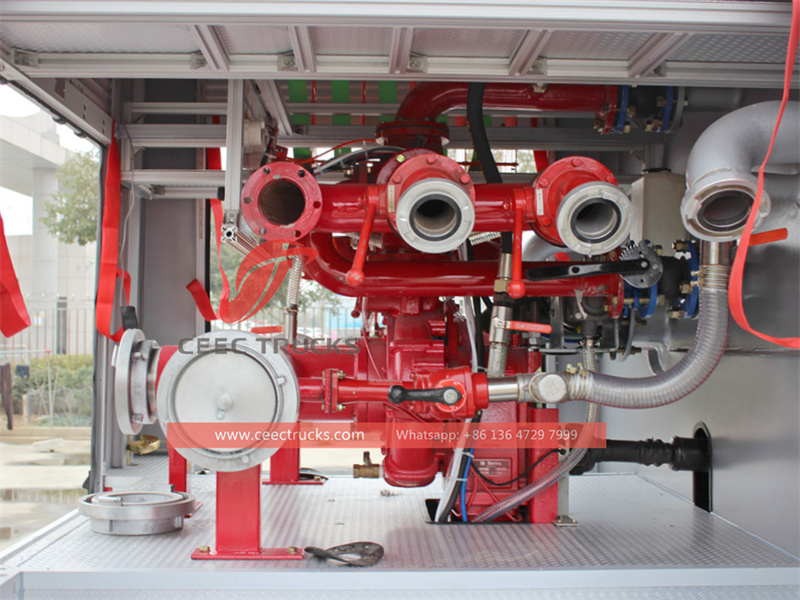

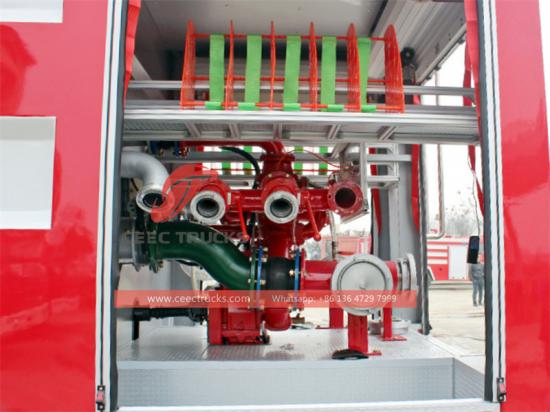

Fire Pump
Brand	China TOP brand
Model	CB10/60G
Rated Flow Rate	60L/s @ 10bar
Vacuum Pump	Water ring vacuum pump
Priming Manner	Automatic
Suction Height	9m
Priming Time	≤35s
Location	Rear-mounted

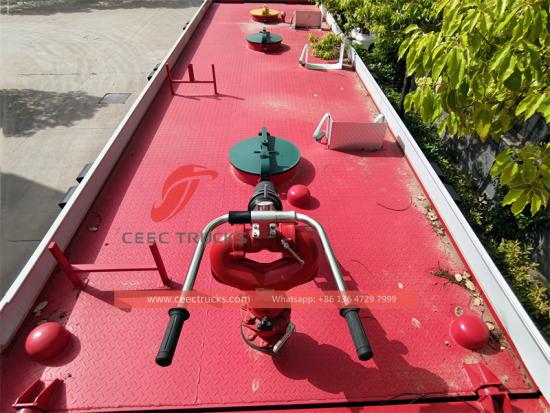

Fire Monitor
Brand	China TOP brand
Model	PS 60
Flow Rate	60L/s @ 10bar
Shoot Range	Water ≥ 65 m, Foam ≥ 55 m
Location	On the top of the tank
Control Manner	Manual
Horizontal Rotation Angle	0°~360°
Pitch Rotation Angle	-15°~60°
Liquid Tank
Capacity	Water 8000L, Foam 3000L
Material	PP composite material and Never Rust
Structure	Two Tank Manhole; One Overflow Device/Pressure Relief Device; Two Liquid Level Indicators; One Foam tank Drain Outlets with Valves; One Water tank Drain Outlets with Valves.
Fire Fighting Control System
Structure	Each fire extinguishing system is controlled by PLC, and different standardized control modules can be selected. IP56 protection level
Location	Rear pump room

Advantage:

1. Super strong carrying capacity

The 8x4 drive fire truck adopts a double front axle + double rear axle layout, with a long wheelbase and a reinforced frame. The single water carrying capacity can reach 15-25 tons, and the continuous spraying time is extended by 30%, which significantly reduces the frequency of replenishment. It is particularly suitable for the continuous water supply needs of large fires. Special environments such as petrochemical parks (oil pollution on the ground) and earthquake disaster areas (rough roads) ensure rapid arrival at the fire scene and continuous combat capabilities.

2. Engine power redundancy ensures rapid response

The high-power engine MC13.54-50, 540 horsepower provides ample torque and acceleration performance, shortening the time to arrive at the fire scene. For example, it can still maintain high speed under full load (water tank + equipment) to avoid delays in rescue due to insufficient power. Continuous operation support can support the simultaneous operation of multiple equipment such as high-pressure water pumps, ladders, and lighting systems to avoid insufficient water pressure or equipment stagnation due to power diversion.

3. Multifunctional expansion capability

The Howo 8x4 fire truck is equipped with a 540HP engine to support larger water tanks and more firefighting equipment (such as demolition tools and foam systems) to meet diverse rescue needs. For example, oil fires require both water and foam to extinguish, and the load capacity of the fire truck can directly affect the efficiency of firefighting. The modular design and reserved interfaces facilitate the installation of drones, thermal imagers and other intelligent equipment to form an integrated platform of "reconnaissance-firefighting-rescue", which meets the technological needs of modern firefighting.

★ Euro 3 type, WEICHAI engine, super powerful

★ Water tank and Foam tank capacity can be optional.

★ 12 months fast moving spare parts for FREE

★ Authorized HOWO fire engine exporter

★ Easy operation and easy maintenance

Howo 8x4 fire fighting truck

CEEC TRUCKS is a leading supplier of fire fighting truck in China. We possess over 10-year export experience of fire truck. We can ensure the fast delivery time and 12 months guarantee for our fire engine. Our fire engines are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
