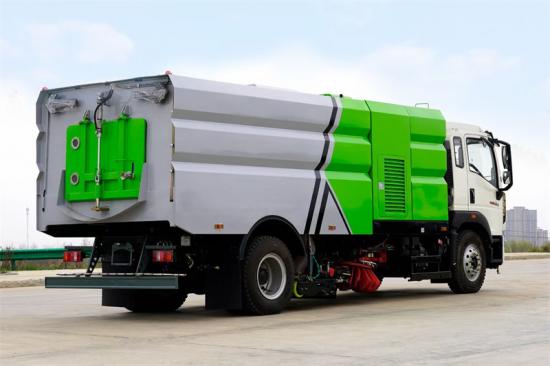

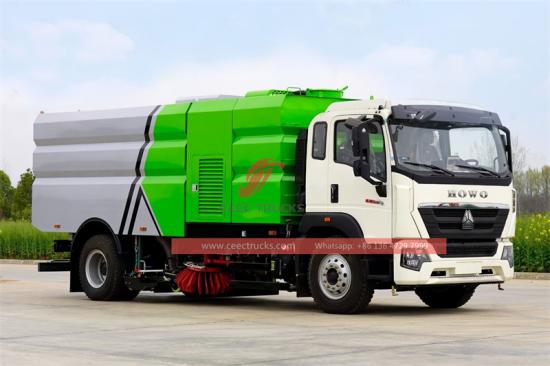

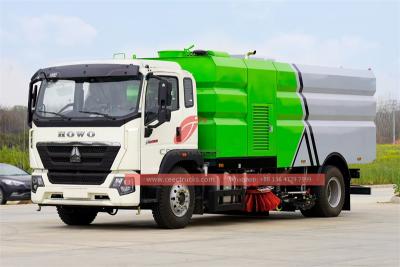

Africa Howo 300HP garbage street sweeper truck

Howo Truck Mounted Jetting Sweeper

The Howo 4x2 Sweeper Cleaning Truck is a machine with powerful sweeping performance and efficient operation, suitable for cleaning urban streets, industrial parks, and administrative buildings. Its 5CBM dust collection tank and 4CBM water tank, combined with a 4mm stainless steel sweeper body, ensure durability and efficient cleaning. Equipped with a 300HP diesel engine and HW 10-speed transmission, it delivers a powerful and smooth ride.

Product Origin:
China CEEC
Lead Time:
40 Days
Work capacity:
9 CBM
Dimension ( mm ):
8360x2380x2850
Wheelbase ( mm ):
4600 mm
Engine power:
300 HP
Engine type:
WP10.300E22
Axle drive:
4x2, LHD
Gear box:
HW19710 10-shift gearbox
Remarks:
Stainless steel

Inquiry now

The Howo 4x2 Sweeper Cleaning Truck is a machine with powerful sweeping performance and efficient operation, suitable for cleaning urban streets, industrial parks, and administrative buildings. Its 6CBM dust collection tank and 4CBM water tank, combined with a 4mm stainless steel sweeper body, ensure durability and efficient cleaning. Equipped with a 300HP diesel engine and HW 10-speed transmission, it delivers a powerful and smooth ride.

The Howo sweeper's optional rear alert and camera, Italian/American hydraulic motor, and front snowplow further enhance its safety and versatility. Furthermore, the factory-installed hydraulic system, safety guards, rotating lights, and working lights ensure convenient and safe operation. The Howo Sweeper Cleaning Truck also comes with an English operator's manual, spare parts list, and all necessary export documentation, providing comprehensive customer support and assurance.

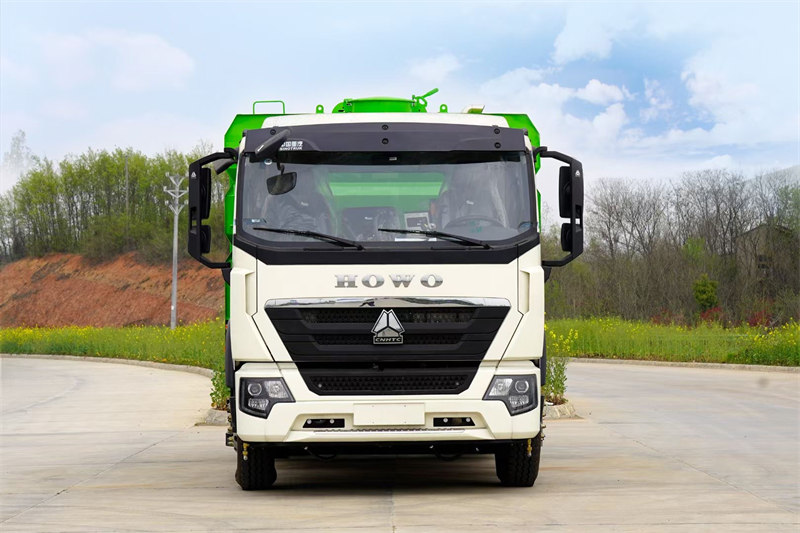

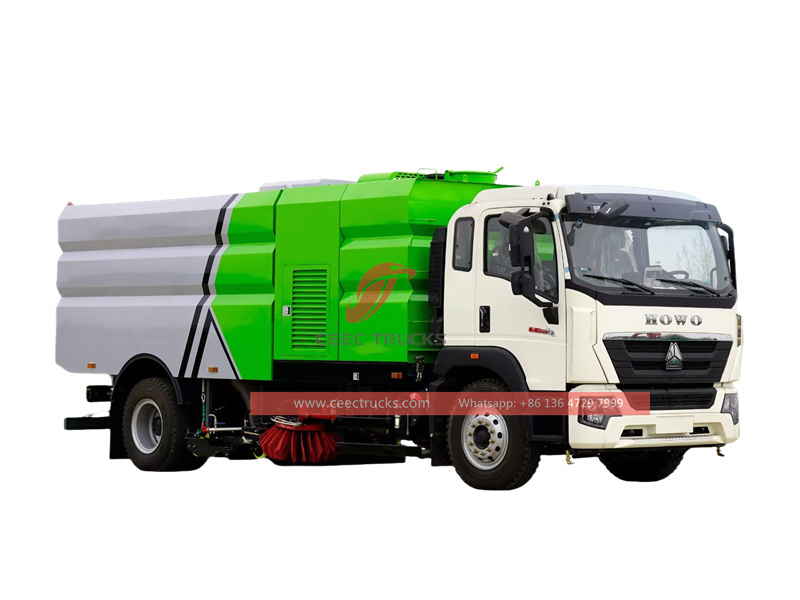

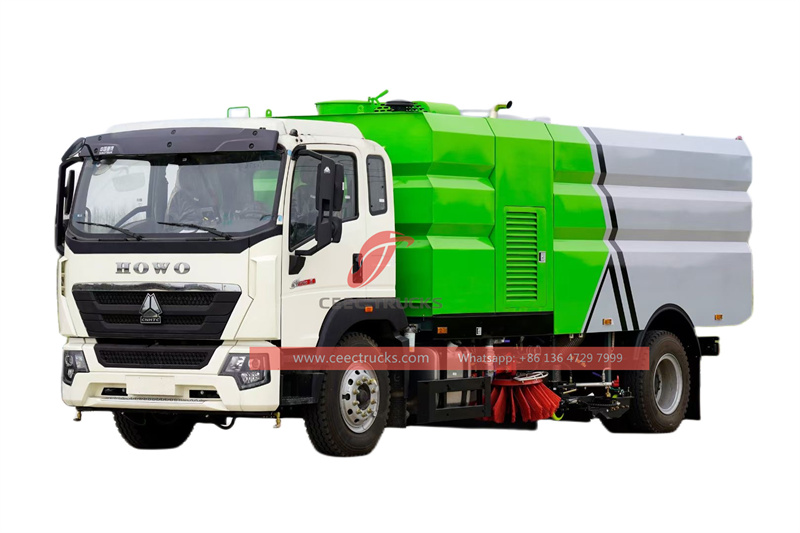

Howo 300HP Road Sweeper Cleaning Truck

*Howo heavy 9CBM sweeper truck

Howo 300HP garbage sweeper truck*

-----------------------------------------------------------------

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC Trucks

Features:

1. Low fuel consumption and economy: Weichai 300HP engine + 10-speed gearbox, excellent fuel economy.

2. Safe and reliable: the hydraulic system is equipped with a safety valve to prevent overload and ensure operation safety.

3. Tank: 5CBM stainless steel duty tank + spacious 4 CBM water tank

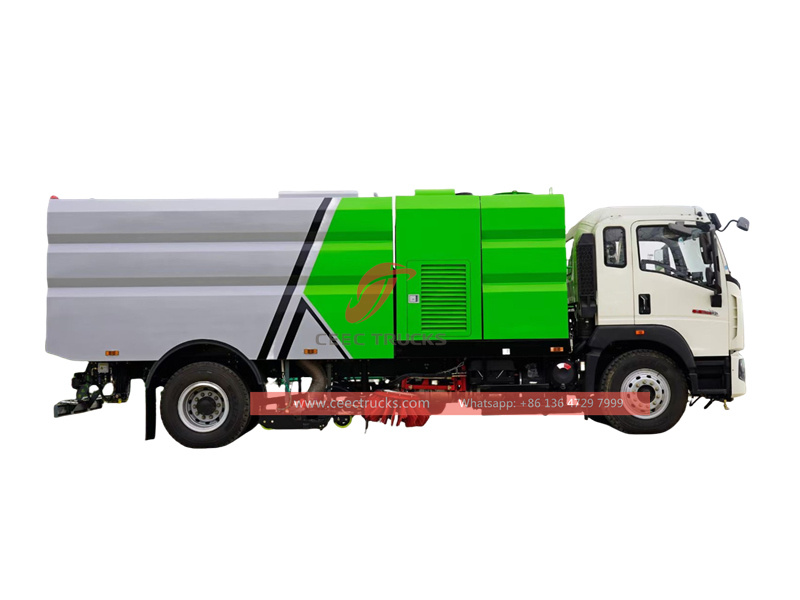

Howo 300HP Road Sweeper Cleaning Truck

Howo road sweeper is a professional road cleaning equipment that integrates efficient cleaning, stable performance, environmental protection and energy saving, and intelligent operation. The Howo road sweeper is equipped with a powerful cleaning system and a maintenance-free centrifugal fan to ensure large-area, high-efficiency cleaning operations; it adopts advanced power systems and stable control technology to provide long-lasting and reliable power support and a comfortable driving experience.

» Ⅱ.Product Parameter for Howo garbage road sweeper truck：

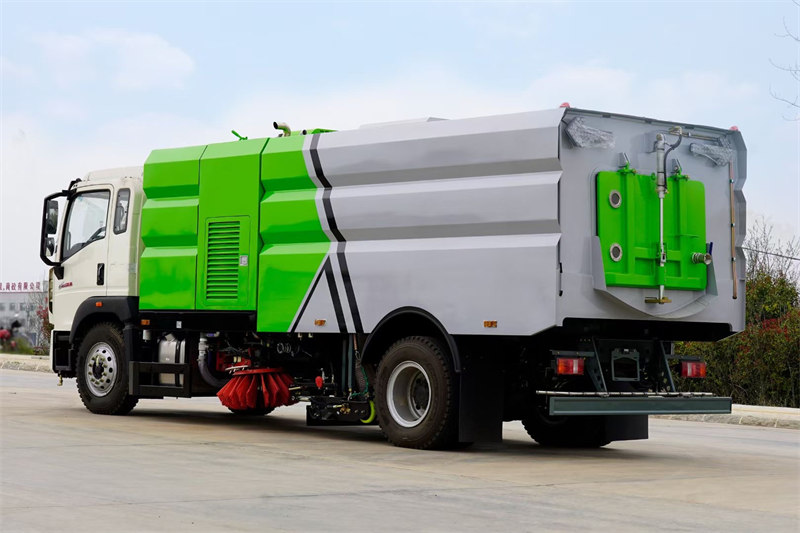

Howo 300HP Road Sweeper Cleaning Truck

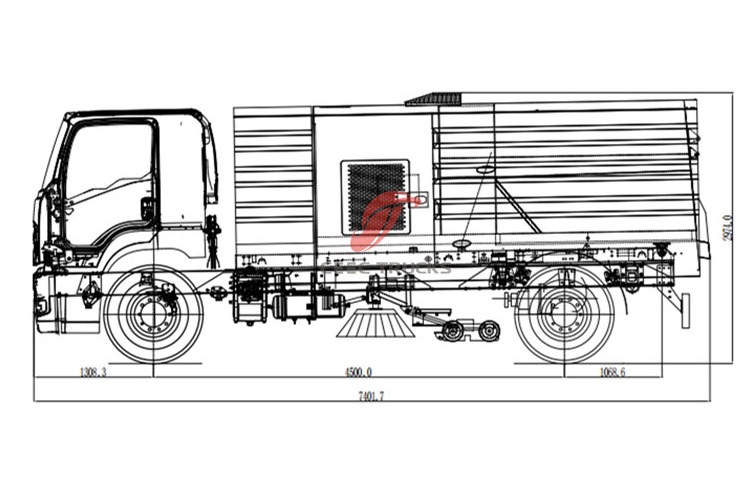

Howo Middle Duty Street Sweeping Tuck
Main Specification
Vehicle Brand	CEEC Trucks Group
Chassis Brand	Howo middle duty
Overall dimensions (L x W x H)	8360x2380x2850 mm
Drive Type	4x2 Left/Right hand drive
Wheelbase	4600 mm
Cabin	Howo luxury cab, with A/C and 2 seats, Forward control, all steel welded construction. Manual tilt,Mechanical suspension
Weight	GVW	16300kg
Weight	Kerb weight	9630kg
Engine	Model	WP10.300E22
	Type	Inline 6-cylinder diesel engine
	Power	300HP/221KW
	Displacement	9.726L
	Emission standard	Euro 3
Transmission	Manual	Fast 8 forward and 2 reverse speeds
Tyre	8.25R20	6+1 spare tyre
Upper Structure Parameter
Volume of water tank	4000L
Volume of Dustbin	5000L
Material	water tank	Carbon steel
Material	garbage tank	Inner stainless steel, outer carbon steel
Hydraulic valve	China famous brand
Hydraulic motor	China top brand
Switch	Schneider control switch
Auxiliary Motor	Brand	Cummins
Auxiliary Motor	Horsepower	141 HP
Sweeping Technical	Max sweeping width (mm)	3.5m
	Max. sweeping capacity	70000m3/h
	Sweeping speed	3-20km/h
	Cleaning efficiency	≥95%
	Max. particle inhalation	110mm
	Disc plate brush extension size	>400mm
	Garbage tank door max.discharge angle	>50°
Sweeping system	Type	Total 2 pcs mechanical brushes with 2pcs high pressure water spray boom and 1 sucking discmounted in the middle, it is driven by the hyraulic motoispeed is adjustable, can be independently controlled,has automatic avoidance function
	Sweeping brush diameter	ф 850mm
	Sweeping disk speed	1 10r/min high-speed,80r/min medium speed50r/min low-speed
	Sweeping disk dip angle adjust	forward 4 ° ~ 6 ° extroversion 4 °~ 7 °

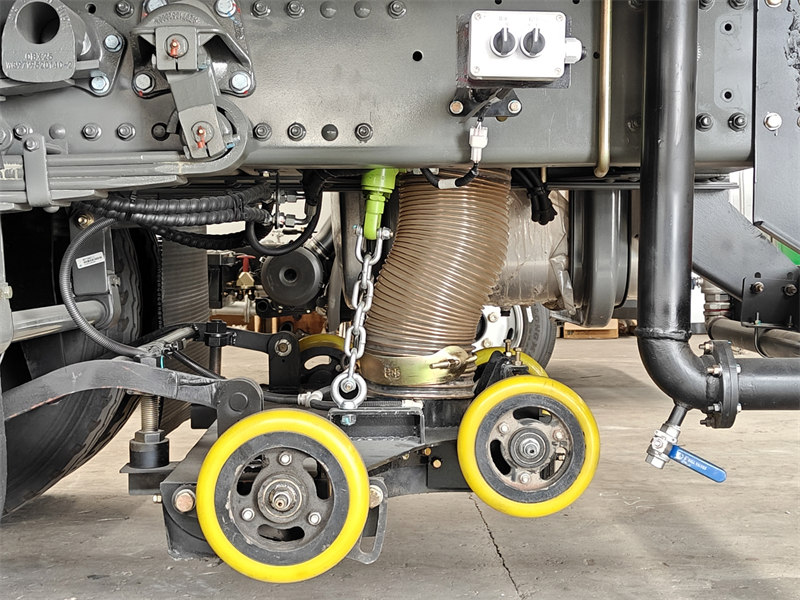

Sucking disc	Type	Double suction hole, hydraulic control, spring suspension
	Suction hole diameter	180mm
	Suction performance	Delivers air blast and suction
Hydraulic system	Type	Open type, electrical
	Main components	Gear pump, hydraulic motor, hydraulic cylinder, solenoid valve
	Pressure	16Mpa
	Hydraulic oil volume	60L
	Oil temperature	60°C
Water spraying system	Components	Pump, nozzle, water filter, etc.
Low pressure water system	Model	Hangzhou Weilong 60/90
	Flow rate	60m3/h
	Water delivery distance	90m
	Washing width	24m
Washing road	Type	Front washing bar
Electrical system	Type	DC24V, PLC control
	Volts	24V
	Battery	2x12V
Tools	2 pcs fire hose,1 pcs fire wrench,1pcs water filter wrench,1 set chassis tools,1 pcs manual hydraulic pump rocker
Spare parts	88 pcs sweep brush,1 pcs fan seal,1 pcs rear door seal,2 pcs suction tube seal

» Ⅲ.Product Details & Advantages:

1.Power system

♦ The Howo sweeper is equipped with an advanced WP10.300E22 diesel engine, which is powerful, ensure the stability and reliability under various working conditions.

♦ Intelligent transmission system and an advanced suspension system to further improve the stability and comfort of driving.

♦ Cummins 140HP auxiliary engine designed for auxiliary sweeping operations. Ensuring that key components such as the sweeping system, sprinkler system and dust collection device can operate stably and efficiently.

2.Large-capacity, corrosion resistant dust tank and water tanks:

♦ Dust tank are equipped with baffles and optimized flow channels to prevent uneven debris distribution from affecting vehicle balance and suction power.

♦ Made of stainless steel or special corrosion-resistant steel, extending service life in sewage and chemical cleaning agent environments.

3.Multi-stage wastewater filtration technology:

♦ First stage: Gravity sedimentation: Rapidly settles large particles.

♦ Second stage: Rotary screen/vibrating screen filtration: Separates small to medium-sized particles, such as pebbles, leaves, and cigarette butts.

♦ Third stage: Sedimentation tank or centrifugal separation: Further separates sludge.

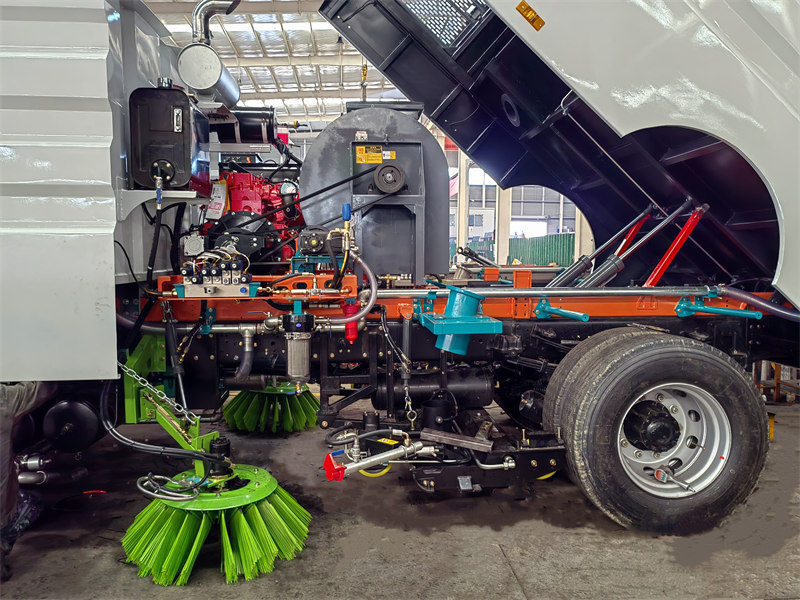

4.Cleaning system

♦ The cleaning system is the core part of the vehicle, mainly composed of cleaning brushes, high-pressure water pumps, negative pressure dust suction devices, etc.

♦ The arrangement of four central sweeping brushes and rear suction ports is adopted, which makes the cleaning width large and the efficiency high.

♦ The cleaning brush is made of wear-resistant material and can effectively remove stains and dust on the road.

♦ The high-pressure water pump provides strong water pressure to spray the cleaning water onto the ground.The entire cleaning system works in tandem, utilizing a powerful suction cup mechanism to achieve efficient and rapid cleaning results.
