Isuzu NKR 6CBM Jetting Sweeper Truck

The Isuzu 4x2 Sweeper Cleaning Truck is a machine with powerful sweeping performance and efficient operation, suitable for cleaning urban streets, industrial parks, and administrative buildings. Its 4CBM dust collection tank and 2CBM water tank, combined with a 4mm stainless steel sweeper body, ensure durability and efficient cleaning. Equipped with a 130HP diesel engine and MSB 5-speed transmission, it delivers a powerful and smooth ride.

Product Origin:
China CEEC
Lead Time:
40 Days
Work capacity:
6 CBM
Dimension ( mm ):
6360x2380x2850
Wheelbase ( mm ):
3360 mm
Engine power:
130 HP
Engine type:
4KB1-TCG61
Axle drive:
4x2, LHD
Gear box:
MSB 6-shift gearbox
Remarks:
Stainless steel

Inquiry now

The Isuzu brush type street sweeping truck is a professional cleaning equipment that combines efficiency, durability, and environmental friendliness. It is designed specifically for urban road cleaning and has won widespread praise in the market for its excellent performance and user-friendly design.

The Isuzu 100P road sweeper truck stands as a beacon of efficiency and innovation in the realm of urban cleanliness. This road sweeper truck integrates cutting-edge technology with robust design elements to ensure cities remain pristine, streets free of debris. At its core lies a powerful engine that effortlessly propels the vehicle forward, addressing sweeping needs with unparalleled precision and speed.

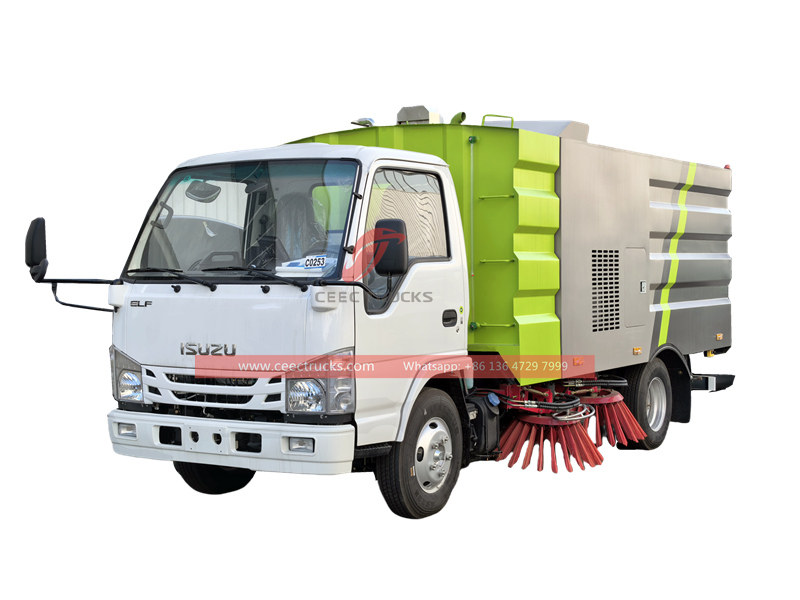

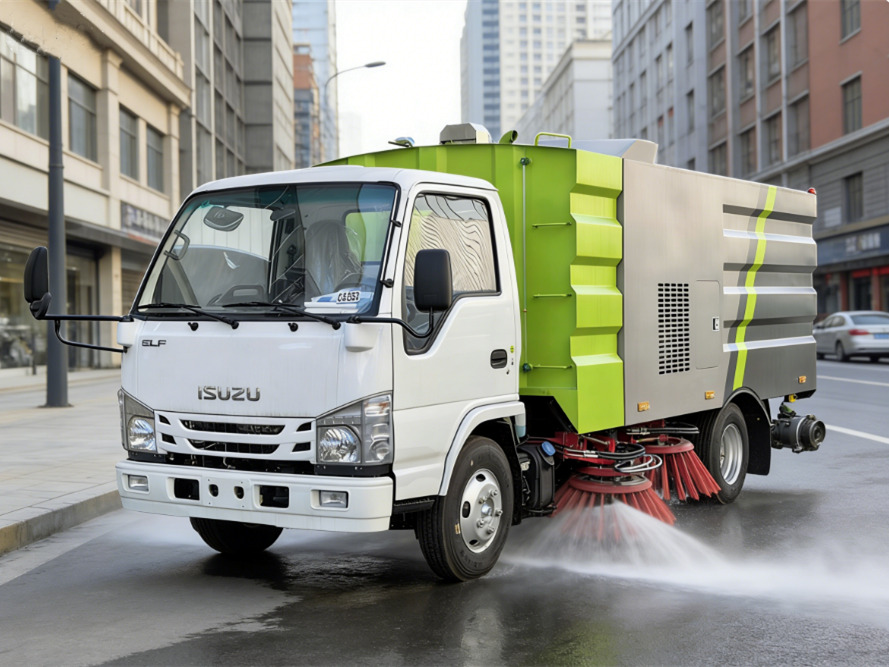

Isuzu 130HP Road Sweeper Cleaning Truck

*Isuzu NKR 6CBM sweeper truck

Isuzu 130HP road sweeper truck*

-----------------------------------------------------------------

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC Trucks

Features:

1. Low fuel consumption and economy: Isuzu 4KB1 130HP engine + MSB 5-speed gearbox, excellent fuel economy.

2. Safe and reliable: the hydraulic system is equipped with a safety valve to prevent overload and ensure operation safety.

3. Tank: 4CBM stainless steel duty tank + spacious 2 CBM water tank

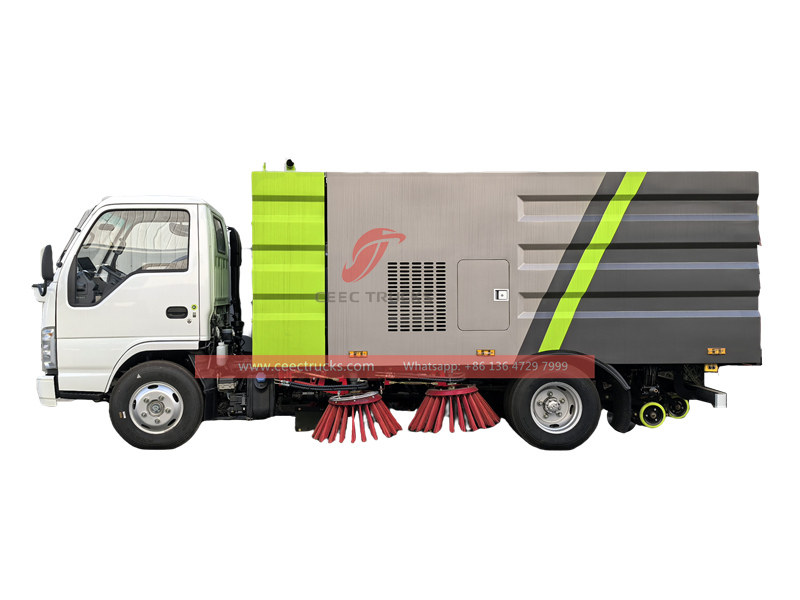

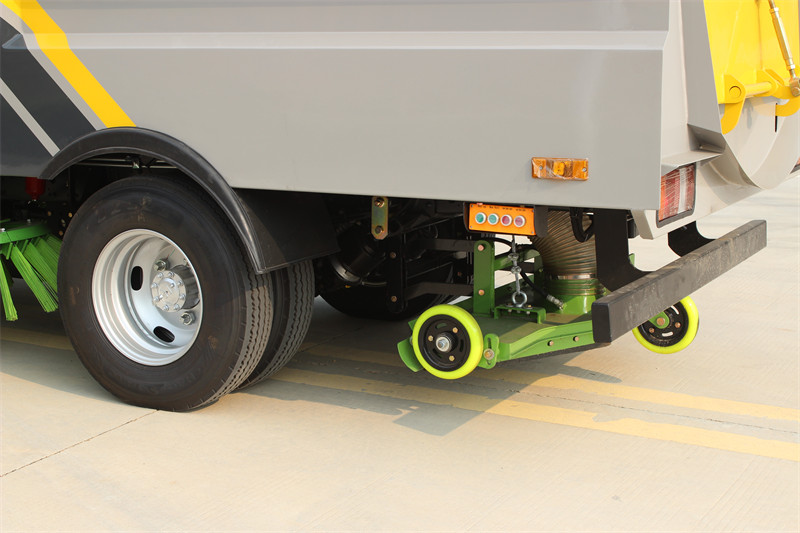

Isuzu 130HP Road Sweeper Cleaning Truck

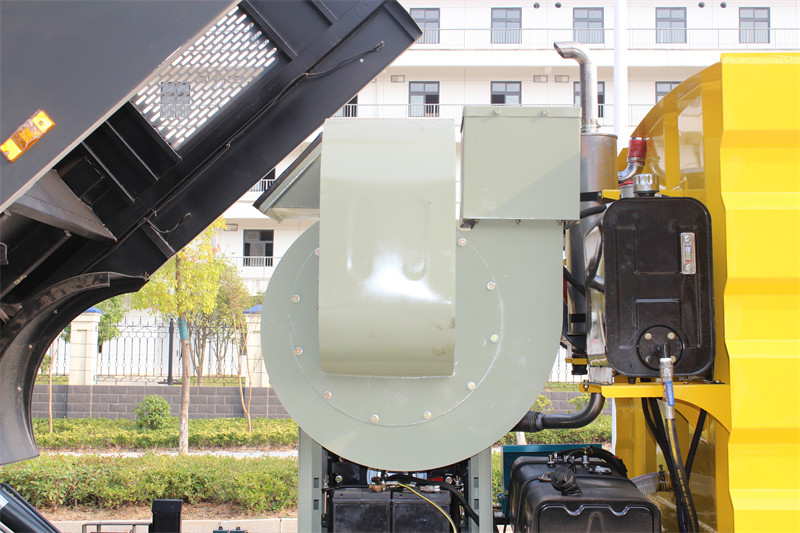

Isuzu road sweeper is a professional road cleaning equipment that integrates efficient cleaning, stable performance, environmental protection and energy saving, and intelligent operation. The Howo road sweeper is equipped with a powerful cleaning system and a maintenance-free centrifugal fan to ensure large-area, high-efficiency cleaning operations.It adopts advanced power systems and stable control technology to provide long-lasting and reliable power support and a comfortable driving experience.

» Ⅱ.Product Parameter for Isuzu road sweeper truck：

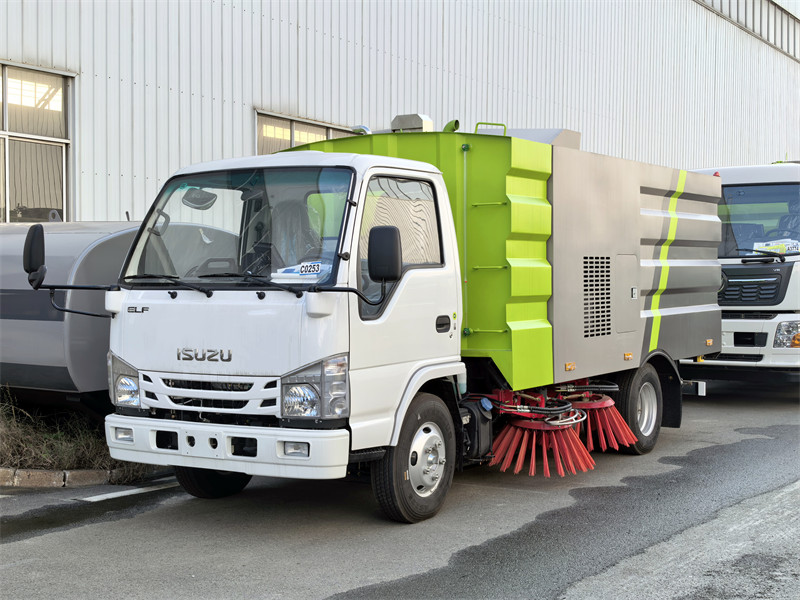

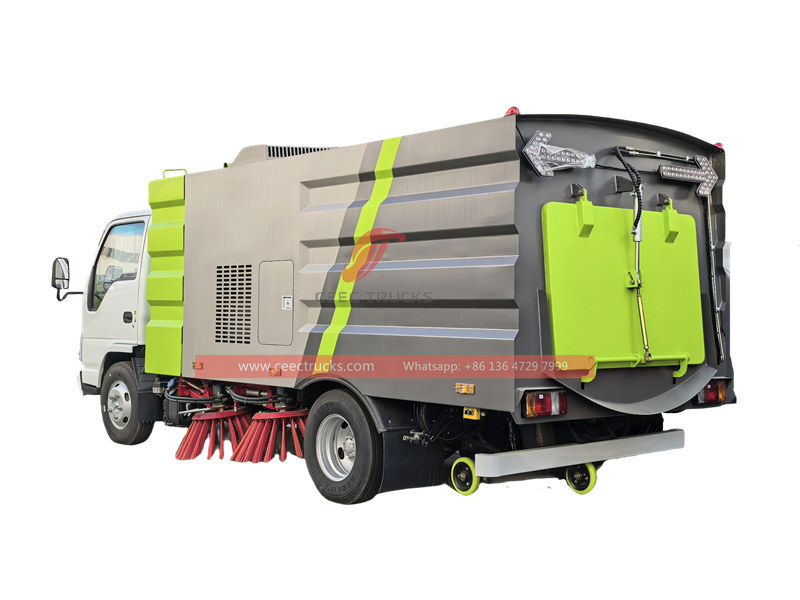

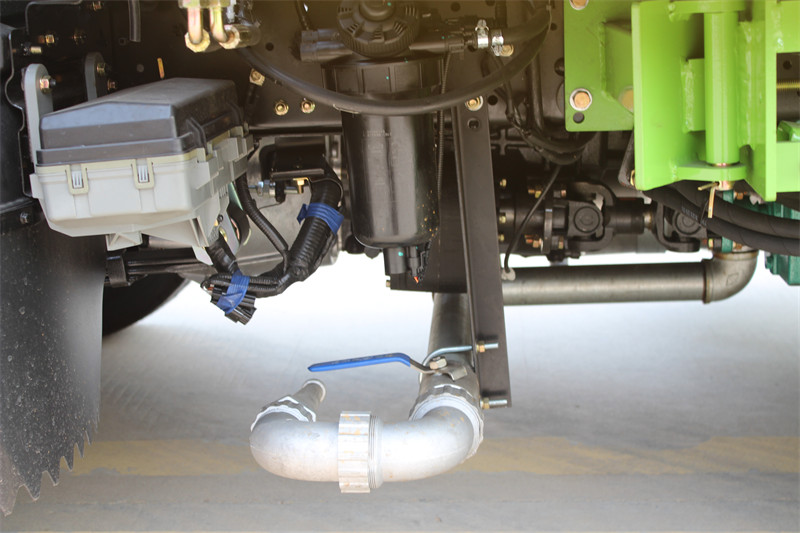

Isuzu 130HP Road Sweeper Cleaning Truck

Isuzu Brush type Street sweeping Tuck
Main Specification
Vehicle Brand	Powerstar
Chassis Brand	ISUZU NEW ELF 100P
Overall dimensions (L x W x H)	5860x2300x2450 mm
Drive Type	4x2 Left hand drive
Wheelbase	3360mm
Cabin	Isuzu N-series cab, with A/C and 2 seats, Forward control, all steel welded construction. Manual tilt,Mechanical suspension
Weight	GVW	7300kg
Weight	Kerb weight	4230kg
Engine	Model	Isuzu 4KB1-TCG60
	Type	Inline 4-cylinder diesel engine
	Power	130HP/96Kw
	Displacement	2499ml
	Emission standard	Euro 6
Transmission	Manual	ISUZU MSB 5 forward and 1 reverse speeds
Tyre	7.00R16	6+1 spare tyre
Upper Structure Parameter
Volume of water tank	1500L
Volume of Dustbin	4000L
Material	water tank	Carbon steel
Material	garbage tank	Inner stainless steel, outer carbon steel
Hydraulic valve	Taiwan famous brand
Hydraulic motor	Domestic famous brand
Switch	Schneider control switch
Auxiliary Motor	Brand	Cummins
Auxiliary Motor	Horsepower	77HP
Sweeping Technical	Max sweeping width (mm)	3.5m
	Max. sweeping capacity	70000m3/h
	Sweeping speed	3-20km/h
	Cleaning efficiency	≥95%
	Max. particle inhalation	110mm
	Disc plate brush extension size	>400mm
	Garbage tank door max.discharge angle	>50°
Sweeping system	Type	Total 4 pcs mechanical brushes and 1 sucking discmounted in the rear, it is driven by the hyraulic motoispeed is adjustable, can be independently controlled,has automatic avoidance function
	Sweeping brush diameter	ф 850mm
	Sweeping disk speed	1 10r/min high-speed,80r/min medium speed50r/min low-speed
	Sweeping disk dip angle adjust	forward 4 ° ~ 6 ° extroversion 4 °~ 7 °
Sucking disc	Type	Double suction hole, hydraulic control, spring suspension
	Suction hole diameter	180mm
	Suction performance	Delivers air blast and suction
Hydraulic system	Type	Open type, electrical
	Main components	Gear pump, hydraulic motor, hydraulic cylinder, solenoid valve
	Pressure	16Mpa
	Hydraulic oil volume	60L
	Oil temperature	60°C
Water spraying system	Components	Pump, nozzle, water filter, etc.
Low pressure water system	Model	Hangzhou Weilong 60/90
	Flow rate	60m3/h
	Water delivery distance	90m
	Washing width	24m
Washing road	Type	Front washing bar
Electrical system	Type	DC24V, PLC control
	Volts	24V
	Battery	2x12V
Tools	2 pcs fire hose,1 pcs fire wrench,1pcs water filter wrench,1 set chassis tools,1 pcs manual hydraulic pump rocker
Spare parts	88 pcs sweep brush,1 pcs fan seal,1 pcs rear door seal,2 pcs suction tube seal

» Ⅲ.Product Details & Advantages:

1.Power system

♦ The Isuzu sweeper is equipped with an advanced 4KB1 diesel engine, which is powerful, ensure the stability and reliability under various working conditions.

♦ Intelligent transmission system and an advanced suspension system to further improve the stability and comfort of driving.

♦ Cummins 77HP auxiliary engine designed for auxiliary sweeping operations. Ensuring that key components such as the sweeping system, sprinkler system and dust collection device can operate stably and efficiently.

2.Large-capacity:

♦ Dust tank are equipped with baffles and optimized flow channels to prevent uneven debris distribution from affecting vehicle balance and suction power.

♦ Made of stainless steel or special corrosion resistant steel, extending service life in sewage and chemical cleaning agent environments.

3.Multi-stage wastewater filtration technology:

♦ First stage: Gravity sedimentation: Rapidly settles large particles.

♦ Second stage: Rotary screen/vibrating screen filtration,separates small to medium-sized particles, such as pebbles, leaves, and cigarette butts.

♦ Third stage: Sedimentation tank or centrifugal separation: Further separates sludge.

4.Cleaning system

♦ The cleaning system is the core part of the vehicle, mainly composed of cleaning brushes, high-pressure water pumps, negative pressure dust suction devices, etc.

♦ The arrangement of four central sweeping brushes and rear suction ports is adopted, which makes the cleaning width large and the efficiency high.

♦ The cleaning brush is made of wear-resistant material and can effectively remove stains and dust on the road.

♦ The high-pressure water pump provides strong water pressure to spray the cleaning water onto the ground.The entire cleaning system works in tandem, utilizing a powerful suction cup mechanism to achieve efficient and rapid cleaning results.

Products--100% Customized Level One!

Transportation--100% Safety, Convenience, Efficient!

Services--7days + 24hours Safetify Service!

1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasionalble price

3.we can offer your a reliable after-sell service

4.we have skilled professinal design team

5.promptly delivery. any order is welcome.

We CEEC also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.

★ Isuzu 4KB1 Euro 6 engine, super powerful

★ MSB Manual 5-shift mechanical transmission gearbox

★ 12 months fast moving spare parts for FREE

★ Authorized Isuzu sweeper truck lift truck exporter

★ Training service for Isuzu road sweeper truck.

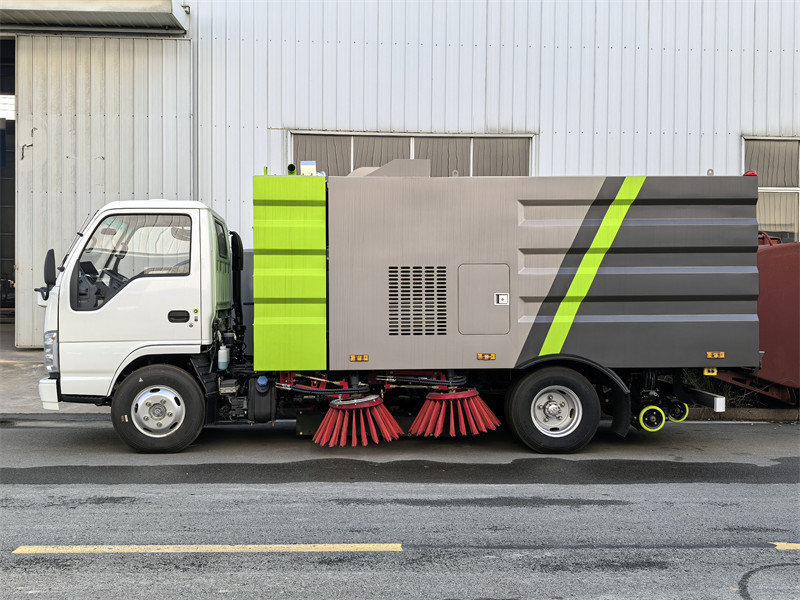

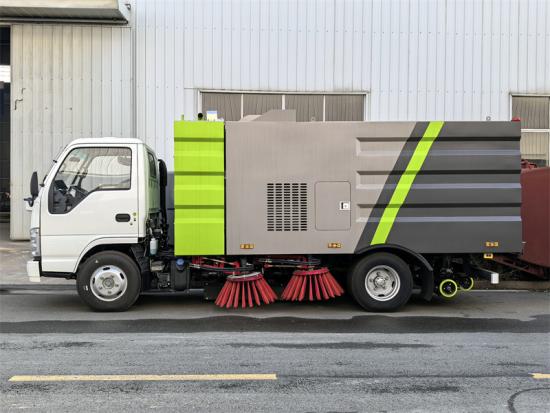

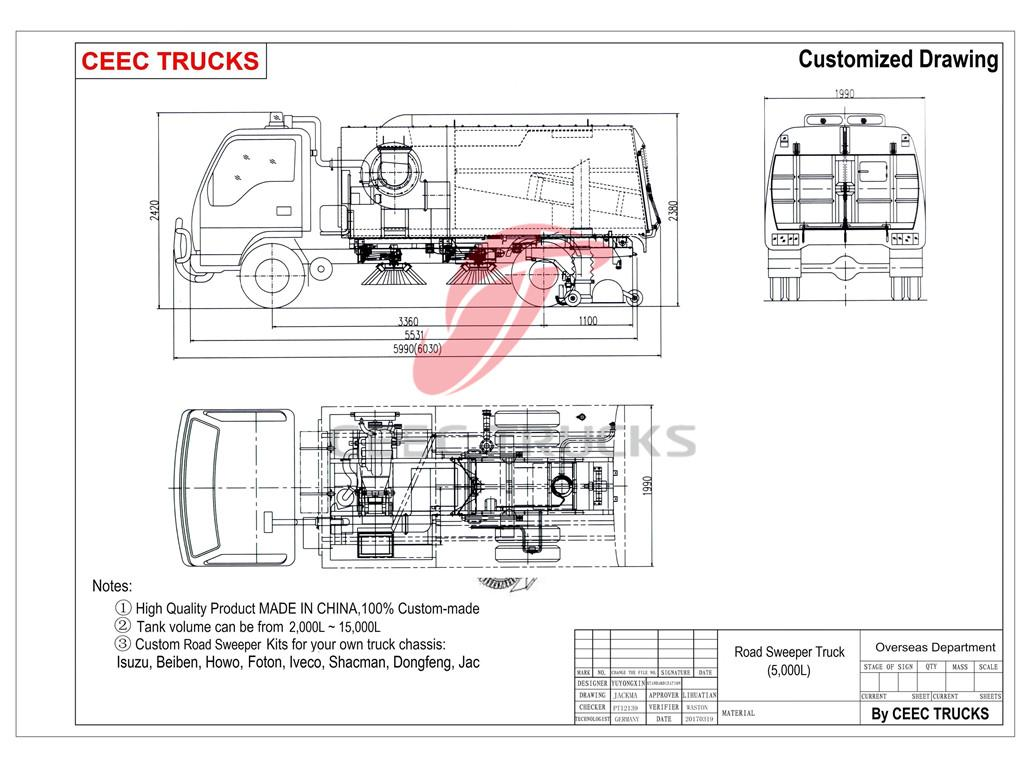

Isuzu NKR Street sweeping Tuck

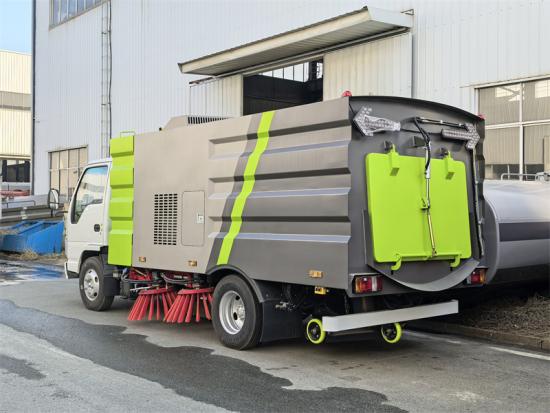

Isuzu NKR Street sweeping Truck

China professional road sweeper truck supplier and exporter, we supply high quality road sweeper truck. We can ensure the fast delivery time and 12 months guarantee for our cleaning sweeper truck. Our road sweeper truck are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
