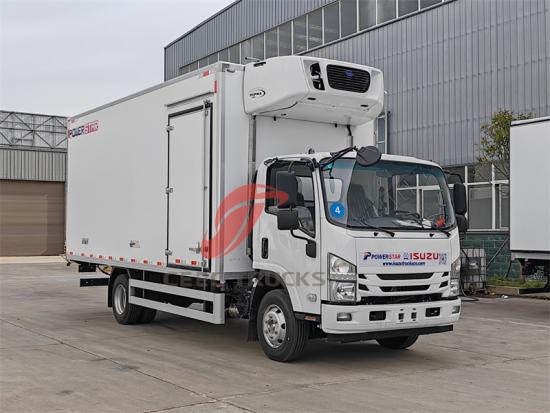

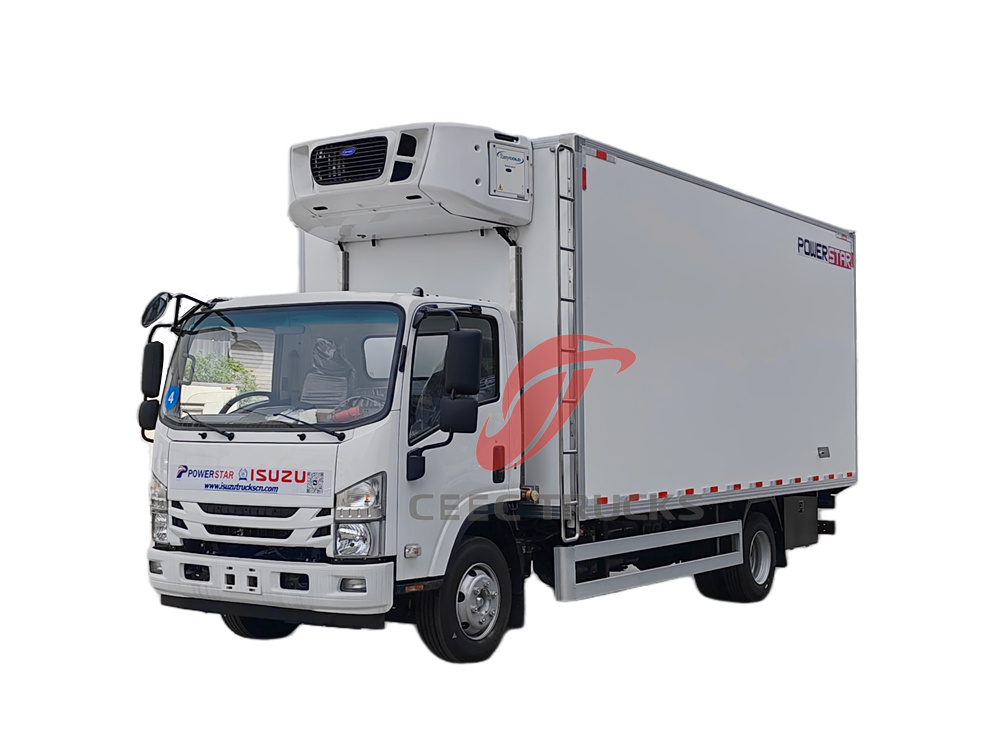

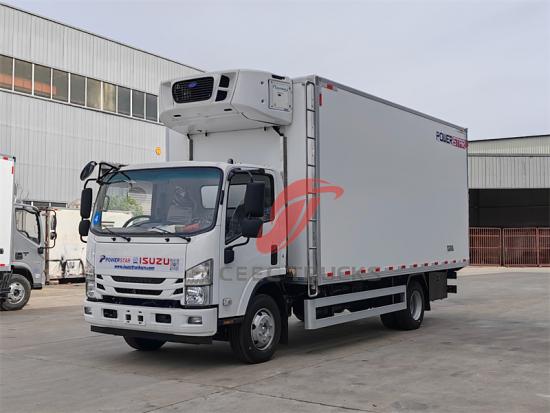

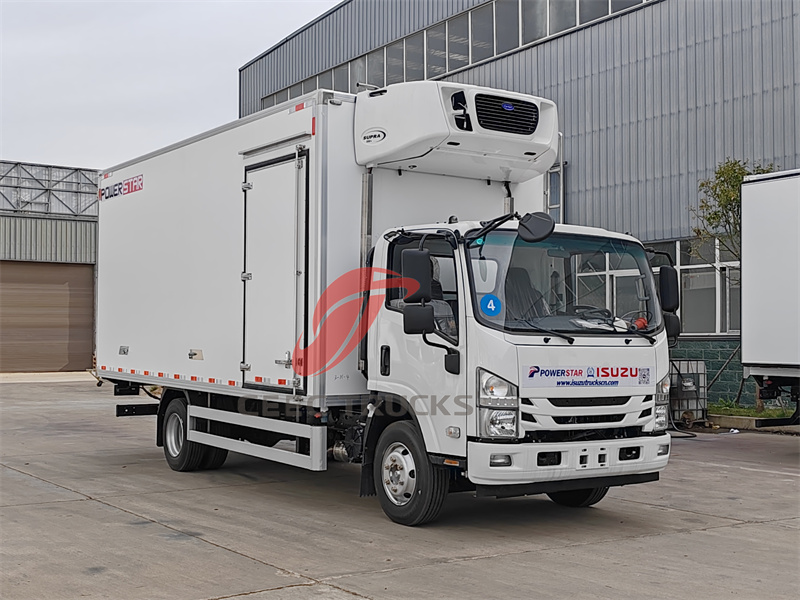

Isuzu 4 ton reefer box truck

The Isuzu 4 ton reefer box truck is built on the Isuzu 700P chassis, equipped with a 190-horsepower National VI engine and a 6-speed gearbox. It has strong power and excellent fuel economy. The cab is equipped with air conditioning, USB interface and power steering, taking into account both comfort and control. The core highlight is its professional-grade refrigerated box: the size is 5500×2300×2400mm, the inner and outer fiberglass material + high-density polystyrene insulation layer, the thermal conductivity is as low as 0.028W/(m·K), with a 5mm non-slip steel plate bottom plate, and can bear 3 tons without deformation. The box is strictly sealed, with a rubber curtain on the side door and a fully open tailgate design. It is equipped with a Carrier SUPRA 850+ refrigeration unit, with a temperature control accuracy of ±0.5℃, and is suitable for all scenarios such as medicine, fresh food, and frozen food. It is durable, energy-saving and efficient, and is a benchmark choice for efficient, safe and compliant cold chain logistics.

● 30 years experience on refrigerated truck designing

● Build strict QC team to guarantee the quality

● 24 months long guarantee time assurance

● CKD, SKD parts service, Container shipping, Save freight

● Fast delivery time, Quick 10 days shipping time

Isuzu 700P 4-ton refrigerated truck - professional cold chain transportation solution

Basic vehicle information

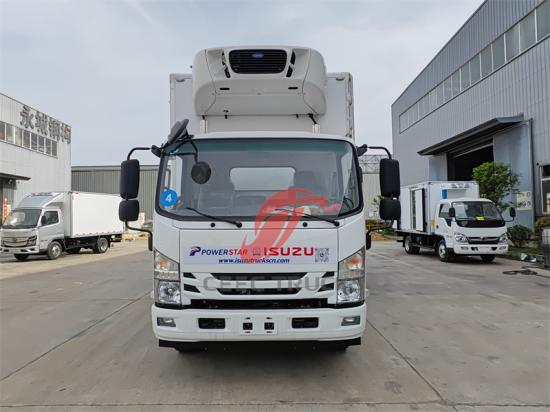

The Isuzu 700P 4-ton refrigerated truck is modified based on the Isuzu 700P medium truck chassis and is designed for efficient cold chain transportation. Equipped with Isuzu 4HK1-TCG61 Euro VI emission engine (190 horsepower, 5193ml displacement), matched with Isuzu MLD 6-speed gearbox, it has strong power and excellent fuel economy. The vehicle is equipped with air conditioning, USB interface, power steering system and 3-seat cab, taking into account comfort and practicality, with a maximum driving speed of 110km/h, meeting the needs of medium and short-distance cold chain logistics.

Core highlights: professional refrigerated compartment

As the core configuration of this model, the refrigerated compartment adopts modular design and high-specification materials to ensure stable temperature control of goods in a wide temperature range of -20℃ to +12℃, meeting the transportation requirements of high-value goods such as food and medicine.

1. Box structure and materials

● Dimensions: 5500mm (length) × 2300mm (width) × 2400mm (height), providing about 30 cubic meters of extra-large cargo space, suitable for palletized loading and unloading.

● Box material: The inner and outer layers are made of fiberglass composite panels, which have high strength, corrosion resistance, and impact resistance, and can effectively resist bumps and harsh environments during transportation.

● Insulation layer: Polystyrene (XPS) high-density insulation layer, with a thickness of 80-100mm (high industry standard), combined with seamless splicing technology to ensure the air tightness and heat insulation performance of the box, and reduce the loss of cold air.

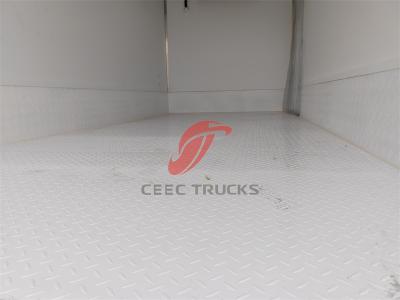

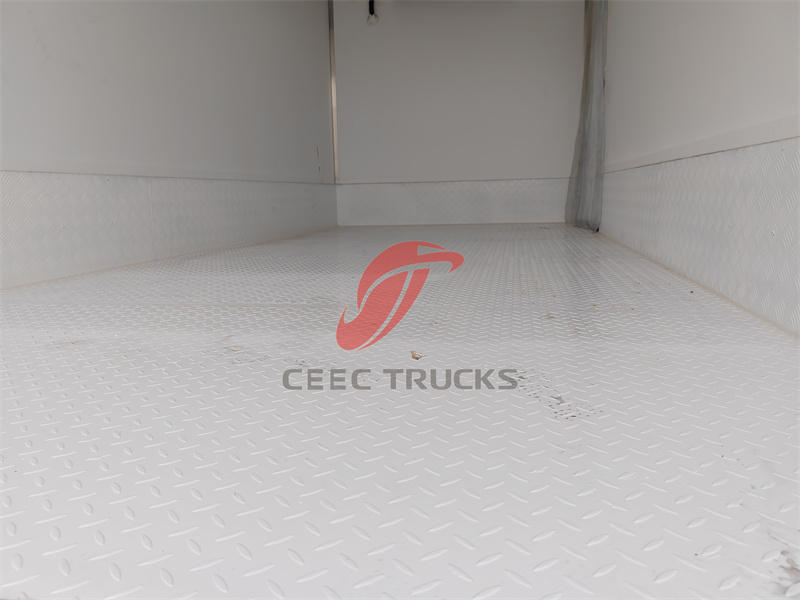

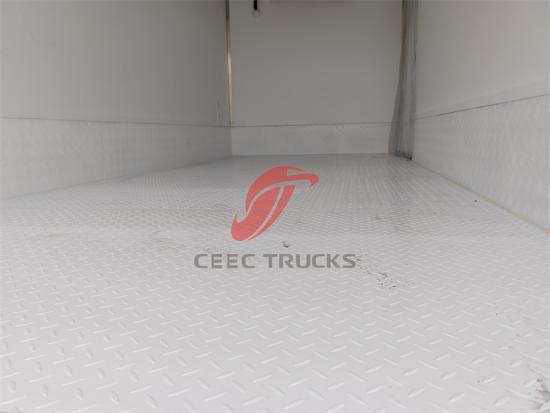

● Bottom plate design: 5mm thick large-patterned anti-slip aluminum plate, taking into account both load-bearing capacity and anti-slip properties, convenient for cargo stacking and forklift operation.

2. Door system

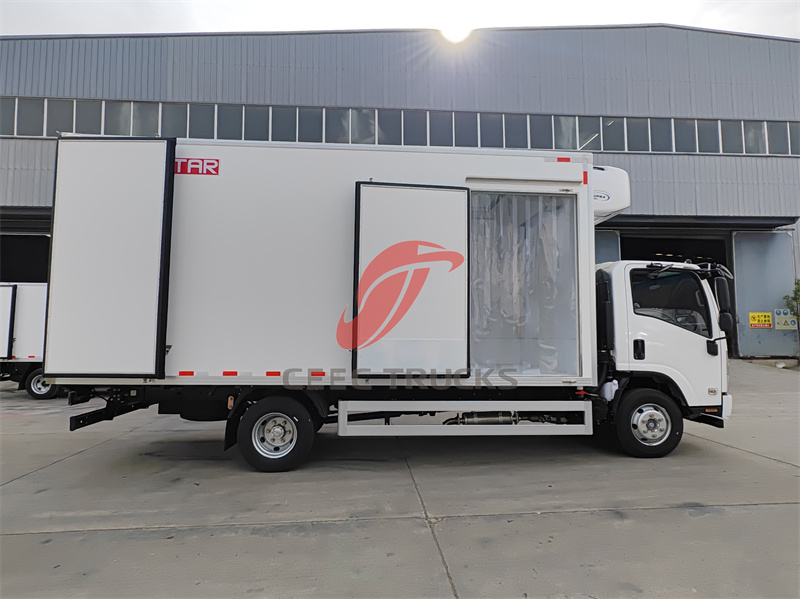

● Right side door: 1.2 meters wide side door, equipped with lock-type sealing strips and rubber curtains, fast loading and unloading while isolating cold air leakage, improving insulation efficiency.

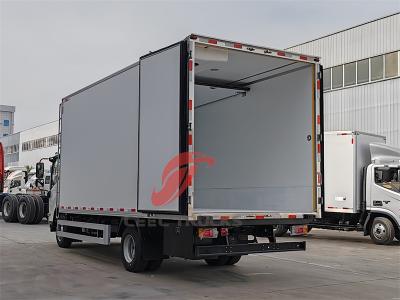

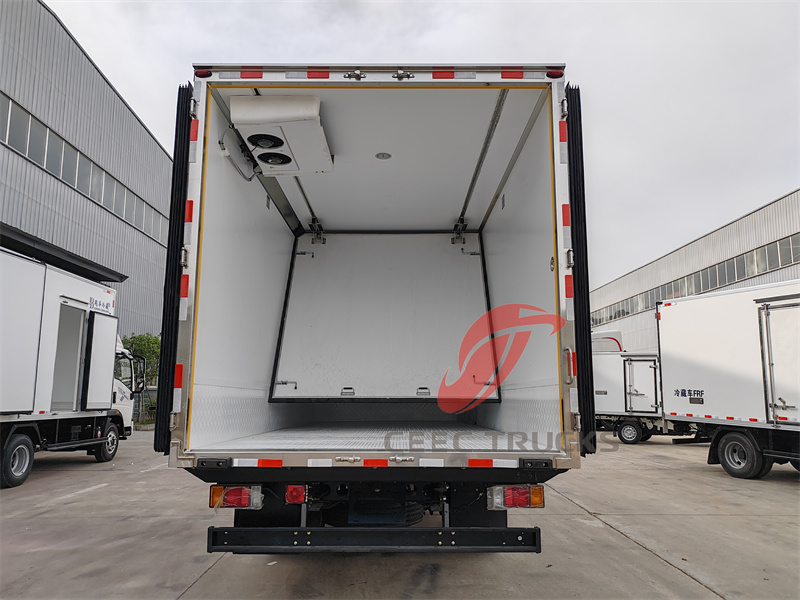

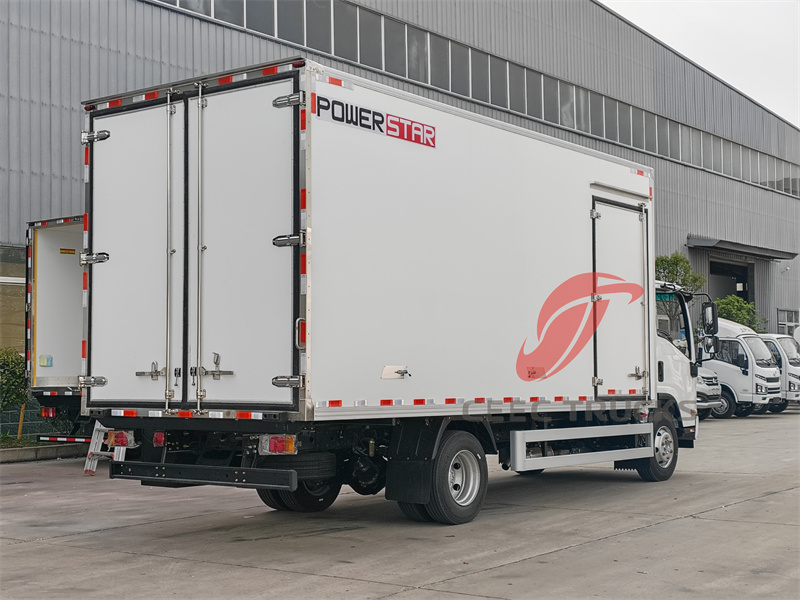

● Tailgate: Full-size double-opening rear door design, supports 180° full opening, suitable for large pallets and mechanical loading and unloading, and improves cargo turnover efficiency.

3. Temperature control system

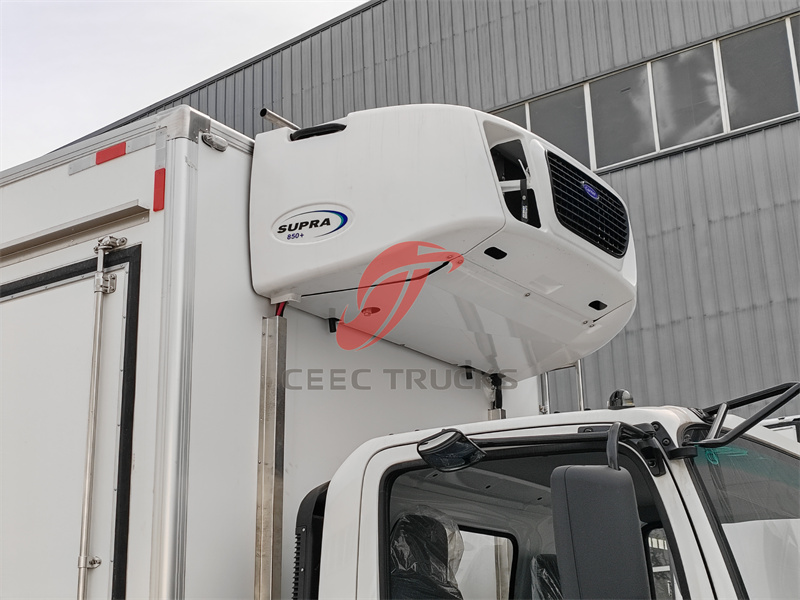

● Refrigeration unit: Carrier SUPRA 850+ independent refrigeration unit, using environmentally friendly R404A refrigerant, cooling capacity covers the entire temperature range of -20℃ to +20℃, intelligent temperature control accuracy ±1℃, to meet the preservation needs of different goods.

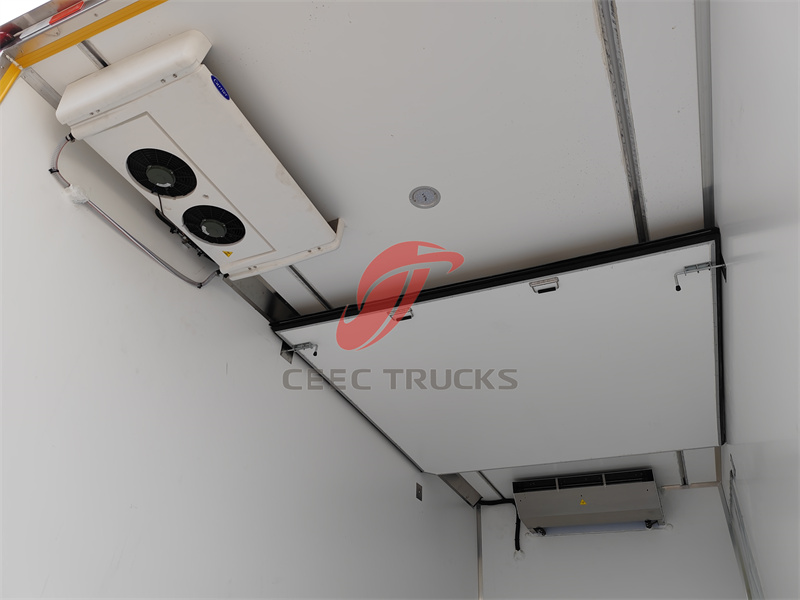

● Evaporator: Carrier C400 top-mounted evaporator, uniform air supply design, combined with guide air duct, avoids temperature gradient in the compartment, and ensures constant temperature of the goods throughout the journey.

● Intelligent control: The unit supports digital temperature control panel and remote monitoring function, which can adjust temperature, humidity and fault warning in real time to ensure transportation safety.

4. Internal configuration

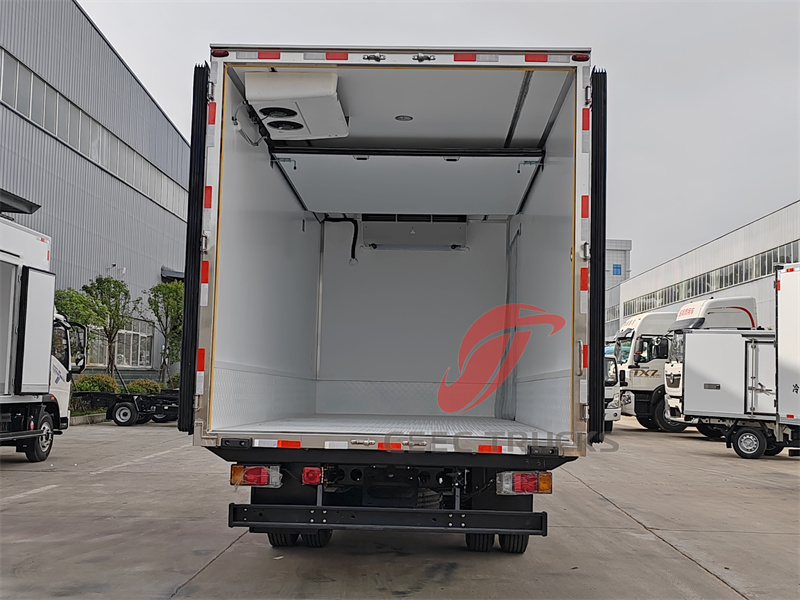

● Flip partition: A central flip partition is set in the compartment to flexibly divide the storage space and adapt to the mixed loading needs of multiple categories of goods.

● Lighting and ventilation: The compartment is equipped with explosion-proof LED lighting and top vents to ensure cargo visibility and air circulation.

Advantages

   1. Efficient insulation: FRP + polystyrene composite box, leading insulation performance in the industry, reducing energy consumption costs.

   2. Flexible loading and unloading: Side door + tailgate dual-channel design, suitable for diversified cargo scenarios.

   3. Precise temperature control: Carrier brand refrigeration system, temperature stability ±0.5℃, to ensure cargo quality.

   4. Durable and reliable: Isuzu chassis + large pattern bottom plate, adapt to complex road conditions and heavy load requirements.

Applicable scenarios

• Food transportation: cold fresh meat, dairy products, frozen foods and other goods that need to be stored below -18℃.

• Pharmaceutical cold chain: vaccines, biological preparations and other pharmaceuticals that require precise temperature control of 2-8℃.

• High-end retail: supermarket distribution, catering supply chain and other scenarios with strict requirements on timeliness and temperature control.
