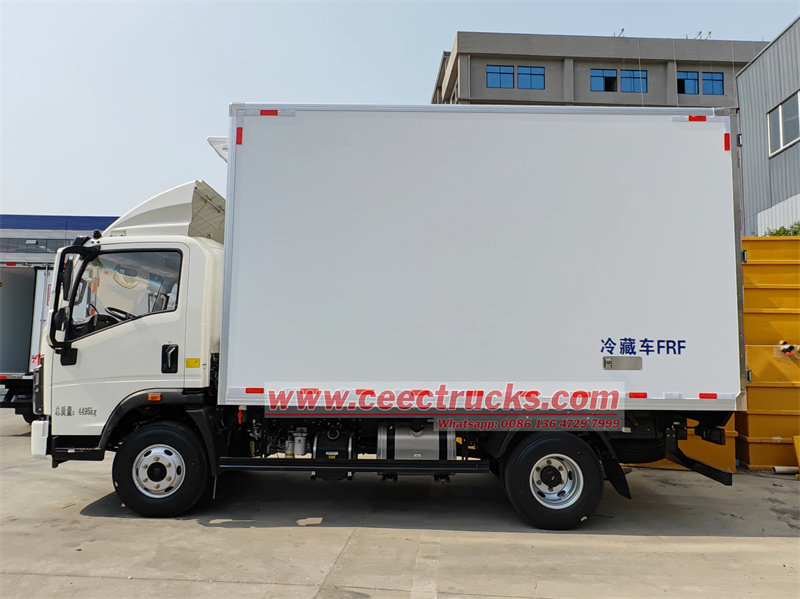

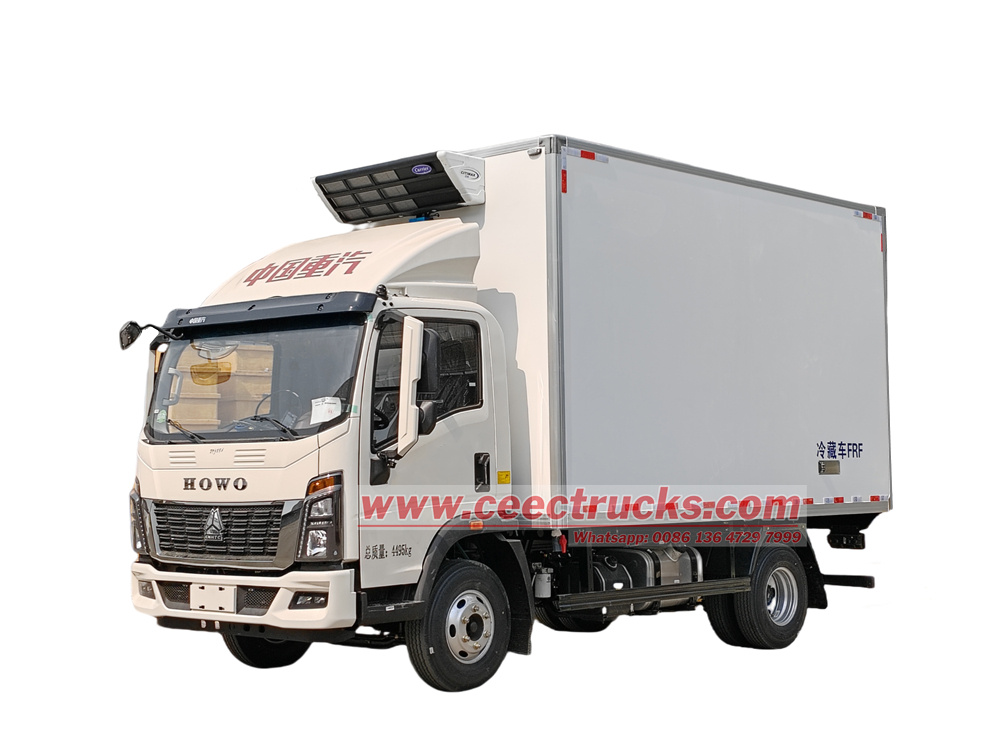

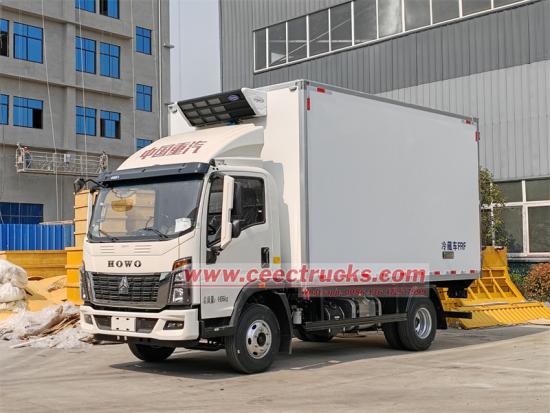

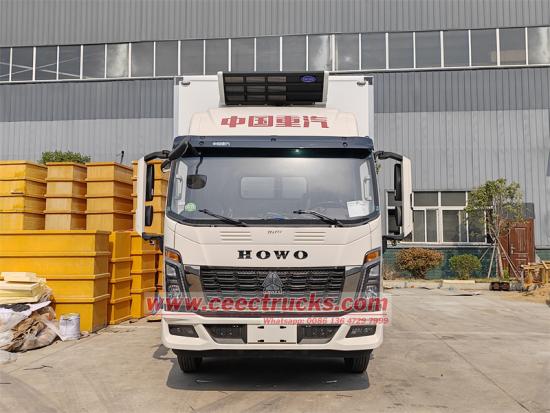

Howo 4x2 freezer truck with carrier unit

The Howo 4x2 freezer truck with carrier unit is an efficient transport tool designed for modern cold chain logistics. The vehicle is equipped with a 160-horsepower Weichai WP3NQ160E61 engine and a 6-speed gearbox, which is powerful, energy-saving and environmentally friendly. The refrigerated box body adopts a three-layer composite structure of FRP+PU foam+FRP. The 105mm thick insulation layer is matched with the Carrier CITIMAX D6 refrigeration unit (6000W cooling capacity), which can accurately maintain a temperature range of -20℃ to +40℃. The 3360mm wheelbase design takes into account the flexibility and driving stability of urban roads. The configuration of single door on the right side + double door at the rear facilitates loading and unloading operations. It is suitable for a variety of scenarios such as fresh food distribution, medical cold chain, and catering supply. It is an ideal choice for small and medium-sized cold chain enterprises, reducing operating costs while ensuring the freshness of goods throughout the process.

● 30 years experience on refrigerated truck designing

● Build strict QC team to guarantee the quality

● 24 months long guarantee time assurance

● CKD, SKD parts service, Container shipping, Save freight

● Fast delivery time, Quick 10 days shipping time

In the fish market in the early morning and the supermarket distribution center late at night, a group of "cold fresh knights" are driving the HOWO 4x2 refrigerated trucks to shuttle through the city. This seemingly ordinary white truck is actually a precision instrument in the field of cold chain logistics. The perfect marriage of the HOWO Leader series chassis and the Carrier refrigeration system, the precise combination of the 3360mm golden wheelbase and the 160-horsepower Weichai heart, together weave a cold chain protection network covering urban and rural areas.

★. Chassis and power system: lightweight design empowers urban cold chain

The HOWO 4x2 refrigerated truck is built on the Leader series light truck chassis and is designed for high-frequency cold chain scenarios such as urban distribution and fresh short-haul. Its 3360mm wheelbase finds the perfect balance between turning radius and driving stability. The power system is equipped with Weichai WP3NQ160E61 National VI b engine, with 160 horsepower output and 480N·m peak torque, which can achieve efficient power response in the 2200rpm economic speed range. With the Xingrui ML650A 6-speed manual transmission, the gear ratio optimization reduces the 1-2 gear speed difference by 15%, greatly reducing the shifting frustration under urban congested road conditions, and the comprehensive fuel consumption per 100 kilometers is 1.2L lower than that of competitors, and the annual operating cost can be saved by more than 10,000 yuan.

★. Refrigerated box: Sandwich structure creates an intelligent temperature control cabin

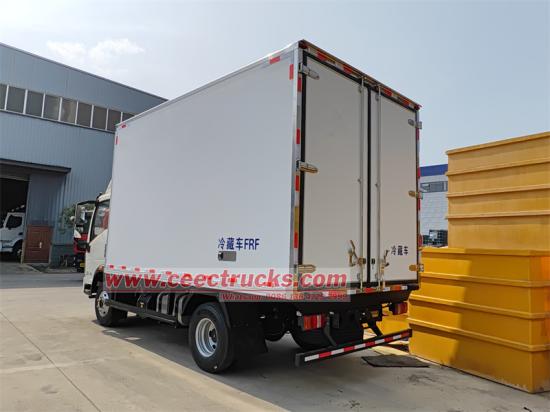

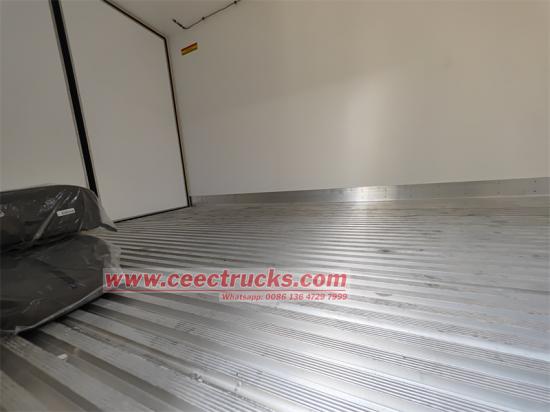

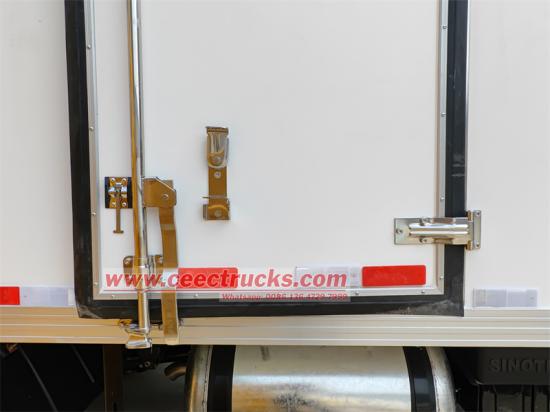

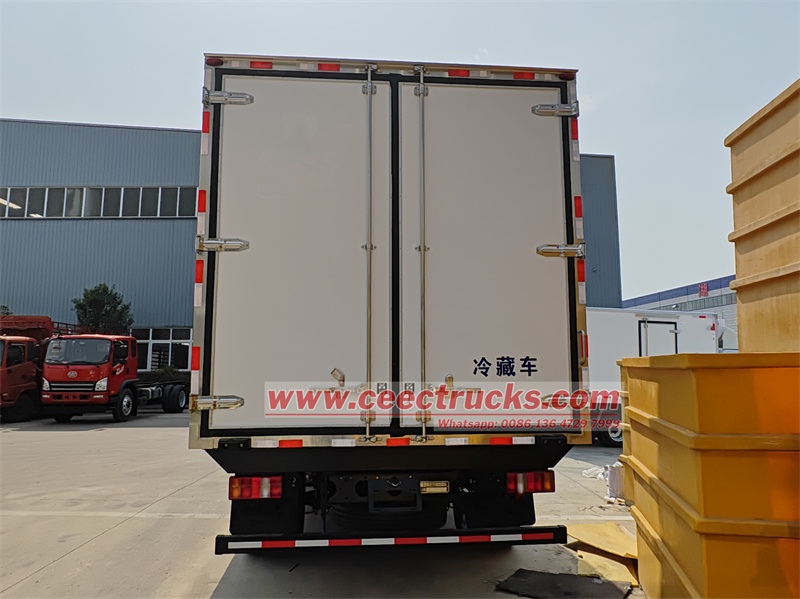

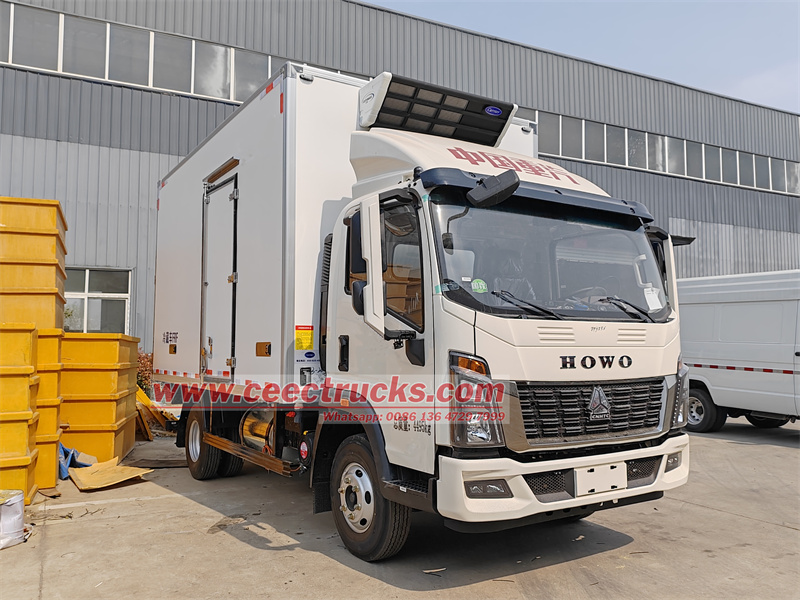

The upper body adopts a 4100×2300×2050mm modular refrigerated box with a total volume of 19.2 cubic meters, which supports the storage of multiple categories such as fresh food, medicine, and frozen food. The box panel adopts FRP (glass reinforced plastic) + PU (polyurethane) foam + FRP composite sandwich structure, and the thermal insulation coefficient reaches 00.32W/(m²·K) at a thickness of 105mm, which is 40% higher than the traditional XPS material. The fully enclosed sandwich panel is formed by vacuum one-piece molding process to eliminate the risk of cold bridge caused by traditional splicing gaps, and the temperature difference fluctuation in the box is ≤±1.5℃. The combination design of the right single door + rear double door supports direct loading and unloading by forklifts. The rear door is fully opened at a 180° angle with anti-collision rubber sealing strips to ensure loading and unloading efficiency and sealing. The box is paved with non-slip aluminum alloy patterned flooring, the friction coefficient is increased by 30%, and with the 15° slope transition design, it can carry 1.5 tons of pallet cargo without obstacles.

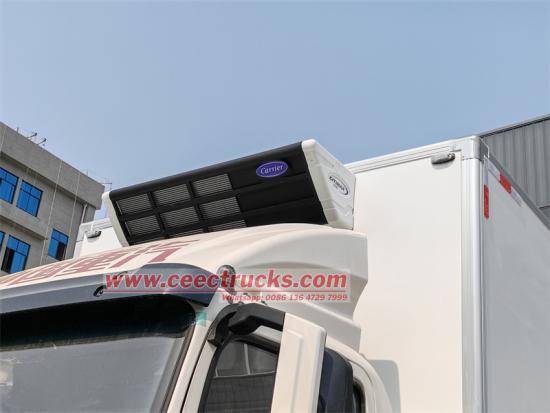

★. Refrigeration unit: Carrier CITIMAX D6 non-independent precise temperature control

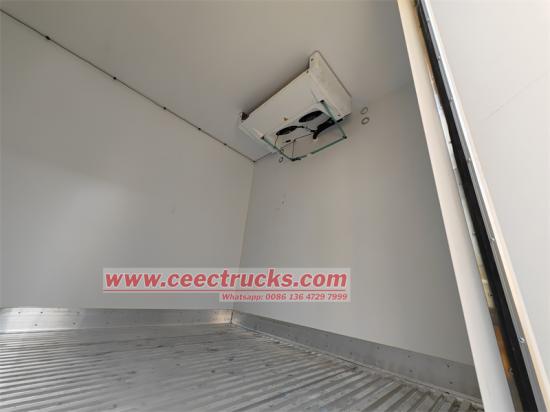

The refrigeration system is equipped with Carrier CITIMAX D6 non-independent refrigeration unit, which uses R452A environmentally friendly refrigerant, with a COP energy efficiency ratio of 2.8, which is 25% energy-saving than R404A. The unit supports wide temperature range adjustment from -20℃ to +40℃, and achieves ±0.5℃ temperature control accuracy through multi-sensor fusion algorithm, meeting the GSP standard of pharmaceutical cold chain. The original dual evaporator parallel technology improves the temperature uniformity in the box by 35%, avoiding cargo damage caused by local temperature differences. The unit has a built-in 4G remote monitoring module, which can upload data such as box temperature, compressor status, refrigerant pressure, etc. to the cloud platform in real time, support fault warning and remote parameter adjustment, and reduce maintenance costs by 30%.

★. Scenario Adaptation: Full Coverage of Cold Chain Demands in Multiple Industries

This model provides customized solutions for urban cold chain segmented scenarios:

• Fresh food delivery: It can quickly cool down and maintain a stable low temperature to ensure that fresh products such as vegetables, fruits, meat, and seafood do not rot or deteriorate during transportation;

• Pharmaceutical transportation: Pharmaceutical products such as vaccines, biological preparations, and blood products are extremely sensitive to temperature and must be strictly controlled in a specific temperature zone of 2℃~8℃ or -15℃~-25℃ during transportation. The 105mm thick FRP+PU foam composite box of the HOWO 4x2 refrigerated truck has excellent thermal insulation performance. With the Carrier intelligent temperature control system, it can accurately maintain the set temperature with a small fluctuation range;

• Quick-frozen food: The rapid pre-cooling function can reduce the temperature in the box from +30℃ to -18℃ within 30 minutes, ensuring the quality of quick-frozen dumplings, ice cream and other goods.
