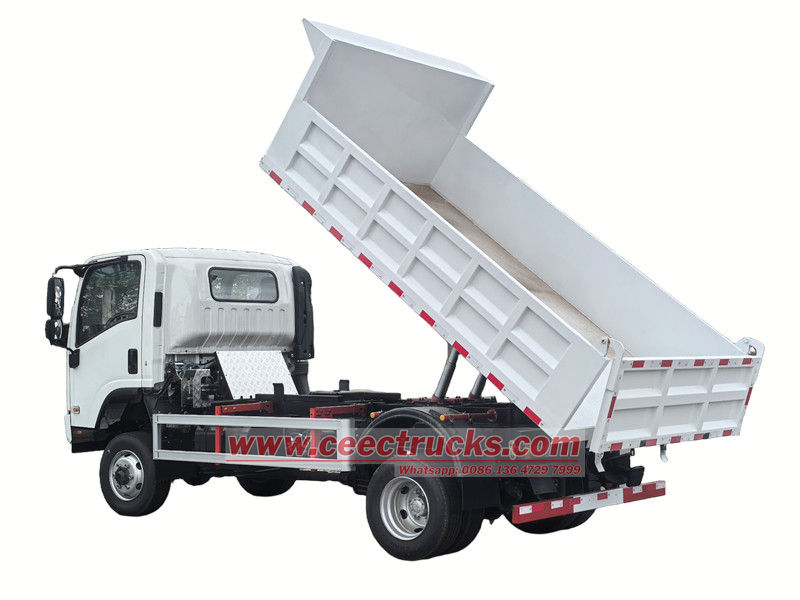

Isuzu 4x4 drive dumper truck is a special transport vehicle equipped with an automatic unloading device. Its core function is to tilt the cargo compartment through a hydraulic or mechanical lifting system, and quickly dump the bulk materials such as sand, coal, and ore loaded inside. Its core feature is that the rear cargo compartment can be lifted and tilted by the hydraulic system to achieve rapid automatic unloading, greatly improving work efficiency. Isuzu 4x4 drive dumper truck uses a diesel engine with strong power, is equipped with off-road tires and high ground clearance, and can adapt to complex road conditions. In the fields of construction sites, mining, road construction, etc., dump trucks have become indispensable engineering equipment vehicles due to their efficient transportation and flexible unloading capabilities.

● China best dumper truck factory

● More than 30 years professional manufacturer experience

● Be designed according to your requirements

● Professional sales team which will help you to choose suitable truck

● We can offer your a good after-sale service

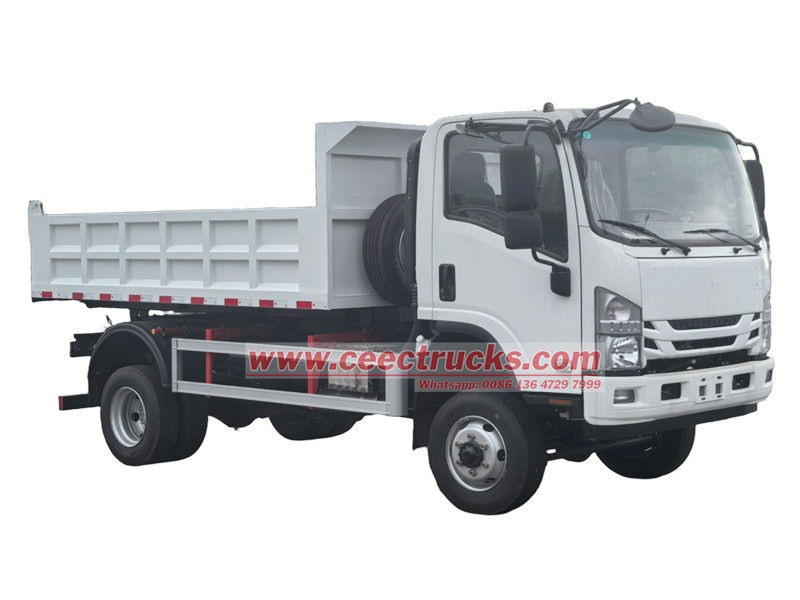

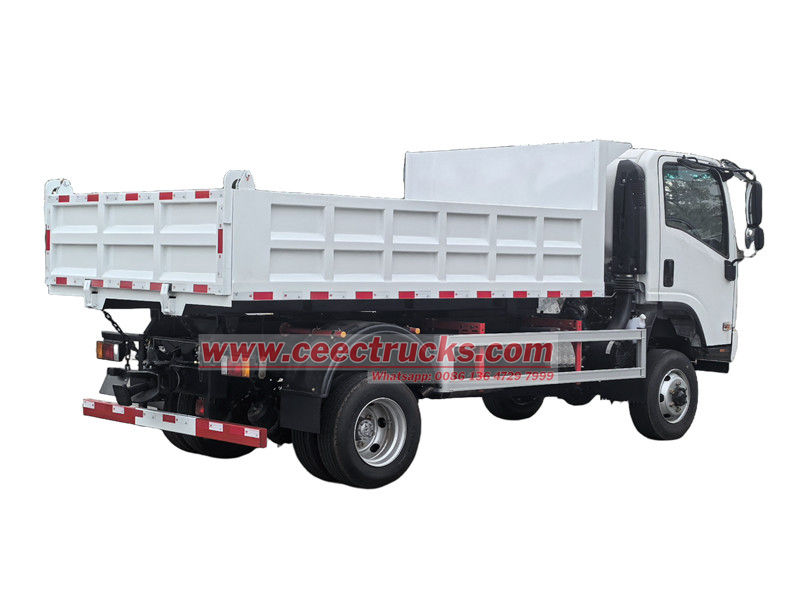

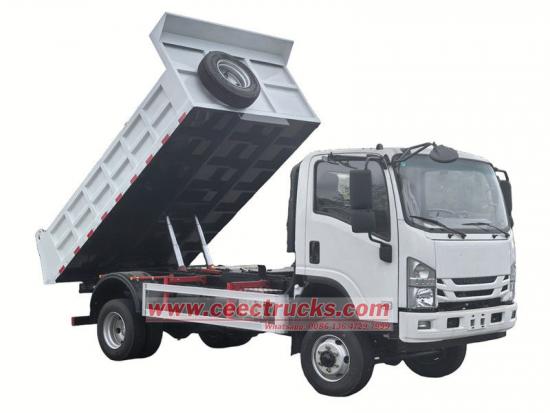

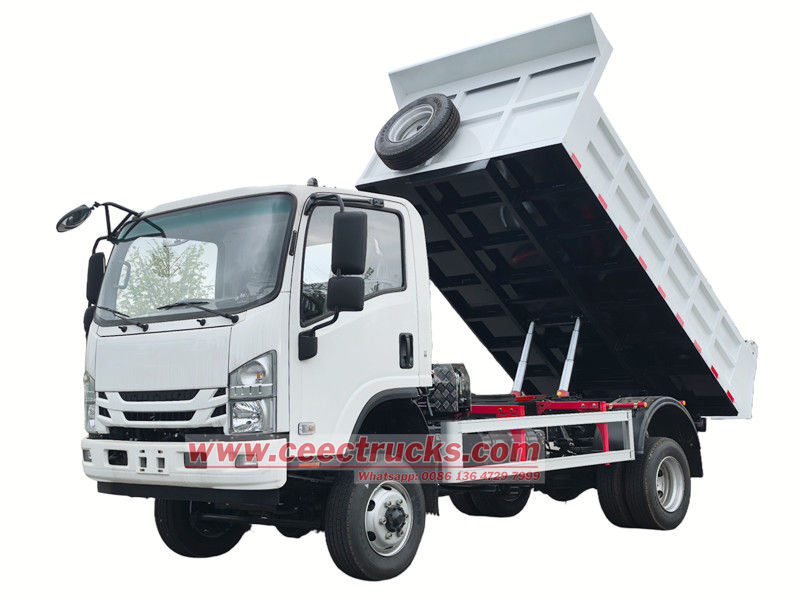

*Isuzu 4x4 drive dumper truck

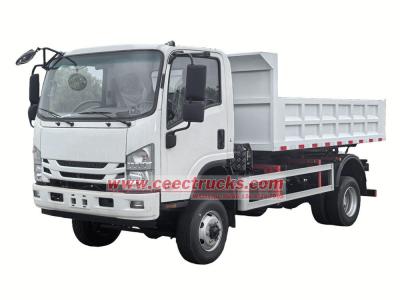

Isuzu ELF mining dump truck*

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED

Features:

Truck Chassis: Isuzu ELF truck chassis, 4x4,  6x4 model

                          Isuzu 4HK1-TCG61 model with 190HP and emission 5193cc.

Isuzu 4x4 drive dumper truck also called Isuzu NPR construction tipper truck,Isuzu commercial mining dumper,Isuzu ELF sand delivery dump truck,Isuzu ELF mining dump truck,Isuzu 190hp tipper truck.etc. is a robust and versatile dump truck,the carriage is ingeniously designed,  Through the hydraulic lifting device, it can realize fast and automatic dumping of goods, whether it is sand, coal or earth, it can be unloaded efficiently, greatly saving manpower and time.

Isuzu 4x4 drive dumper truck has significant advantages. Its all-wheel drive system gives the vehicle strong off-road capabilities. When facing complex and harsh road conditions such as mud, gravel, and steep slopes, it can ensure that each wheel obtains driving force, effectively avoiding slipping and sinking. Its passability is far superior to ordinary rear-wheel drive or front-wheel drive dumper trucks.

The Isuzu 4x4 drive dumper truck has the advantage of efficient unloading. The hydraulic lifting device can dump the goods quickly and smoothly, saving time and manpower. In heavy-load transportation scenarios such as mining and infrastructure, all-wheel drive dump trucks have become key equipment to ensure project progress and improve transportation efficiency with their excellent adaptability and efficient operation capabilities.

» Ⅱ.Product Parameter for Isuzu 4x4 drive dumper truck:

« Ⅲ.Product Details & Advantages

1. Strong power and efficient transmission

Equipped with Qingling Isuzu 4HK1-TCG61 high-pressure common rail diesel engine, with a displacement of 5.193L, a maximum output power of 139kW (190 horsepower), and a maximum torque of 510N·m, it can burst out strong power at low speed, easily coping with high-load scenes such as heavy-load climbing and muddy roads. It is matched with Isuzu MLD-6Q six-speed manual transmission, which has smooth shifting and high transmission efficiency. With the rear axle speed ratio of 4.1, it achieves a balance between power and fuel economy, and the comprehensive fuel consumption is 10%-15% lower than that of similar models.



2. All-wheel drive and off-road performance

The 4X4 drive form significantly improves the vehicle's passability on unpaved roads. Its 235/75R17.5 low-profile tires and 8/10+6 multi-leaf spring suspension system provide stronger grip and impact resistance. With a 16° approach angle and 12° departure angle design, it can easily conquer complex terrains such as gravel roads and muddy swamps, meeting the needs of mining, field construction and other scenarios.

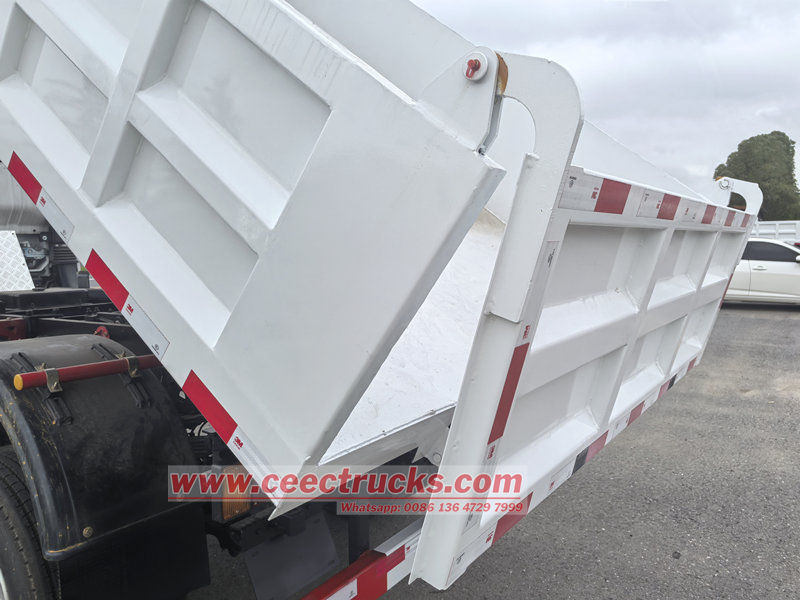

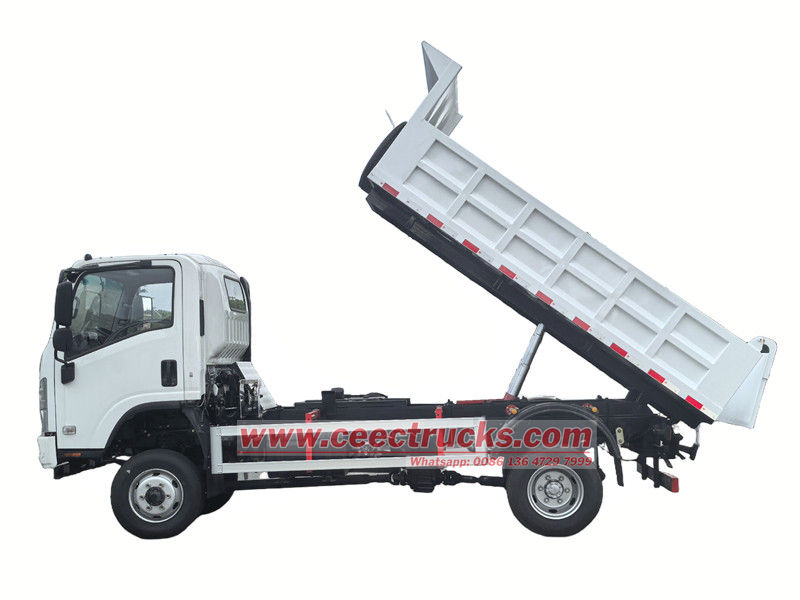

3. Large-capacity cargo compartment and efficient unloading

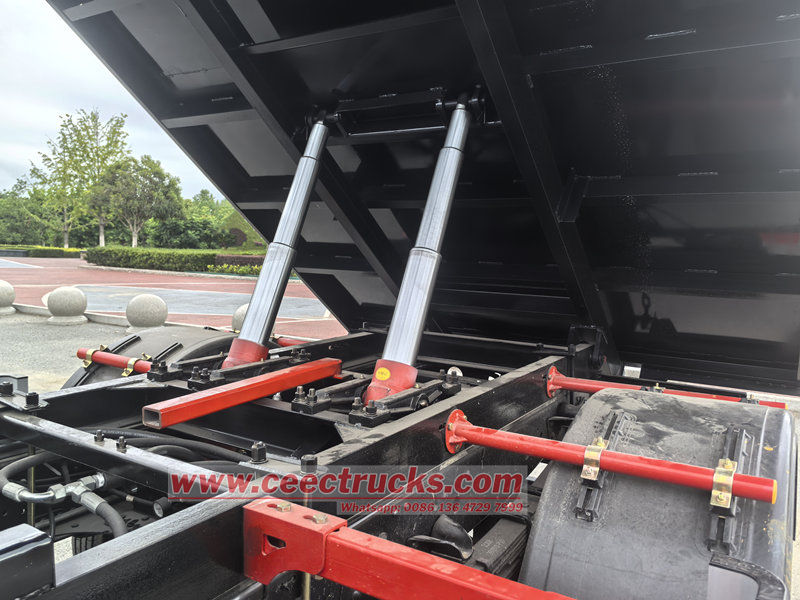

The cargo compartment is made of high-quality carbon steel and steel tile structure, with a length of 4.2m, a width of 2.2m, a height of 0.55m, and a rated load of 5-6 tons, meeting the needs of large-scale material transportation. The hydraulic lifting system supports rear-tilt unloading, with a lifting angle of more than 60°. Combined with the low center of gravity design, it ensures a stable and efficient unloading process, and a single operation cycle is shortened by 20% compared with traditional models.
