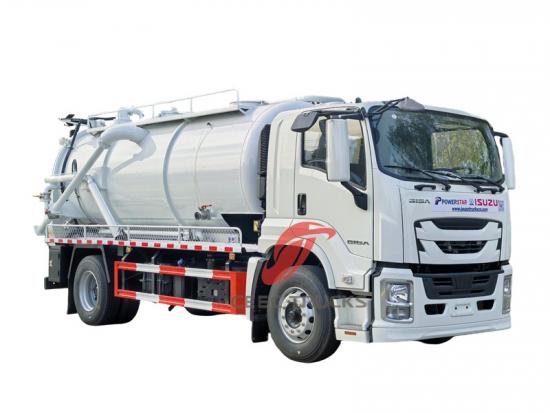

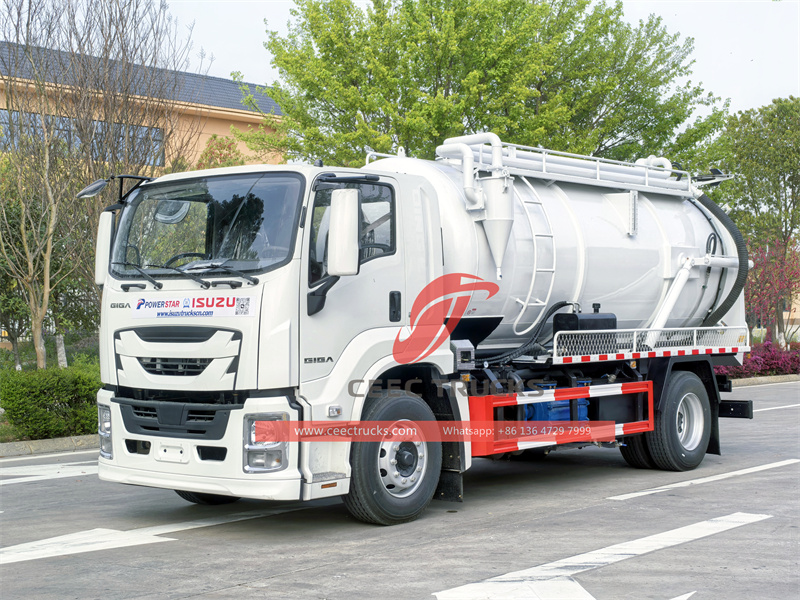

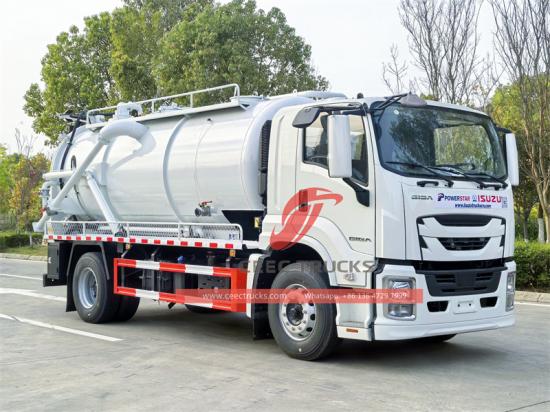

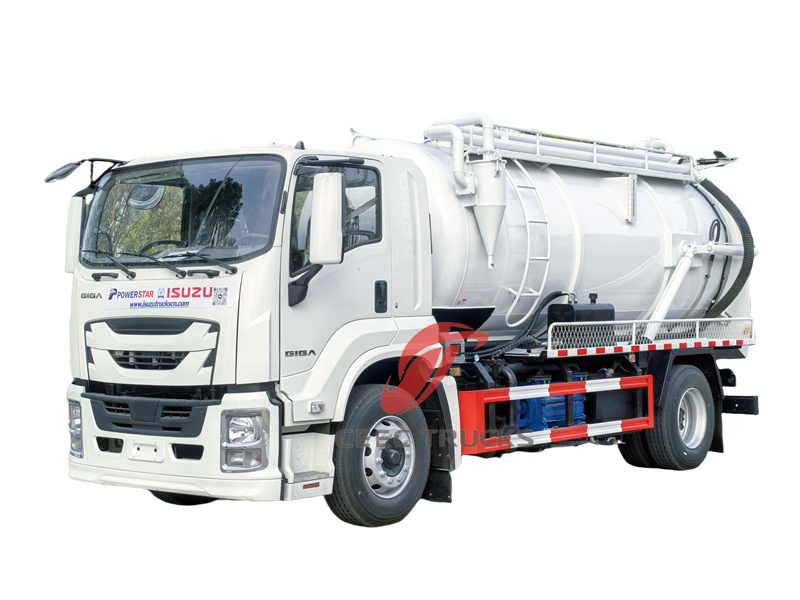

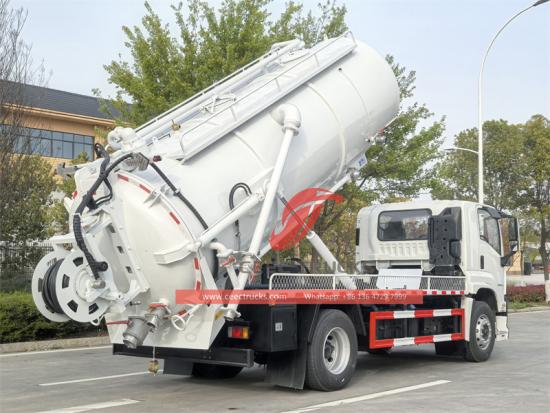

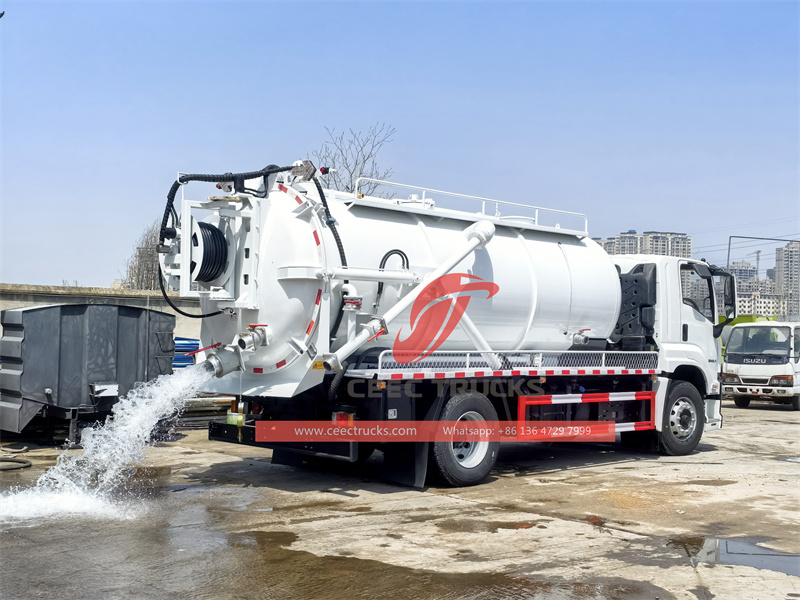

ISUZU FTR Clean Combined vacuum Sewage Tanker has become an industry benchmark with its excellent performance and multifunctional design. Equipped with a powerful 4HK1 series engine with a maximum horsepower of 205Ps, combined with a high-pressure cleaning pump (pressure 16-19Mpa) and a sewage suction system, it can quickly dredge sewers, septic tanks and other complex scenes. The tank volume is up to 8 cubic meters, and the operating efficiency is extremely high. It adopts a modular design and supports optional front reels, liquid level gauges and sprinklers to meet diverse needs.
Product Origin:
China CEEC TrucksLead Time:
40 daysWork capacity:
12000 litersDimension ( mm ):
7800 * 2500 * 2850Wheelbase ( mm ):
4600Engine power:
205 HPEngine type:
4HK1-TCG60Axle drive:
4x2, left hand driveGear box:
MLD 6-speed,manualRemarks:
Water circultation vacuum pumpIn the field of municipal sanitation, ISUZU FTR Clean Combined vacuum Sewage Tanker has become an industry benchmark with its excellent performance and multifunctional design. Equipped with a powerful 4HK1 series engine with a maximum horsepower of 205Ps, combined with a high-pressure cleaning pump (pressure 16-19Mpa) and a sewage suction system, it can quickly dredge sewers, septic tanks and other complex scenes. The tank volume is up to 8 cubic meters, and the operating efficiency is extremely high. It adopts a modular design and supports optional front reels, liquid level gauges and sprinklers to meet diverse needs. The ISUZU FTR chassis has a sturdy structure, flexible wheelbase (3900-7200mm), strong passability, and is optimized for narrow urban roads and harsh environments. Whether it is daily maintenance or emergency dredging, the ISUZU FTR Combined Sewage Clean truck provides solid protection for the healthy operation of urban underground pipe networks with low noise, high reliability and a complete after-sales network.
● China best vacuum sewage tank truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Professional sales team which will help you to choose suitable truck
● We can offer your a good after-sell service
Specification:
|
Isuzu FTR septic tanker truck |
||
|
Vehicle Description |
||
|
Overall dimensions |
7800*2500*2850mm |
|
|
GVW |
18000kg |
|
|
Curb weight |
8600kg |
|
|
Sewage tank (m3) |
5+3 |
|
|
Drive system |
4*2 |
|
|
Chassis Description |
||
|
Chassis brand |
ISUZU |
|
|
Steering |
LHD |
|
|
Cab |
ISUZU GIGA 4x,single row, 2 seats,with A/C |
|
|
Wheelbase |
4600mm |
|
|
Tire specification |
295/80R22.5 |
|
|
Tire quantity |
6 tires and 1 spare tire |
|
|
Engine |
Engine model |
4HK1-TC60 |
|
Emission level |
EURO 6 |
|
|
Displacement/output |
5193ml/151kw |
|
|
Horse power |
205HP/2350rpm |
|
|
Weight |
456Kg |
|
|
Fuel |
Diesel |
|
|
Gear box |
Model |
ISUZU MLD |
|
Number of gears |
6-speed |
|
|
Brake system |
Air break |
|
|
Axle |
Front |
6.3T |
|
Rear |
13T |
|
|
Fuel tanker |
Type |
Stainless steel |
|
Capacity |
200L |
|
|
Tanker Description |
||
|
Tanker
|
Capacity |
5000+3000 Liters |
|
Material |
6mm thickness, high quality carbon steel |
|
|
Structure |
Welding, vacuum tank, Cylindrical |
|
|

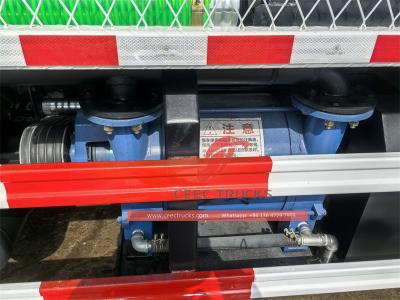

Pump
|
Type |
Water circulation pump |
|
Flux |
68(L/S) |
|
|
Rating speed |
800~1000(r/min) |
|
|
Shaft power |
5(kw) |
|
|
Features |
Low speed, low fuel consumption, low noise, high vacuum, high efficiency |
|
|
Pipe |
Suction and discharge pipe |
|
|
Special function |
Suction time ≤ 5min, effective suction range ≥ 8, Max vacuum degree ≤ 15 KPa, dump angle ≥ 45° |
|
|
Standard configuration |

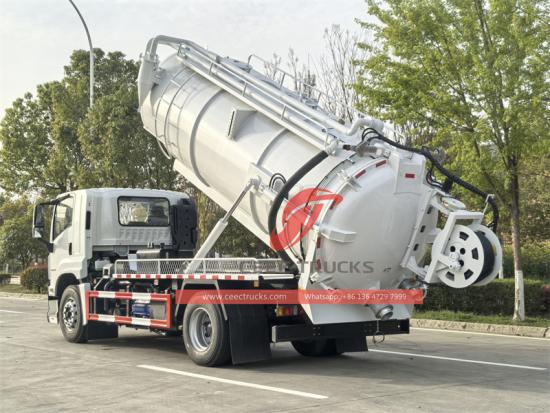

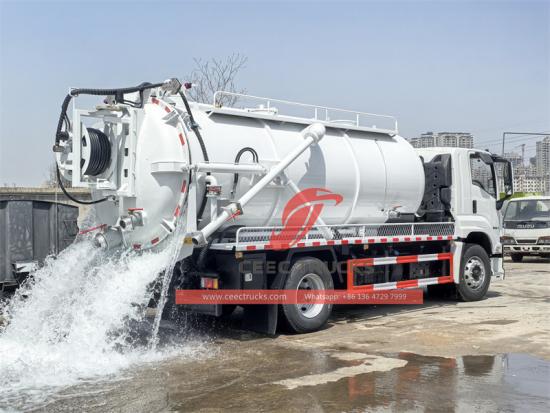

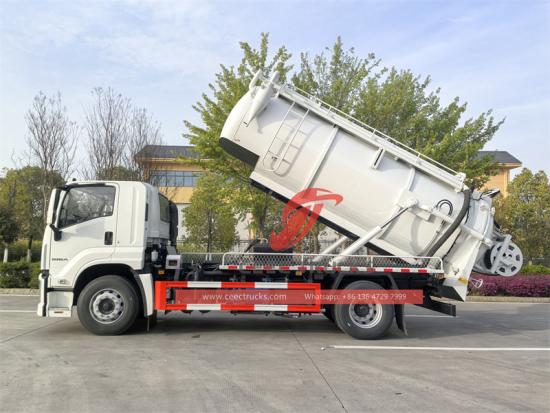

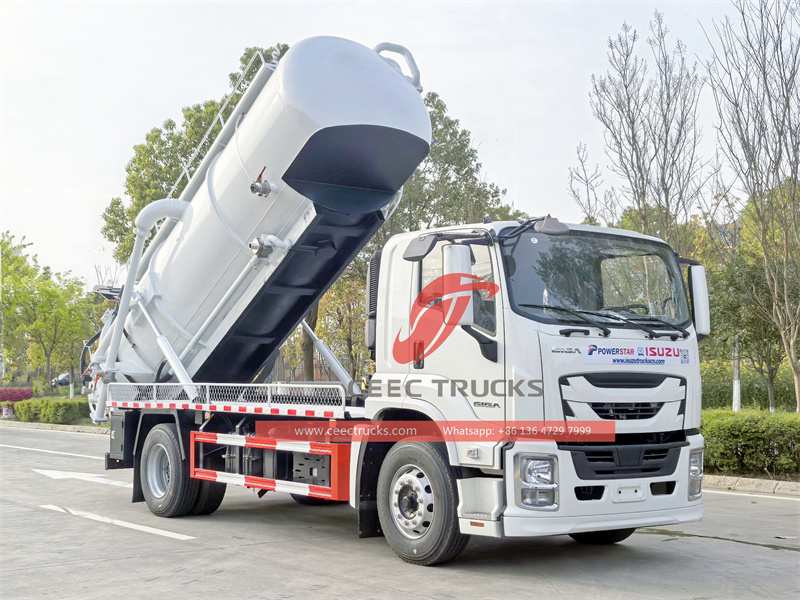

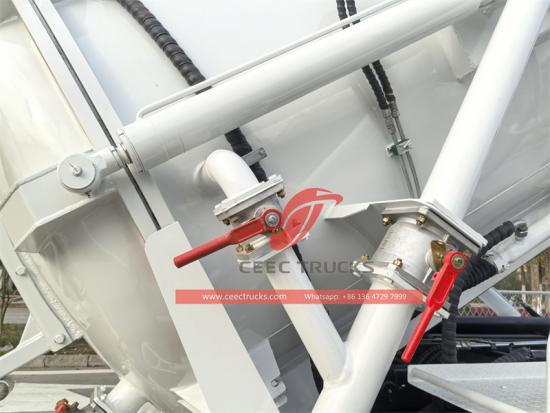

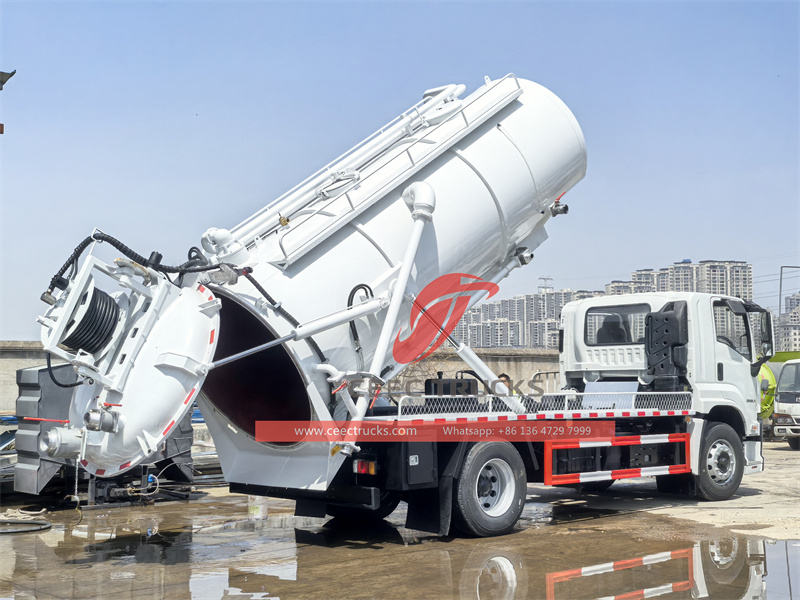

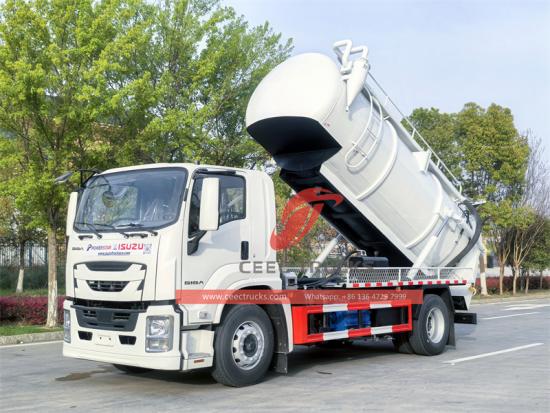

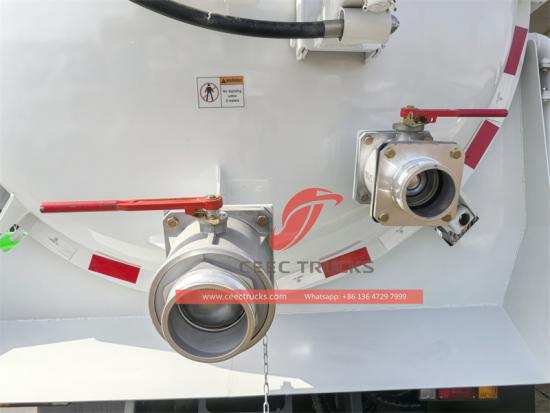

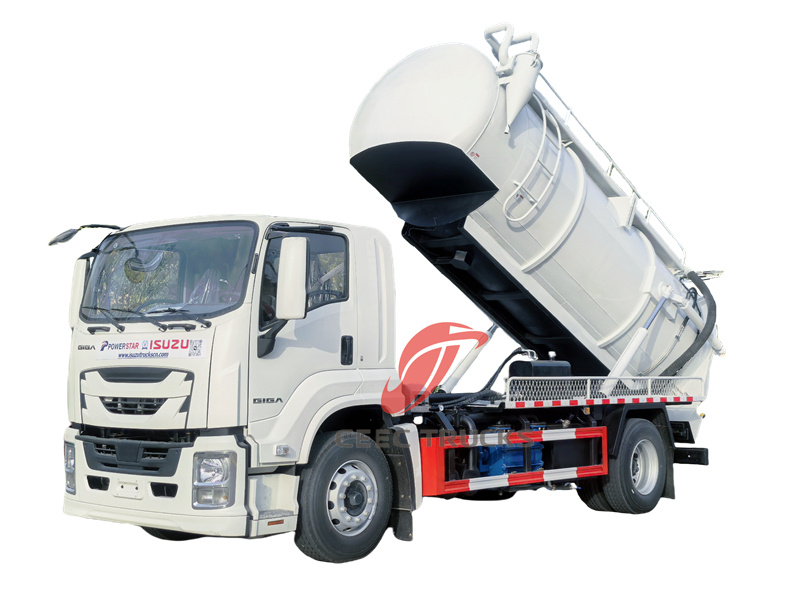

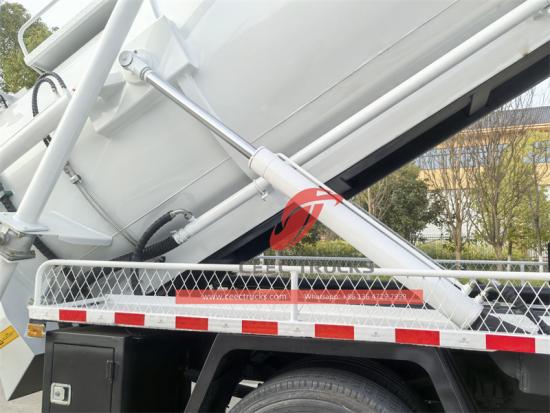

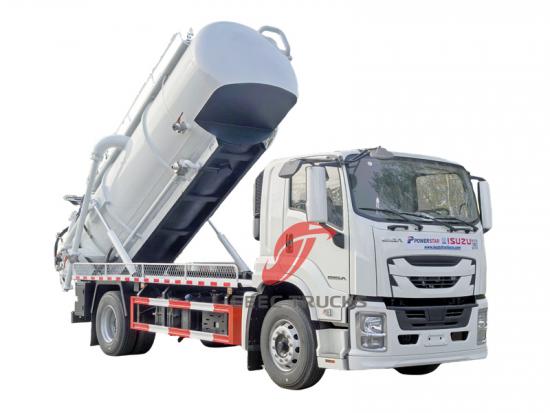

Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically. |
|
|
Optional configuration |
Tanker material: stainless steel. Vacuum pump : China or Spain vacuum pumps. Anti-rust coating inside tank |
|
Advantage:
1. Efficient operation capability and multi-functional integration
High-pressure cleaning and sewage suction dual-mode synergy: ISUZU FTR Combined Sewage Clean truck integrates the functions of high-pressure cleaning truck and sewage suction truck, adopts 16-19Mpa high-pressure water jet technology, can powerfully remove stubborn dirt, tree roots and other obstacles in the pipeline, and quickly suck out the sewage through the vacuum suction system, realizing the seamless connection of "flushing + sewage suction" operation, significantly improving the dredging efficiency.
Large capacity and fast processing: The tank volume reaches 8000L, and it only takes ≤5 minutes to pump out the sewage. It supports the rapid processing of septic tanks, sewers and other scenes, reducing the multiple round-trip transportation caused by the capacity limitation of traditional sewage suction trucks, reducing time and cost.
Continuous operation design: Equipped with a multi-level sewage water circulation system, it allows high-pressure flushing, sewage suction and other functions to run simultaneously to ensure the continuity of operation, especially suitable for large-scale municipal engineering or emergency rescue tasks.
2. Environmental protection and economic optimization
Solid-liquid separation and on-site treatment: The source factory customization can support the cylindrical filter plus the shaftless spiral structure to achieve solid-liquid separation of pollutants. Sewage can be directly discharged into the municipal pipe network, and solid waste can be packaged and processed to avoid secondary pollution caused by traditional transportation, while saving transportation costs.
Long-term cost savings: Mechanized operation efficiency far exceeds manual labor, a large single processing area, and reduced unit cleaning costs; modular design reduces repeated equipment purchases and extends service life.
3. Adaptability and reliability

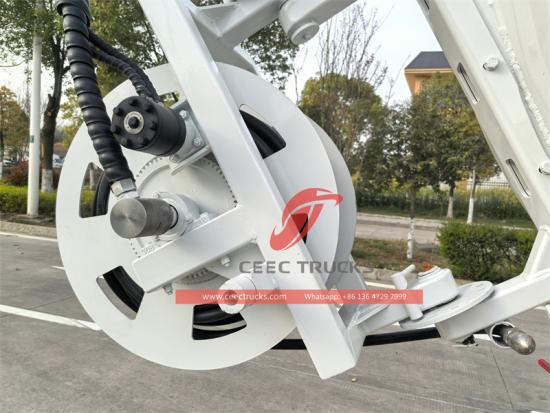

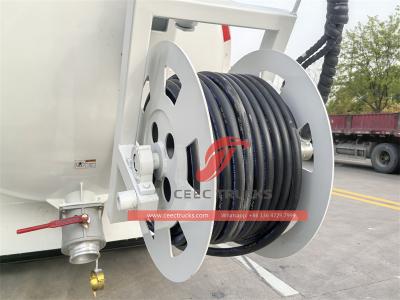

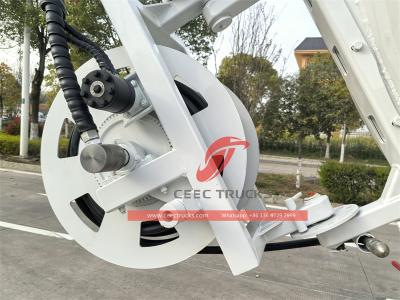

Complex scenario coping ability: flexible wheelbase (3900-7200mm), strong chassis passability, can adapt to narrow urban roads and harsh road conditions; optional front reel, level gauge, sprinkler, to meet diverse needs, such as winter snow shoveling, greening spraying and other extended functions.
Durable material and anti-corrosion design: The tank and pipeline are made of stainless steel or 4mm carbon steel, and the external frame-type protective structure is highly corrosion-resistant and extends the service life of the equipment.
Low failure rate guarantee: Key components such as hydraulic pumps and solenoid valves can use imported brands (such as Italian hydraulic pumps and German solenoid valves) according to customer needs to ensure stable operation of the system and reduce maintenance frequency.
★ ISUZU 4KH1 diesel engine, super powerful
★ Expert for producing ISUZU combination vacuum trucks over 10 years with good reputation
★ Vacuum tank and water tank is made of high-strength carbon steel
★ 12 months free fast moving spare parts
★ All English version control box, panel, and owner's manual, for easy understanding
★ Training service for ISUZU combination sewer trucks
