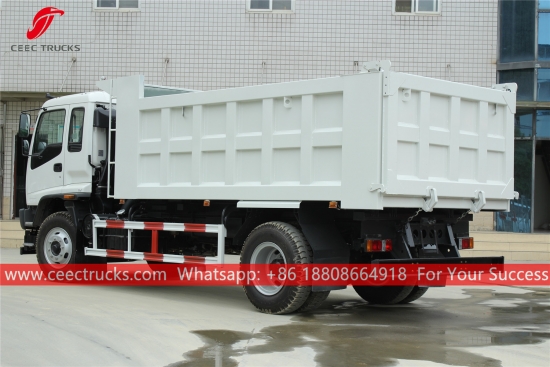

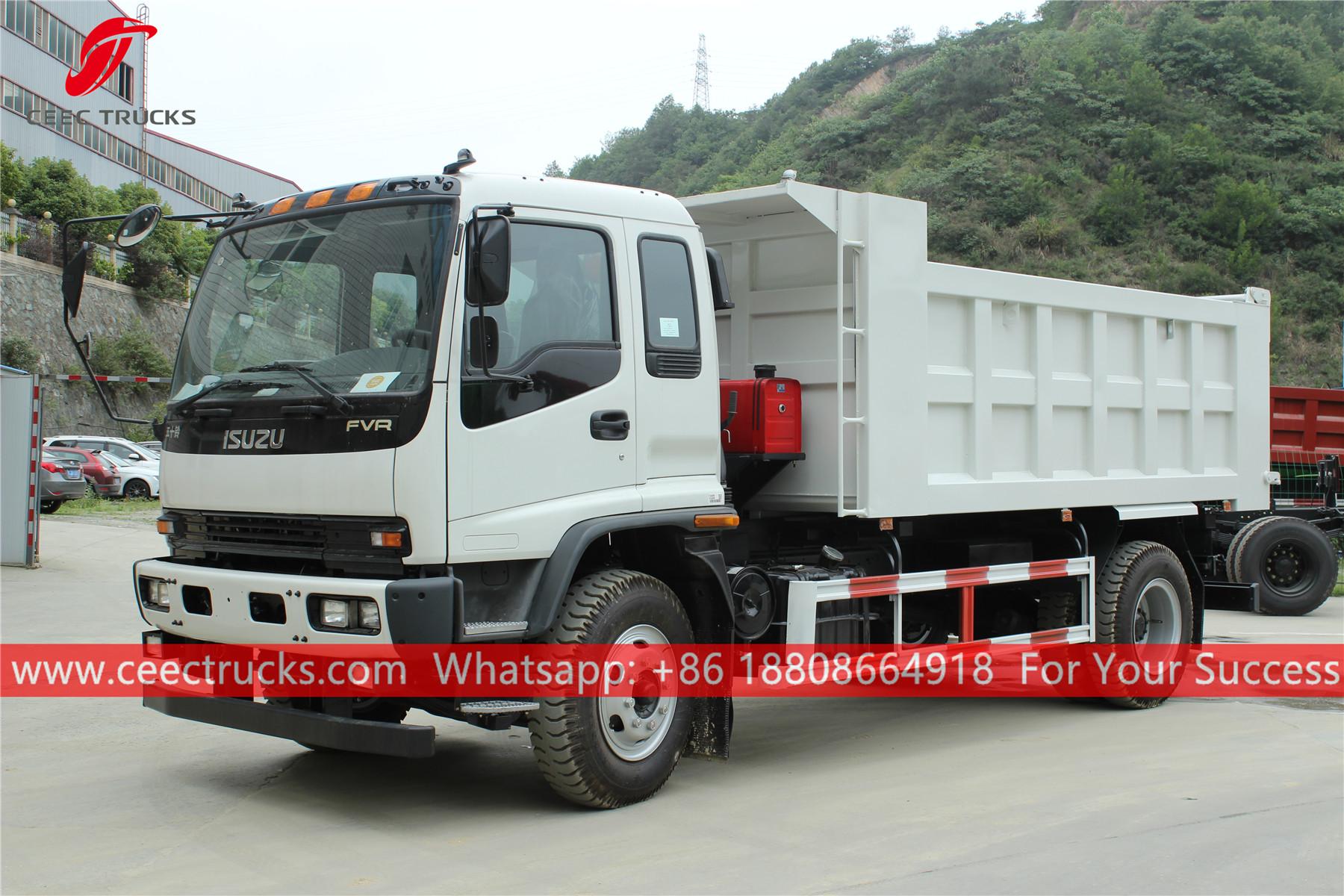

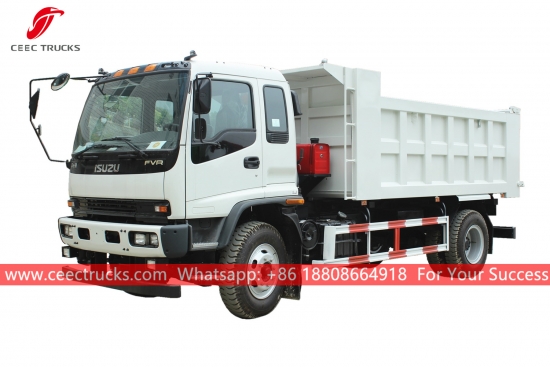

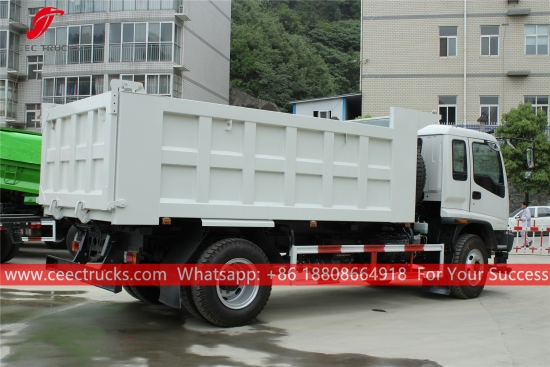

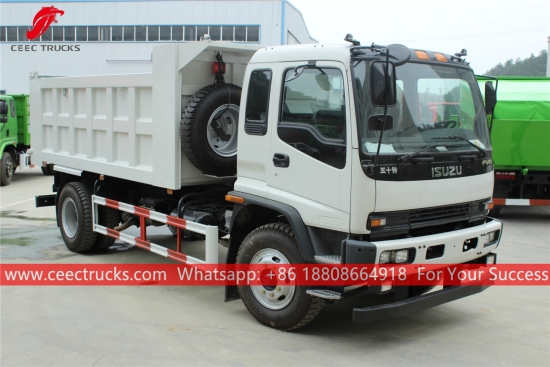

ISUZU FVR Dump truck

ISUZU FVR dump truck, ISUZU 4x2 LHD chassis, MLD 6-shift manual gearbox, ISUZU 240HP diesel engine, high strength steel tipper body, with HYVA or domestic hydraulic lifter optional. All painting and logos depend on customer's requirement.

  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    20 Days
  • Payment:

    T/T, West Union
contact now



 Applications:

ISUZU FVR Dumping truck (also called ISUZU heavy duty tipper truck, ISUZU 4X2 dumper truck, ISUZU new dump truck, hydrualic dump truck ISUZU, 6 wheels construction tipping truck, ISUZU dump vehicles) is a truck used for transporting oose material, such as sand, gravel, coal, dirt, etc.

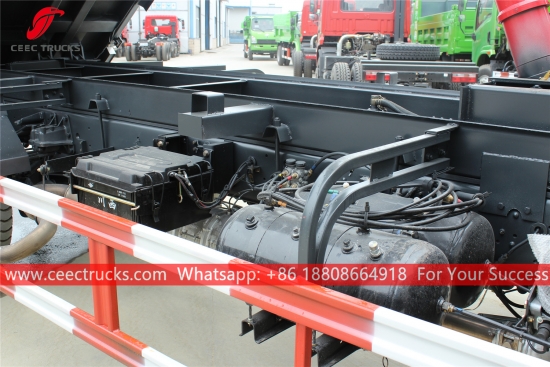

CEEC TRUCK dump truck is manufactured with the cutting-edge technology and components in the world such as WABCO double-cylinder air compressor, brake valve, HYVA front or middle hydraulic system, etc.



 Key Features:

---- ISUZU chassis, perfect performance
---- ISUZU diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Payloading from 10ton to 100 tons.
---- Easy operation and easy maintenance.

---- Various types of tipper body are available.



 Specifications:



ISUZU FVR Dump truck

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

ISUZU

Overall Dimension

6950 * 2500 * 3170 mm

GVW / Kerb Weight

16,000kg / 9,250kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU diesel engine

Power

240 HP (177 KW)

Displacement

7790 ml

Emission Standard

Euro 4

Chassis

Drive Type

4X2 (LHD)

Transmission

MLD 6 speed levers with 1 reverse

Wheelbase/No. of axle

4500 mm / 2

Tire Specification

11.00R20

Tire Number

6 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Pay loading capacity

20 Tons

Cargo body

4500*2200*1500

Thickness of cargo body

Option 1: Bottom 8mm, Side 6mm

Option 2: Bottom 10mm, Side 8mm

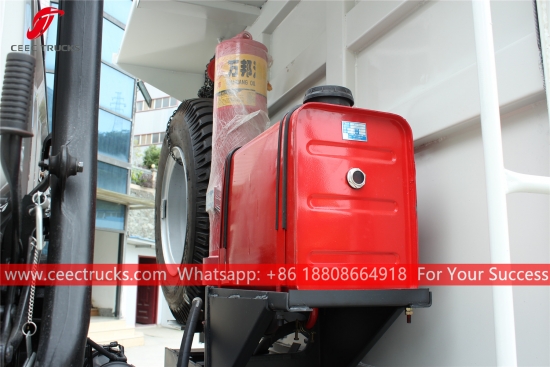

Cylinder type

T Type or Domestic 220 or HYVA 200

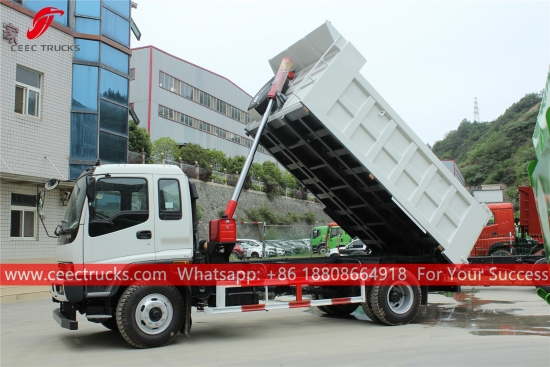

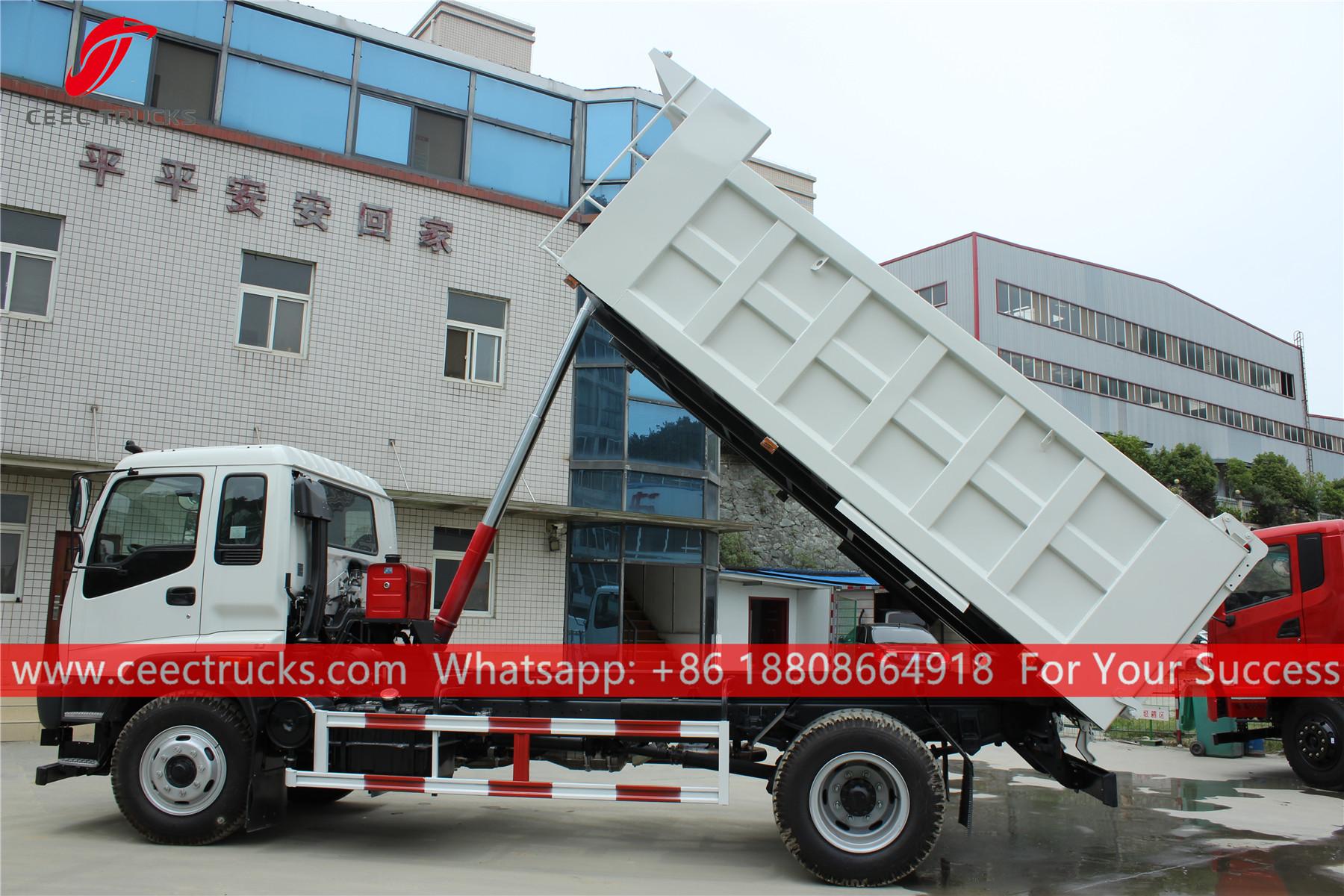

Lifting system

Middle or Front

Control

in the cabin

Color & LOGO

According to wish

All standard accessories: All steel body with drop sides. Auto release removable tailgate.

Ladder, warning lights, PTO

 fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Other tipper body can be choose.

** Other material and plate thickness can be choose.

Euro 4 type, ISUZU engine, fuel consumption save 20%

MLD 6-shift manual mechanical transmission gearbox

Dumper truck body material can be High strength carbon steel Q345 material, with thickness over 6mm

12 months fast moving spare parts for FREE

Authorized ISUZU tipper trucks exporter

Training service for ISUZU dumper trucks



China best dump truck supplier and exporter, we supply the best quality JAC 4*2, 6*4, 6*6, 8*4, 8*8, etc. We can ensure the fast delivery time and 12 months guarantee for our tipper trucks. Our dumping trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
