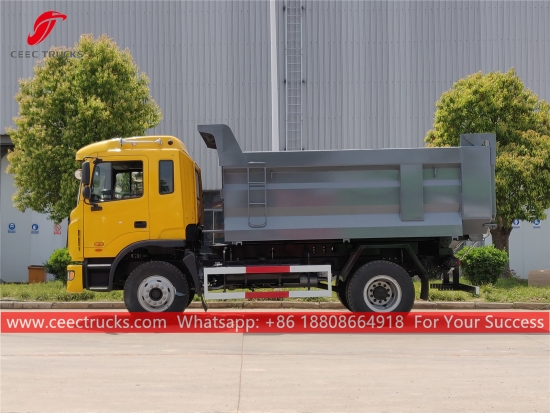

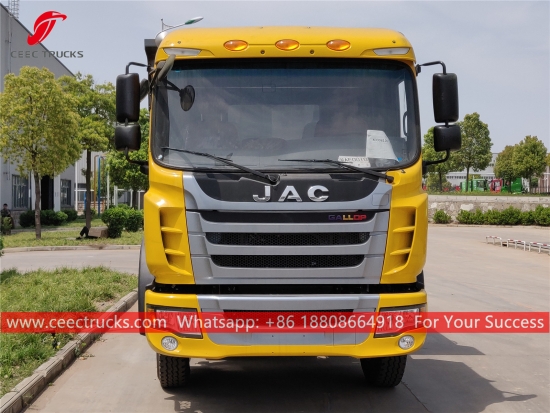

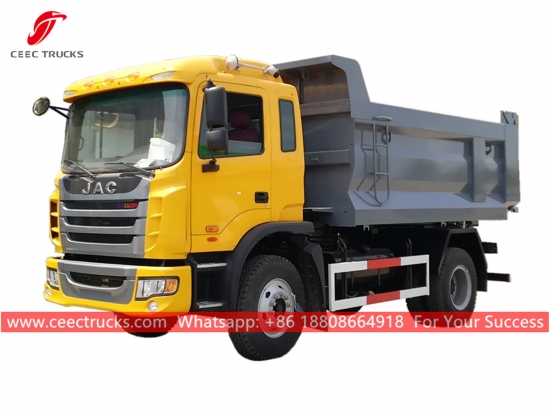

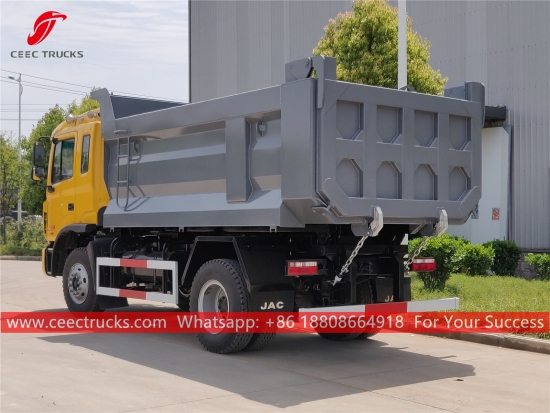

JAC GALLOP 4X2 Tipper truck

JAC 4x2 dump truck, JAC 4x2 LHD chassis, FAST 8-shift manual gearbox, famous Chinese brand WEICHAI 160HP diesel engine, high strength steel tipper body, with HYVA or domestic hydraulic lifter optional. All painting and logos depend on customer's requirement.

  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    20 Days
  • Payment:

    T/T, West Union
contact now



 Applications:

JAC 4X2 Dumper truck (also called JAC 6-wheel tipper truck, JAC 4X2 dump truck, hot sale tip trucks JAC, JAC one axle dump truck, good quality dump truck JAC, 10Tons Sand tipping truck, JAC small tipper lorry, JAC tipper) is a truck used for transporting oose material, such as sand, gravel, coal, dirt, etc.



CEEC TRUCK dump truck is manufactured with the cutting-edge technology and components in the world such as WABCO double-cylinder air compressor, brake valve, HYVA front or middle hydraulic system, etc.



 Key Features:

---- JAC heavy duty chassis, perfect performance
---- WEICHAI diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Payloading from 20ton to 100 tons.
---- Easy operation and easy maintenance.

---- Various types of tipper body are available.



 Specifications:



Hot sale JAC Dump truck

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

JAC

Overall Dimension

6720 * 2400 * 3300 mm

GVW / Kerb Weight

16,000kg / 7,950kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

WEICHAI diesel engine

Power

160 HP (115 KW)

Displacement

4088 ml

Emission Standard

Euro 4 or 5

Chassis

Drive Type

4X2 (LHD or RHD)

Transmission

FAST 8 speed levers with 2 reverse

Wheelbase/No. of axle

3600 mm / 2

Tire Specification

9.00R20

Tire Number

6 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Pay loading capacity

10 Tons

Cargo body

4200*2200*800

Thickness of cargo body

Option 1: Bottom 8mm, Side 6mm

Option 2: Bottom 10mm, Side 8mm

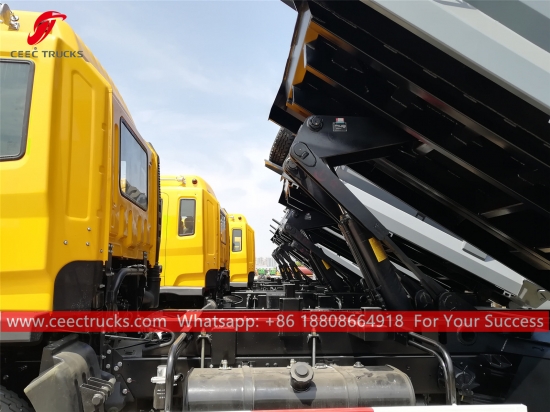

Cylinder type

T Type or Domestic 220 or HYVA 200

Lifting system

Middle or Front

Control

in the cabin

Color & LOGO

According to wish

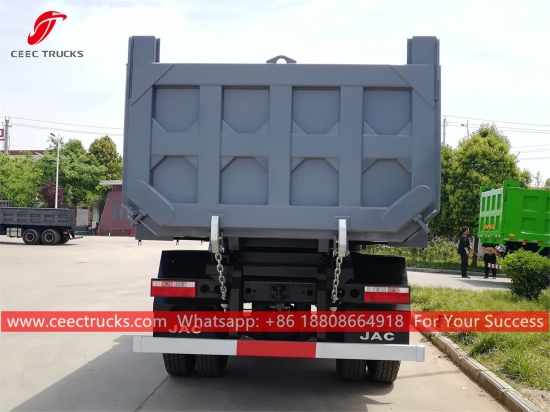

All standard accessories: All steel body with drop sides. Auto release removable tailgate.

Ladder, warning lights, PTO

 fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Other tipper body can be choose.

** Other material and plate thickness can be choose.

Euro 4 or 5 type, WEICHAI engine, fuel consumption save 20%

FAST 8-shift manual mechanical transmission gearbox

Dumper truck body material can be High strength carbon steel Q345 material, with thickness over 6mm

12 months fast moving spare parts for FREE

Authorized JAC tipper trucks exporter

Training service for JAC dumper trucks



China best dump truck supplier and exporter, we supply the best quality JAC 4*2, 6*4, 6*6, 8*4, 8*8, etc. We can ensure the fast delivery time and 12 months guarantee for our tipper trucks. Our JAC heavy trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
