ISUZU FVR rubbish compactor truck

The Isuzu FVR rear load trash truck is ideal for your sanitation work. Isuzu heavy-duty rear load trash truck has a powerful power system that can easily cope with various working conditions. The spacious cab provides good visibility and a comfortable operating environment. Isuzu FVR garbage compactor truck is made of high-quality steel and is strong and durable. The compression device has a high compression ratio, which can effectively increase the garbage loading capacity, reduce the frequency of round trips, and improve work efficiency. The hydraulic system is responsive and has excellent control performance. In addition, the Isuzu FVR rubbish compactor truck is equipped with advanced safety protection devices to ensure the personal safety of drivers and workers.

Lead Time:
50Days
Work capacity:
12 CBM
Engine power:
240 HP
Engine type:
6HK1-TCL
Axle drive:
4x2,left hand drive
Gear box:
MLD 6-speed,manual
Remarks:
Fully sealed loading hooper

Inquiry now

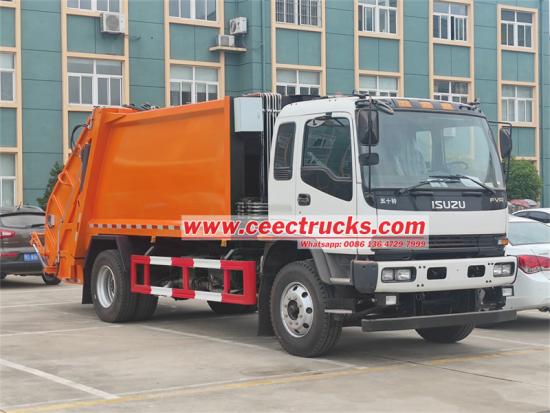

This Isuzu FVR trash truck rear loader is a dedicated sanitation vehicle with excellent performance. It is equipped with an Isuzu 6HK1-TCL 6.5-liter in-line 6-cylinder turbocharged intercooled diesel engine with a maximum power of 240 horsepower, meets Euro V emission standards, is powerful and environmentally friendly. Matched with the engine is an Isuzu MLD gearbox with smooth shifting. The truck adopts 4x2 drive mode and has excellent carrying capacity. The compressed garbage bin has a volume of 12 cubic meters and is made of Q235 manganese steel. The side plates are 4mm and the bottom plate is 5mm. It has high strength and corrosion resistance. The trash can is compatible with trash cans of different specifications such as 120L, 240L, and 1100L.

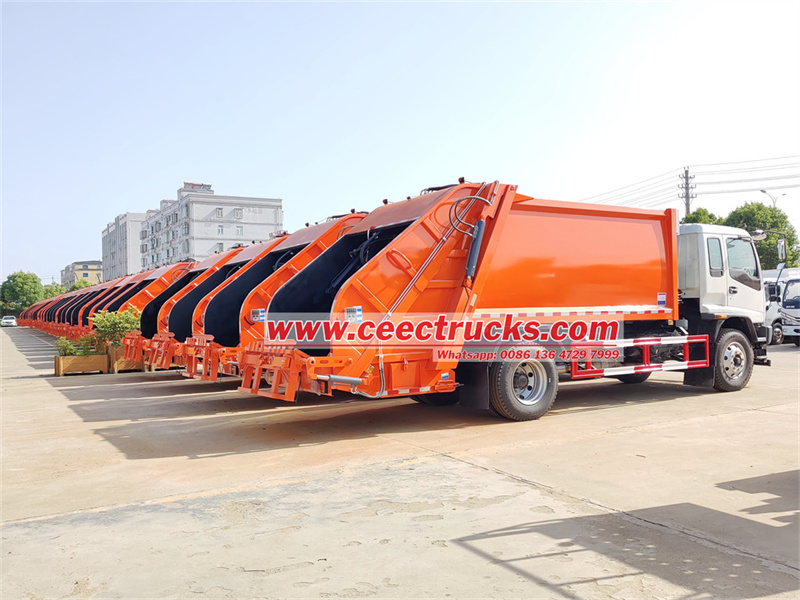

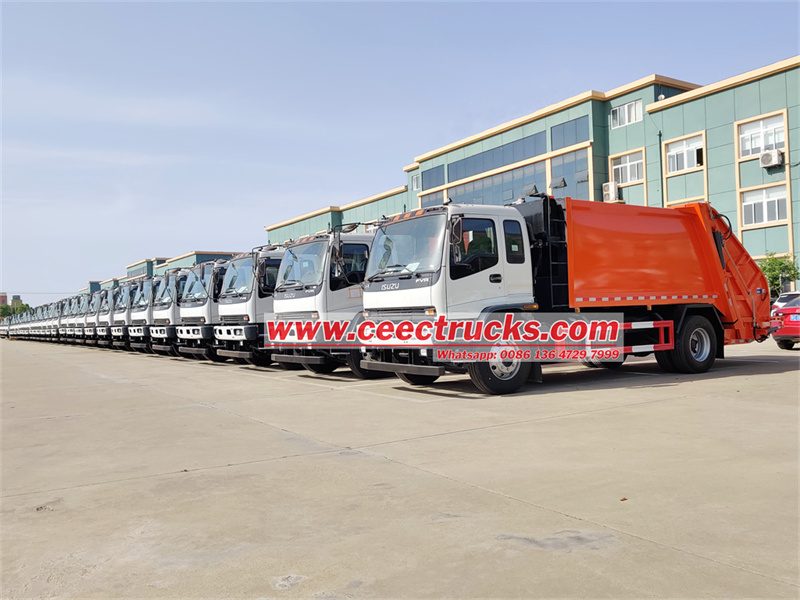

ISUZU FVR garbage compactor truck

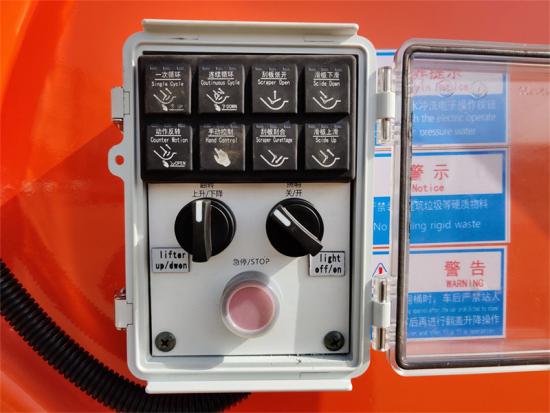

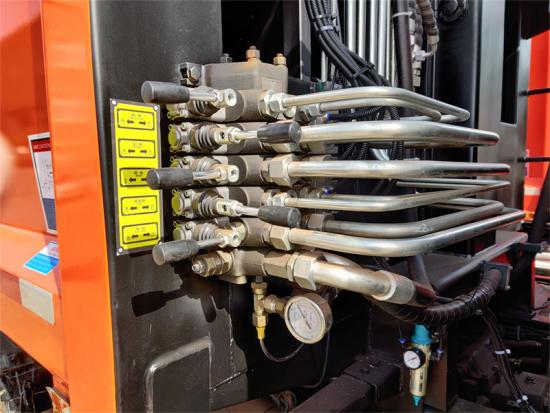

The hydraulic system and PLC electronic control system can realize automatic compression and unloading of garbage. The filling time is ≤40 seconds, the unloading time is ≤60 seconds, the working pressure is 16MPa, and the operation is efficient. The unique sewage collection system can collect sewage generated during the compression process into a special sewage tank to ensure that the vehicle is clean and hygienic.

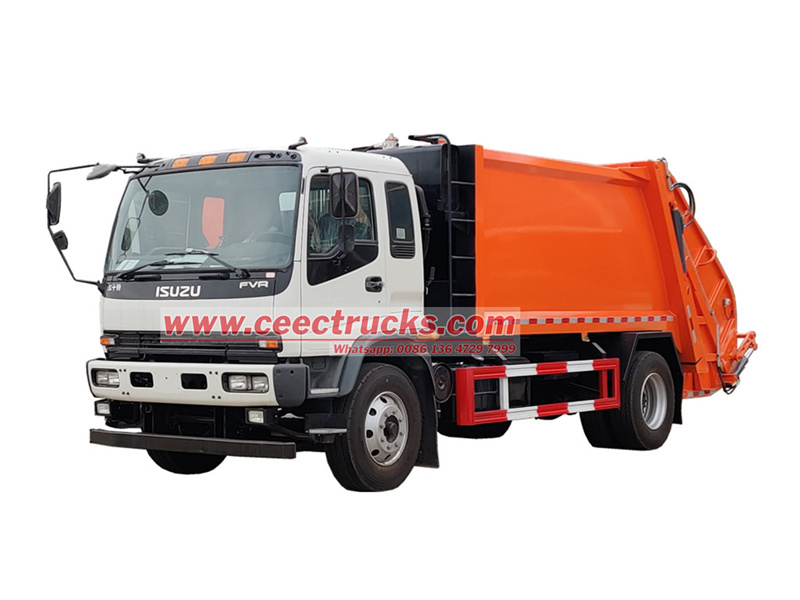

ISUZU FVR garbage compactor truck

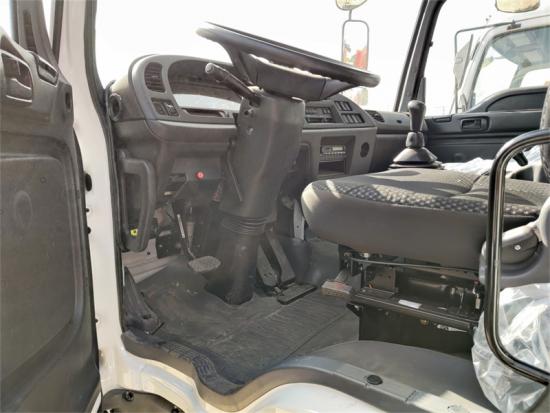

The cab is spacious and comfortable, equipped with air conditioning, radio, etc. It is left-hand drive and can accommodate 2 people. 11.00R20 steel wire tires, 1 spare tire comes with the car. The overall dimensions of the Isuzu FVR garbage truck trash compactor are 8500×2500×3250mm, taking into account both passability and loading capacity. The Isuzu 12CBM rear load trash truck has strong power, solid structure, efficient operation and comfortable ride. It is a good tool for environmental sanitation.

Specification:

Isuzu FVR 12CBM compactor garbage truck
Cabin	Driving type 4x2
	Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio
Vehicle Dimensions	Overall dimensions (L x W x H) mm	8500×2500×3250 mm
	Wheel base (mm)	4500
	Wheel track (front/rear) (mm)	1798/1764
Truck weight (KGS)	Gross Vehicle Weight	15955 kg
	Recommend payload	5000
	Front axles load capacity	10000
Engine	Brand	Isuzu
	Model	6HK1-TCL
	Type	6 stroke,straight 6-cylinder in line,Turbocharge with inter-cooling,diesel engine
	Engine dispacement(L)	6.494L
	Horse Power(HP)	240HP
	Emission standard	Euro 5
	Max. driving speed(km/h)	95
Gearbox	Isuzu MLD 6 speed forward and 1 reverse gear
Steering	Hydraulic steering with power assistance
Clutch	Reinforced diaphragm clutch
Tire	11.00R20 tyre, 6+1 pcs (including one spare tire)
Compression garbage box body system
Body Volume	12 CBM
Cycle Time of Filling(S)	≤40
Lifting Time of Filler(S)	8-10
Time of Discharging	≤60
Working Pressure(MPA)	16
The body material	Q235 manganese steel (side:4mm, base flloor: 5mm)
Electronic control system (PLC one-button cycle)	Made from China Top brand

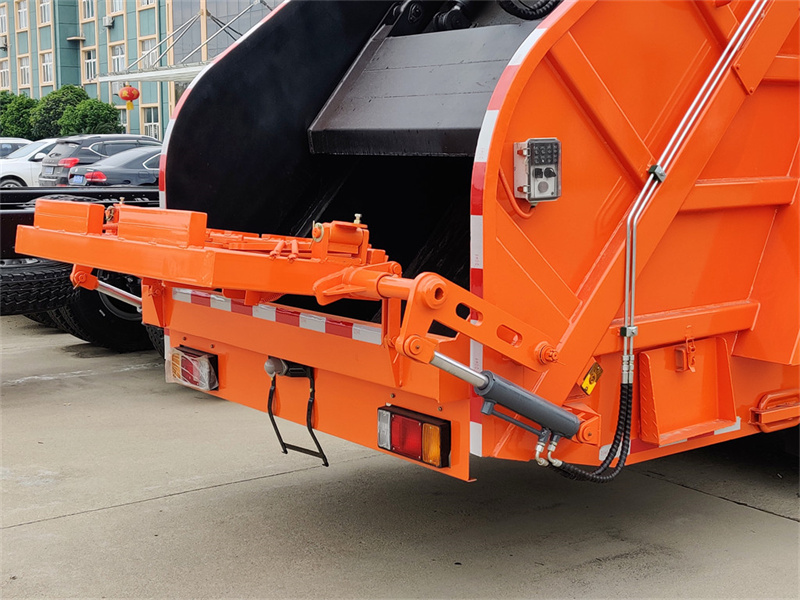

Trash bin suspension type	Rear suspension for 120L,240L,1100L trash bin
Composed by hermetic garbage tank, hydraulic system, operation system. The entire truck is hermetic, can automatically compress and dump the garbage .and the sewage generated in the process of the compression all go into the sewage tank.

Advantage:

1. Excellent power system:

Isuzu FVR rear load trash truck is equipped with a 6HK1-TCL engine. Its six-stroke, in-line six-cylinder, turbocharged and intercooled design provides the vehicle with strong and smooth power output. This kind of engine not only ensures efficient driving of the vehicle under various road conditions, but also provides continuous and stable power during the garbage compression process to ensure efficient completion of the compression operation.

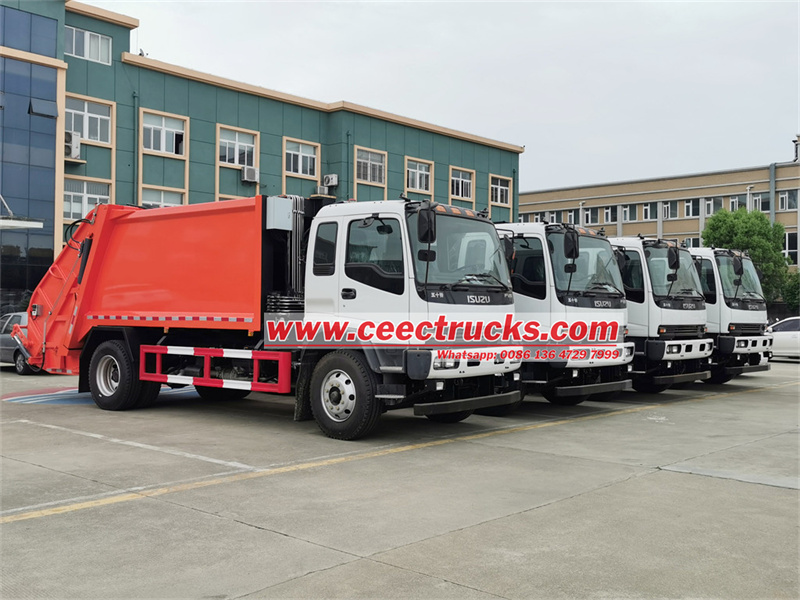

ISUZU FVR garbage compactor truck

2. Efficient compression system:

The compression bin body system equipped with the Isuzu FVR rear load trash truck adopts advanced compression technology, which can compress a large amount of garbage into a smaller volume in a short time, thus improving the efficiency of garbage disposal. . In addition, the sewage during the compression process will be effectively collected into the sewage tank, avoiding secondary pollution and demonstrating its environmental protection performance.

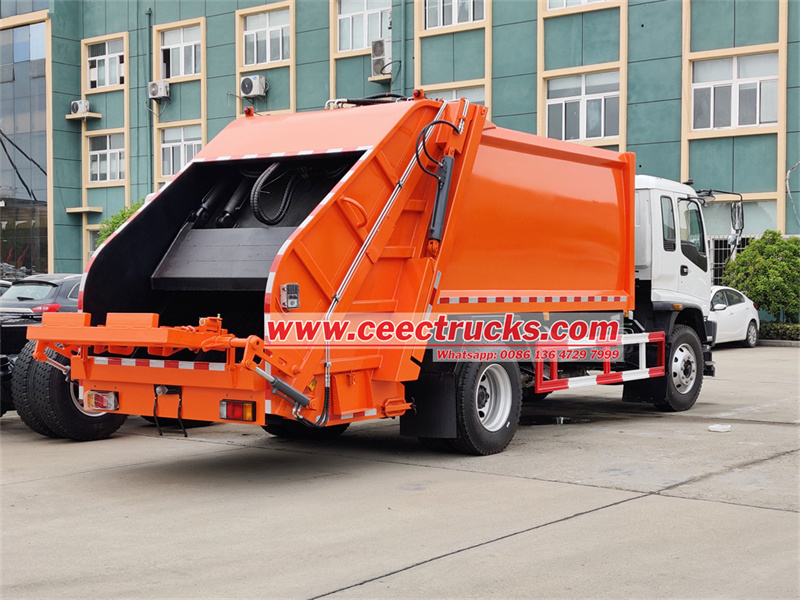

ISUZU FVR garbage compactor truck

3. Superior control stability:

The control system of the Isuzu FVR rear load trash truck is carefully designed so that the driver can easily control the driving direction and speed of the vehicle. Even in complex or narrow road conditions, the Isuzu FVR 12CBM rear load trash truck can demonstrate good handling and stability, ensuring that drivers can complete work tasks safely and accurately.

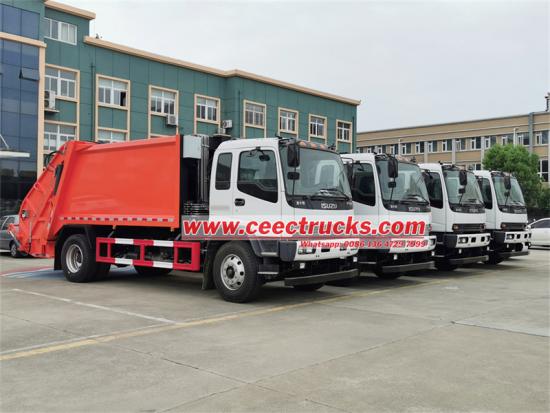

ISUZU FVR garbage compactor truck

4. Reliable durability:

Isuzu Heavy-duty rear load trash truck pays attention to the durability of the vehicle during the design and manufacturing process. The body is made of high-strength materials and key components are specially treated to enhance their wear and corrosion resistance. This design ensures that the Isuzu FVR Garbage Truck Compactor can maintain stable performance during long-term use, reducing the frequency of repairs and parts replacement, thereby reducing operating costs.

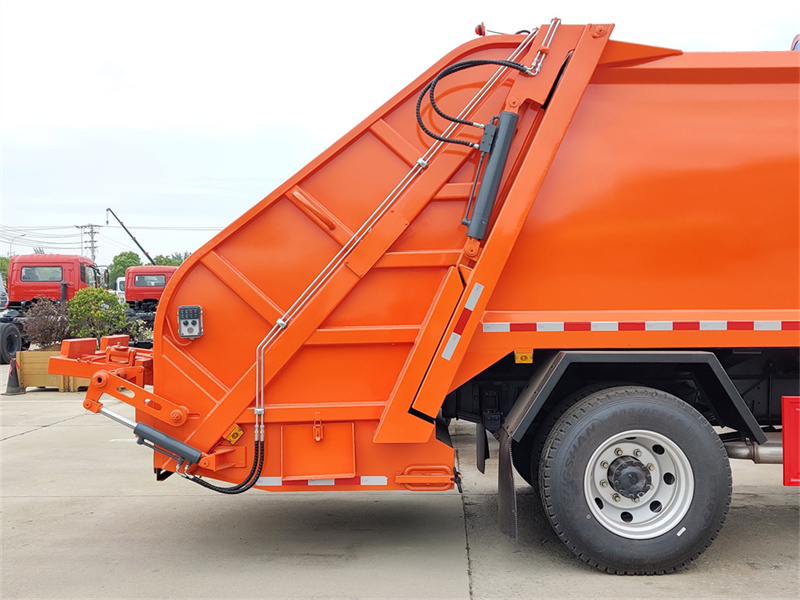

ISUZU FVR garbage compactor truck
