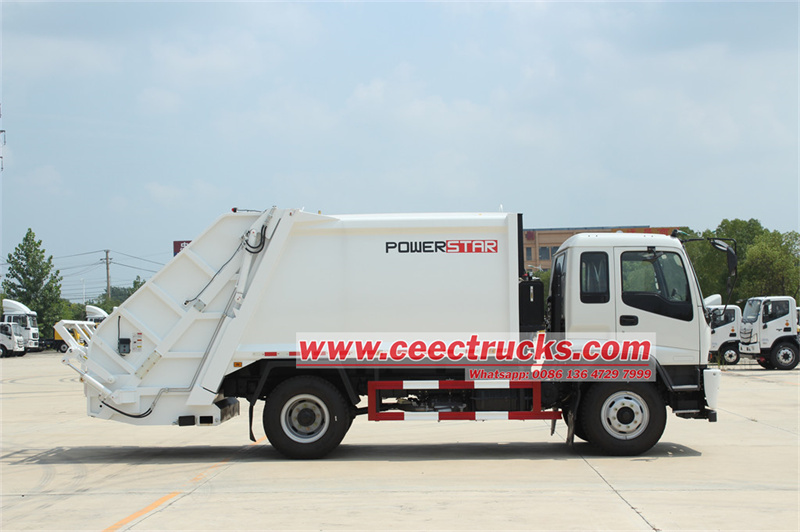

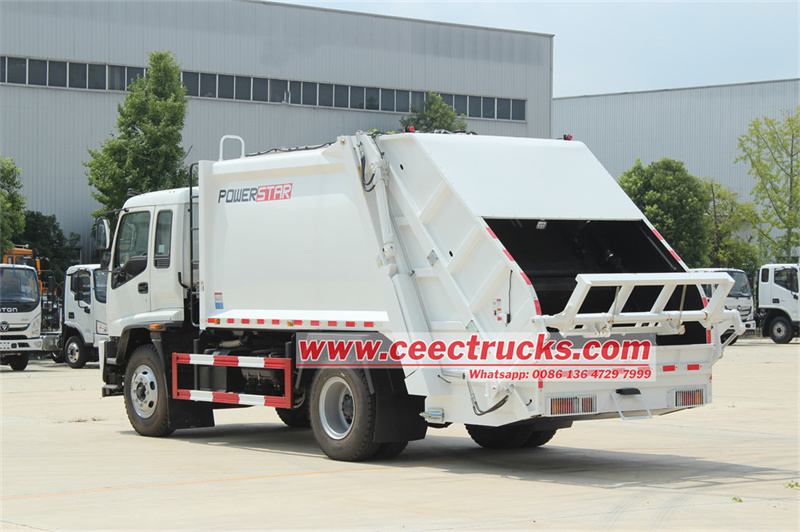

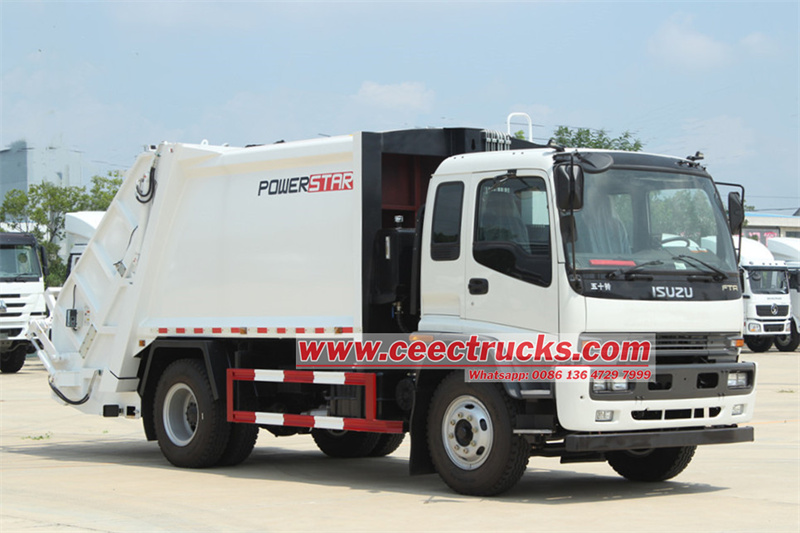

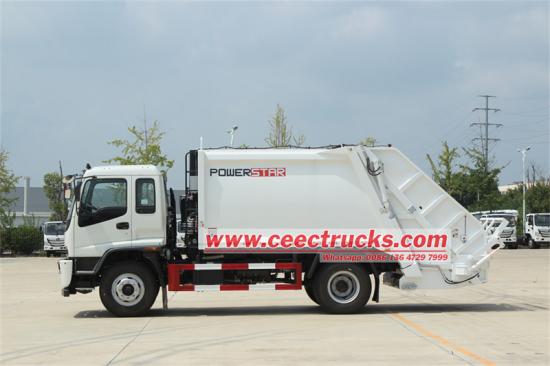

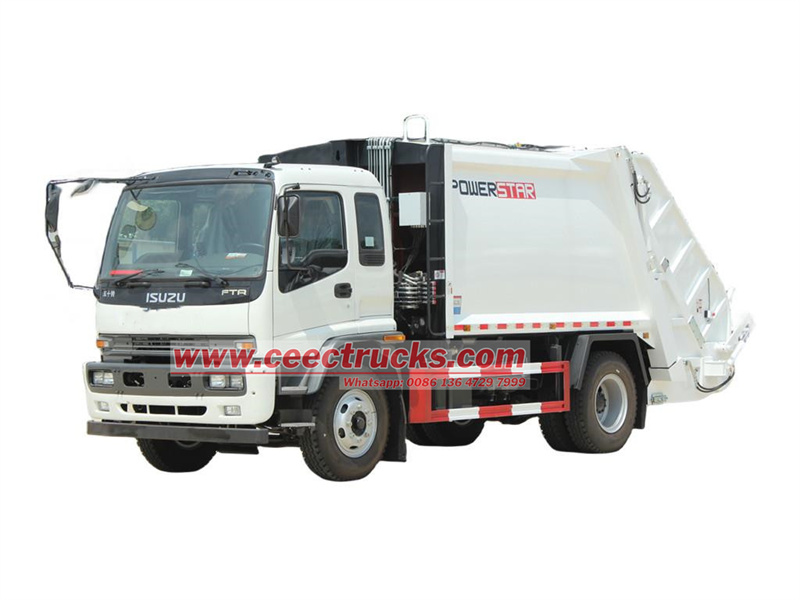

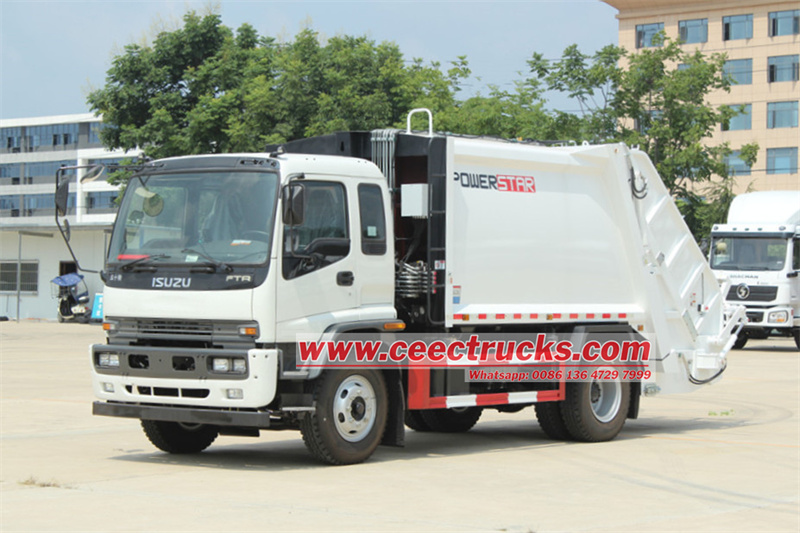

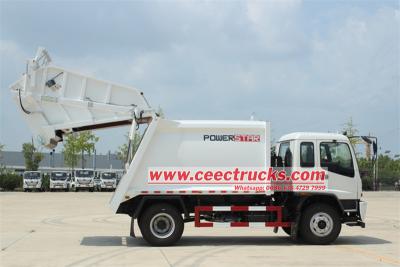

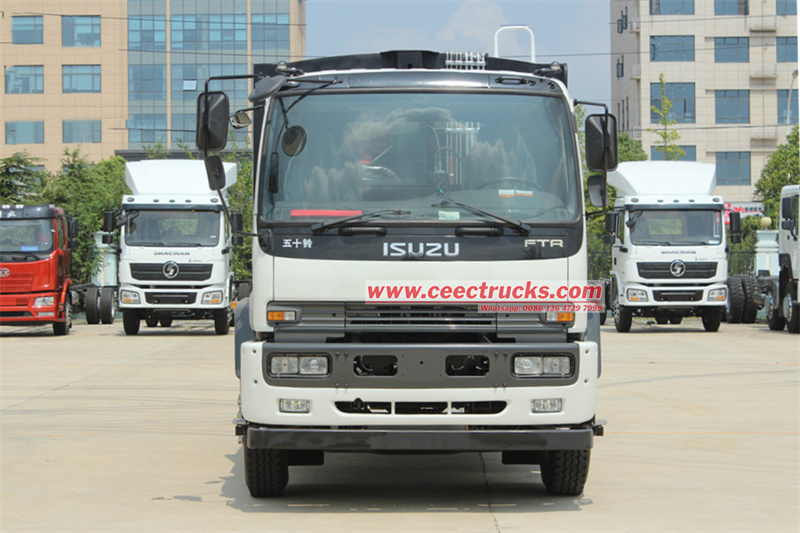

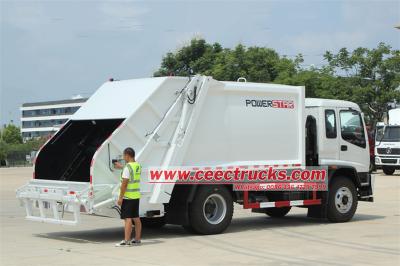

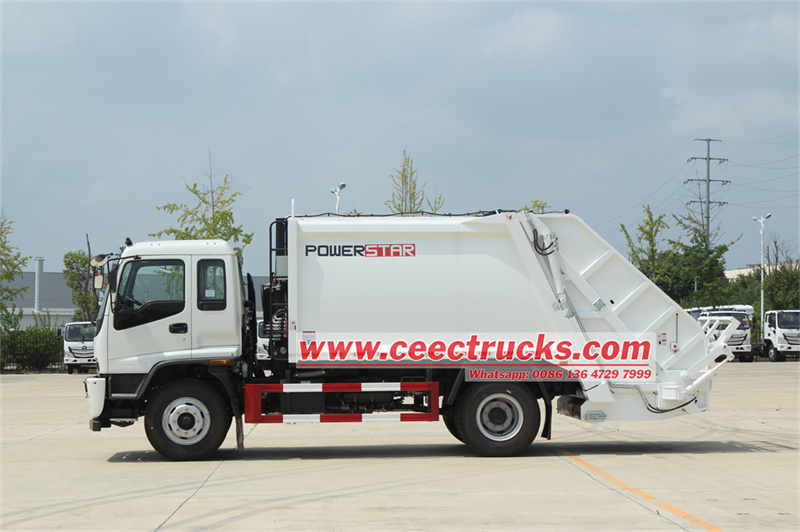

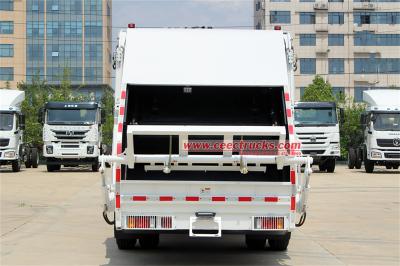

ISUZU GIGA FTR rubbish compactor truck

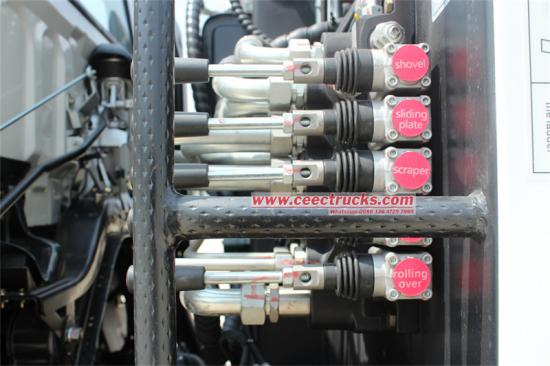

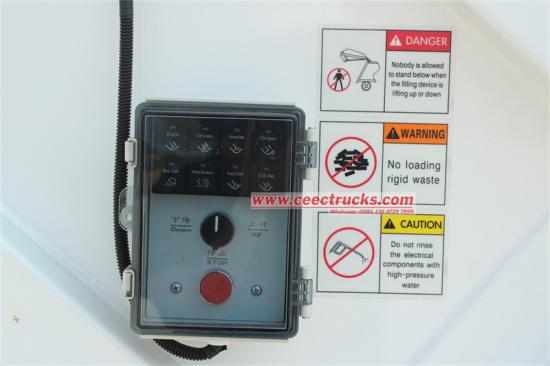

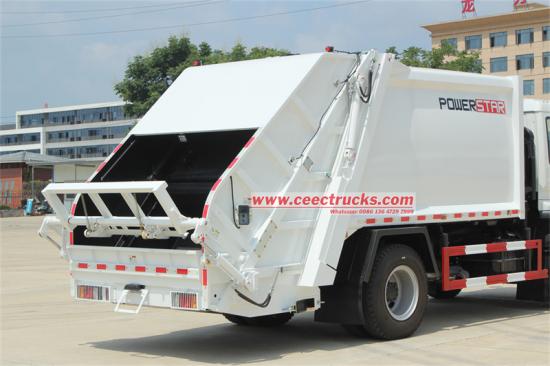

This is an Isuzu rear load trash truck with excellent performance, equipped with a 4HK1-TC50 205 horsepower engine, a top speed of 90 km/h, and a 6 forward and 1 reverse gearbox. The garbage bin has a capacity of 12 cubic meters and is made of 4mm carbon steel. It has an anti-leakage design, rear-loading loading, and an optional barrel-type lifting system. The garbage compactor ratio is 1/3 - 1/4, and there is a control system at the rear of the vehicle and the rear of the cab.

The Isuzu FTR rubbish compactor truck is equipped with a sealed dustbin, hydraulic pressure and operating system to realize automatic loading, compaction and unloading, which can be operated by one person. Sewage collection tank to avoid work pollution. High pressure, good sealing, convenient and reliable operation. Cycle time <14~18 seconds. The color of the entire vehicle is optional, and customized LOGO can be sprayed according to customer requirements.

Specifications of 10CBM ISUZU FTR Garbage Compactor Truck

Features Design:

1. Compactness and maneuverability optimization

►Short wheelbase body design (wheelbase ≤3.8m) + rear wheel steering assist system, achieving ≤10m turning radius

►Low chassis ground clearance (≤300mm) adapted to underground parking lot height limit (2.2-2.5m)

►Lightweight assembly (vehicle curb weight ≤5 tons) takes into account both load and flexibility

2. Efficient compression system

►Two-stage spiral compression mechanism (compression ratio ≥3:1) with intelligent pressure sensor

►Modular hydraulic power unit (working pressure ≥18MPa) + energy-saving start-stop control

►Sealed push plate structure (leakage rate ≤0.1%), standard sewage diversion trough

3. Intelligent operation system

►CAN bus integrated control system (including load monitoring/fault self-diagnosis)

►Reversing radar + 360° surround image (IP69K protection level)

►Remote monitoring module (4G transmission + GPS trajectory tracking)

4. Enhanced scene adaptability

►Two-way side-mounted/rear-mounted compatible mechanism (adaptable to 240-660L standard barrels)

►Wear-resistant composite steel plate carriage (HB400 hardness + anti-corrosion coating)

►Anti-slip working platform (friction coefficient ≥0.8) + LED warning light set

 ISUZU Cab Intelligent Welding：

In-depth application of automation and robotics

The Isuzu cab production line uses high-precision welding robots, combined with a laser vision sensor system, to achieve real-time recognition and adaptive adjustment of welds. The robot can automatically correct the welding trajectory according to the workpiece splicing error, avoid the common problems of biased welding and leaking welding in traditional manual welding, and ensure the consistency and beauty of the weld. For example, the laser tracking system can be adapted to robots of various brands, reduce programming requirements through digital integration, and is suitable for welding tasks of complex workpieces, significantly improving positioning accuracy.

Intelligent process parameter management

Welding parameters (such as current, voltage, and welding speed) are optimized in real time through big data analysis and industrial Internet. The system collects data during the welding process, combines CAE simulation technology, and dynamically adjusts parameters to match the welding requirements of different parts (such as high-stress areas such as floor longitudinal beams), thereby reducing maximum stress and extending the life of the cab.

Flexible production and beat balance control

The production line adopts a modular design to support the co-production of multiple Isuzu models. Through the beat balance control of the automated welding area, the equipment utilization rate is optimized, downtime is reduced, and an efficient output of 20-30 cabs per hour is achieved. For example, an optimization case showed that by adjusting the longitudinal beam seam welding process, the maximum stress of the cab floor was reduced by more than 30%.
