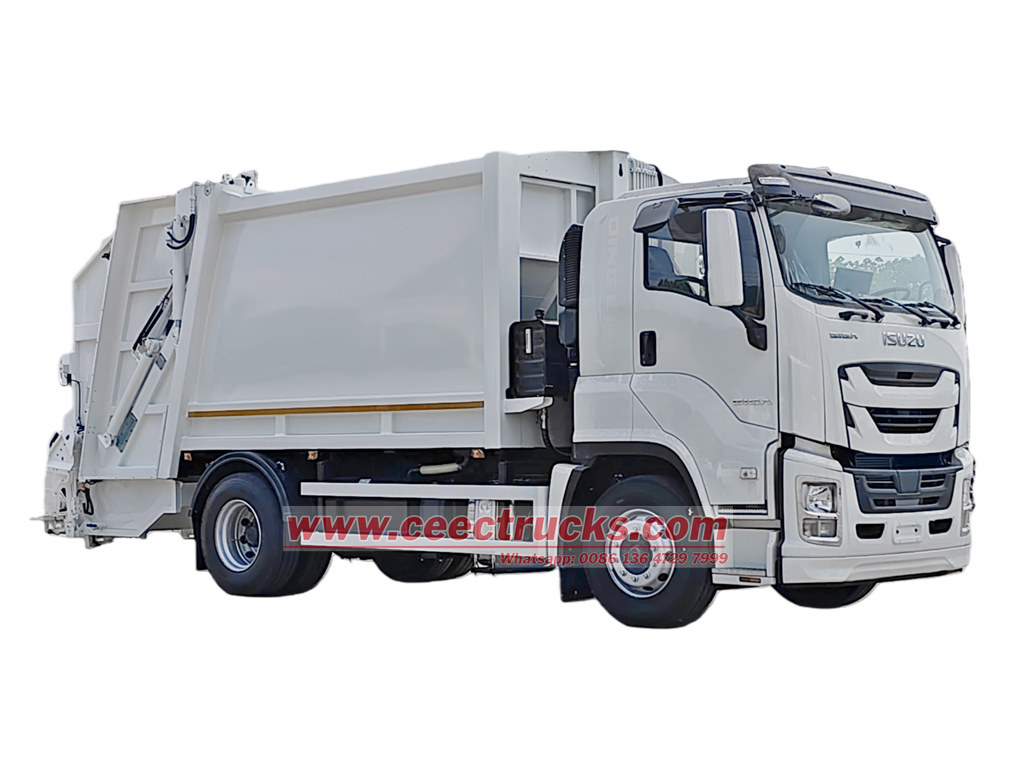

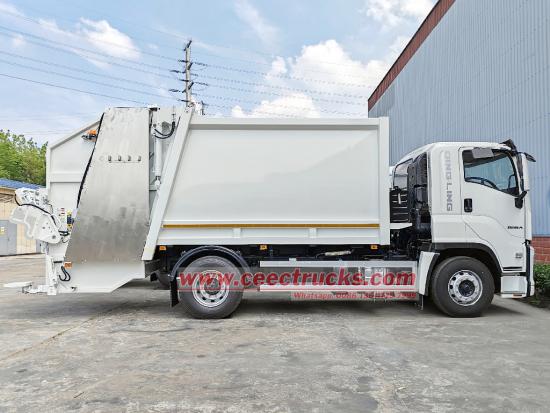

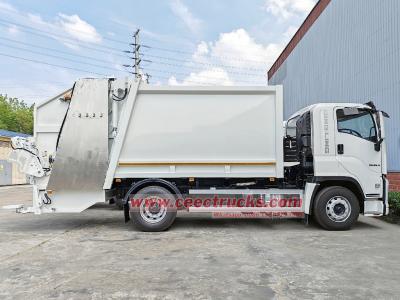

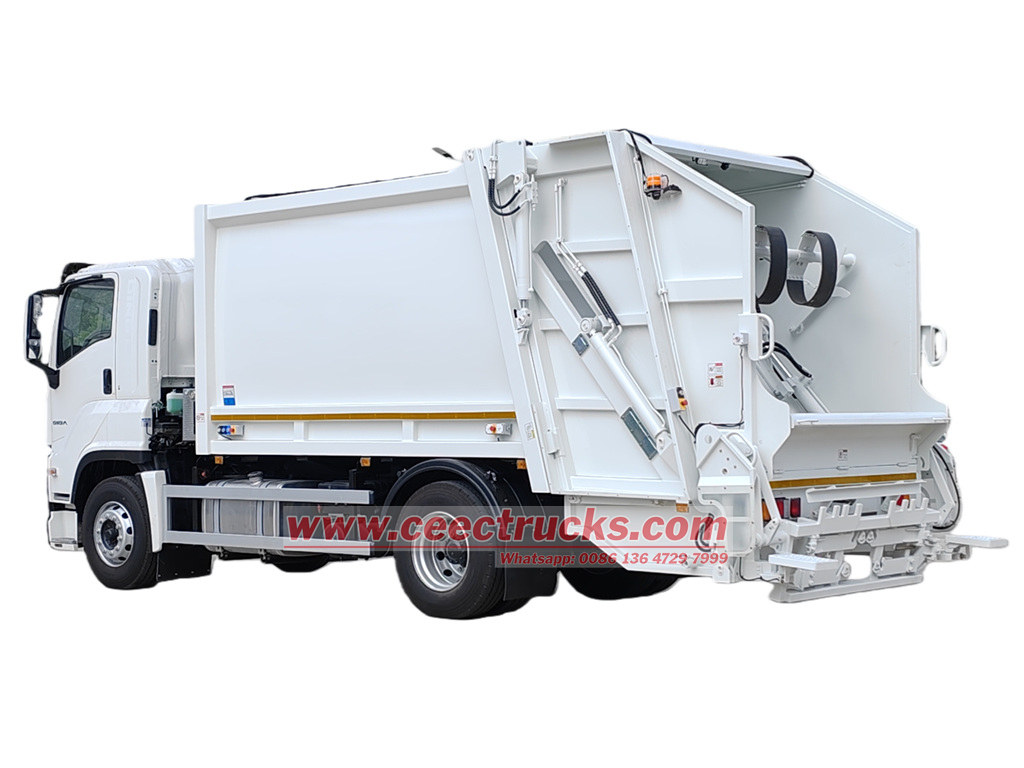

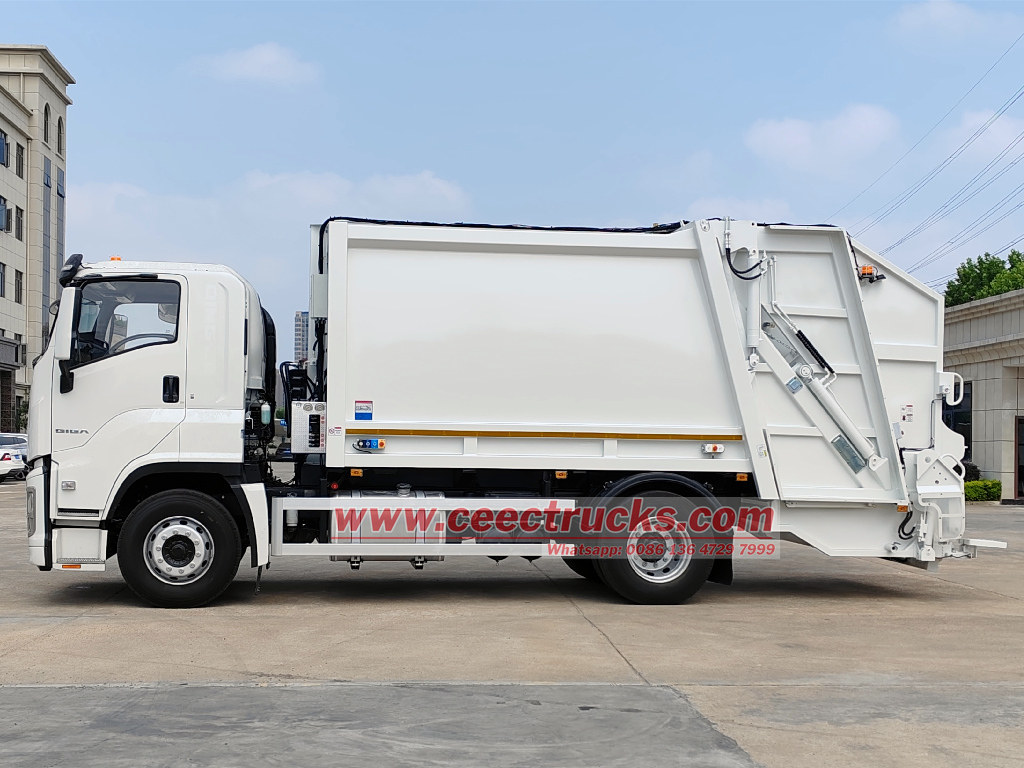

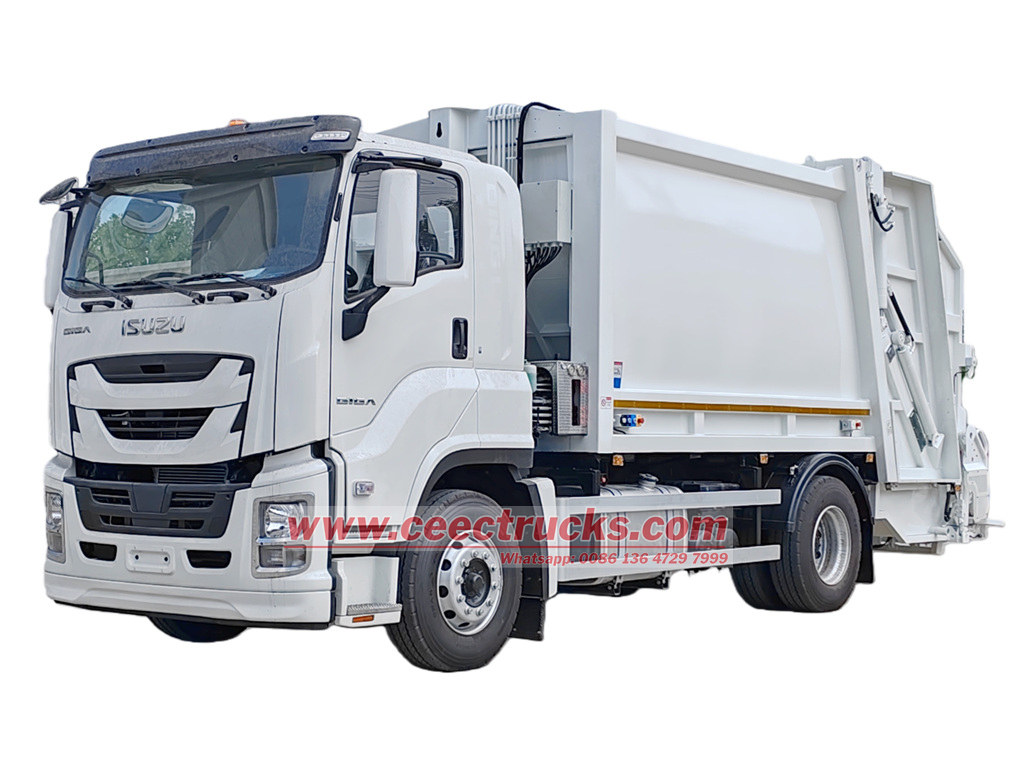

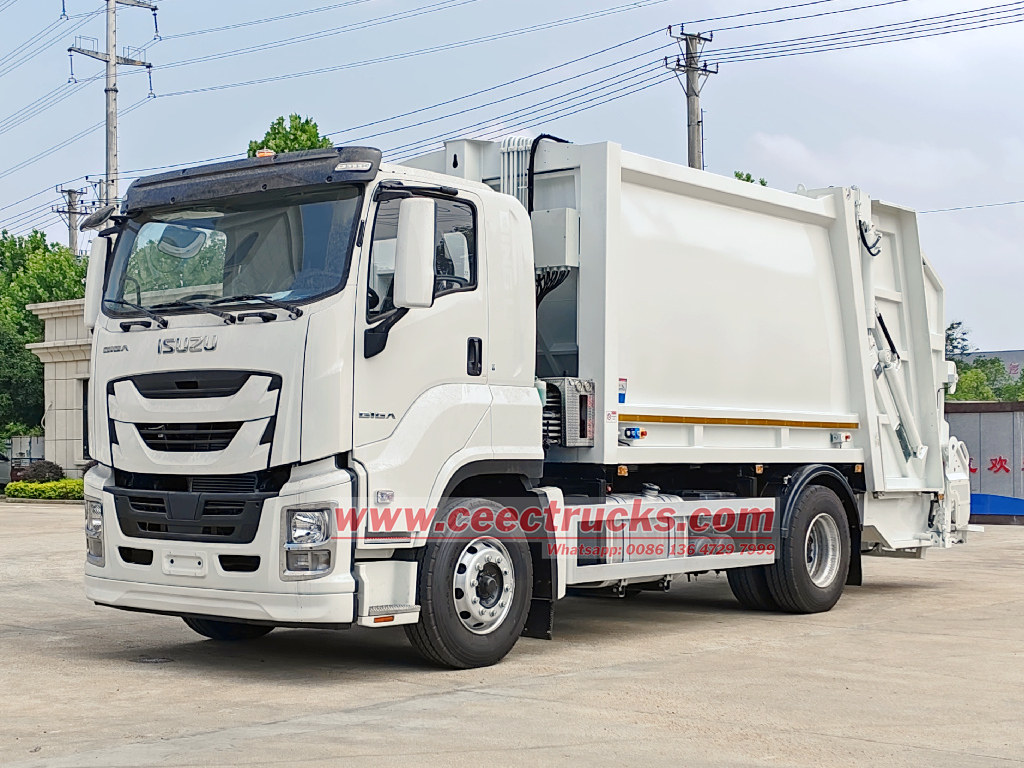

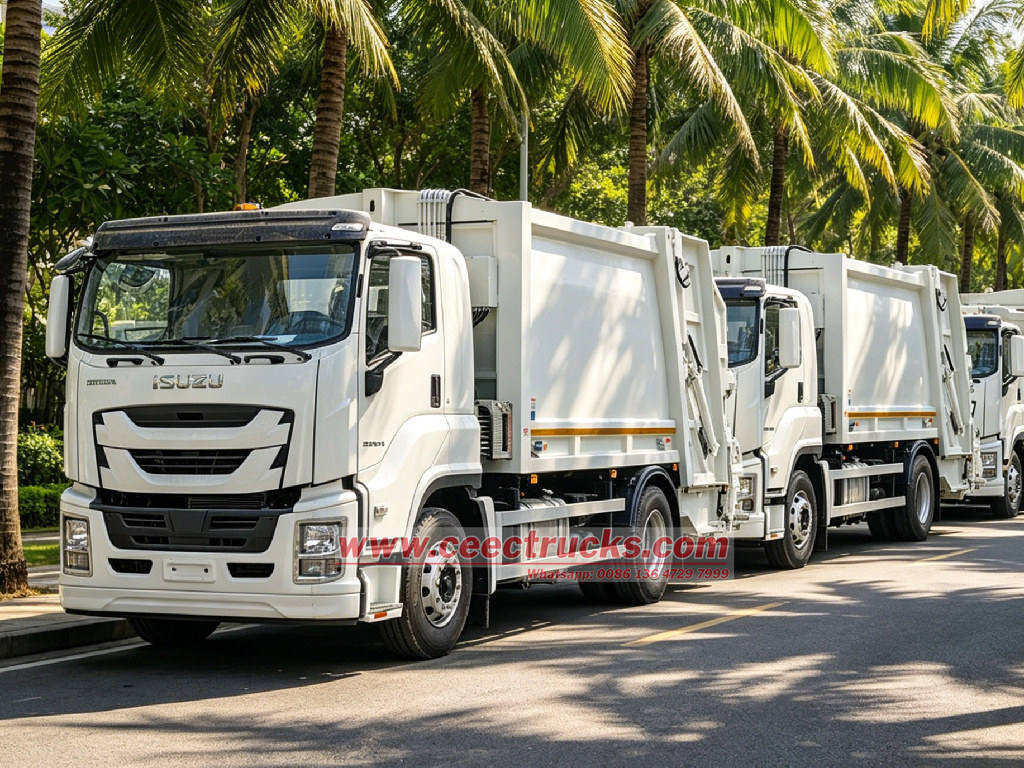

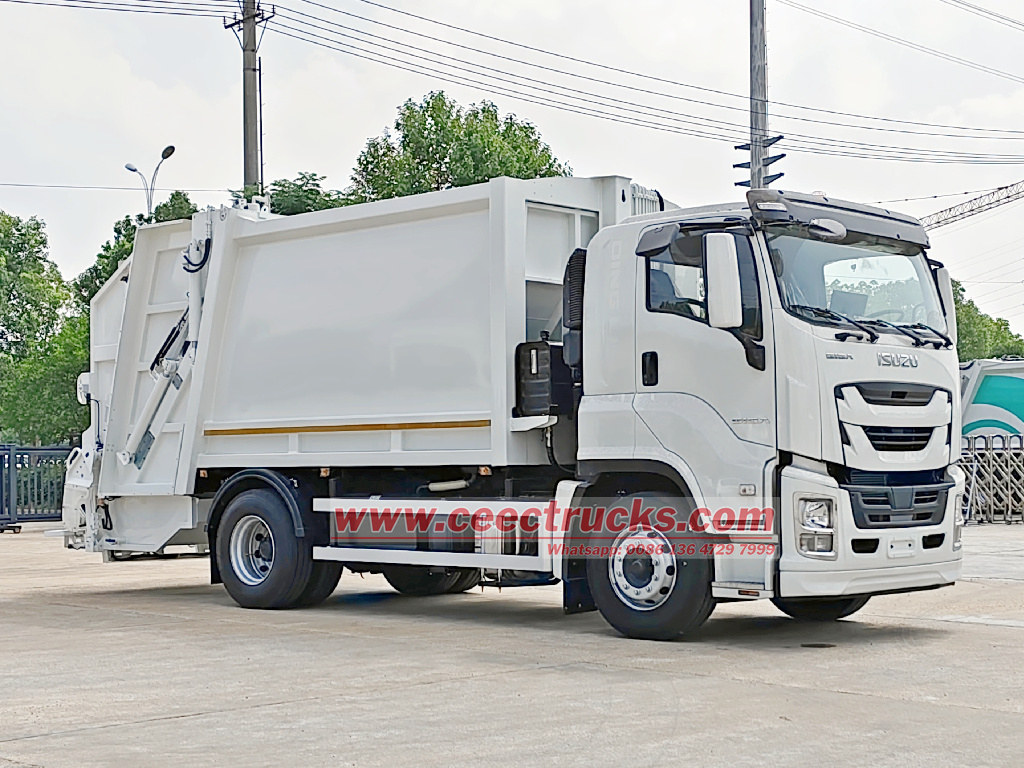

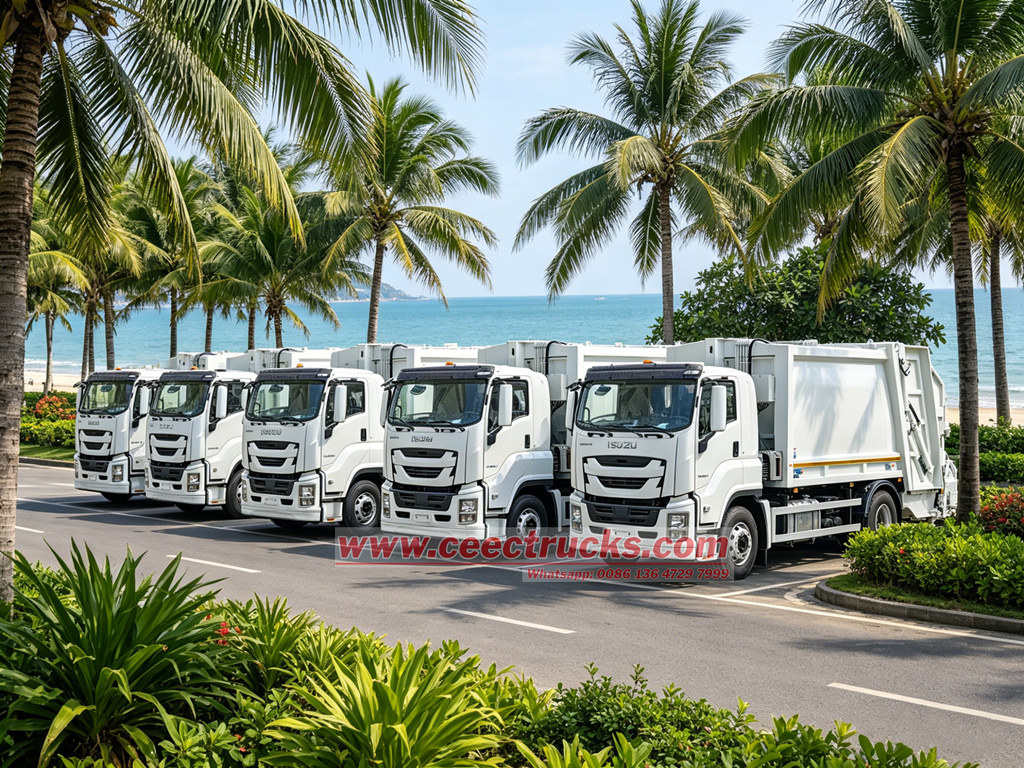

East European country customer purchased totally 5 units ISUZU New GIGA 5X 16cbm garbage rear loader compactor truck, which is a high-efficiency equipment specifically designed for urban waste management. It employs advanced compactor technology to significantly reduce the volume of garbage, with efficiently ratio over 1:4, thereby enhancing transportation efficiency, decreasing the number of transport trips, and lowering operational costs. Built on the Isuzu GIGA 5X chassis, the garbage rear loader is equipped with a 300HP diesel engine and FAST 9 speed transmission, offering robust power performance and stable driving capabilities.
Work capacity:
16CBMDimension ( mm ):
8845x2520x3530 mmWheelbase ( mm ):
4500 mmEngine power:
300HPEngine type:
6HK1-TCG60Axle drive:
4x2, LHDGear box:
FAST 9-shift manual transmissionRemarks:

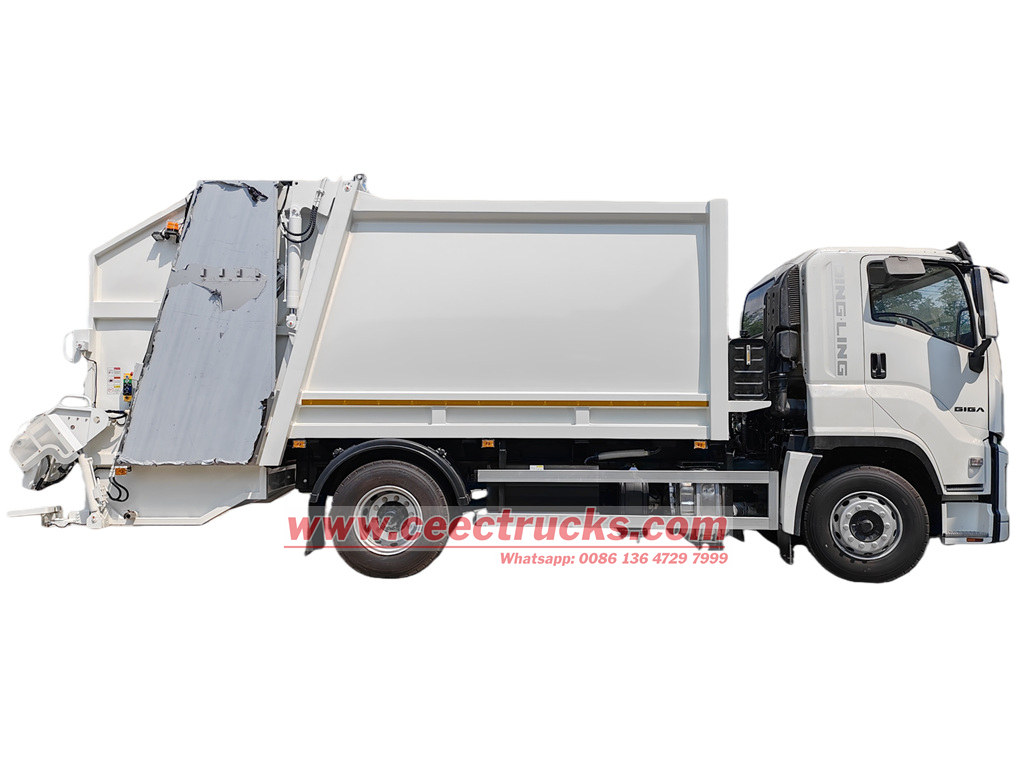

EURO design rear compactor body designEast European clients purchased 5 units ISUZU GIGA 5X 300HP rear loader garbage truck full relay on the advanced features of ISUZU LHD 5X LHD 4x2 truck chassis, equipped with Japanese technology 6HK1-TCG60 diesel engine, with efficiently horse power can be 300HP, 6 cylinder and four stroke, matched working with FAST 9 shift manual gearbox 9JS119TA, convenient and safety for driving, and very lower fuel consumption. The 16CBM EURO Shape designed compactor body kit is build based on T420 material, thickness for side 4mm and floor 5mm, curve shaped designed side body with steel for reinforcement, and the rear hopper are totally Euro design model, with rear tilting device suitable for 240L, 660L and 1100L bins. Control system mainly electric control system designed based on Germany Siemens PLC model, also hydraulic control valve for operation. Therefore, the Isuzu trash compactor truck mainly used for waste collection, compression and transportation, and can efficiently avoid second during transportation.
CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
Manufacturer: CEEC Trucks Group

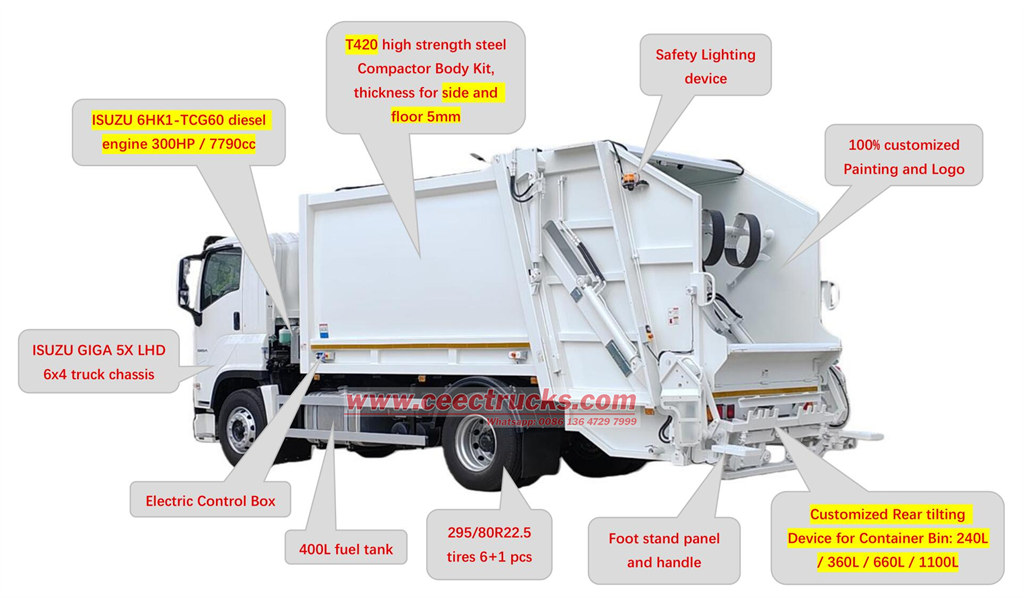

Features:
1. Truck Chassis: ISUZU GIGA 5X truck chassis, LHD, 4x2, 4X2 model optional
6HK1-TCG60 diesel engine 300HP and emission 7790ml.

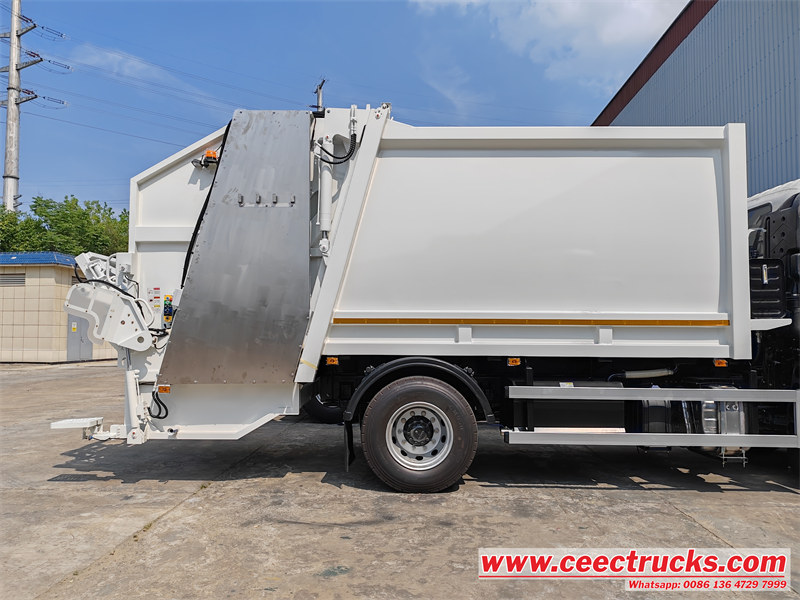

2. Compactor Body Kit: Full welding curve shape, T420 steel, thickness for side 4mm and floor 5mm

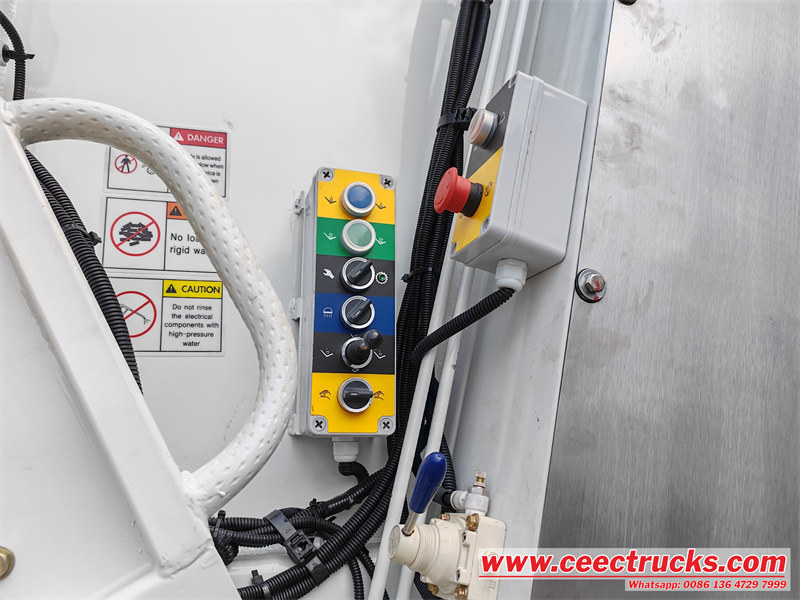

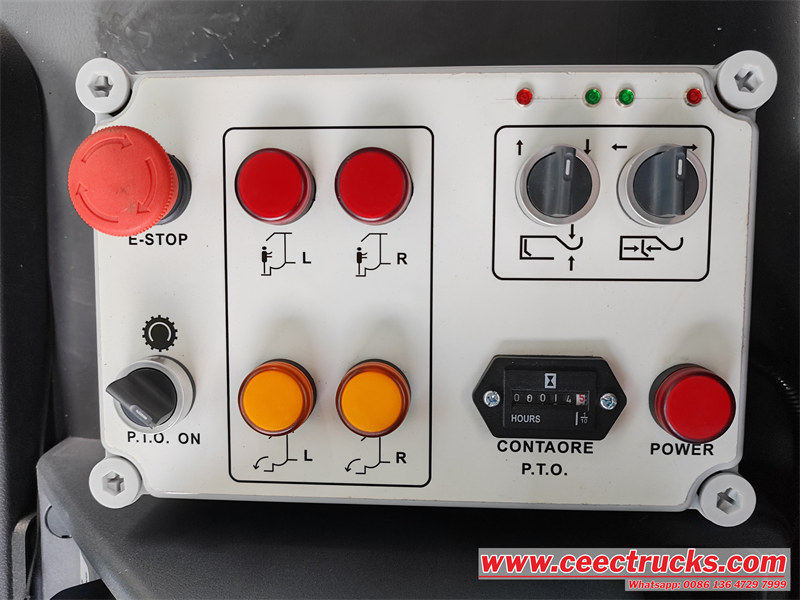

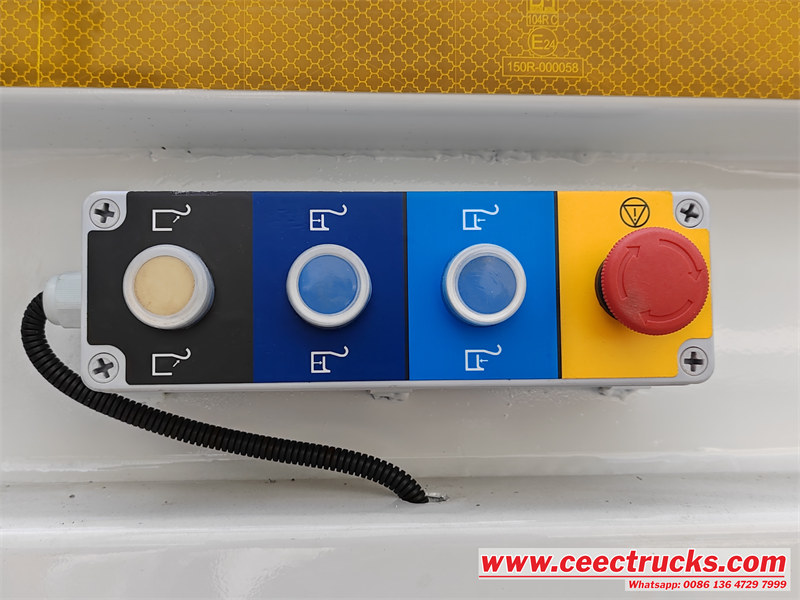

3. Control System: Electric control system: Germany Siemens PLC electricl control box to realise all function
Hydraulic control system: CE certify hydraulic valve for multiple control

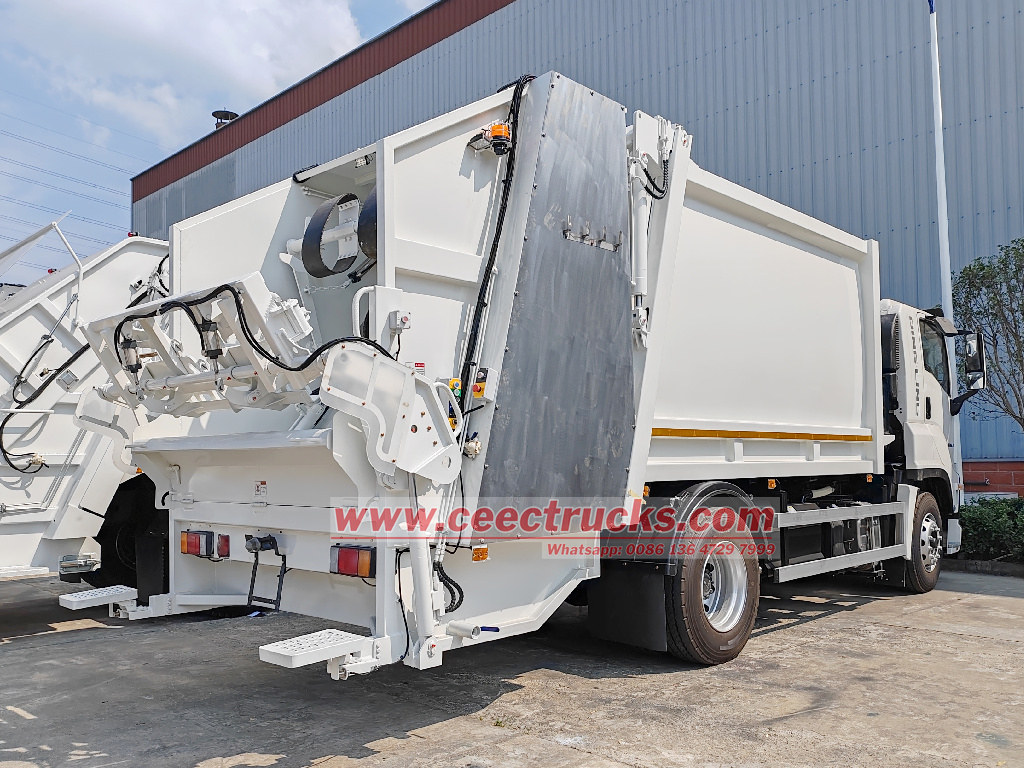

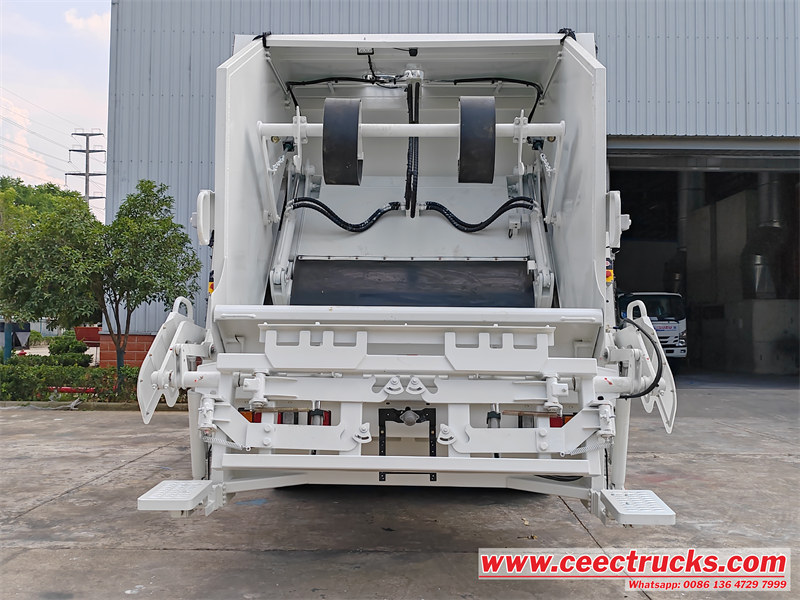

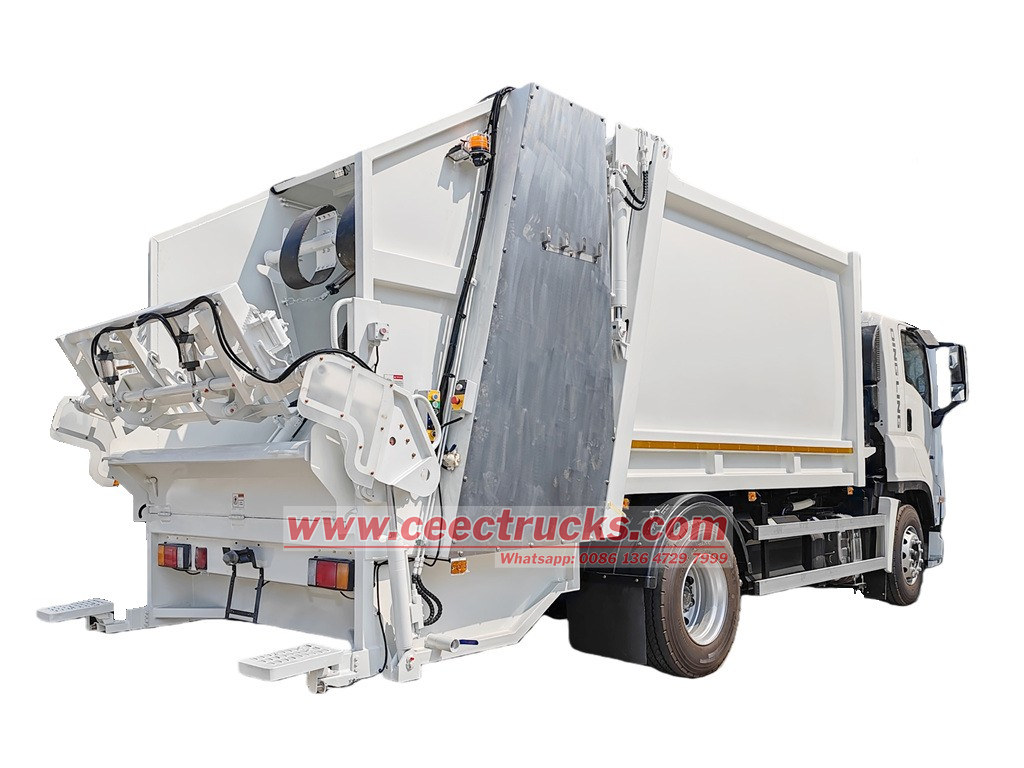

4. Rear Tilgint Device: EURO design rear hopper device suitable for multiple garbage bins, available for 240L, 360L, 660L, 1100L.
| ISUZU GIGA 5X EURO design refuse compactr truck Specification | ||||
| Model | CEEC5180ZYS | |||
| Cab | ISUZU GIGA 5X cab, one and a half row seats, with USB connector radio | |||
| Driving Type | 4*2 Left hand driving | |||
| Max Speed (km/h) | 99 | |||
| Overall Dimension (mm) | Appro. 8845mm x 2520mm x 3530mm | |||
| GVW (kg) | 18000 | |||
| Truck Tare Weight (kg) | 9500 | |||
| Wheelbase (mm) | 3900 | |||
| F/R Track Base (mm) | 1750/1650 | |||
| F/R Overhang (mm) | 1200/2140 | |||
| Approach/Departure Angel (°) | 22/10 | |||
| Tire | 295/80R22.5 | |||
| Clutch | Single-plate dry diaphragm spring clutch | |||
| Steering | Hydraulic steering with power assistance | |||
| Gear Box | FAST 9 forward speeds, 1 reverse speed | |||
| Bridge | Front Axle (kg) | 6300 | ||
| Rear Axle (kg) | 13000 | |||
| Engine | Model | 6HK1-TCG60 | ||
| Fuel Type | Diesel fuel | |||
| Emission Standard | Europe 6 | |||
| Type | Water-cooled four-stroke, direct injection, turbocharged | |||
| Output Power (kw) | 219 | |||
| Exhaust(ml) | 7790 | |||
| Max output power/rotate speed (hp /rpm ) | 240/2400 | |||
| Max torque/max torque speed (N.m/rpm) | 760/1450 | |||
| Braking System | Service Brake | Compressed air brake | ||
| Park Brake | Spring energy | |||
| Auxiliary Brake | Engine exhaust brake | |||
| Electrical System | 24v | |||
| EURO Design Upper-Body Specification | ||||
| Tank | Volume | 16 CBM | ||
| Material | T420 | |||
| Thickness (side/bottom) | 4mm/5mm | |||
| Hydraulic Pump | 532 model | 1 set | ||
| Multi-way Valve | DL-15B-6 | 1 set | ||
| Flap Cylinder | 80/45-410*180 | 2 set | ||
| Lifting Cylinder | 80/45-900*580 | 2 set | ||
| Scraper Cylinder | 80/45-700*415 | 2 set | ||
| Skateboard Cylinder | 90/50-980*670 | 2 set | ||
| Push plate Cylinder | YSTB-1180*2420 | 1 set | ||
| The Electromagnetic Valve | UZCT-115/24V | 2 set | ||

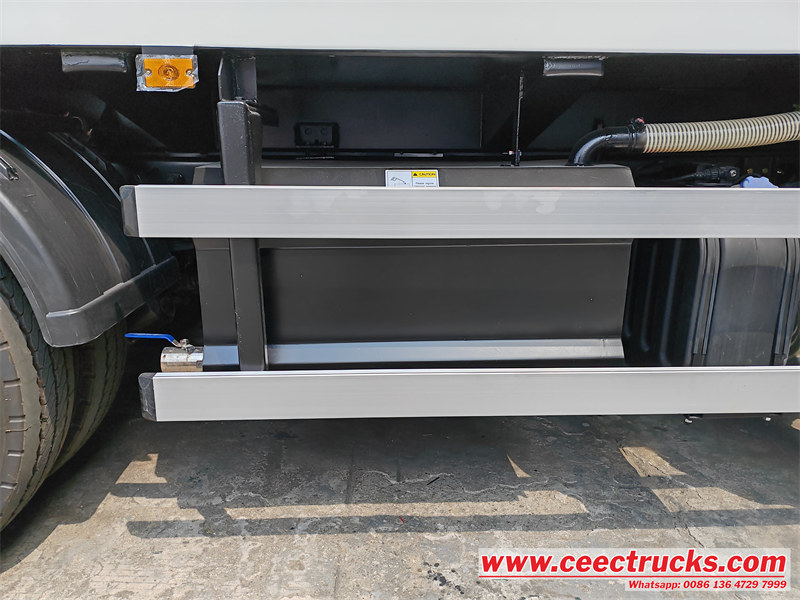

| Dirty Tank Volume | 200L | |||
| Filler Volume | 500L | |||
| Filing Time | 8-10s | |||
| Filling Cycle Time | 50-60s each time | |||
| Discharge Type | Flat-pushing and Dumping | |||
| Dumping Time | 30-40s | |||
| Hydraulic Pressure | 16Mpa | |||
| Controlling Way | Manually and electrical control | |||
★ Adopt world-class Japanese ISUZU brand GIGA 5X 4X2 Chassis, High power and Fuel efficiency, Reliability, Uptime
★ All Structural made of High Strength Steel T420 material
★ CAN-BUS electric control and Hydraulic control for easy operation
★ Matched with ISO9001 and CCC quality
★ Optional rear loading device for garbage loading 240L / 1100L
★ Customized whole EURO design type compactor body kit
★ Optional ISUZU GIGA Chassis 4x2, 6x4, 8x4 and engine 6UZ1 and 6WG1

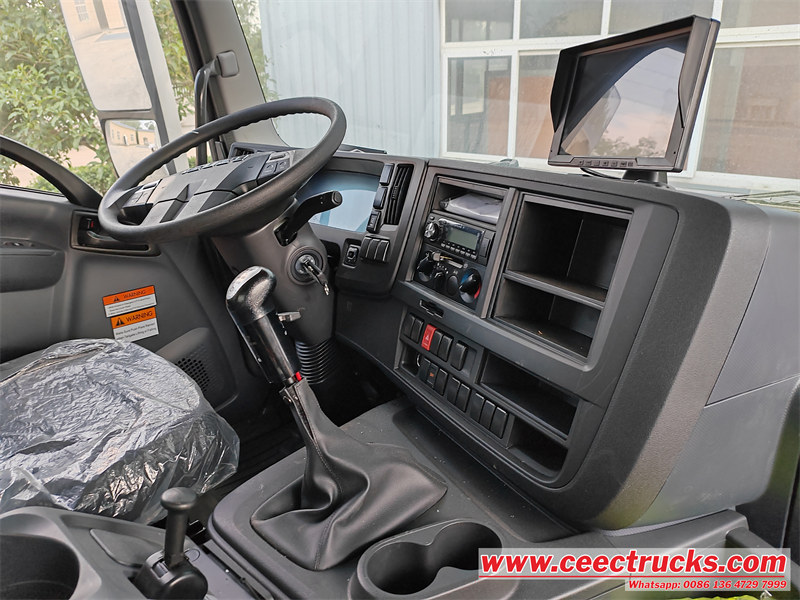

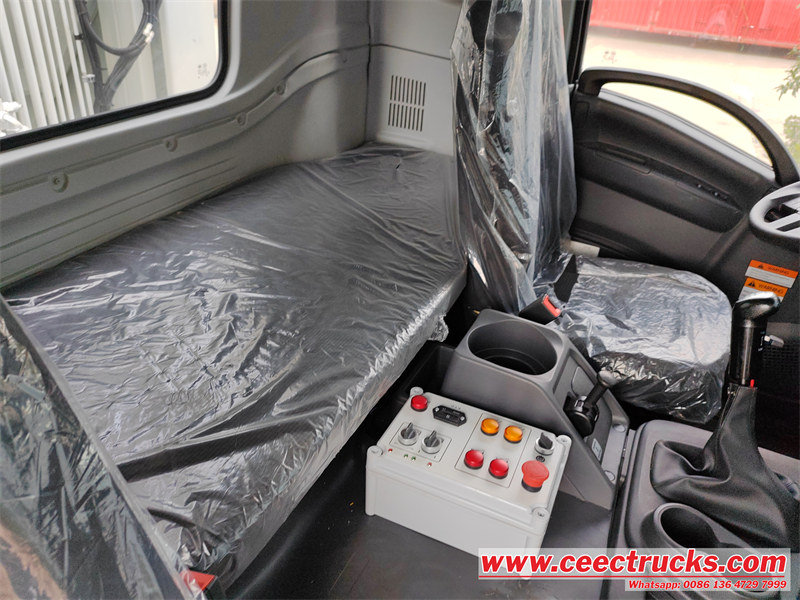

ISUZU GIGA 5X Truck Cabinet
Newest generation ISUZU GIGA 5X truck cabin, matched with multiple steering wheel for fast operation, FAST 9 shift manual gearbox control level with high-low gear, efficiently air brake device. AC device and AM/FM radio, comfortable and safety for driving.

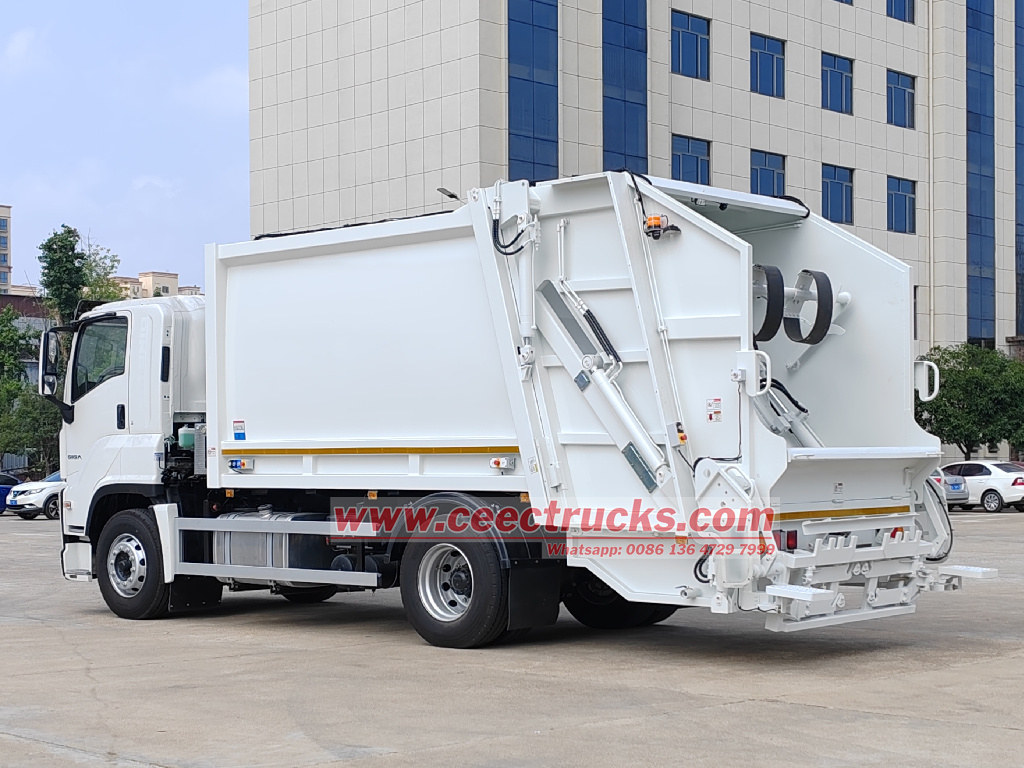

IISUZU GIGA rear loader compression garbage truck is an efficient, environmentally friendly and durable garbage disposal equipment, combining the reliability of ISUZU GIGA 5X 4x2 300HP truck chassis and mounted with whole EURO DESIGNED compactor body kit, matched with the advanced nature of rear-loading compression technology, and is widely used in urban sanitation operations. Its efficient compression capacity, automated operation and environmentally friendly design make it an important tool for modern garbage disposal.
★ Japanese ISUZU super diesel engine 300HP, fuel consumption save 20%
★ FAST Manual 9 shift mechanical transmission gearbox
★ 12 months fast moving spare parts for FREE
★ Authorized ISUZU GIGA 300HP rear loader truck exporter
★ Training service for Isuzu EURO design refuse compactor truck.
China professional vacuum truck supplier and exporter, we supply high quality rear loader truck and combined sewer jetter truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our vacuum tank trucks are customized with different type vacuum pump JUROP, MORO, BP brand, and sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
