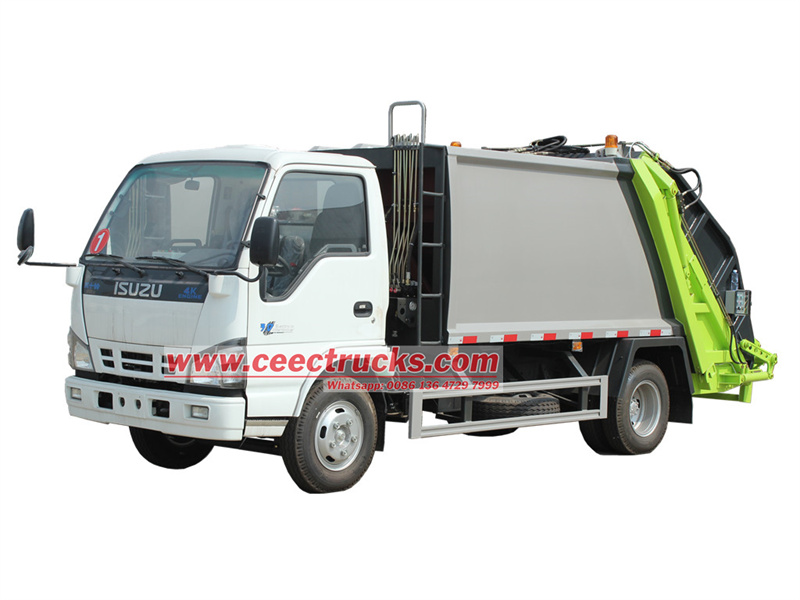

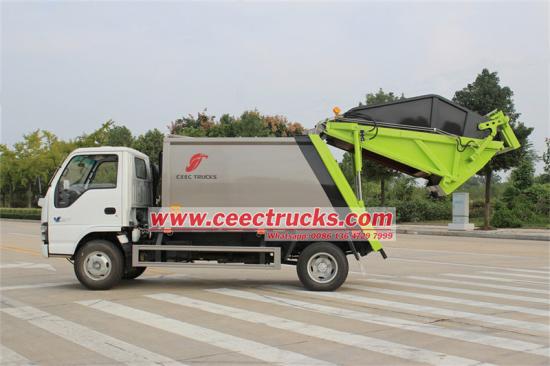

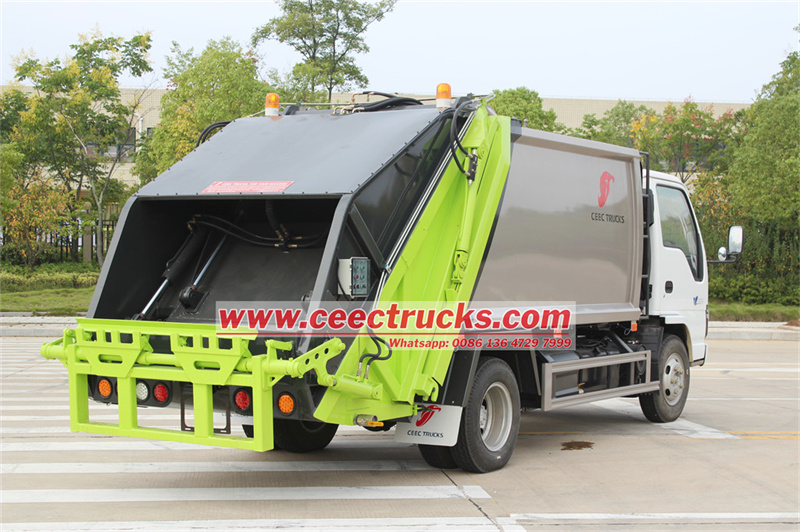

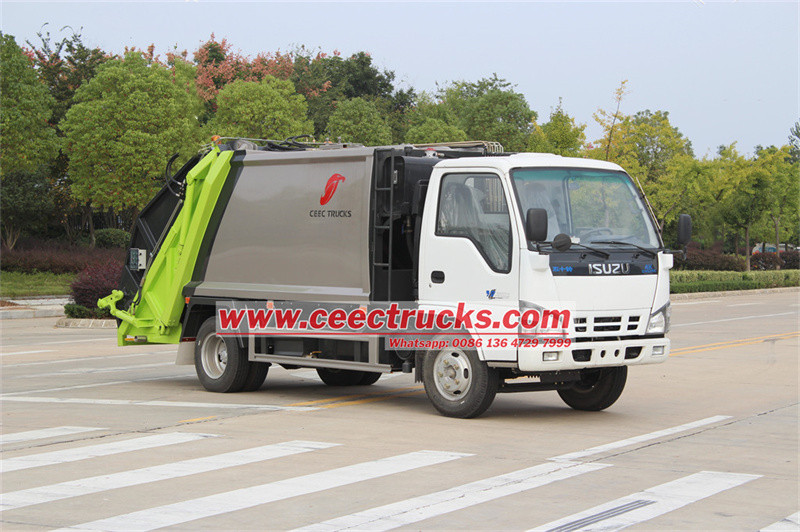

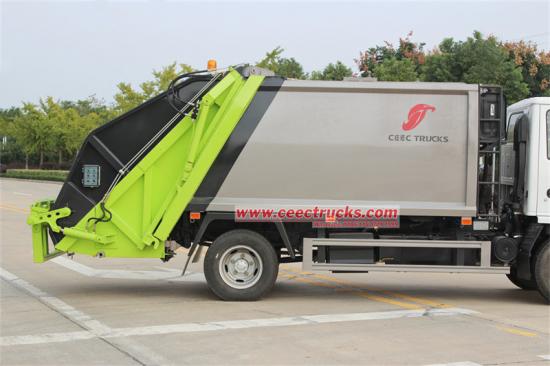

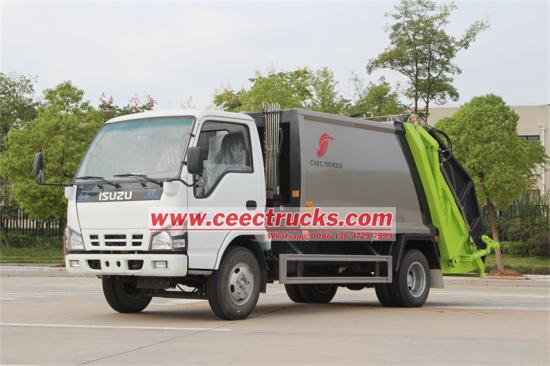

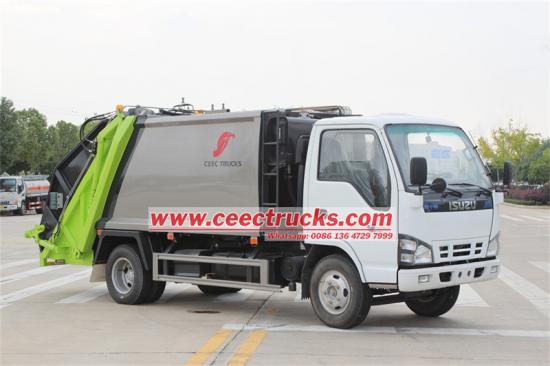

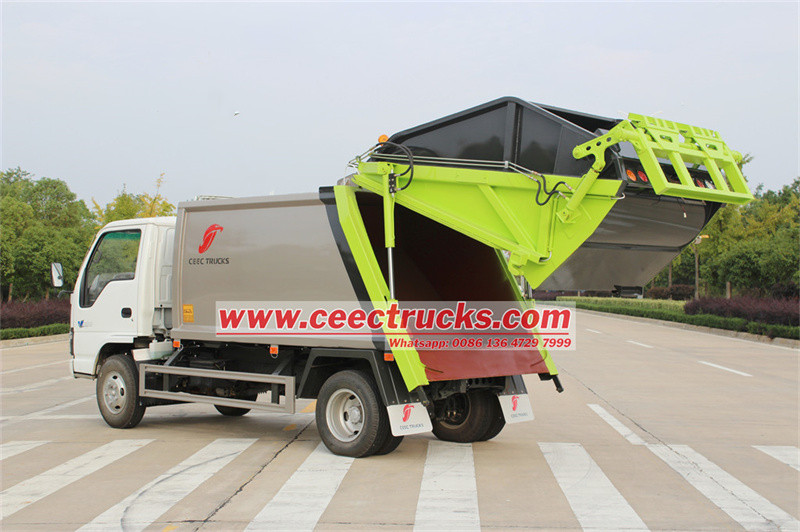

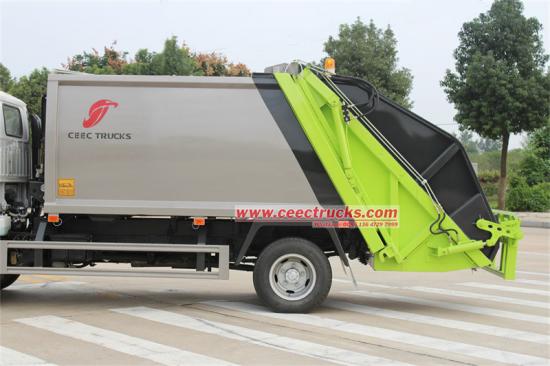

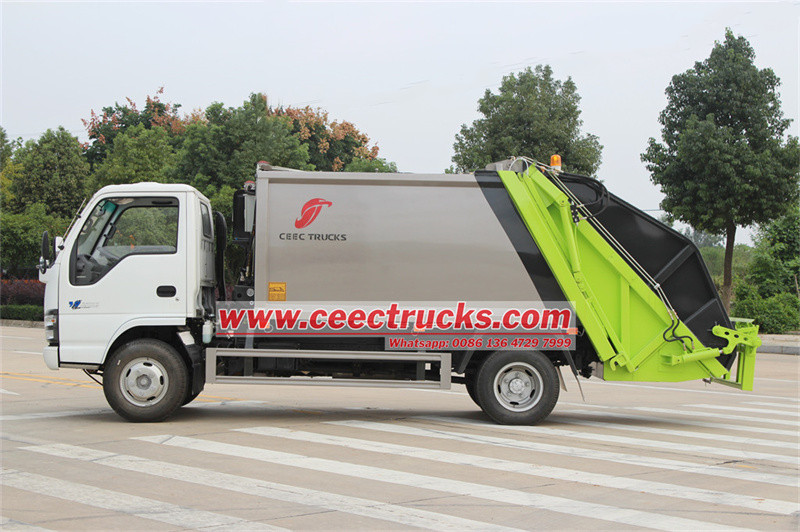

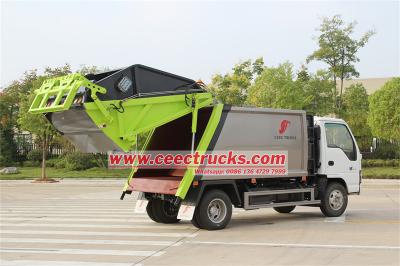

As an efficient and practical urban sanitation vehicle, the Isuzu 100P refuse compactor truck embodies CEEC advanced technology and rich experience in the field of special vehicle manufacturing. This Isuzu NKR waste compactor truck is maneuverable and has a small turning radius. It is very suitable for collecting and transferring domestic waste in places with limited space such as residential areas, narrow streets, commercial buildings, and underground parking lots. It is an ideal choice for urban sanitation departments, factories, and mining areas. Ideal garbage collection and transportation truck.
Lead Time:
30 DaysWork capacity:
6 CBMEngine power:
120 HPEngine type:
4KH1Axle drive:
4x2, left hand driveGear box:
MSB 5-speed,manualRemarks:
Stainless steel waste water collection tanksWe provide a variety of customized solutions for this Isuzu 100P refuse compactor truck, which also has many aliases, such as Isuzu 100P Rubbish Compactor Truck, Isuzu NKR Rear Loader, Isuzu NKR garbage compactor truck, Isuzu mini ELF / 100P garbage compactor Truck, Isuzu refuse compactor loader.
This Isuzu 100P refuse compactor truck is specially designed for daily garbage collection and transportation. It can be widely used in densely populated areas such as various cities, large stations, ports, docks, communities, airports, industrial and mining enterprises, and military units. The chassis adopts the proven Isuzu 100P lightweight chassis, which has strong power and reliable performance. The top is made of high-strength steel and has undergone special anti-corrosion treatment for outstanding durability. The hydraulic system and electronic control system are advanced and efficient, and easy to operate.
Details:
|
SPECIFICATION |
||
|
Manufacturer |
CEEC Trucks |
|
|
Product name |
Isuzu 100P refuse compactor truck |
|
|
Delivery time |
30 days |
|
|
Overall dimension (L x W x H) |
5990*2000*2550 mm |
|
|
GVW(Kg) |
7,300 kg |
|
|
Curb weight |
4,000 kg |
|
|
Chassis Specification |
||
|

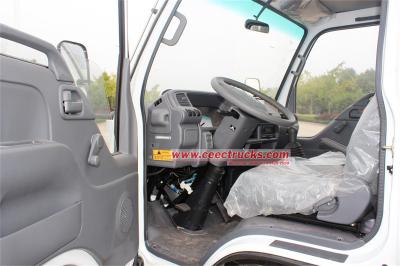

Cabin |
Isuzu Classical Single row and a half, 3 seats,A/C,air conditioner, mp3 |
|
|
Drive type |
4x2 |
|
|
Wheelbase |
3815 mm |
|
|
Engine |
Model |
Isuzu 4KH1CN5HS |
|
Maximum horse power |
120 hp |
|
|
Displacement |
2999 cc |
|
|
Type |
Diesel, 4 cylinders in-line, inter-cooled turbocharged |
|
|
Gear box |
Isuzu MLD, 6 forwards and 1 reverse |
|
|
Tyres |
7.00-R16, 6+1 pieces |
|
|
Upper body specification |
||
|
Garbage box |
Capacity |
6 cubic meters |
|
Materials |
6mm Q345 high-tensile steel |
|
|
Function |

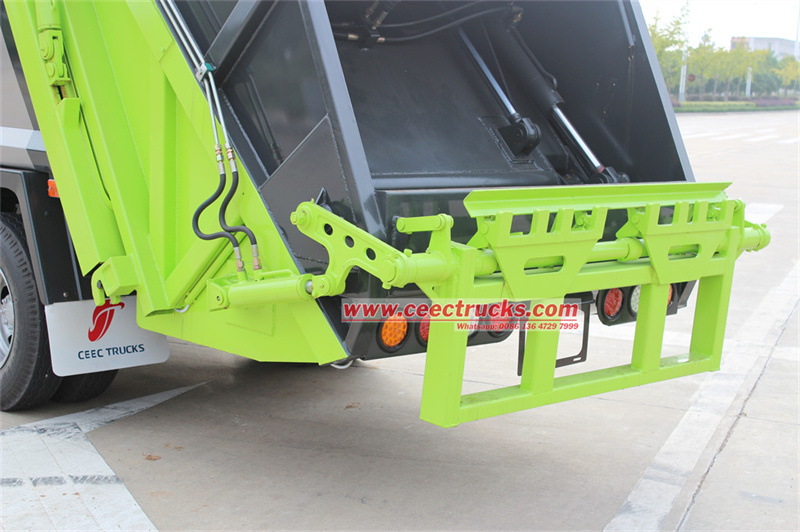

Can choose 240L/660L garbage bins(plastic or steel bins) and turnover device, can also choose ground hopper, swing arm device or other kinds of loading device |
|
|
With manual and automatic two ways of control methods, the operator can operate in the cabin, in the back of the truck, very convenient and efficient, also equipped with working device of emergency braking stop button. |
||
|
Garbage body use frame design, strong structure, large loading capacity. |
||
|
The waste water can be drained into the sewage tank in the process of compression. |
||
|
Strong compression force: the truck has two-way compression function, the compression ratio can reach more than 1:3, and the waste can reach more than 600-800Kg/cubic meter after compression. |
||
|

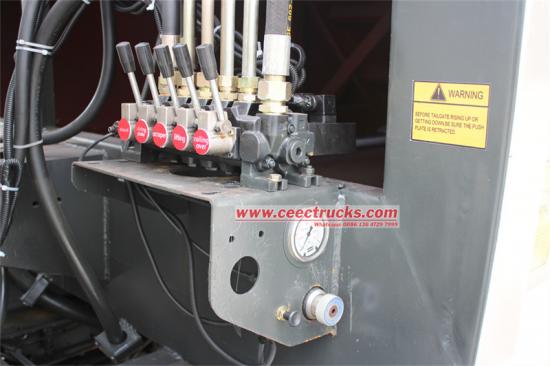

Electric control system and safety: Imported PLC(programmable logic controller) integrated control is adopted, the control circuit is generated in the PLC, and the operation instructions of the logic circuit are executed in sequence, and only the external line is connected, which reduces the failure rate and avoids It prevents accidents caused by wrong operation and improves reliability. |
||
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
|
|
Optional equipment |
1, Back Alarm and Camera can be equipped 2, Italy brand multi-way valve can be optional 3, 660L, 770L, 1100L bins lifting device can be optional 4, Front snowing sweeping device can be optional |
|
Features Design:
1. Compactness and maneuverability optimization
►Short wheelbase body design (wheelbase ≤3.8m) + rear wheel steering assist system, achieving ≤10m turning radius
►Low chassis ground clearance (≤300mm) adapted to underground parking lot height limit (2.2-2.5m)
►Lightweight assembly (vehicle curb weight ≤5 tons) takes into account both load and flexibility
2. Efficient compression system
►Two-stage spiral compression mechanism (compression ratio ≥3:1) with intelligent pressure sensor
►Modular hydraulic power unit (working pressure ≥18MPa) + energy-saving start-stop control
►Sealed push plate structure (leakage rate ≤0.1%), standard sewage diversion trough
3. Intelligent operation system
►CAN bus integrated control system (including load monitoring/fault self-diagnosis)
►Reversing radar + 360° surround image (IP69K protection level)
►Remote monitoring module (4G transmission + GPS trajectory tracking)
4. Enhanced scene adaptability
►Two-way side-mounted/rear-mounted compatible mechanism (adaptable to 240-660L standard barrels)
►Wear-resistant composite steel plate carriage (HB400 hardness + anti-corrosion coating)
►Anti-slip working platform (friction coefficient ≥0.8) + LED warning light set
Key manufacturing technology standards：
1.Precision car body manufacturing
◆3D laser scanning positioning (±0.5mm tolerance)
◆Robot welding workstation (weld UT flaw detection pass rate ≥99.8%)
◆Cathode electrophoretic coating line (salt spray resistance ≥1000h)
2.Hydraulic system manufacturing
◆Precision honing cylinder (roundness ≤0.01mm)
◆Servo control valve group (response time ≤50ms)
◆Dynamic pressure test bench (200 hours fatigue test)
3.Intelligent control system production
◆Automotive grade electronic components (operating temperature -40℃~85℃)
◆Electromagnetic compatibility laboratory
◆OTA upgrade architecture (support remote firmware update)
4.Special equipment integration
◆Six-axis linkage machining center (gearbox machining accuracy DIN6 level)
◆3D pipeline pre-installation system (reduce on-site adjustment by 70%)
◆Dynamic balance detection (vibration ≤0.05mm at 3000rpm)
★ ISUZU 4kh1 diesel engine, super powerful
★ Expert for producing ISUZU rear load trash trucks over 10 years with good reputation
★ T420 high-strength special steel material
★ 12 months free fast moving spare parts
★ All English version control box, panel, and owner's manual, for easy understanding
★ Training service for ISUZU rubbish compactor trucks
