2016 newly 35CBM fuel tanker semitrailer export Nigeria

Nigeria 35 CBM Oil tanker semitrailer for sale

3 axle fuel tanker semitrailer loading capacity can be 35 CBM, equipped with BPW axles, JOST kingpin, JOST landing gears, Air suspension, ABS, wholesale in Nigeria, Algeria, Tanzania, Kenya, etc

  • Product Origin:

    China CEEC
  • Shipping Port:

    Shanghai Seaport
  • Lead Time:

    7 Days
  • Payment:

    T/T, West Union
  • FOB Price:

    USD $17,500-26,500
  • Market Price:

    $22000
contact now

China best fuel tanker semitrailer, also can be called diesel tanker semitrailer, oil tanker semitrailer, gasoline tanker semitrailer, stainless steel tanker trailer, aluminum tanker trailer, etc. which are mainly used to transport all kinds of inflammable liquids, such as diesel, oil, gasoline. The 35 CBM fuel tanker trailer export to Nigeria, and will be used for crude oil transportation in Oil Field.

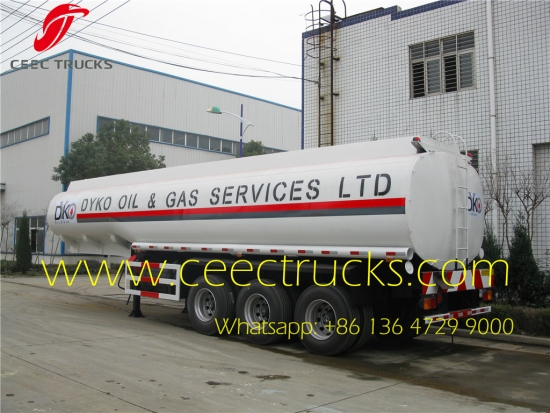

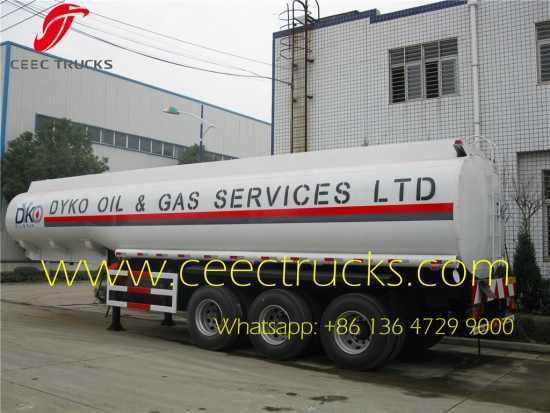

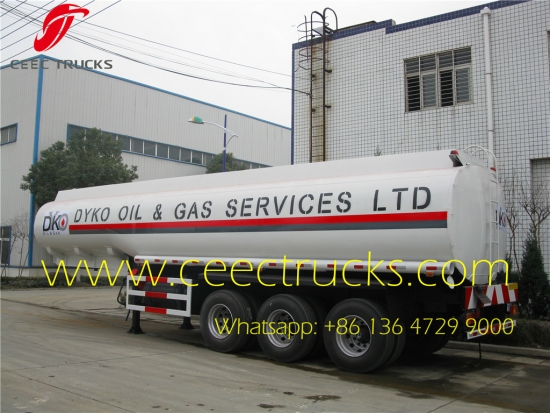

Nigeria 3axle oil tanker semitrailer 35 CBM



Nigeria 35 CBM oil tank trailer



Best CEEC TRUCKS produced 2016 newly 35~45 CBM fuel tank semitrailer wholesale in Nigeria:

** fuel tanker trailer Tank material could be carbon steel, stainless steel, alluminum……
** It can be divided into many compartments to load different types of fuels.
** BPW axles, JOST kingpin, JOST landing gears, Air suspension, ABS.
** Heat preservation of rock cotton or polyurethane foaming, Heating system.
** OPW (Civacon) bottom loading system can be equipped: API connections, over-fill detection system , vapor recovery vent, vapor recovery adaptors & dust cap, pneumatic control, bottom emergent valve……
** Tube or tubeless tyres, off-road single tyre for bad roads.



35 CBM fuel tanker trucks dimension drawing



CEEC TRUCKS produced 2 axle / 3 axle fuel tank semi trailers are widely export to Africa countries including kenya, Congo, Algeria, Nigeria, Tanzania, Cameroon, etc. also Asia countries Afganistan, Dubai, etc. Mainly used for fuel / diesel / gasoline transportation.

35 CBM diesel tanker trailers widely export Nigeria for oil, diesel, gasoline transportation.



fuel tanker trailer specifications



Nigeria 35 CBM oil tank trailer wholesale



Nigeria 35 CBM oil tank trailer wholesale



Nigeria 35 CBM oil tank trailer wholesale    Nigeria 35 CBM oil tank trailer wholesale



Nigeria 35 CBM oil tank trailer wholesale    Nigeria 35 CBM oil tank trailer wholesale



Nigeria 35 CBM oil tank trailer wholesale    Nigeria 35 CBM oil tank trailer wholesale



Similar Key Words: 35 CBM fuel tanker trucks suppliler, carbon steel oil tank semi-trailer, Nigeria fuel tanker semitrailer, 35 CBM fuel semi-trailer, 2016 roduced oil semitrailer, 35 CBM fuel trailer tanker, fuel tank trailer, 35 CBM oil semitrailer, semi tanker trailer



fuel tanker trailer specifications



35 CBM  Fuel Semitrailer Tank Body

Shape

Round or Square

Dimension

12000mm×2490mm×3990mm ( The exact size depends on the final design.)

Tare weight

About 8000kg-12800kg

Total Volume ( m3 )

35 m³

Tanker Body Material

5mm or 6mm/ Q235 carbon steel

End Plate

5mm or 6mm /Q235 carbon steel

Manhole Cover

Carbon steel or aluminum alloy API manhole cover, 500mm(diameter)

Bottom Valve

Aluminum API Pneumatic Bottom Valve

Discharging Valve

Diameter is 3 or 4 inch

Compartments

Optional

Discharging Pipe

4” rubber hose, 2 pcs , 6m/each

Cat Walk

With (Common model or special design)

Chassis

Main Beams

Welded design or Special design I beam, connected by bolts and nutsQ345 carbon steel material

Axle

2 or 3 axles, BPW/FUWA/HUAJING brand

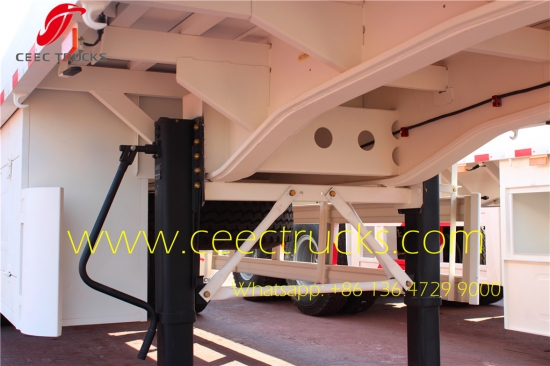

Landing Gear

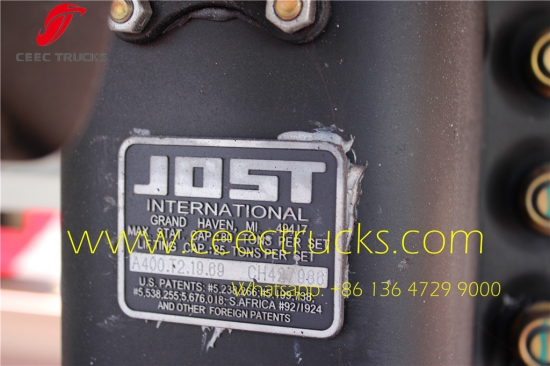

JOST (D200T ) or CHINA BRAND 28T

King Pin

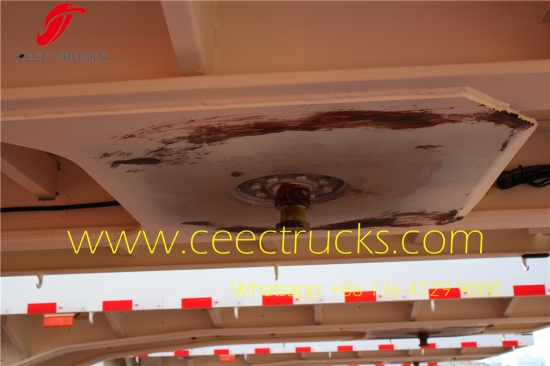

JOST 2.00 or 3.5 inch bolt-in king pin

Suspension

Mechanical suspension/Germany or America type /air suspension

Leaf Spring

90(W)mm×13(Thickness)mm×10layers or 10mm×12mm×12 /without

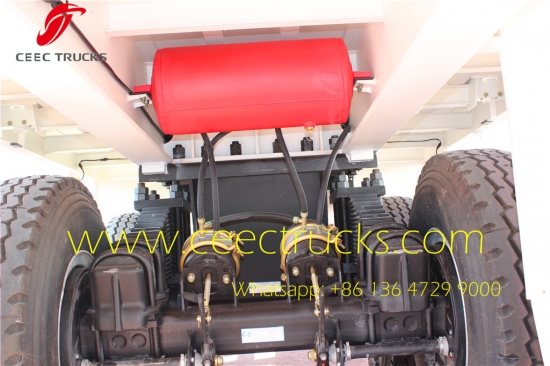

Pneumatic Braking System

WABCO RE 6 relay valve; Spring brake chamber (TKL brand ); one piece of 45L air tank

Rim

9.00-22.5/8.00-20/8.5-20 China Brand

Tire

/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional

ABS

Optional

Painting

Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.

Accessories

One standard tool box

Shipping Terms

By bulk cargo ,RORO or 40HQ Containers

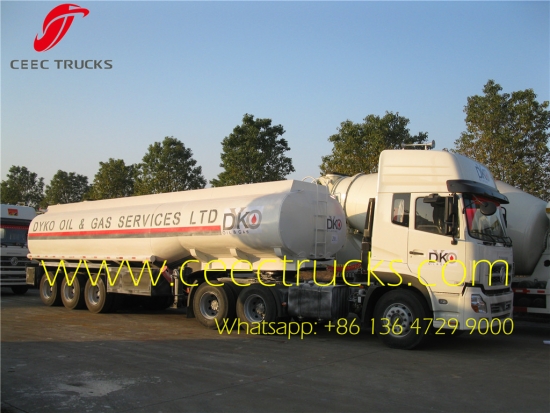

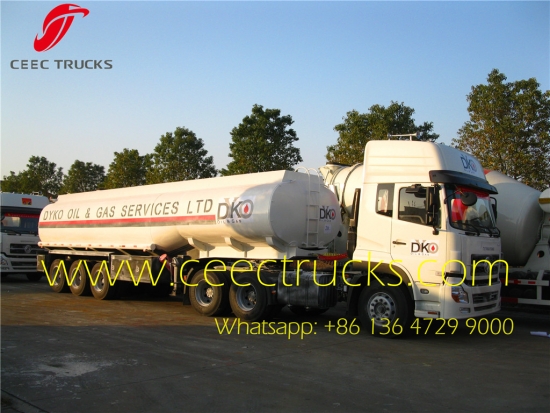

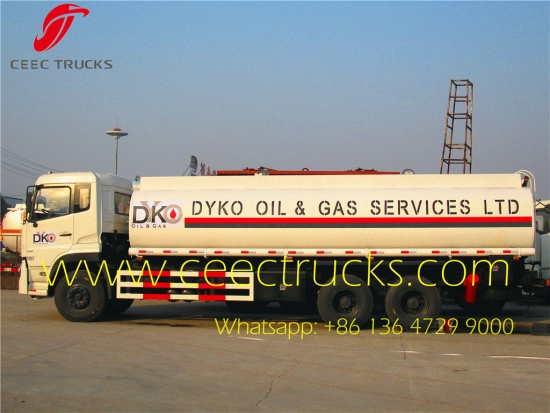

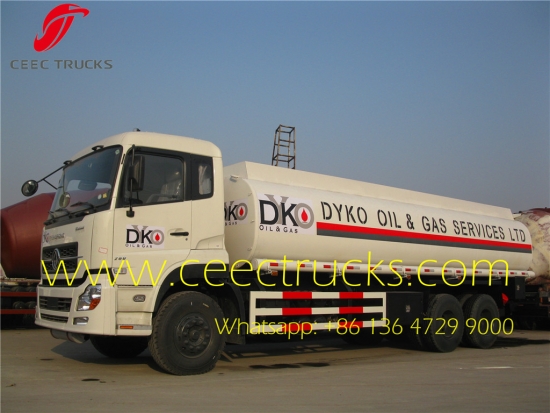

Nigeria 35 CBM oil tank trailer and Dongfeng 10 wheel tractor head wholesale



China Best Semitrailer on sale





Save
Loading 35 CBM, diesel, oil, gasoline, petro and some other flammable liquid

Tanker can be carbo steel, aluminum, stainless steel. approx Size: 12000×2500×3200mm.

Oil pump: Self-priming pump, gear pump, chemical pump, stainless steel pump

Can be seperated into several compartment to load different oil, chemical and food.

Various kinds of insulation and heating system optional


35 CBM Diesel Tank Semitrailer export Africa Nigeria



Professional and best semitrailers and beiben tractor trucks manufacturer and supplier in China, we CEEC TRUCKS produced and export fuel tanker semitrailer, bulk cement semitrailer, bogie suspension semitrailer, lowbed semitrailer, refrigerated semitrailer, etc. And beiben 4*2, 4*4, 6*4, 6*6 tractor trucks are widely export Congo, Alegeria, Nigeria, Tanzania, Kenya and other south africa countries.

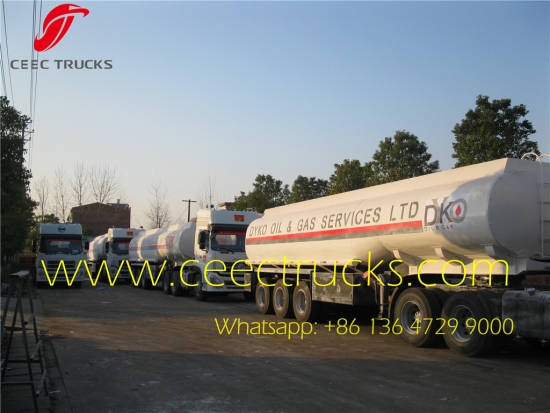

Below show totally 10 units Dongfeng 10 wheel prime mover and 35 CBM fuel tanker semitrailer export Nigeria:



Nigeria 35 CBM oil tank trailer wholesale

(35 CBM oil tank semitrailer all being waxed and ready delivery to Shanghai seaport shipping to Nigeria)
