3 axle 48 CBM fuel tanker semitrailer for africa

48 CBM oil tank semi trailer

best supplier of 3 axle oil tanker semitrailer, 50 CBM fuel tanker semitrailer to nigeria, ghana, congo, algeria and other africa countries, BPW, FUWA, JOST brand main parts for good performance

  • Product Origin:

    China CEEC
  • Shipping Port:

    Shanghai Seaport
  • Lead Time:

    7 Days
  • Payment:

    T/T, West Union
  • FOB Price:

    USD $16,500-26,000
  • Market Price:

    $25000
contact now

The fuel tank semi trailer is commonly used to transfer diesel fuel, petrol, crude oil, edible oil, palm oil, and liquid asphalt.

As a specialist in the manufacture of fuel tank semi trailer, we have pioneered the application of plate bender and welder in the manufacture of fuel tanks trailer. Our industry leading design capability allows us to supply your desired oil tanker trailers in the shortest possible time. With a loading capacity in the range between 30 and 60m³, our fuel tank semi trailer often comes in various types, the most common being the 2-axle and 3-axle configurations.



Maximum 50 CBM oil tanker semitrailer for Angola



48CBM 3 Axle diesel tank semi trailer wholesale



Angola client choose CEEC TRUCKS as best 2 axle and 3 axle fuel tanker semitrailer for below reasons:

The tank is grounded to discharge static electricity produced by the rubber tire, which might cause fire during fuel transfer operation. Upon your request, we can add a power take-off system to the tank that is powered by gearbox, which controls the tank to either sucks in or discharge fuel.

The tank of our semi trailer also comes with two hoses and quick couplers. Its suction head is 6 meters. Two fire extinguishers and other specialized tools are also sure to come in handy during emergency. The whole tank semi trailer is comprised of two parts, the tank assembly and tank support.

In addition, the 40CBM ~ 50CBM tank semi trailer can be equipped with various kinds of valves, discharge ports, and tank lids, such as in square or round shapes. Choices of these parts can be made all according to your likings.

Simply tell us the variety of materials to be transported, particle size, density, and desired tank capacity and weight, and we will design accordingly a suitable semi trailer model available with various chassis, tanks, and fuel feeders.



48CBM 3 Axle diesel tank semi trailer



CEEC TRUCKS as best semitrailers manufactures, Africa countries including kenya, Congo, Algeria, Nigeria, Tanzania, Cameroon, etc. also Asia countries Afganistan, Dubai, etc. choose 2 axle / 3 axle fuel tank semi trailers are widely used for fuel / diesel / gasoline transportation.



48CBM 3 Axle diesel tank semi trailer



Similar Key Words: 48 CBM fuel tanker trucks suppliler, oil tank semi-trailer, fuel tanker semitrailer, fuel semi-trailer, oil semitrailer, fuel trailer tanker, fuel tankers, fuel tank trailer, oil trailer, semi tanker trailer, stainless steel oil tanker trailer, 50 CBM carbon steel trailer tank fuel



50 CBM  Fuel Semitrailer Tank Body

Shape

Round or Square

Dimension

12000mm×2490mm×3990mm ( The exact size depends on the final design.)

Tare weight

About 8000kg-12800kg

Total Volume ( m3 )

50  m³

Tanker Body Material

5mm or 6mm/ Q235 carbon steel

End Plate

5mm or 6mm /Q235 carbon steel

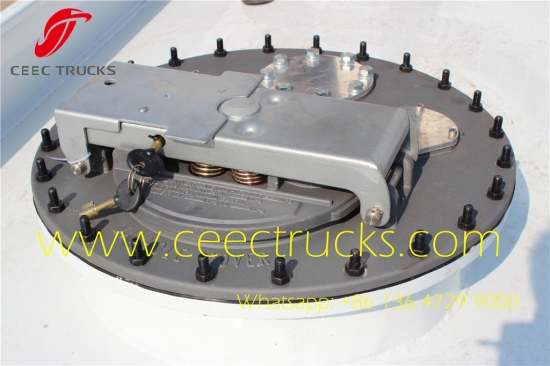

Manhole Cover

Carbon steel or aluminum alloy API manhole cover, 500mm(diameter)

Bottom Valve

Aluminum API Pneumatic Bottom Valve

Discharging Valve

Diameter is 3 or 4 inch

Compartments

Optional

Discharging Pipe

4” rubber hose, 2 pcs , 6m/each

Cat Walk

With (Common model or special design)

Chassis

Main Beams

Welded design or Special design I beam, connected by bolts and nutsQ345 carbon steel material

Axle

2 or 3 axles, BPW/FUWA/HUAJING brand

Landing Gear

JOST (D200T ) or CHINA BRAND 28T

King Pin

JOST 2.00 or 3.5 inch bolt-in king pin

Suspension

Mechanical suspension/Germany or America type /air suspension

Leaf Spring

90(W)mm×13(Thickness)mm×10layers or 10mm×12mm×12 /without

Pneumatic Braking System

WABCO RE 6 relay valve; Spring brake chamber (TKL brand ); one piece of 45L air tank

Rim

9.00-22.5/8.00-20/8.5-20 China Brand

Tire

/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional

ABS

Optional

Painting

Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.

Accessories

One standard tool box

Shipping Terms

By bulk cargo ,RORO or 40HQ Containers



48CBM 3 Axle diesel tank semi trailer



48CBM 3 Axle diesel tank semi trailer



48CBM 3 Axle diesel tank semi trailer



48CBM 3 Axle diesel tank semi trailer



China Best Semitrailer on sale





Other beiben trucks display





SaveSaveSave

** 48CBM oil semitrailer Tank material could be carbon steel, stainless steel, alluminum……
** It can be divided into many compartments to load different types of fuels.
** BPW axles, JOST kingpin, JOST landing gears, Air suspension, ABS.
** Heat preservation of rock cotton or polyurethane foaming, Heating system.
** OPW (Civacon) bottom loading system can be equipped: API connections, over-fill detection system , vapor recovery vent, vapor recovery adaptors & dust cap, pneumatic control, bottom emergent valve……
** Tube or tubeless tyres, off-road single tyre for bad roads.



best semitrailer and beiben tractor trucks supplier China CEEC TRUCKS



As professional semitrailers and beiben tractor trucks supplier in China, we CEEC TRUCKS produced and export fuel tanker semitrailer, bulk cement semitrailer, bogie suspension semitrailer, lowbed semitrailer, refrigerated semitrailer, etc. And beiben 4*2, 4*4, 6*4, 6*6 tractor trucks are widely export Congo, Alegeria, Nigeria, Tanzania, Kenya and other south africa countries.

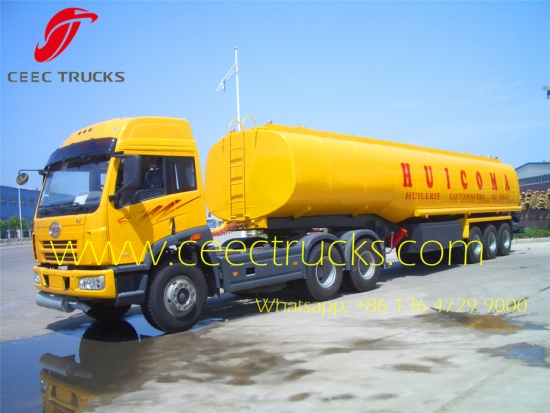

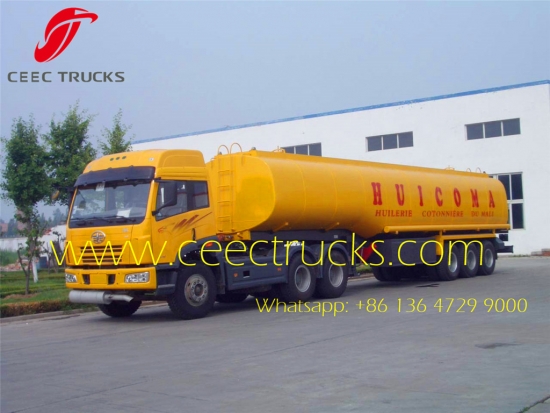

FAW brand prime mover and fuel tanker semitrailer

(FAW brand 6*4 towing trucks and 50CBM fuel tank semitrailer for hot sale)



DONGFENG brand prime mover and fuel tanker semitrailer

(DONGFENG brand 6*4 towing trucks and 50CBM fuel tank semitrailer EXPORT Angola for fuel delivery)
