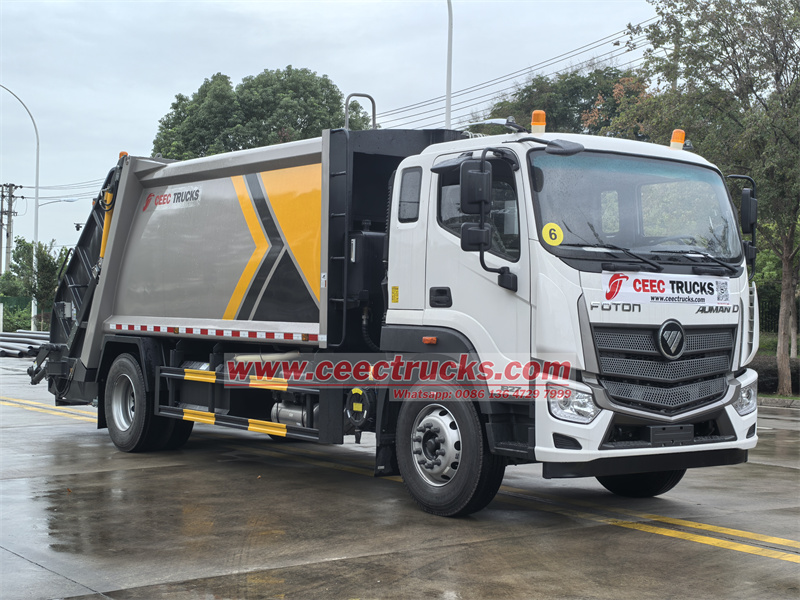

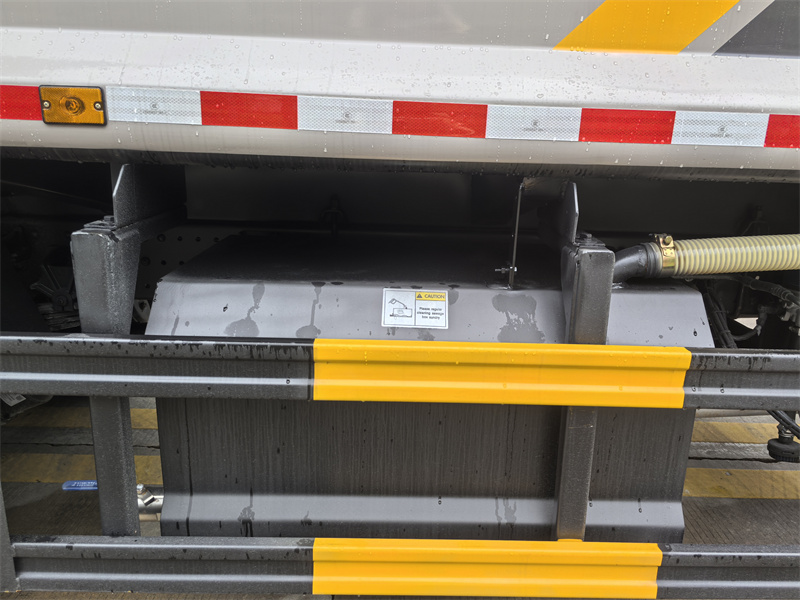

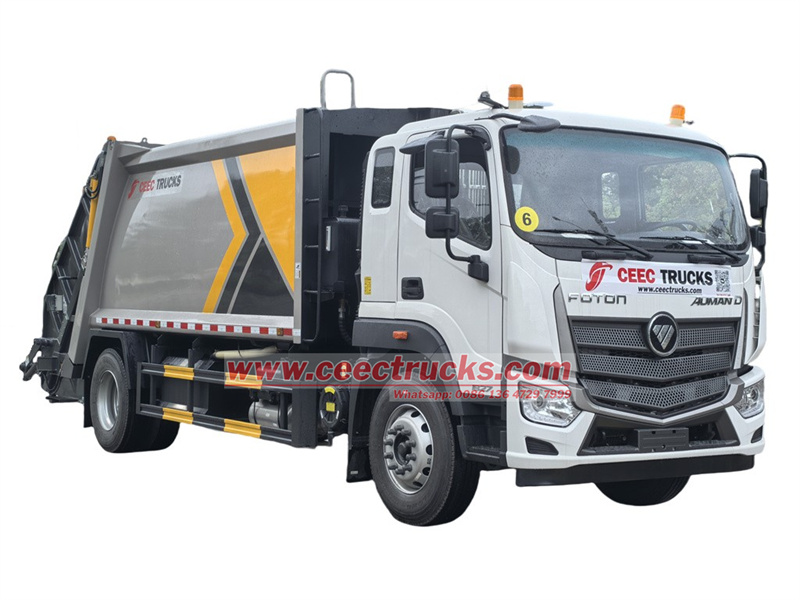

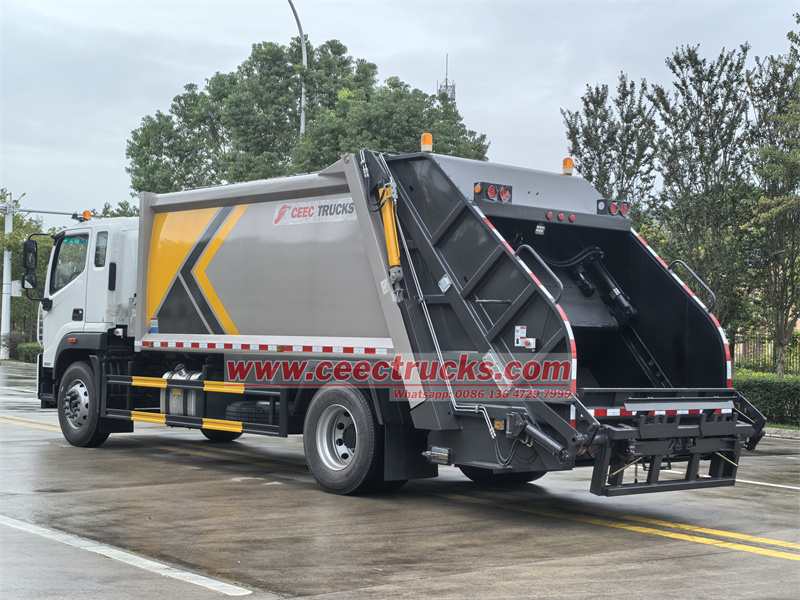

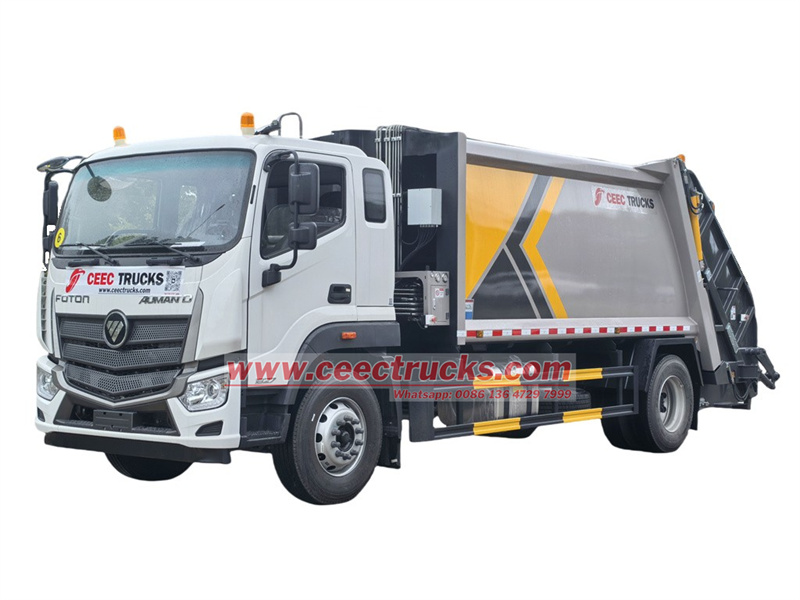

FOTON AUMAN 4x2 garbage compactor truck is a sanitation truck used for garbage collection, compression and transportation. Equipped with an American CUMMINS brand ISDe270 30 model diesel engine, with efficiently horsepower 270HP and emission 6700ml, six-cylinder, water-cooled, four-stroke design engine, with exhaust valve braking, direct injection, supercharged intercooler, and turbocharging delivers powerful power. Equipped with CAN BUS control system, multi-function garbage compression device, climbing ladder, electric control box in cabin and rear hopper, safety and reliable operation. Both hopper and sewage tanker equipped for waste water collection to efficiently avoid secoind pullution during delivery.
Product Origin:
China CEECLead Time:
40 DaysWork capacity:
16 cbmDimension ( mm ):
9430 X 2500 X 3290Wheelbase ( mm ):
5150Engine power:
270HPEngine type:
ISDe270 30Axle drive:
4x2, LHDGear box:
FAST 8-shift manual transmissionRemarks:
Rear tilting device for 360L and 1100L metal binsFOTON 16CBM garbage compactor truck is a super strong designed waste management equipment, based on 1086VLPHK-0FDA01 model 4x2 truck chassis. FOTON AUMAN rear loader truck is equipped with a CUMMINS brand ISDe270 30 model 270HP diesel engine, and the power system is equipped with turbocharging and intercooling technology, emission 6700cc, stronger and powerful for mountain climbing. Matched with ZF 8 shift manual gearbox, front axle 4.2tons and rear axle 9tons, installed with 295/80R22.5 tires, ensuring a strong load-bearing capacity. Mounted with 16cbm compactor body, curve shaped based on T420 material, thickness for side 4mm and floor 5mm, equipped with double way balance valve and optoelectronic switch for safety, rear tilting device can be used for loading 360L and 1100L garbage bins, suitable for local garbage collection and transportation in community and factory. CAN BUS electricl control system and Hydraulic valve control system working together to make FOTON 16000L waste management vehicle very popular and reliable Chile Capital Santiago.
CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
»» Ⅰ.Product Defination and Introduction:
Manufacturer: CEEC TRUCKS
Features:
1. FOTON 4x2 Truck chassis: CUMMINS ISDe270 30 model with 270HP diesel engine + FAST 8-speed gearbox, excellent fuel economy.
2. Compactor Body: High strength steel T420 material, thickness for side 4mm and floor 5mm, anticorrosion painting for long life service.
3. Convenient Operation: Incabin and rear tailgate CAN BUS electric control box, Hydraulic valves for safety usage
4. Safe and reliable: Full hydraulic system is equipped with a double way valve to prevent overload and ensure operation safety, also balance valve for safety operation.
»» Ⅱ.Product Parameter for FOTON 16CBM rear loaders：
|
Product Name
|
FOTON AUMAN 16cbm Rear Loader Compactor Garbage Truck
|
|
Model
|
CEEC5180ZYS
|
|
Chassis No.
|
1088VEJEA-0FDA07
|
|
Driving Type
|
4x2
|
|
Gross Weight
|
18000kg
|
|
Rated Loading
|
10000kg
|
|
Curb Weight
|
10370kg
|
|
Dimension
|
9430x2500*3290mm
|
|
Wheelbase
|
5150(mm)
|
|
Front Axle Loading Capacity
|
4.2 Ton
|
|
Rear Axle Loading Capacity
|
9 Ton
|
|
Approach angle
|
21°
|
|
Departure angle
|
16°
|
|
Tire
|
295/80R22.5, 6+1 PCS
|
|
Max Speed
|
100 (Km/h)
|
|
Engine parameters:
|
|
|
Model
|
ISDe270 30
|
|
Horse Power
|
270hp
|
|
Displacement
|
6700 cc
|
|
Emission Standard
|
Euro 3
|
|
Type
|
4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling)
|
|
Gear Box
|
|
|
Gear Box
|
FAST brand 8 shift manual transmission, 8 forward and 1 reverse
|
|
Superstructure Parameter:
|
|
|
Tank Volume
|
16CBM
|
|
Tank Shape
|
Arc-shape
|
|
Tank Material thickness
|
Bottom:5mm Side:4mm
|
|
Tank Material
|
T420(Special Steel)
|
|
Compression Ratio
|
≥2.5
|
|
The effective volume of the bucket
|
≥1.4m³
|
|
Loading cycle time
|
≤30 s
|
|
unload garbage time
|
≤38s
|
|
control method
|
Automatic,Manual
|
|
Maximum pressure of hydraulic system
|
22MPa
|
|
Control System
|
Siemens PLC / CAN BUS electric control box
|
|
Engine power control
|
Fully automatic control
|
|
Tumbler mechanism
|
360L / 1100L Garbage bin(Others Optional)
|
»» Ⅲ.FOTON 16000L Rear End Loader Truck Details & Advantages:

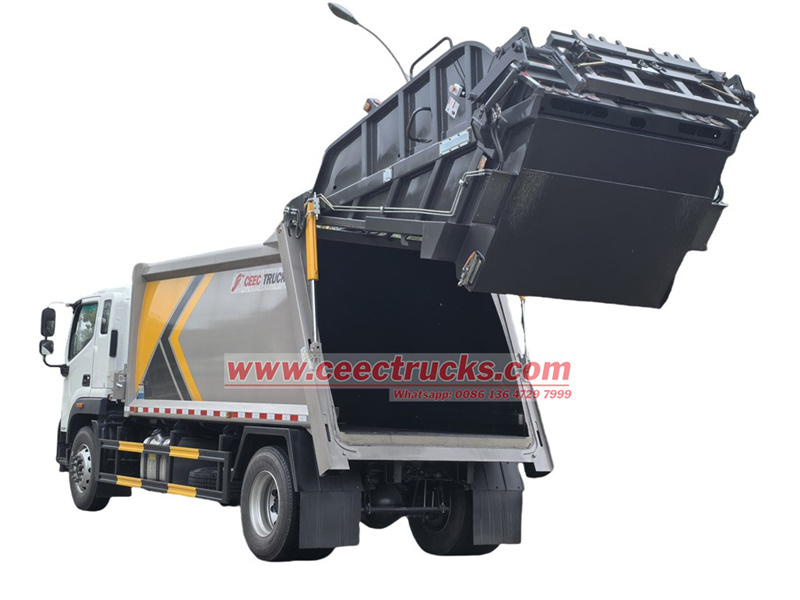

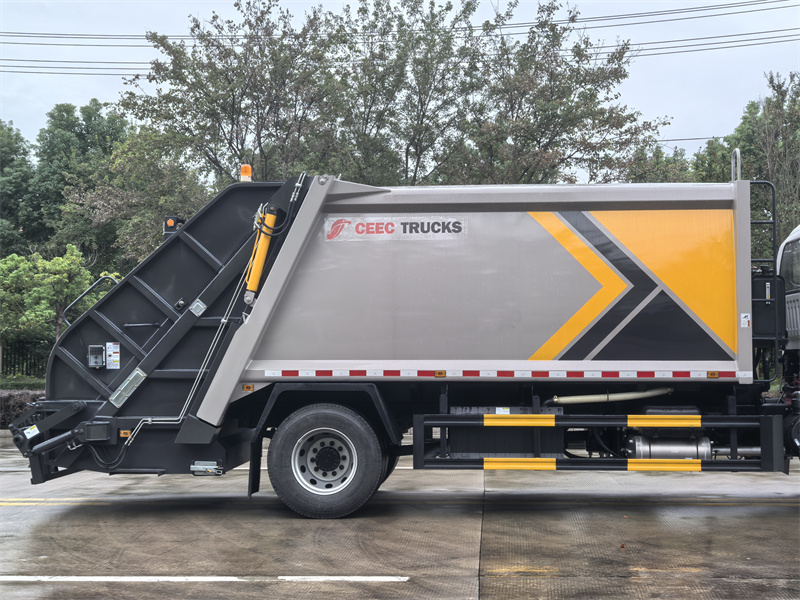

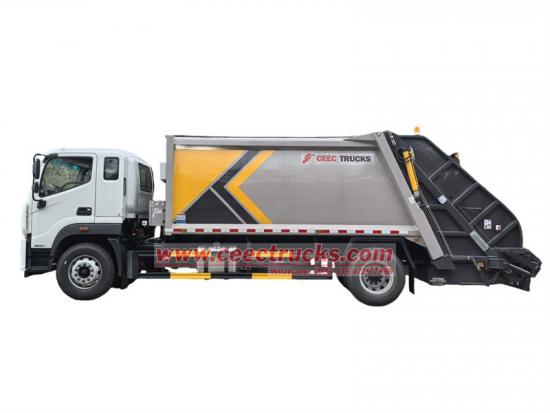

FOTON 16cbm rear loader garbage truck compactor body kit

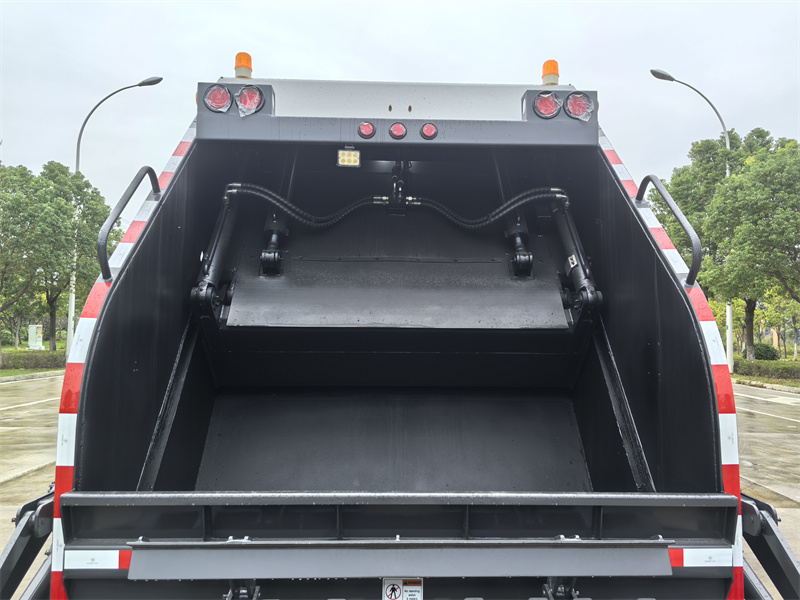

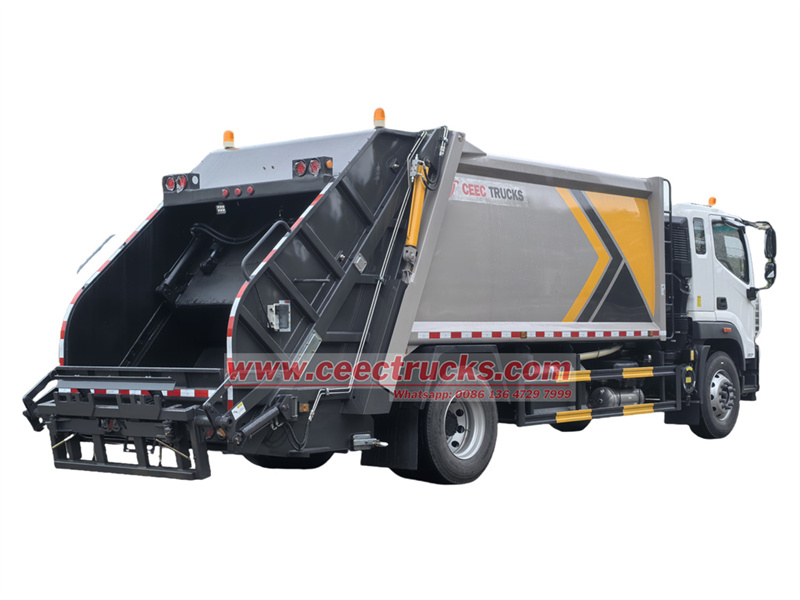

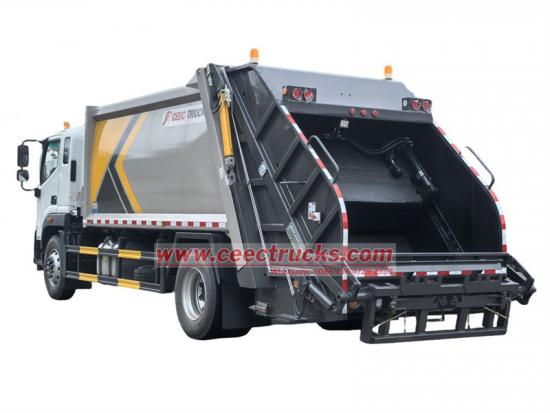

FOTON rear loader truck rear hopper

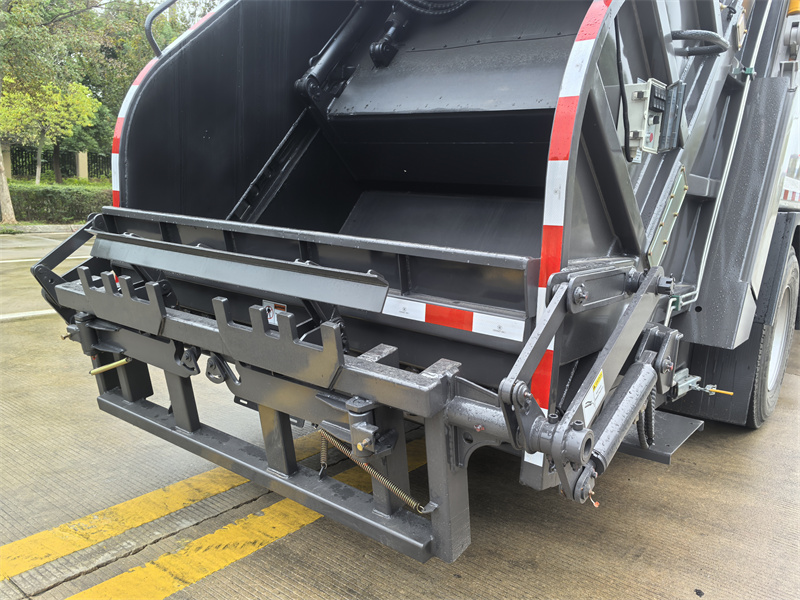

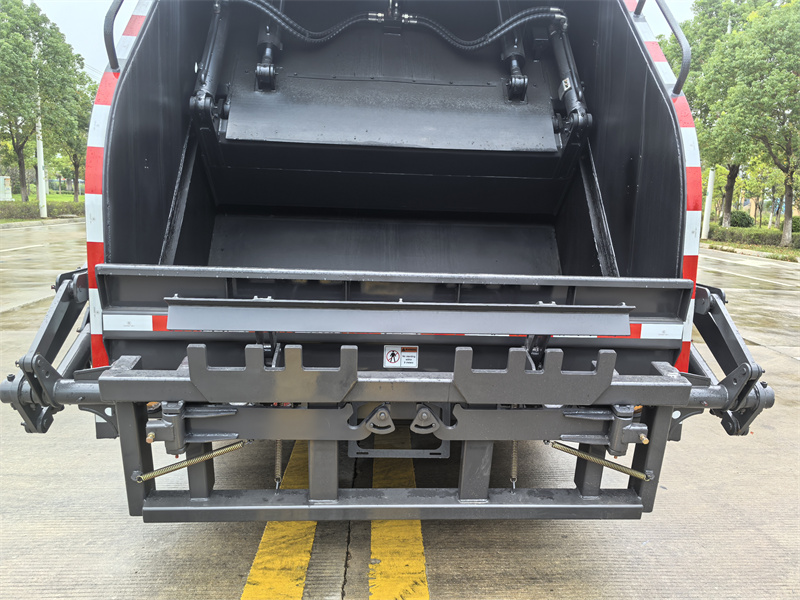

FOTON garbage truck rear tilgint device
Foton refuse compactor truck equipped with rear tilting device, customized model with double hydraulic cylinders for working. Suitable for lifting internation standard container bins, optional material plastic and metal. Optional size as 120L, 240L, 360L, 660L, 770L, 1100L, etc.
FOTON compactor truck inside push plate

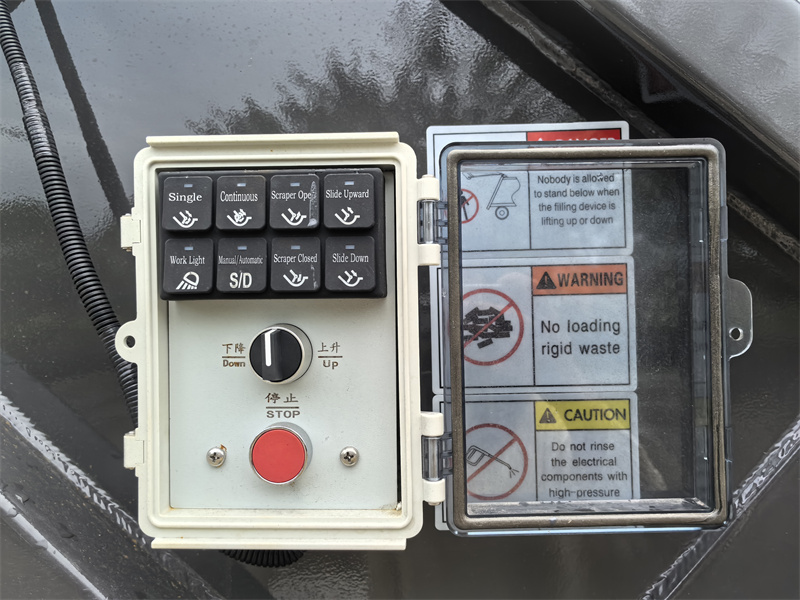

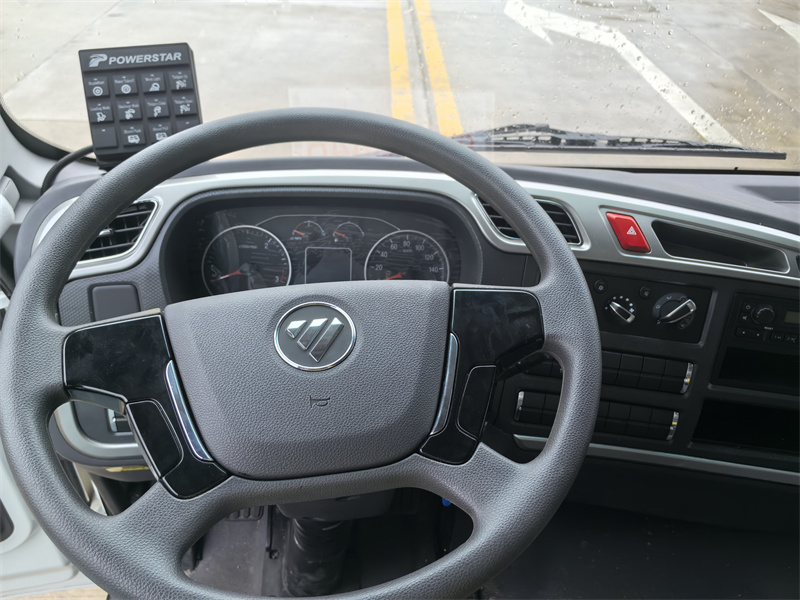

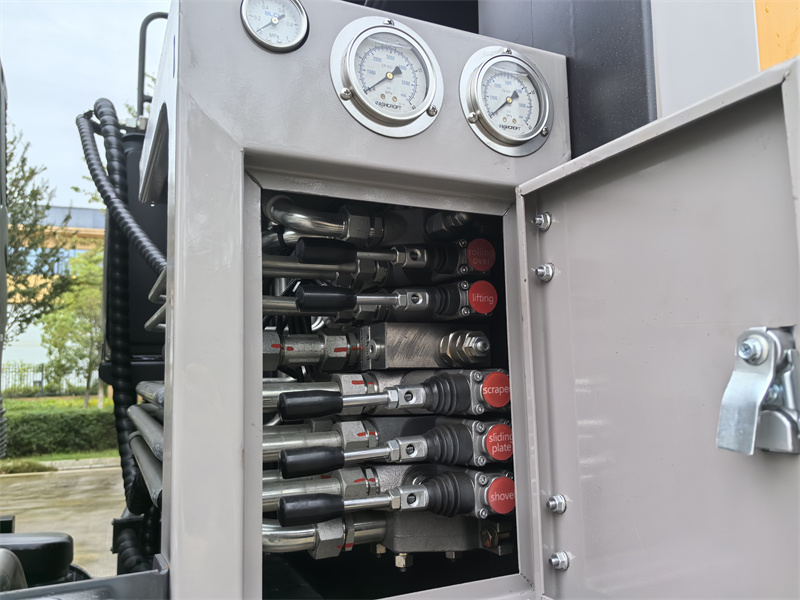

FOTON garbage truck control device
Standardized operating procedures and CAN BUS control automate the entire loading, compression, and unloading process. The compression cycle error is ≤ 2 seconds, eliminating efficiency fluctuations caused by manual operation.
Also optional to install the wireless control box for remote usage, making control more efficiency.

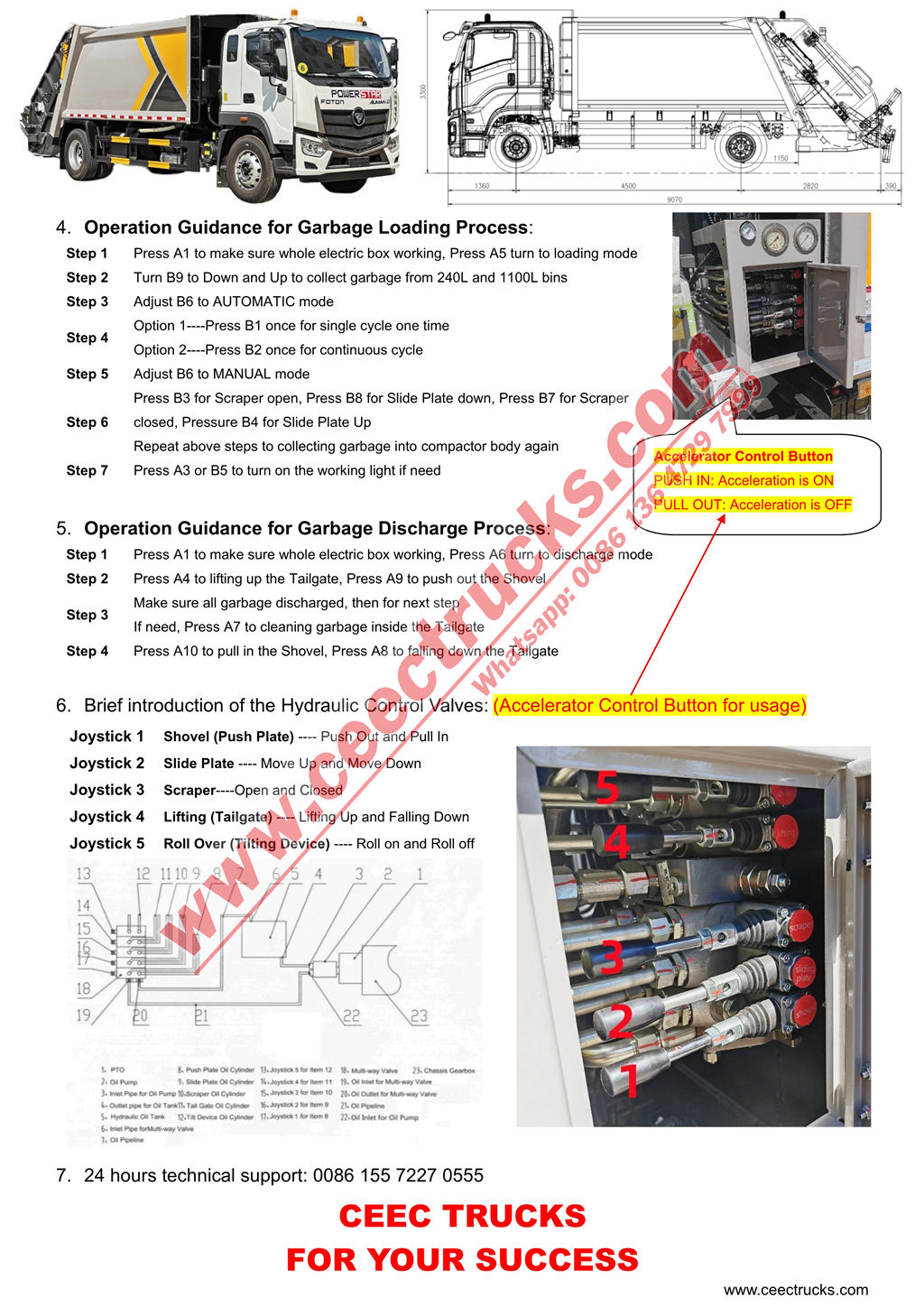

»» Ⅳ.FOTON Refuse Compactor Truck Operation Manual:
Products--100% Customized Level One!
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
We CEEC also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.

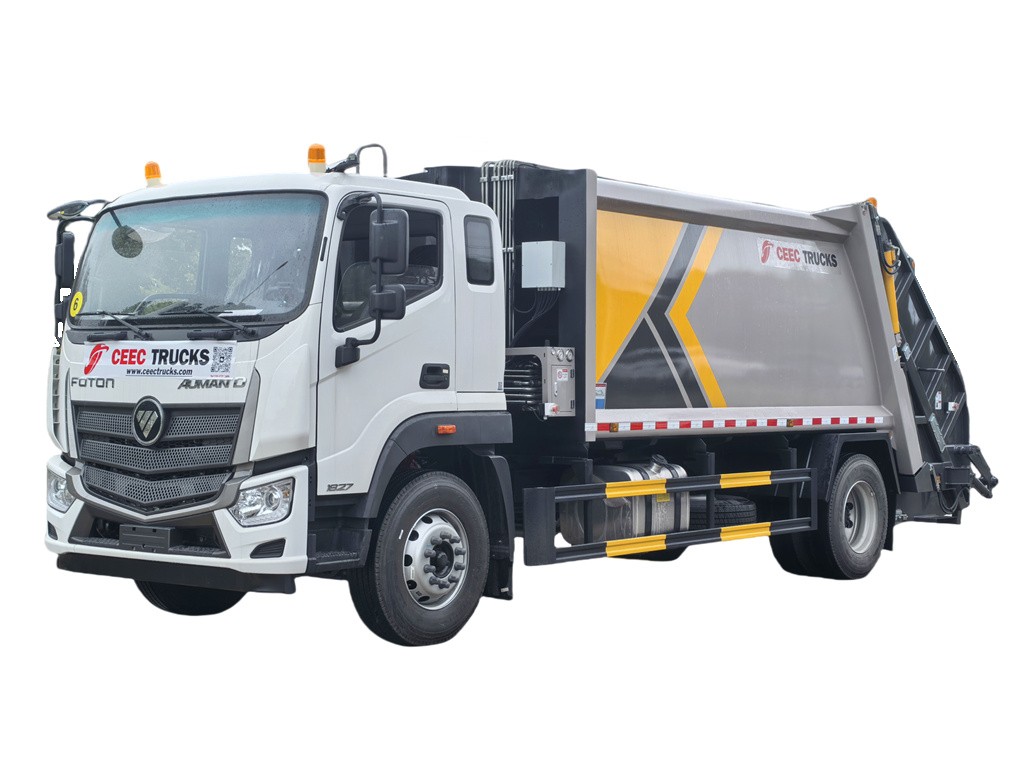

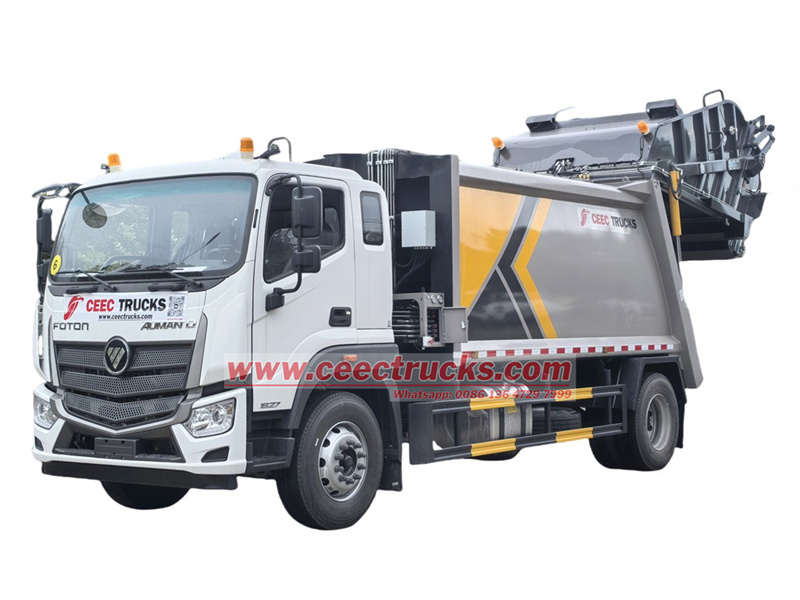

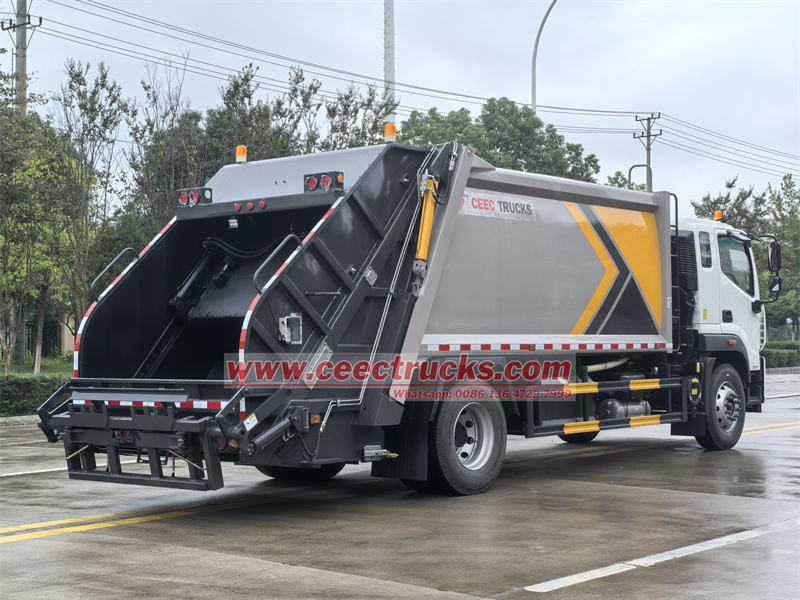

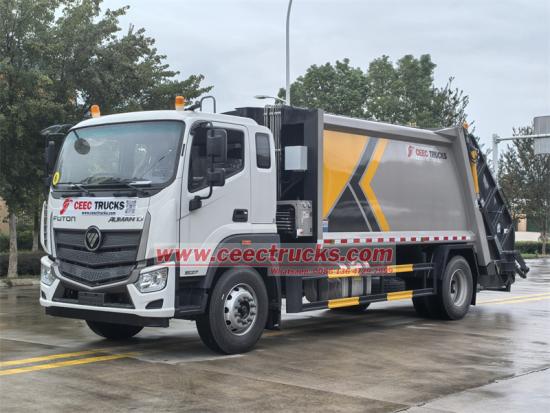

»» Ⅴ.FOTON AUMAN 16cbm Trash Compactor Truck Overview:
»» Ⅵ.FOTON AUMAN 16cbm Trash Compactor Truck Overview:
★ American CUMMINS ISDe270 30 Euro 3 diesel engine, super powerful
★ FAST Manual 8-shift mechanical transmission gearbox
★ 12 months fast moving spare parts for FREE
★ Authorized FOTON 16cbm rear loader exporter
★ Training service for FOTON 16000L garbage compactor truck
China professional rear loader truck supplier and exporter, we supply high quality rear loader truck. We can ensure the fast delivery time and 12 months guarantee for our rear loader truck. Our rear loader truck are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.

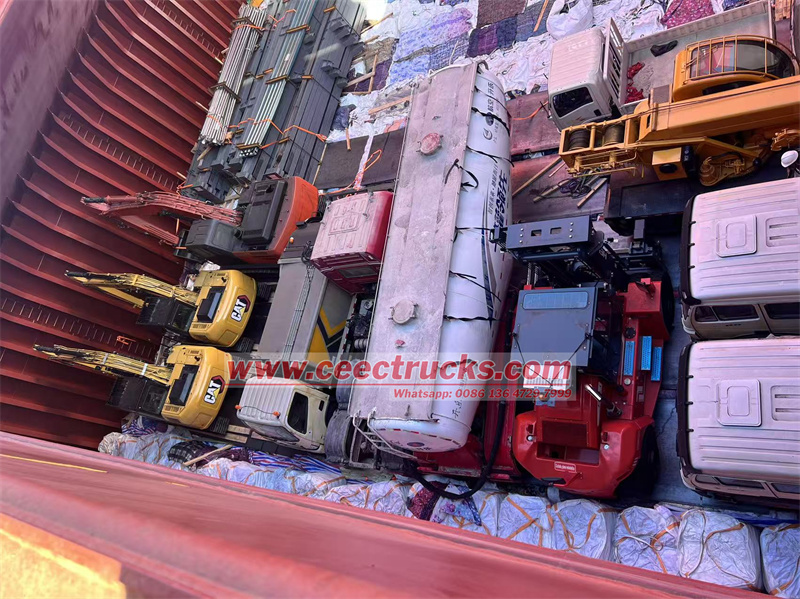

---- Maximize save your sea freight.
