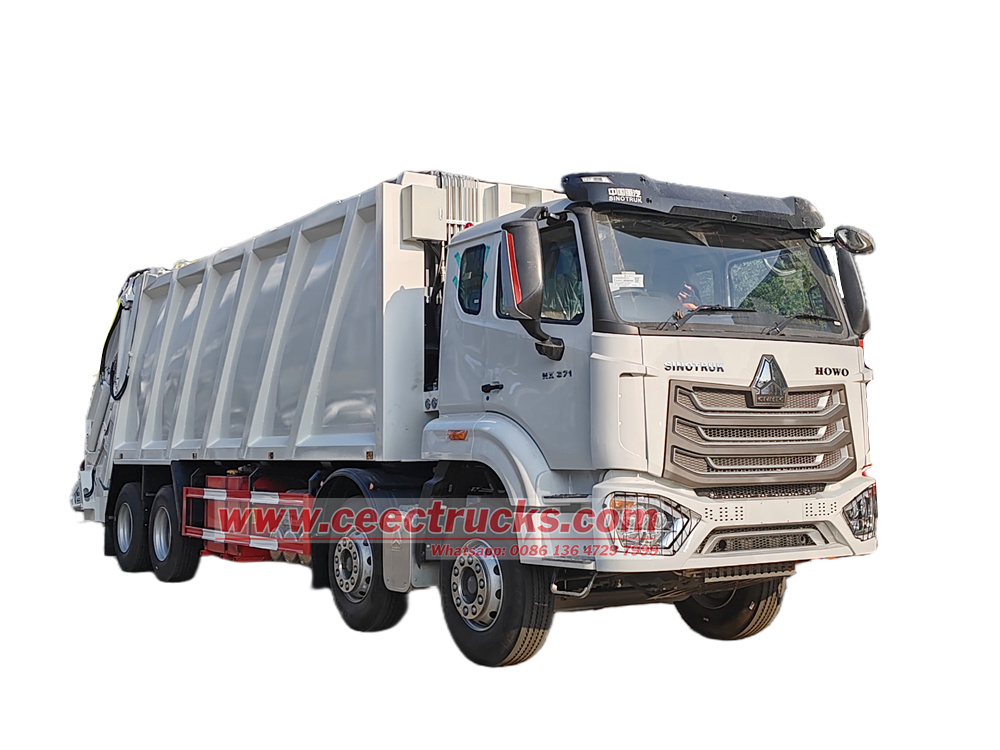

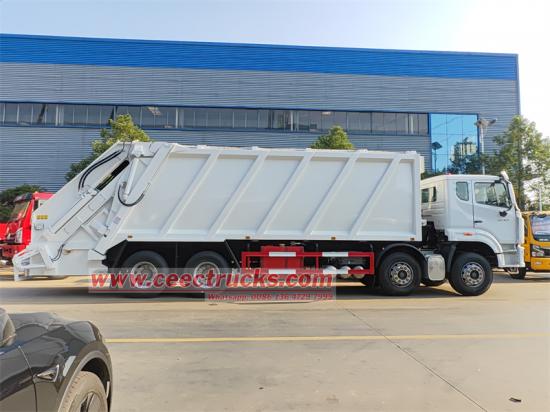

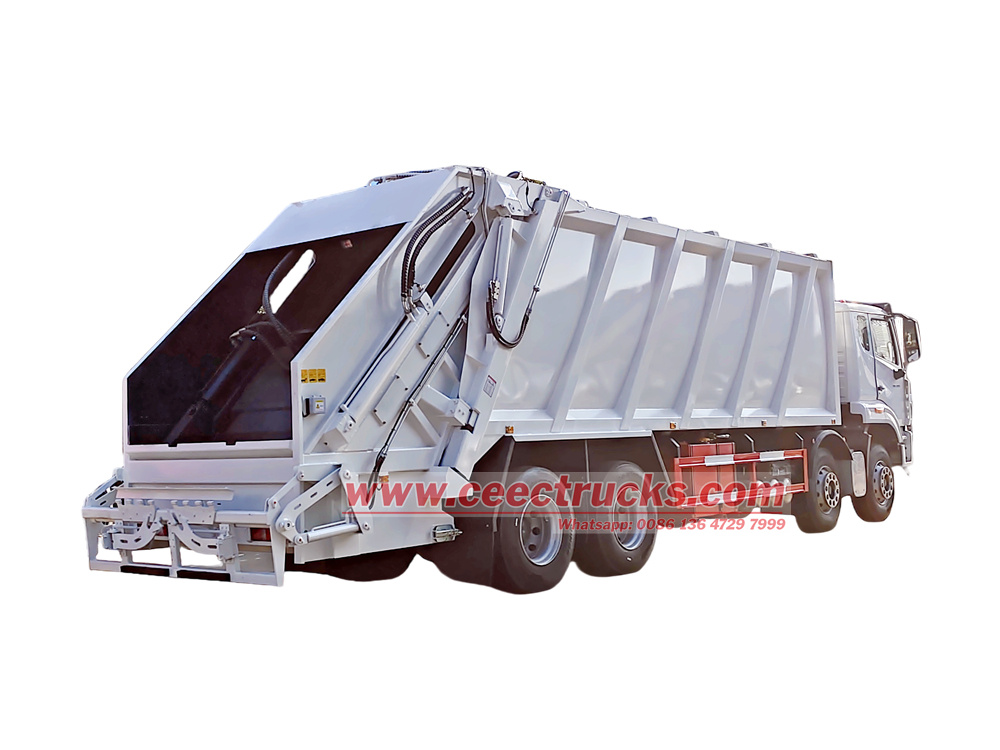

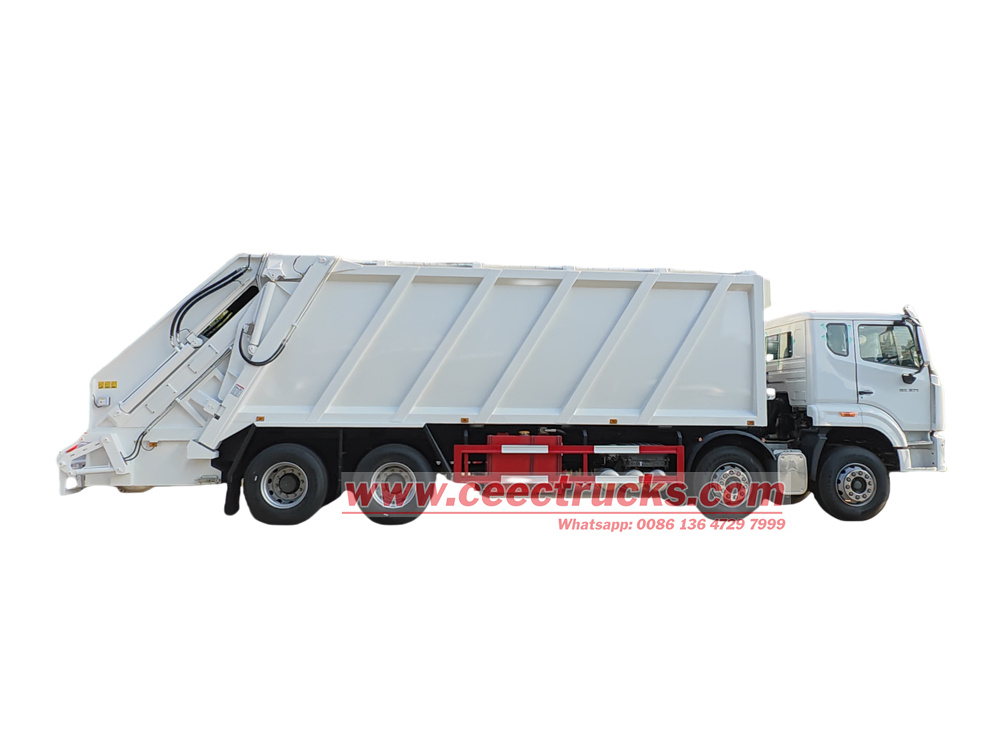

HOWO 35 cbm back loading garbage truck

HOWO 35CBM Back Loading Garbage Truck

The HOWO 35 CBM back loading garbage truck is a highly efficient heavy-duty sanitation equipment. It is equipped with a Sinotruk 371-horsepower engine and a ten-speed transmission, providing strong power. The 35-cubic-meter container, combined with bidirectional compression technology, achieves a compression ratio of ≥3:1, significantly increasing the transport capacity per trip. Operation is extremely convenient, integrating a CAN bus intelligent electronic control system that supports cab electronic control, side manual operation, and rear remote control, allowing for comprehensive control of the entire process of garbage collection, compression, and unloading. It is widely used in large-capacity garbage transfer scenarios such as urban main roads, suburban areas, and industrial parks.

Product Introduction:

Garbage compactor truck, also known as rear loader truck,rear lifting garbage truck,waste collection truck,garbage disposal truck,trash compactor truck. is a specialized sanitation vehicle that integrates garbage collection, compactor, and sealed transfer functions. Through a hydraulically driven bidirectional compression mechanism, it efficiently compacts loose garbage, significantly reducing volume and transport frequency. It is also equipped with a leak-proof system to prevent secondary pollution, making it a key piece of equipment for modern cities to achieve waste reduction and harmless treatment.

Product Parameters:

Product Details:

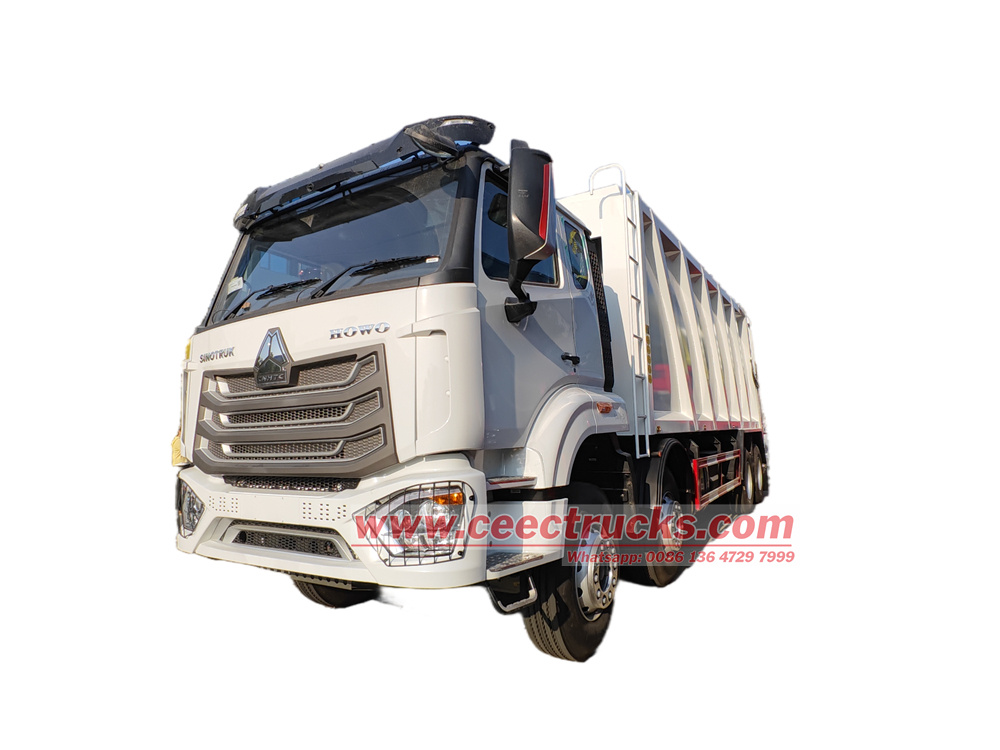

Chassis Configuration

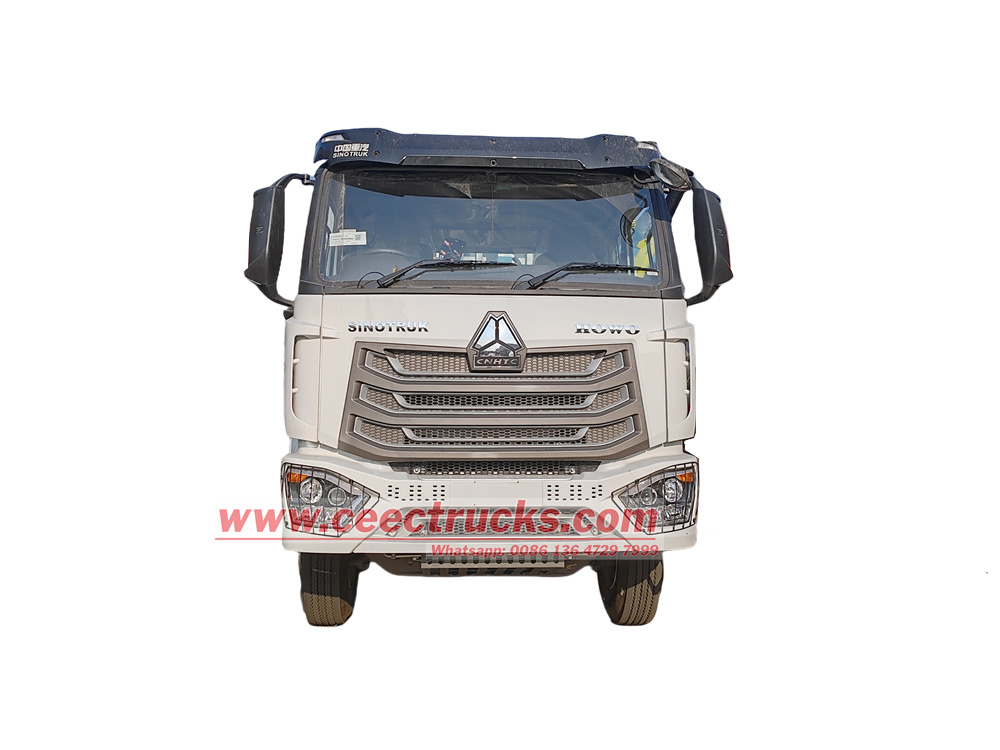

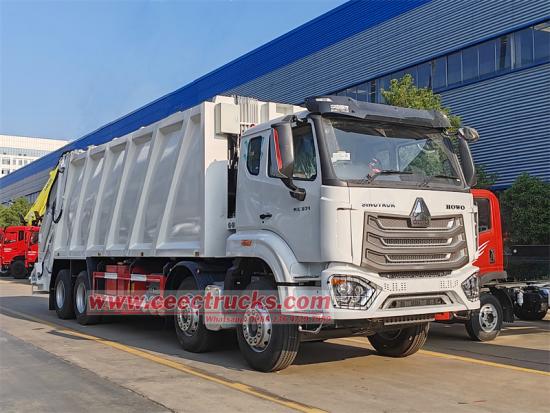

Cabin: Sinotruk Howo NX H77L 2280 wide-body, high-roof cab, spacious interior, excellent visibility, equipped with air-suspension seat, multi-function steering wheel, and automatic air conditioning, offering good comfort.

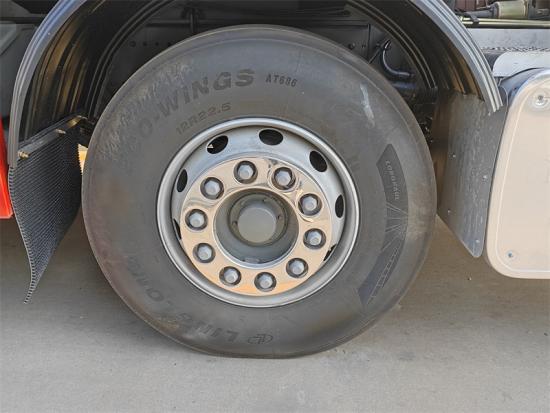

Drive Type: 8x4, front axle HF9 drum brakes, 9Tx2, rear axle HC16, 16Tx2.



Wheelbase: 1900mm + 4600mm + 1400mm, a reasonable wheelbase design that balances vehicle agility with space for superstructure layout.



Engine: Sinotruk WD615.47 inline six-cylinder diesel engine, 9.726 liters, 371 hp (273 kW), 1500 N·m torque (1100-1600 rpm)



Transmission: Sinotruk HW19710 manual transmission, 10 forward gears, 2 reverse gears, high first gear ratio, strong heavy-load starting capability.

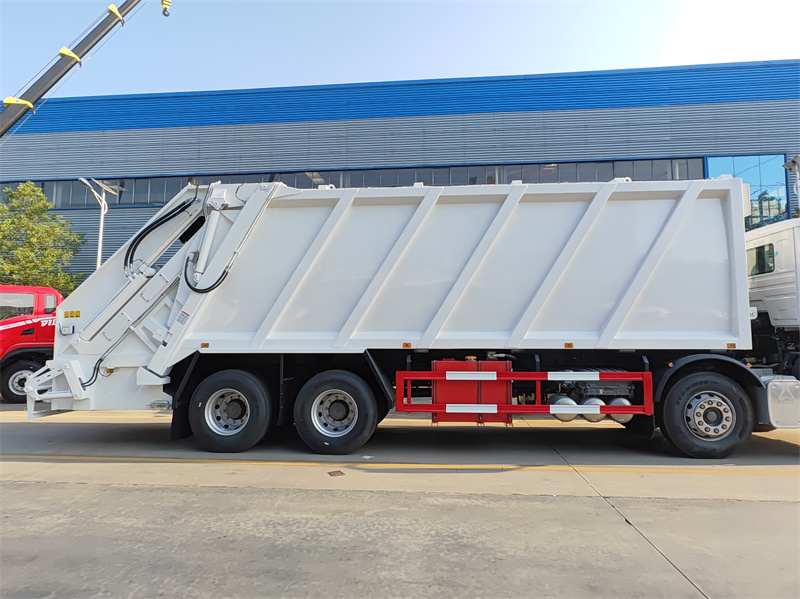

Trash bin

Volume: 35 cubic meters (curved design, large effective volume)



Material: High-strength, high-quality carbon steel



Thickness: 5mm for side panels, 6mm for bottom plate, impact-resistant and wear-resistant.



Craftsmanship: Curved body design for smoother unloading; professional anti-corrosion and rust-proofing treatment inside effectively resists garbage corrosion and extends service life.

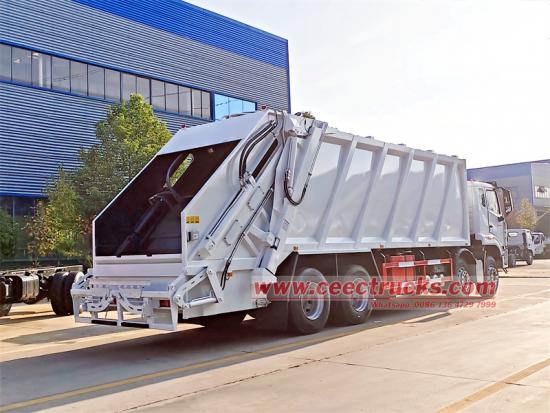

Loading and Unloading System

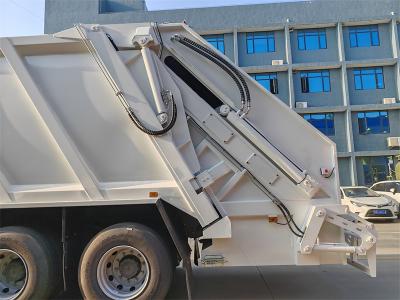

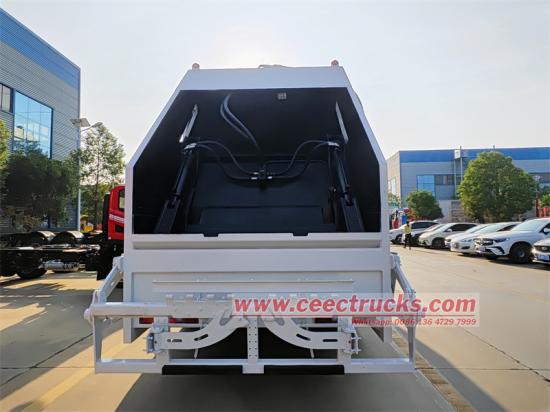

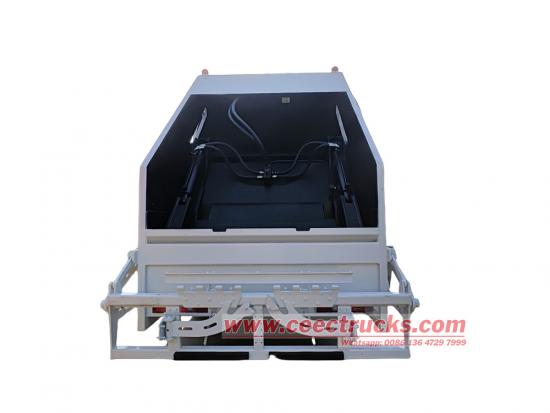

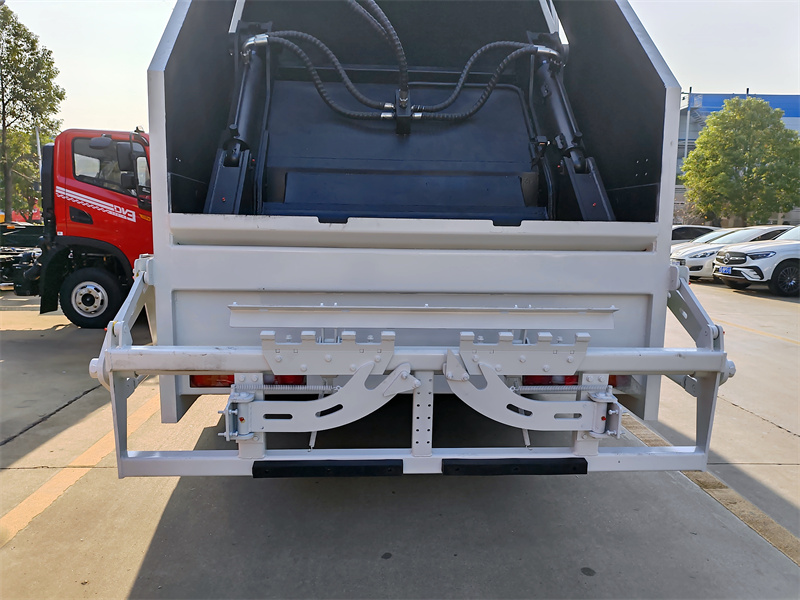

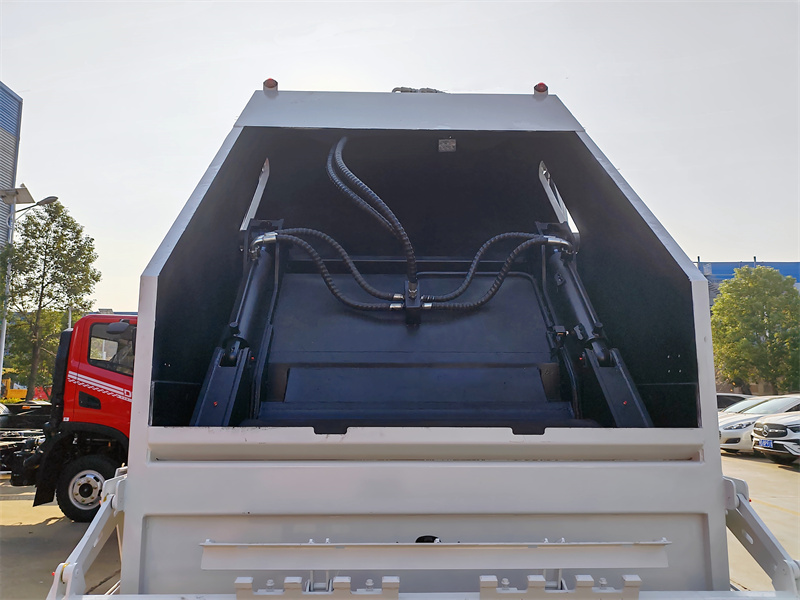

Filler/Packing Mechanism: Located at the rear, equipped with a bin-tipping rack.



Applicable Bins: Can accommodate 240L, 660L, and other international standard bins.



Compact Technology: Two-way compression technology. During filling and compaction, the pusher and scraper work together to compress the waste; during unloading, the pusher moves forward to push the waste out as a whole, achieving powerful compression and thorough unloading.



Compact Ratio: ≥3:1, greatly improving loading efficiency.

Control System

Control Core: An integrated CAN bus electronic control system enables automated and precise control of the work process.



Control Methods:

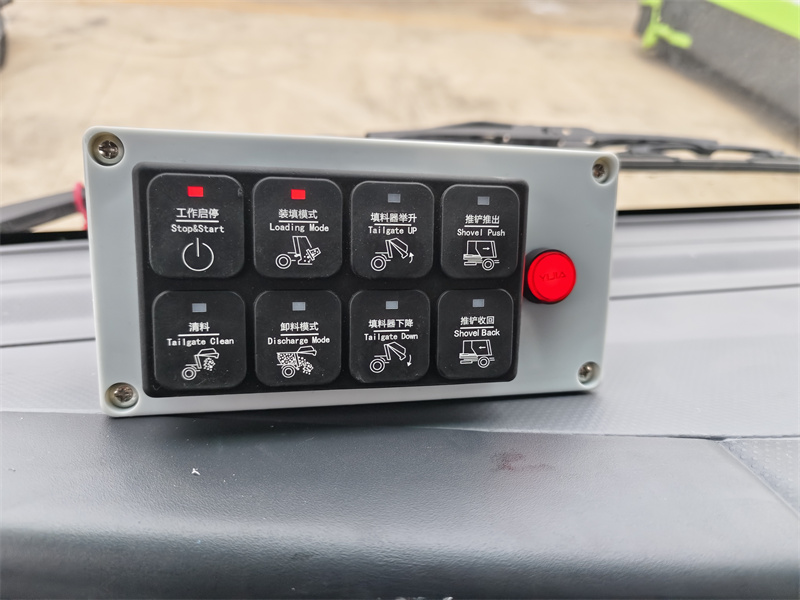

1. Cabin Electronic Control Box: The driver can complete most operations from inside the vehicle: start/stop, loading mode, unloading mode, packer lifting/lowering, pusher extension/retraction, and material clearing, convenient and labor-saving.

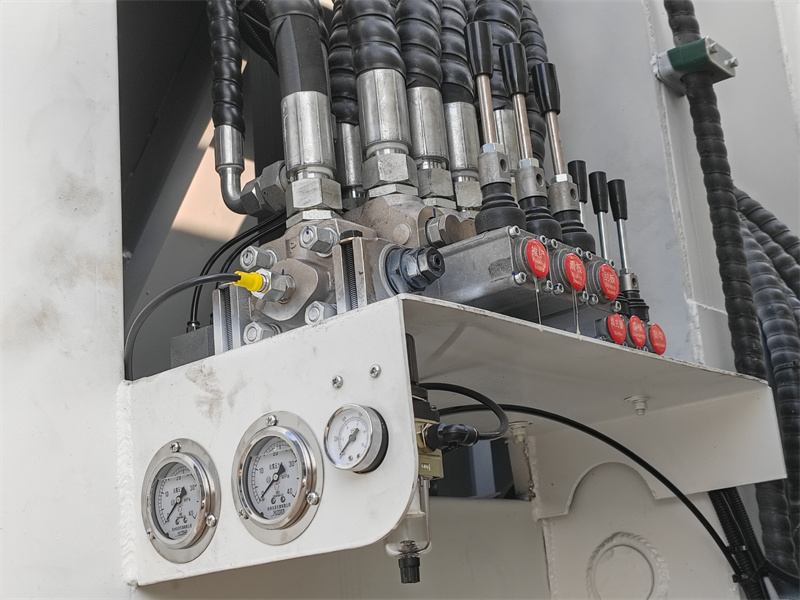

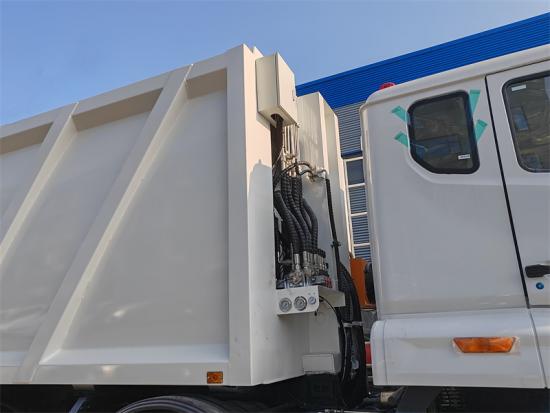

2. Driver-Side Manual Operating Valve: Manually controls the tilting mechanism, tailgate lifting/lowering, scraper rotation/closing, slide plate movement, pusher extension/retraction, etc., from the driver's side.

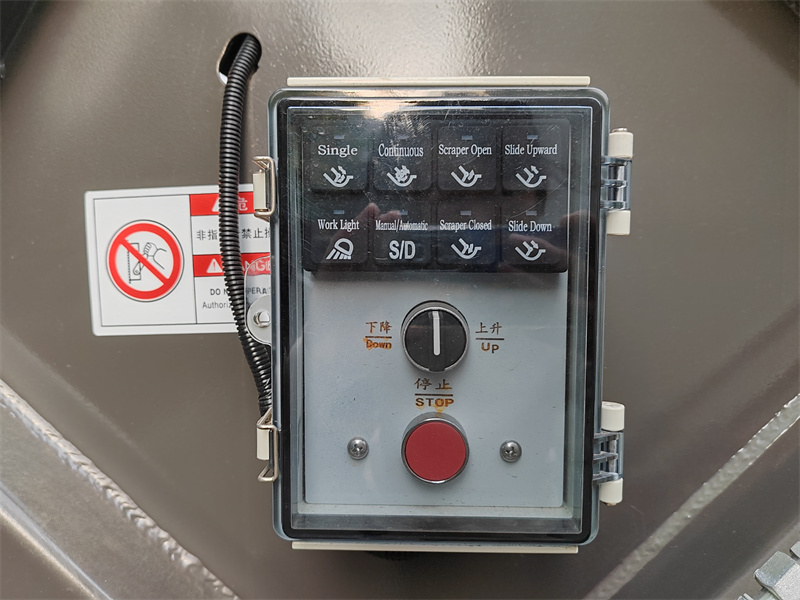

3. Tailgate Electronic Control Box: Directly controls the tilting mechanism, emergency stop button, single/continuous cycle, scraper rotation/closing, slide plate movement, work lights, automatic/manual mode, etc., from the rear of the vehicle, facilitating intuitive observation and fine-tuning.



Hydraulic System: Provides powerful force for major actions such as compression and unloading; core hydraulic components offer stable performance.

•

  Tailgate Electronic Control Box
•

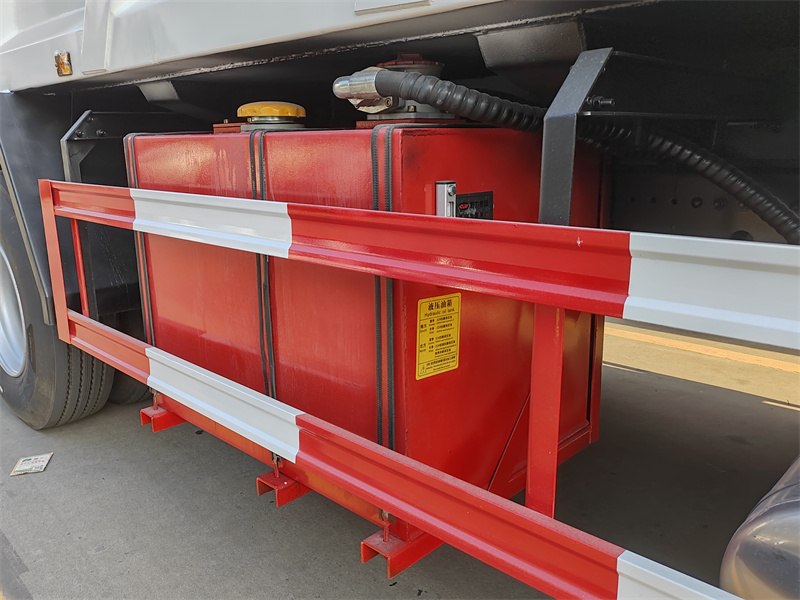

  Hydraulic oil tank
•

  Flipping mechanism



Working Principle:

Garbage collection, compact, and unloading are the core processes of a compressed garbage truck in completing sanitation operations. During the collection phase, the rear-mounted bin-lifting mechanism, controlled from both the driver's side and the tailgate, lifts the 240L/660L standard garbage bin to the filling device opening. After the garbage is poured in, the sliding plate descends, the scraper rotates and inserts into the garbage, closing and scraping vertically to initially compact it. The sliding plate then ascends, and the scraper scrapes the garbage into the garbage container.

During the compact phase, the scraper and pusher work together. Through multiple filling operations, the scraper continuously scrapes garbage into the container, while the pusher presses against the garbage at the front of the container. Through bidirectional compression, the garbage volume is reduced to less than 1/3 of its original volume, while wastewater flows into the bottom collection tank.

During unloading, the rear door locking device is opened, and the pusher continues to push forward, ejecting the garbage block as a whole. The entire process is coordinated by a CAN bus intelligent control system, coordinating hydraulic and pneumatic components to ensure precise and efficient operation, achieving sealed and reduced-volume garbage transfer.
