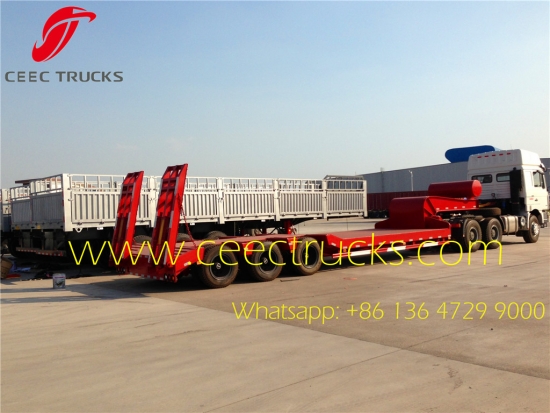

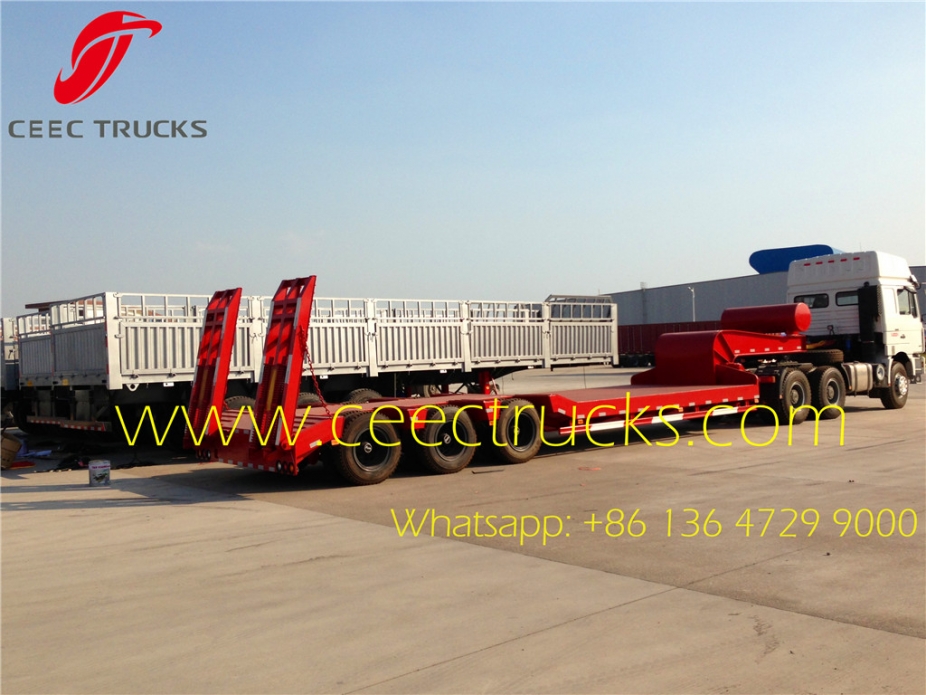

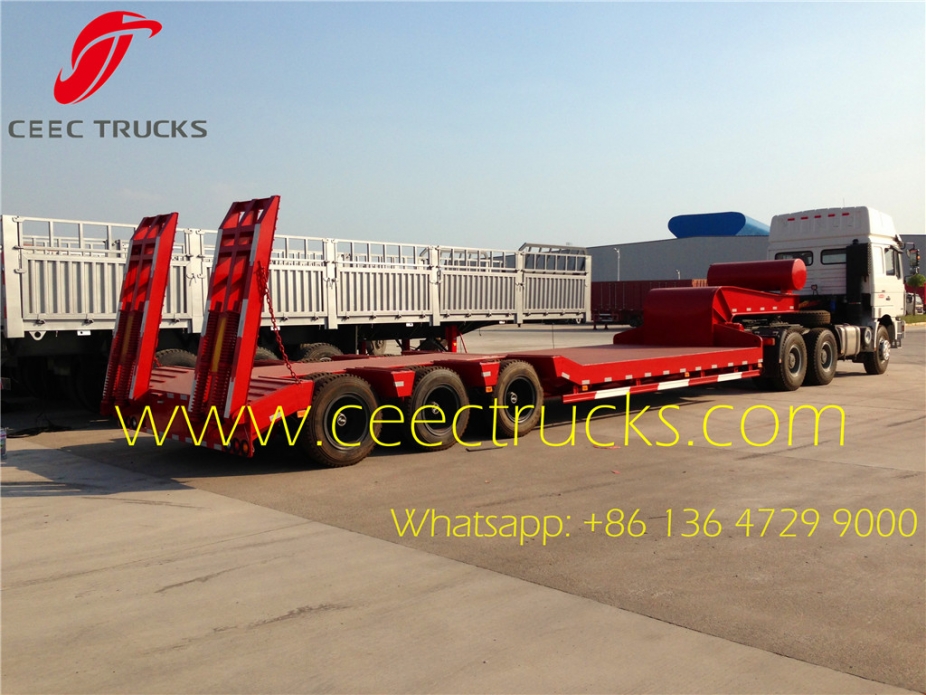

60 T heavy 3-axle low bed semitrailer

3 axle low bed semi trailer supply

3 axle low bed 60T payload semi trailer use size 13000*2500*1250mm, top design BPW / FUWA, HO's axle device, JOST landing gear, JOST kingpin widely sale in Africa countries. CKD and SKD shipment are optional

  • Product Origin:

    China CEEC
  • Shipping Port:

    Shanghai Seaport
  • Lead Time:

    7 Days
  • Payment:

    T/T, West Union
  • FOB Price:

    USD $12,500-22,500
  • Market Price:

    $16000
contact now

Low bed semi trailer used to transport heavy vehicle (as tractor, and bus, and dedicated car,), and tracked vehicles, and mining machinery, forestry machinery, and engineering machinery (such as excavator, bulldozers, mount machine,paver, crane etc) and the other overload goods. The lower of gravity,the better stability and safety, more easy to transport high goods through overhead obstacles.

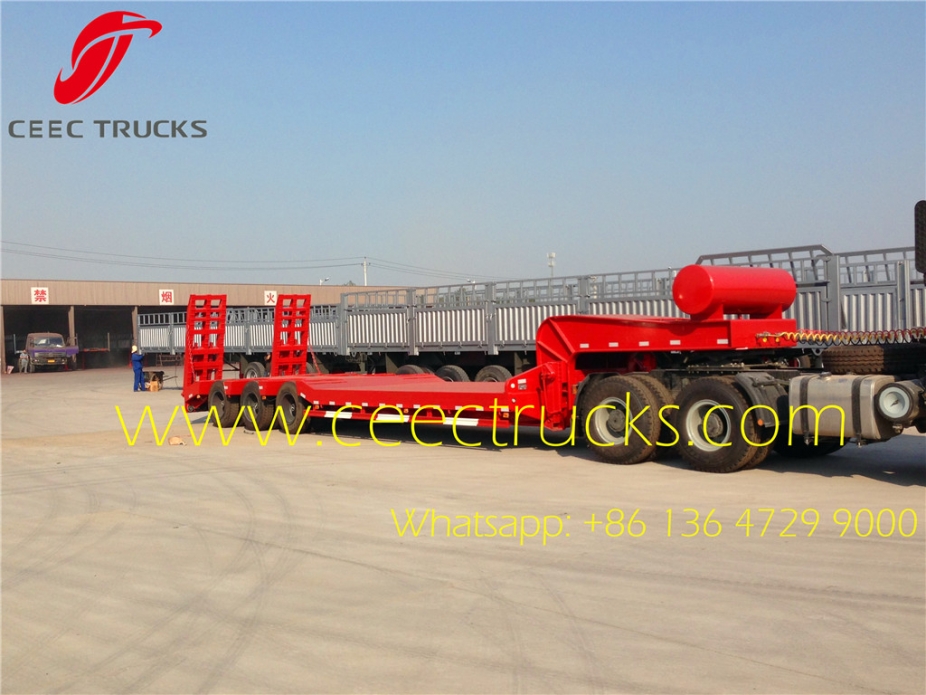

3-axle 60T Low bed semitrailer manufacturer

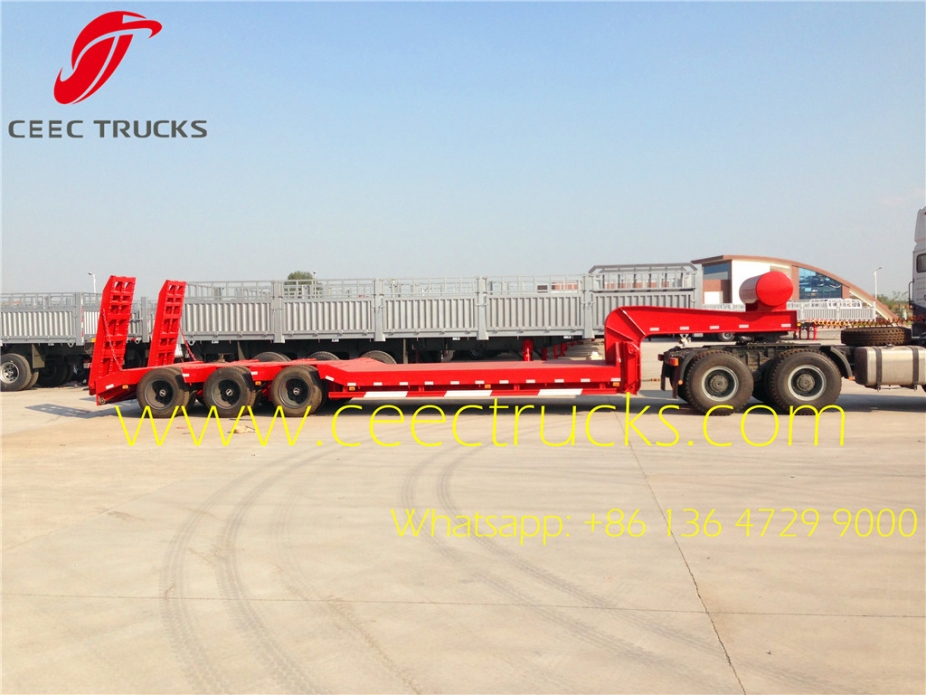

3-axle low bed semi trailer hot sale



Zimbabwe customer choose 60 T heavy low bes semitrailer features:

We have well experienced in reseaching and developing different low bed trailers:2 axle low bed trailer, 3 axle low bed semitrailer, 20 T gooseneck semitraile, 30 T low bed semitrailer, etc.
High quality strength steel Q345B for I-beam
Axle: German BPW or American style from 12 tons to 20 tons
Suspension: Mechanical suspension, air suspension or bogie suspension.
Tyre: 10.00R20, 10R22.5, 11.00R20, 11R22.5, 12.00R20 or 12R22.5 (Other size is optional)
King pin: Optional for 2" or 3.5" Kingpin
Side wall height: Optional for 600mm, 800mm or 1000mm
Twist locks: Standard 4 sets and others for Optional

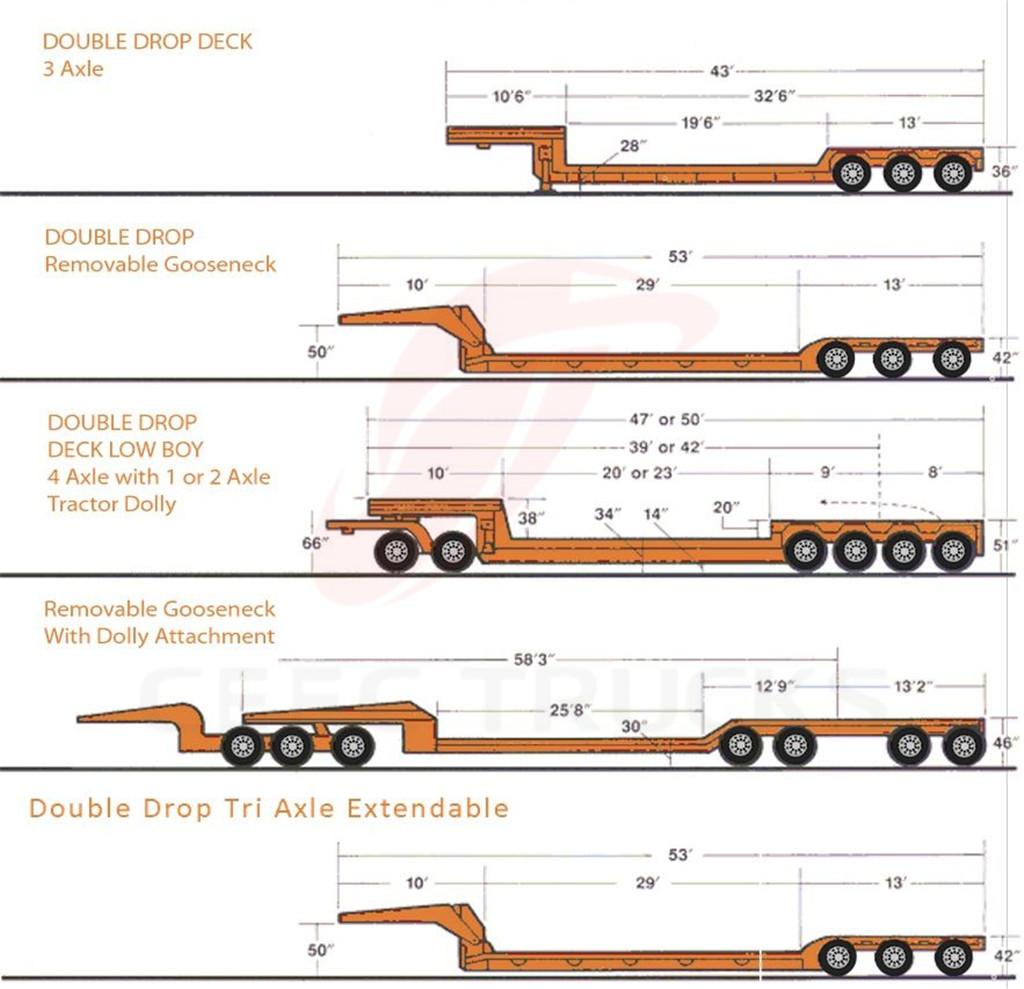

3 axle low bed semitrailers drawing details

CEEC TRUCKS produced 2-axle low bed semi trailer, 3 axle low loader, 4 axle low bed semitrailers, and multi tires low bed semitrailer are widely export africa countries: Congo, Tanzania, Djibouti, Angola, Chad, Algeria, Sudan, Libya, Eritrea, Uganda, Rwanda, Burundi and the Seychelles. Mauritania, Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea, Guinea-Bissau, Cape Verde, Sierra Leone, Liberia, Côte d'Ivoire, Ghana, Togo, Benin, Niger, Nigeria , Namibia, Cameroon, Equatorial Guinea, Ethiopia, Kenya , Gabon and Zambia, Angola, Zimbabwe, Malawi, Mozambique, Botswana, and so on.

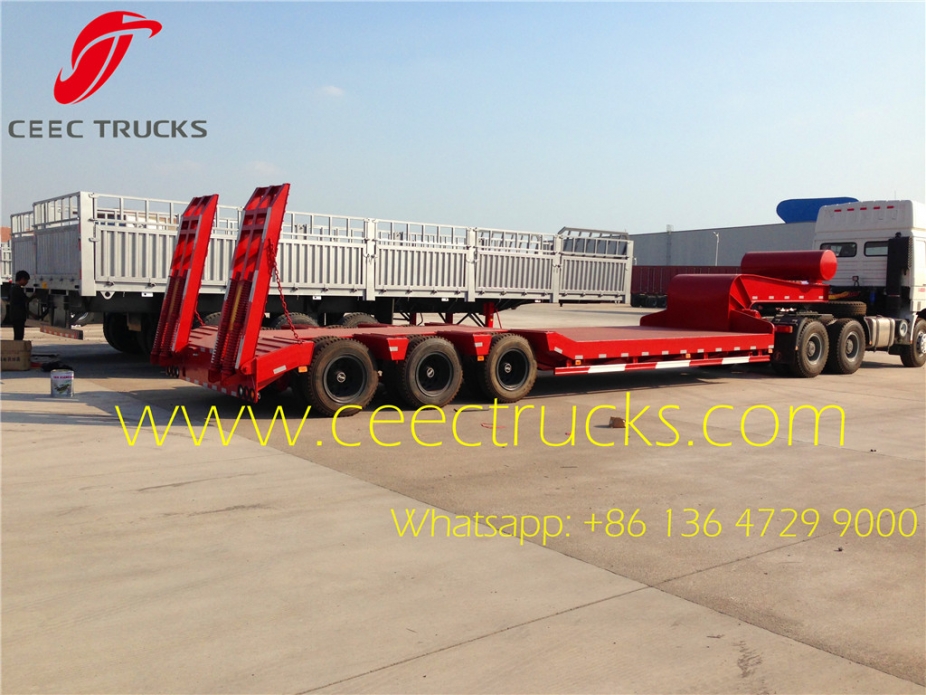

3-axle low bed semi trailer sale



3-axle low bed semi trailer sale



3-axle low bed semi trailer sale    3-axle low bed semi trailer sale



Similar Key Words: 60ton Platform lowboy trailer,50ton Extendable lowbed trailer, 60ton container low loader truck trailer,70-90ton Detachable goose neck trailer, 80ton hydraulic goose neck lowboy trailer, 100ton 2 lines 4 axles low bed trailer, 120ton 3 lines 6 axles low loader trailer,etc.



3 axle low bed semitrailers



3 axle 60T low bed semi trailer

Function

Big machine and cargo transport

Overall dimension

13000*3000*1650mm

Working plate size

9000*3000mm*1650mm

Curb weight

9000kgs

Loading weight

60000kg

Main beam

Carbon steel Q345B.The height 500 mm, upper plate 16mm,down plate 18mm,middle plate 10mm.

Side beam

16mm channel steel

Traction pin

2” (50mm) or 3.5’’(90mm) optional

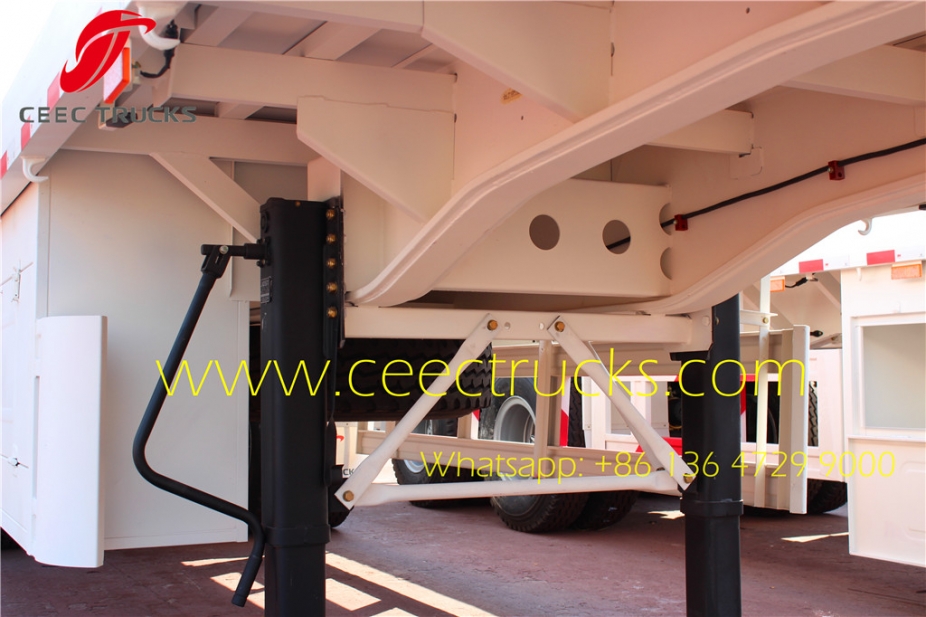

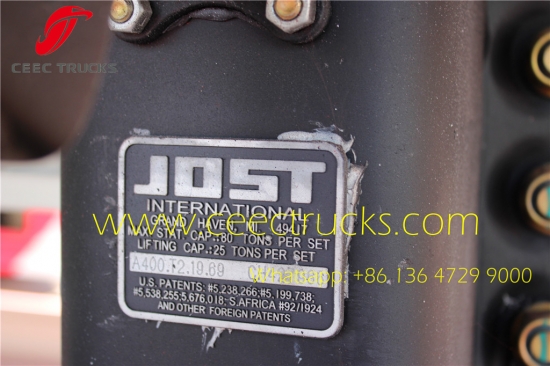

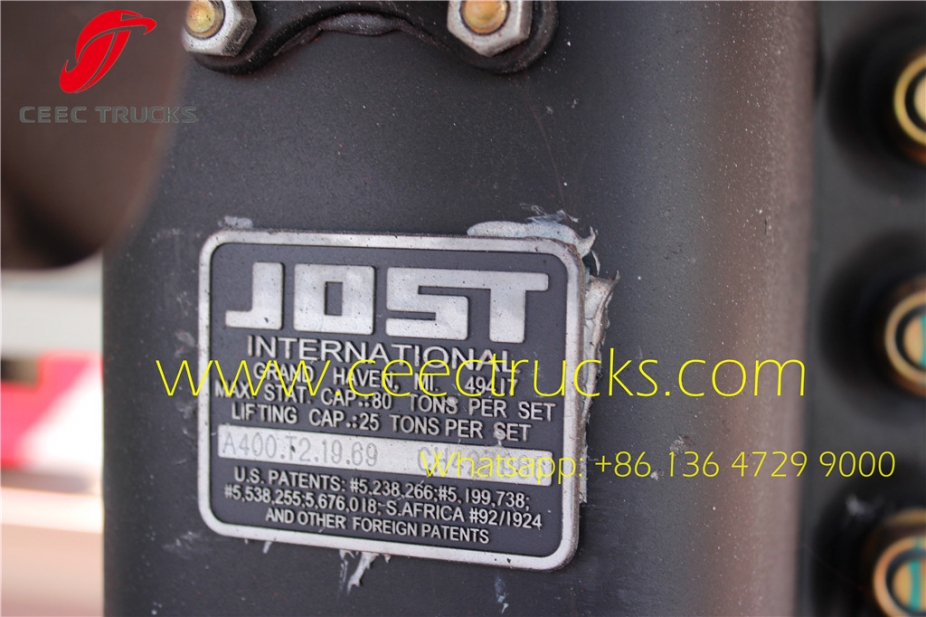

Land gear

Standard 28ton

Axle

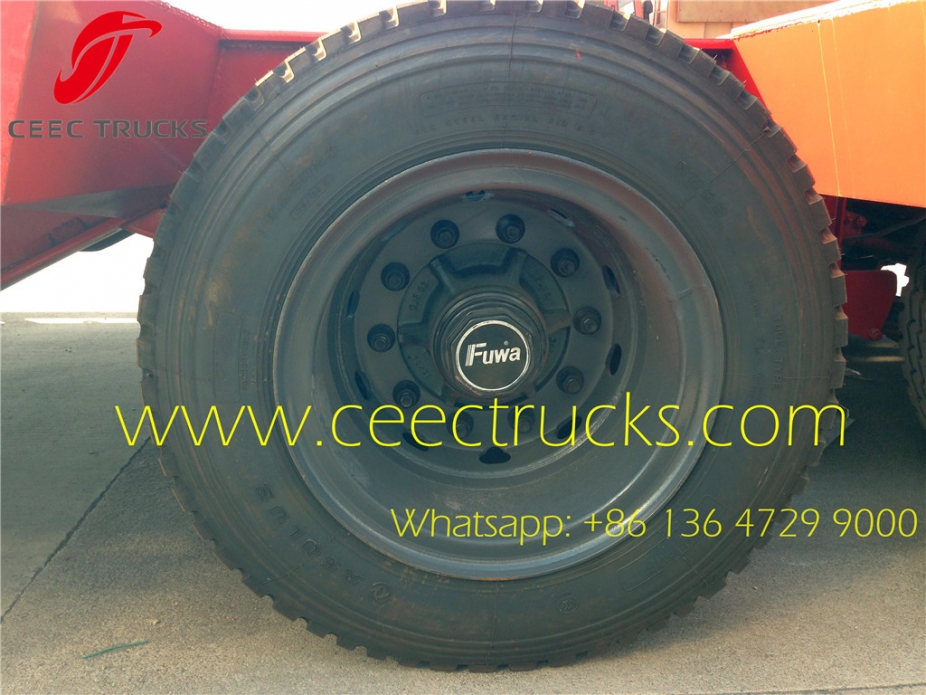

13ton * 3 axle Fuwa brand

Wheelbase

8310+1310+1310mm

suspension

Mechanical suspension / Air suspension customized

Spring leaf

90mm*13mm*10pcs  10/10/10 leaf spring suspension

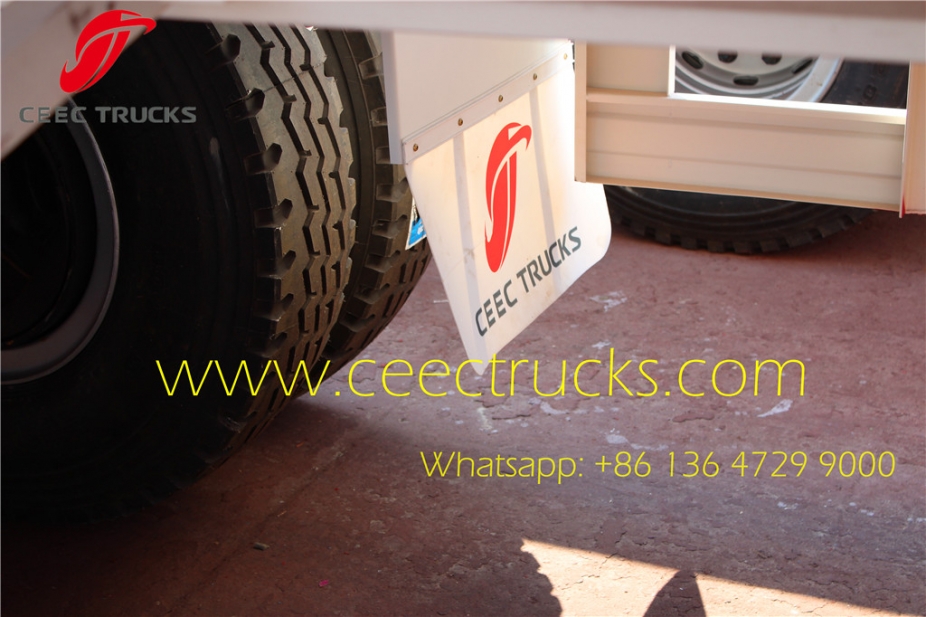

Tire

Tubeless tire12R22.5 / Steel radial tire11.00R20 or 315/80r22.5

Tire quantity

12 units

Rim

9.00-22.5 12pcs

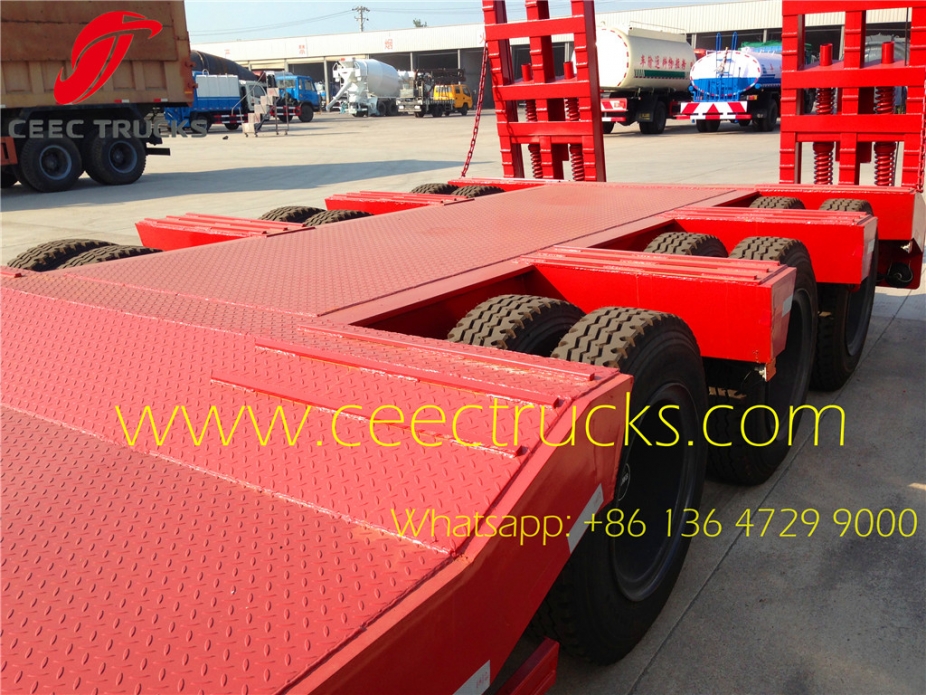

platform thickness

5mm Diamond plate

valve

WABCO RE 6 relay valve

Brake Chamber

T30/30+T30 6 brake chamber,one piece of 45L air tanks

Tool box

1 unit 1m*0.5m*0.5m

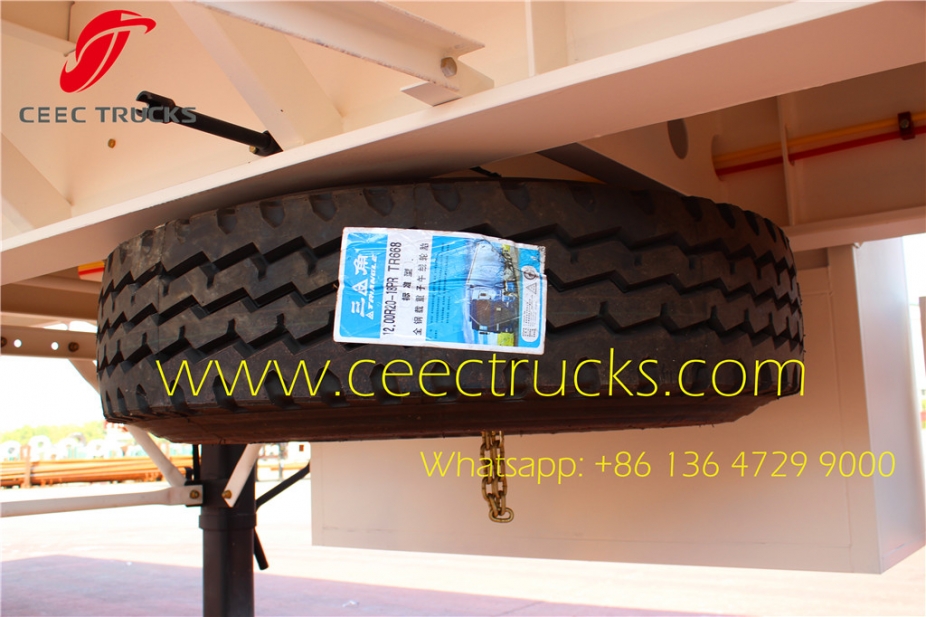

Spare wheel carrier

2 units

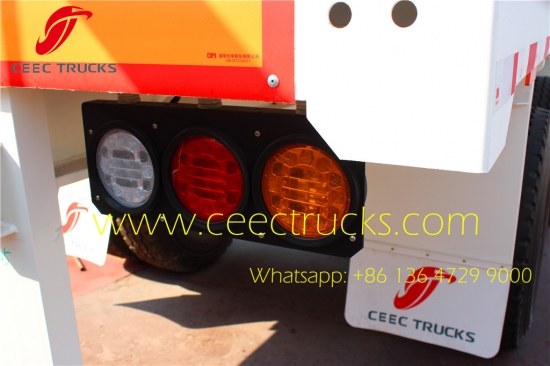

Marker lamp

LED type

Voltage

24V

Receptacle

7ways (7 wire harness)

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint



3-axle low bed semi trailer sale    3-axle low bed semi trailer sale



3-axle low bed semi trailer sale    3-axle low bed semi trailer sale



3-axle low bed semi trailer sale



CEEC produced Semitrailer on sale





Other beiben trucks display



                   SaveSave

Save

Axle: Famous brand axle support trailer durable and high attendance rate.

FUWA brand, BPW brand optional

Chassis: select the best material support stronger beam and trailer chassis.

China best carton steel material Q234, Q345B, T700.

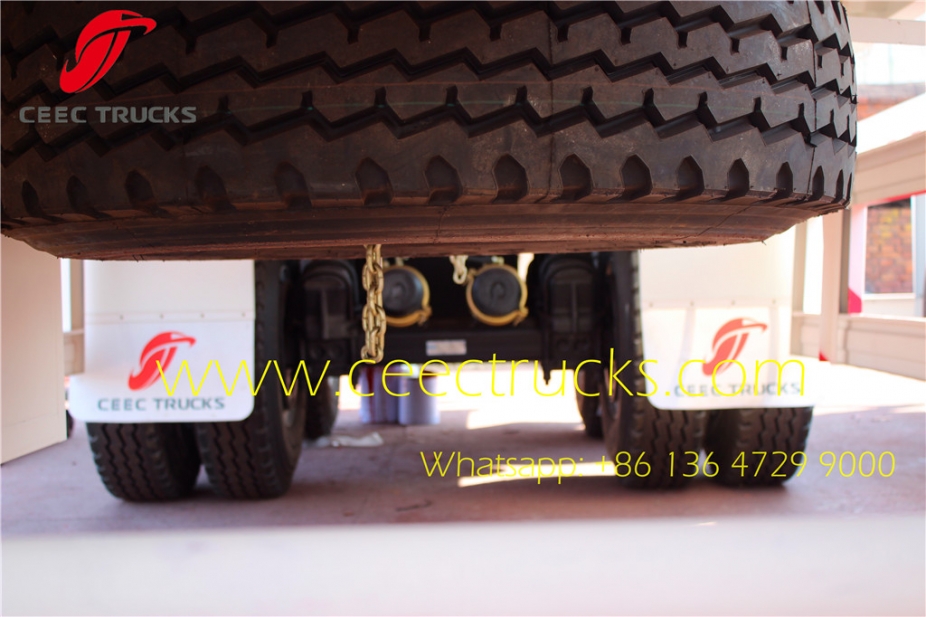

Tire: Famous brand tire and good quality support trailer running safety and smoothly for a variety of road conditions.

Tire Tubeless tire12R22.5 / Steel radial tire11.00R20 or 315/80r22.5 optional

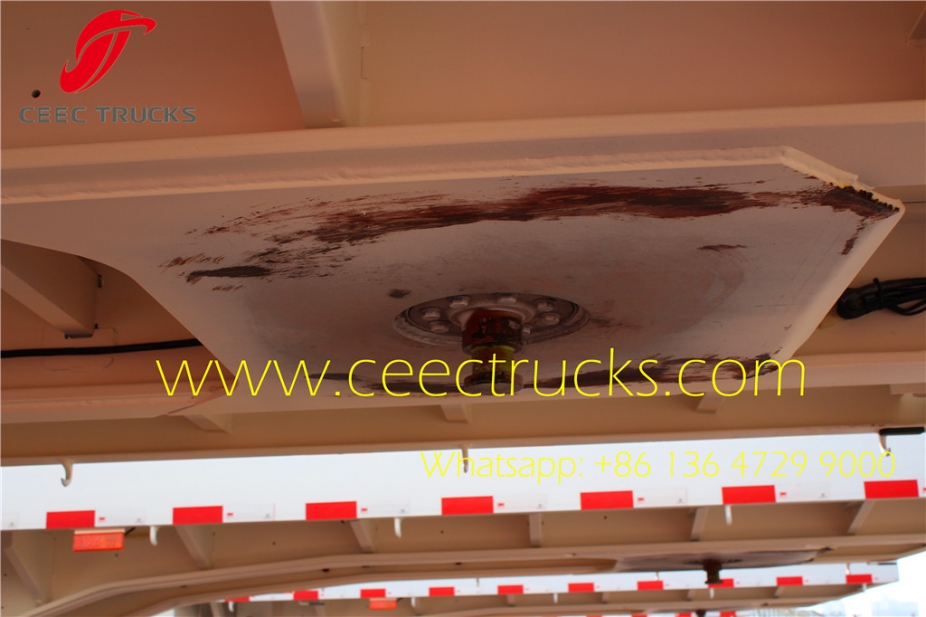

King pin: Detachable type support fast and easy replace, JOST brand optional.

Suspension: Mechanical suspension / Air suspension optional

Emergency valve: Fast response, low failure support safety and protect tire durable. WABCO brand.



Optional 2-axle / 3-axle low bed semi trailers on sale



3 axle low bed semitrailers details
