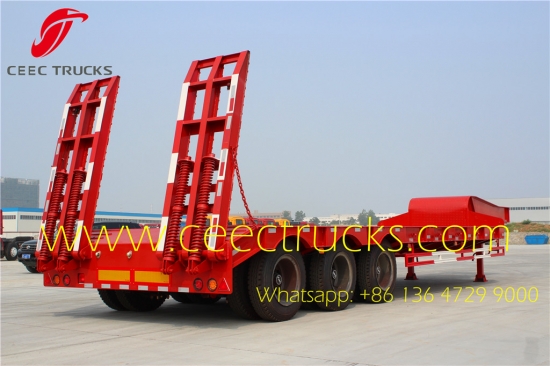

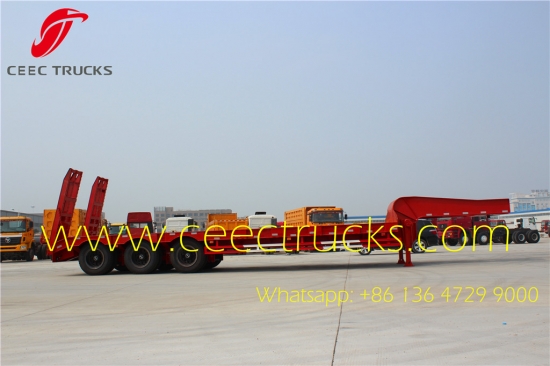

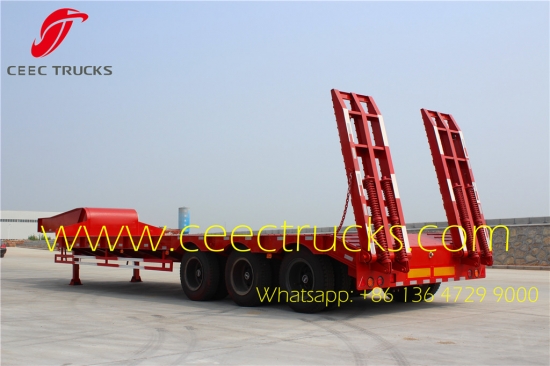

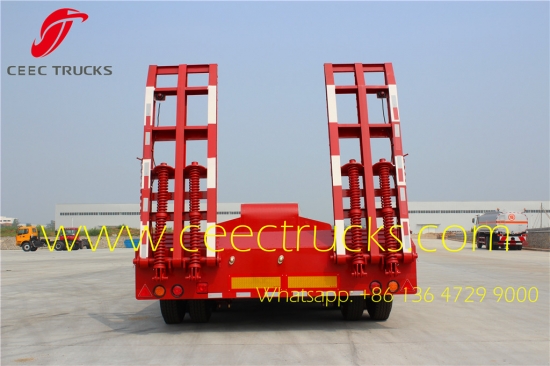

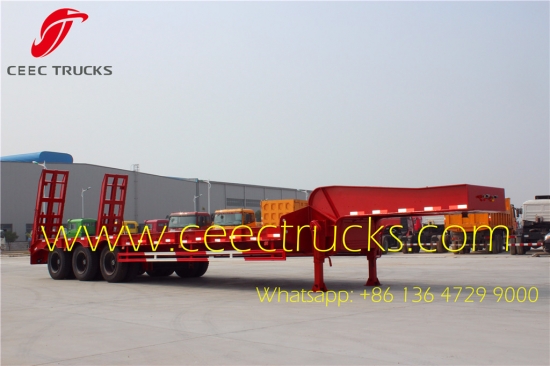

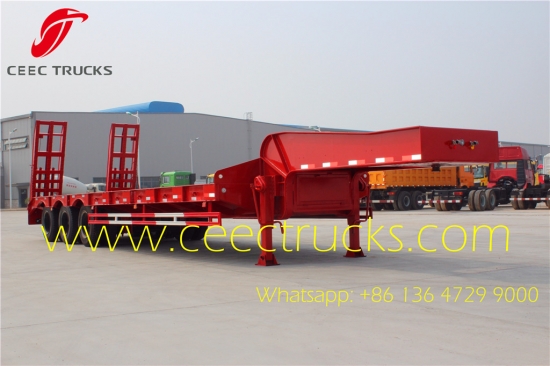

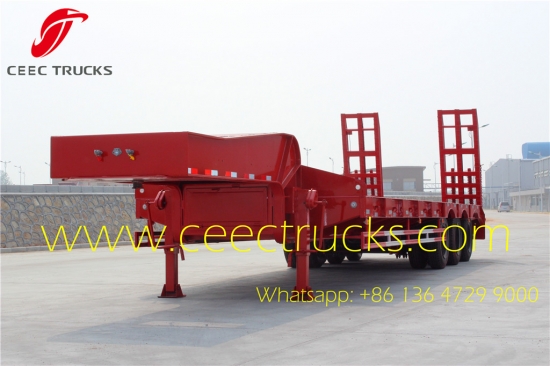

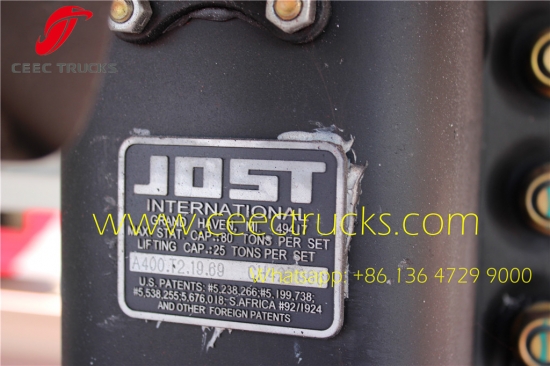

TOP design 3 axle low bed semitrailer, Q345 I-beam, BPW axle with 12-20T optional, JOST landing legs and kingpin for top performance. our 50T capacity low flatbed semitrailers widely export Africa countries.
Product Origin:
China CEECShipping Port:
Shanghai SeaportLead Time:
7 DaysPayment:
T/T, West UnionFOB Price:
USD $11,600-20,600Market Price:
$15000Low bed semi trailers are widely used for heavy duty goods transportation as its low working platform. So that, there's enough upper loading space. Its low gravity makes the vehicle running safety. We CEEC TRUCKS can design low bed trailer model according to your special goods transportation demands.
50 T 3-axle Low Flatbed Semitrailer exporter
Axle: Famous brand axle support trailer durable and high attendance rate.
FUWA brand, BPW brand optional
Chassis: select the best material support stronger beam and trailer chassis.
China best carton steel material Q234, Q345B, T700.

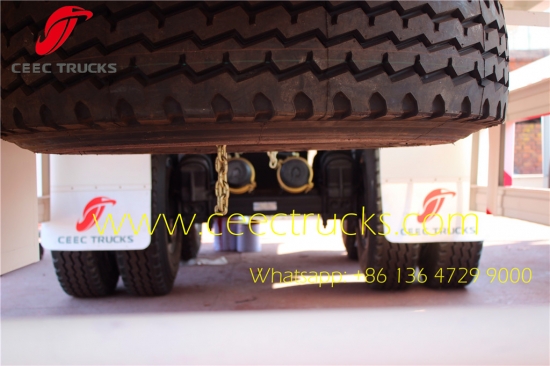

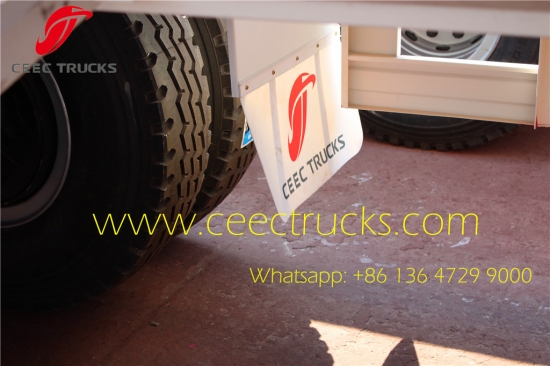

Tire: Famous brand tire and good quality support trailer running safety and smoothly for a variety of road conditions.
Tire Tubeless tire12R22.5 / Steel radial tire11.00R20 or 315/80r22.5 optional
King pin: Detachable type support fast and easy replace, JOST brand optional.
Suspension: Mechanical suspension / Air suspension optional
Emergency valve: Fast response, low failure support safety and protect tire durable. WABCO brand.
CEEC TRAILER 2-axle low bed semi trailer main beam is used in carbon steel Q345B.
Q345– good mechanical properties, high mild, good ductility and weldability, is mainly used as the low-pressure containers, tanks, vehicles, cranes, mining machinery, power plants, bridges, etc. under dynamic load configuration
CEEC TRAILER trailer frame all shot blasting, shot peening.
Shot blasting and peening can improve use life, Improve the fatigue strength, Remove surface intensity and painting adhesion.

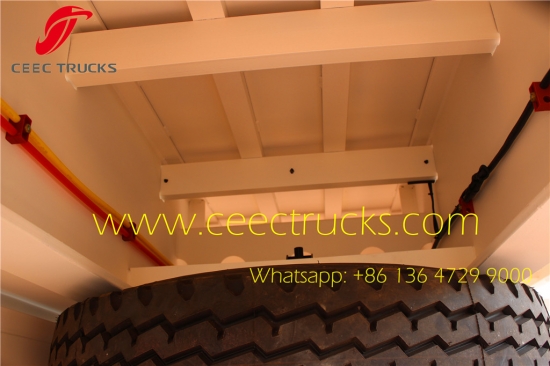

The entire frame is positioned in a dedicated carriage assembly, welded, reasonable structure, high strength, beautiful appearance
CEEC TRUCKS produced 2-axle low bed semi trailer, 3 axle low loader, 4 axle low bed semitrailers, and multi tires low bed semitrailer are widely export africa countries: Congo, Tanzania, Djibouti, Angola, Chad, Algeria, Sudan, Libya, Eritrea, Uganda, Rwanda, Burundi and the Seychelles. Mauritania, Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea, Guinea-Bissau, Cape Verde, Sierra Leone, Liberia, Côte d'Ivoire, Ghana, Togo, Benin, Niger, Nigeria , Namibia, Cameroon, Equatorial Guinea, Ethiopia, Kenya , Gabon and Zambia, Angola, Zimbabwe, Malawi, Mozambique, Botswana, and so on.
Similar Key Words: 60ton Platform lowboy trailer,50ton Extendable lowbed trailer, 60ton container low loader truck trailer,70-90ton Detachable goose neck trailer, 80ton hydraulic goose neck lowboy trailer, 100ton 2 lines 4 axles low bed trailer, 120ton 3 lines 6 axles low loader trailer,etc.
Function |
Big machine and cargo transport |
Overall dimension |
13000*3000*1650mm |
Working plate size |
9000*3000mm*1650mm |
Curb weight |
9000kgs |
Loading weight |
60000kg |
Main beam |
Carbon steel Q345B.The height 500 mm, upper plate 16mm,down plate 18mm,middle plate 10mm. |
Side beam |
16mm channel steel |
Traction pin |
2” (50mm) or 3.5’’(90mm) optional |
Land gear |
Standard 28ton |
Axle |
13ton * 3 axle Fuwa brand |
Wheelbase |
8310+1310+1310mm |
suspension |
Mechanical suspension / Air suspension customized |
Spring leaf |
90mm*13mm*10pcs 10/10/10 leaf spring suspension |
Tire |
Tubeless tire12R22.5 / Steel radial tire11.00R20 or 315/80r22.5 |
Tire quantity |
12 units |
Rim |
9.00-22.5 12pcs |
platform thickness |
5mm Diamond plate |
valve |
WABCO RE 6 relay valve |
Brake Chamber |
T30/30+T30 6 brake chamber,one piece of 45L air tanks |
Tool box |
1 unit 1m*0.5m*0.5m |
Spare wheel carrier |
2 units |
Marker lamp |
LED type |
Voltage |
24V |
Receptacle |
7ways (7 wire harness) |
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
China Best Semitrailer on sale
Axle |
|||||
Landing Gear |
|||||
Tire |
|||||
Payload |
|||||
Drive Type |
Beiben 30T, 40T, 50T, 60T, 70T tractor truck manufacturer supply
Africa Countries buying 3-axle low flatbed semi trailer in CEEC TRUCKS
(3 axle low bed semi trailer shipping to Kenya by bulk shipment. Delivery time can be 7 workdays)
(CEEC TRUCKS can provide different genuine spare parts for Beiben trucks and semitrailers)
