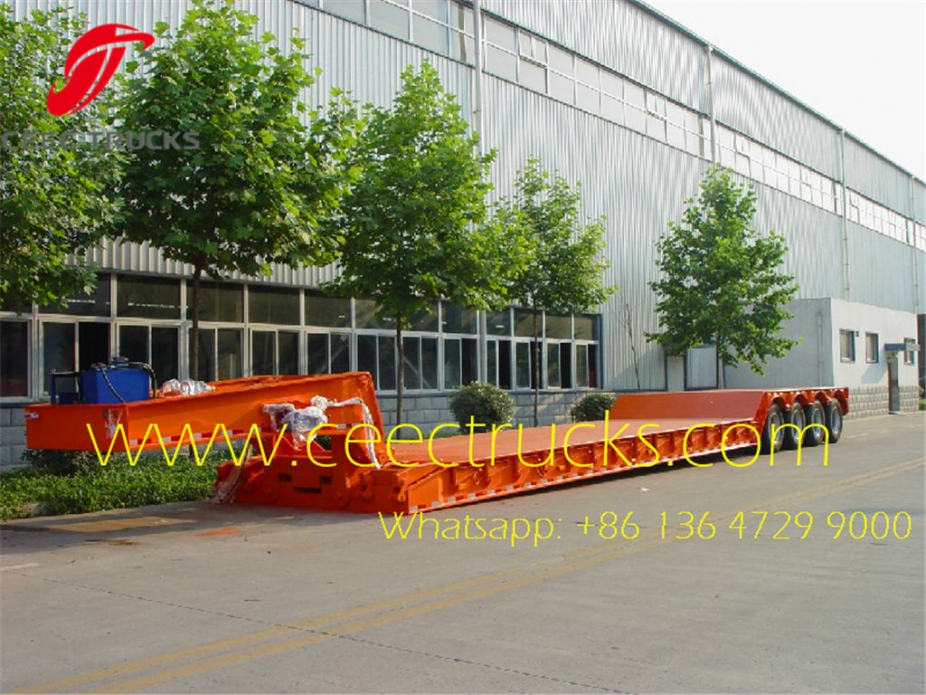

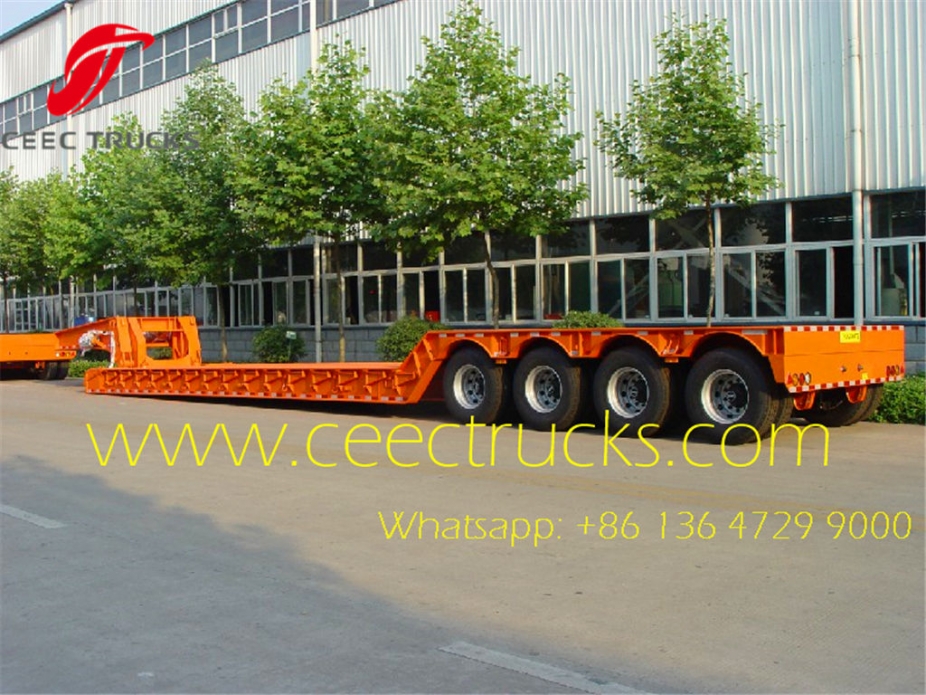

cheap price 80T heavy duty low bed semi trailer on sale

4 axle low bed semi trailer supplier

Cheap price with discount !! Direct factory Concave beam heavy duty low bed 4 axles 80ton lowboy trailer in stock, 80 T low bed trailer supplier, BPW axle, JOST kingpin and JOST landing legs. Mainly export Africa countries.

  • Product Origin:

    China CEEC
  • Shipping Port:

    Shanghai Seaport
  • Lead Time:

    7 Days
  • Payment:

    T/T, West Union
  • FOB Price:

    USD $13,500-24,500
  • Market Price:

    $18000
contact now

Low bed semi trailer used to transport heavy vehicle (as tractor, and bus, and dedicated car,), and tracked vehicles, and mining machinery, forestry machinery, and engineering machinery (such as excavator, bulldozers, mount machine,paver, crane etc) and the other overload goods. The lower of gravity,the better stability and safety, more easy to transport high goods through overhead obstacles.



4 axle low flatbed trailers



4 axle low bed semitrailers supplier



Advanced features for 4 axle low bed semi trailers:

Low bed semi trailer series include flatbed type, concave beam type and tire outside type etc. The frame is echelon form; the section of longitudinal girder is I-shaped. The character of it is high rigidity and high strength.
Advantage & usage: low loading surface of chassis guarantee stability of transportation, suitable for all kinds of engineering machine, big equipment steel etc.
Main process: series trailer frame is wear beam structure, using the straight- stringer or goose-neck stringer. Web height from 400mm to 500mm, automatic submerged arc welding, shot penning for frame, beams and stringer penetration welding as a whole.



4 axle low bed semitrailers



CEEC TRUCKS produced 2-axle low bed semi trailer, 3 axle low loader, 4 axle low bed semitrailers, and multi tires low bed semitrailer are widely export africa countries: Congo, Tanzania, Djibouti, Angola, Chad, Algeria, Sudan, Libya, Eritrea, Uganda, Rwanda, Burundi and the Seychelles. Mauritania, Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea, Guinea-Bissau, Cape Verde, Sierra Leone, Liberia, Côte d'Ivoire, Ghana, Togo, Benin, Niger, Nigeria , Namibia, Cameroon, Equatorial Guinea, Ethiopia, Kenya , Gabon and Zambia, Angola, Zimbabwe, Malawi, Mozambique, Botswana, and so on.



4 axle low bed semi trailers



4 axle low bed semi trailers



Similar Key Words: 40ton Platform lowboy trailer,50ton Extendable lowbed trailer, 60ton container low loader truck trailer,70-90ton Detachable goose neck trailer, 80ton hydraulic goose neck lowboy trailer, 100ton 2 lines 4 axles low bed trailer, 120ton 3 lines 6 axles low loader trailer,etc.



Tare Weight

About 8.5-16T

Dimension

13000×3000×1600mm (adjustable)

Loading Capacity

30T-100T

Axle

13 T/16T, FUWA /BPW /Huajing Brand

Rim

6.5-20/7.5-20/8.00-20/8.5-20

Tire

8.25R20/10.00R20/11.00R20/12.00R20

Suspension

Mechanical suspension(Germany Type or America Type)

Or Air suspension(Chinabrand or BPW brand)

Spring leaf

90(Width)mm×13(Thickness)mm×10(Layer)

or 100(Width)mm×12(Thickness)mm×12(Layer)

King pin

JOST brand 2.0 or 3.5inch bolts type or Welding type

Support leg

JOST brand C200T or China brand 28T

Main beam

Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345 Carbon Steel.

Side beam

16mm-25mm channel steel (Material is Q235 carbon steel)

Ladder

Manual or Hydraulic type

Gooseneck

You can choose the type

Brake chamber

WABCO RE 6 relay valve; T30/30+T30 spring brake chamber; 2 pieces of 45L air tanks

ABS

Optional

Twist Locks

Four, Eight or Twelve pieces(Lifting type or Twist Screw Type)

Valve

WABCO valve

Light

LED light

Voltage

24V

Receptacle

7 ways (7 wire harness)

Tool box

One piece, 1m×0.5m×0.5m(Size can be chosen freely)(equipped with 1 unit tyre spanner, 1 unit gudgeon sleeve and 1 unit cranking bar)

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paints.

Shipping Terms

By bulk cargo carrier, RORO or 40HQ container

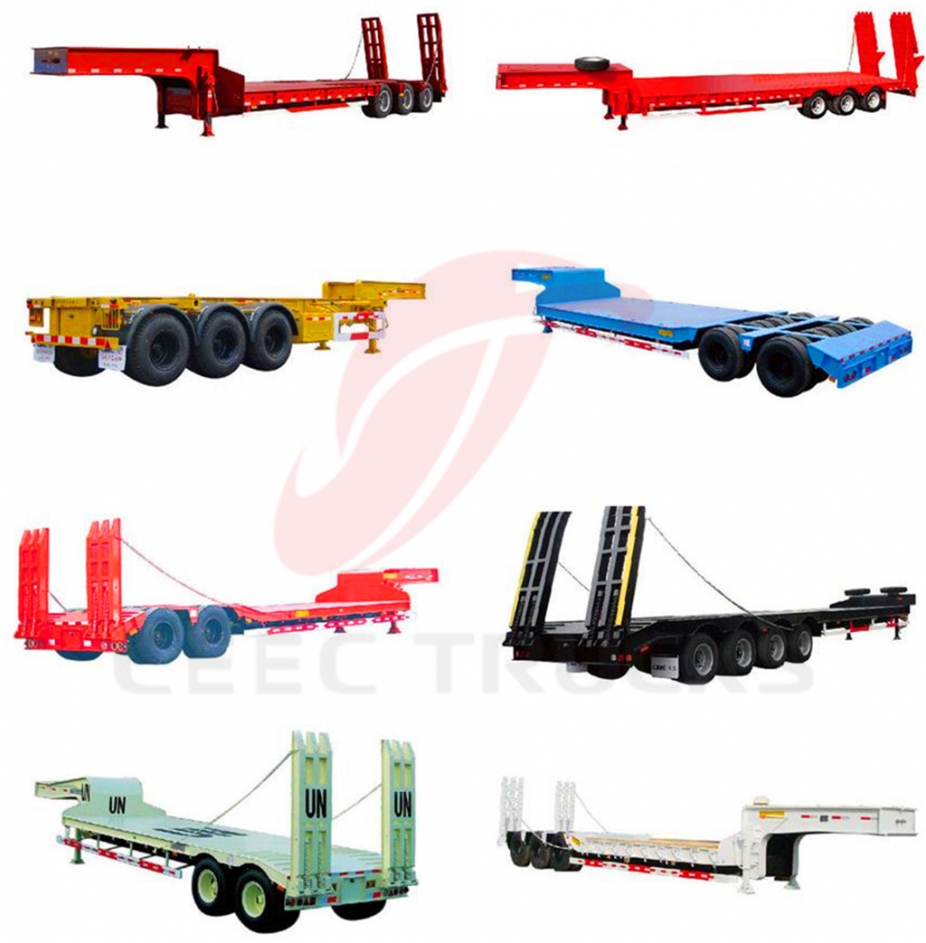

Optional model for low bed semitrailer provide by CEEC TRUCKS



4 axle low bed semitrailers



China Best Semitrailer on sale





Beiben 30T, 40T, 50T, 60T, 70T tractor truck manufacturer supply


Beiben 1927 Tractor Trucks

Beiben 2534 tractor truck

Benz 2534 towing truck

Beiben 2538 Prime mover

Beiben 2542 towing trucks

Beiben V3 2534 tractor trucks

North Benz 2546 prime mover

         SaveSaveSaveSave

Save

Axle: Famous brand axle support trailer durable and high attendance rate.

FUWA brand, BPW brand optional

Chassis: select the best material support stronger beam and trailer chassis.

China best carton steel material Q234, Q345B, T700.

Tire: Famous brand tire and good quality support trailer running safety and smoothly for a variety of road conditions.

Tire Tubeless tire12R22.5 / Steel radial tire11.00R20 or 315/80r22.5 optional

King pin: Detachable type support fast and easy replace, JOST brand optional.

Suspension: Mechanical suspension / Air suspension optional

Emergency valve: Fast response, low failure support safety and protect tire durable. WABCO brand.

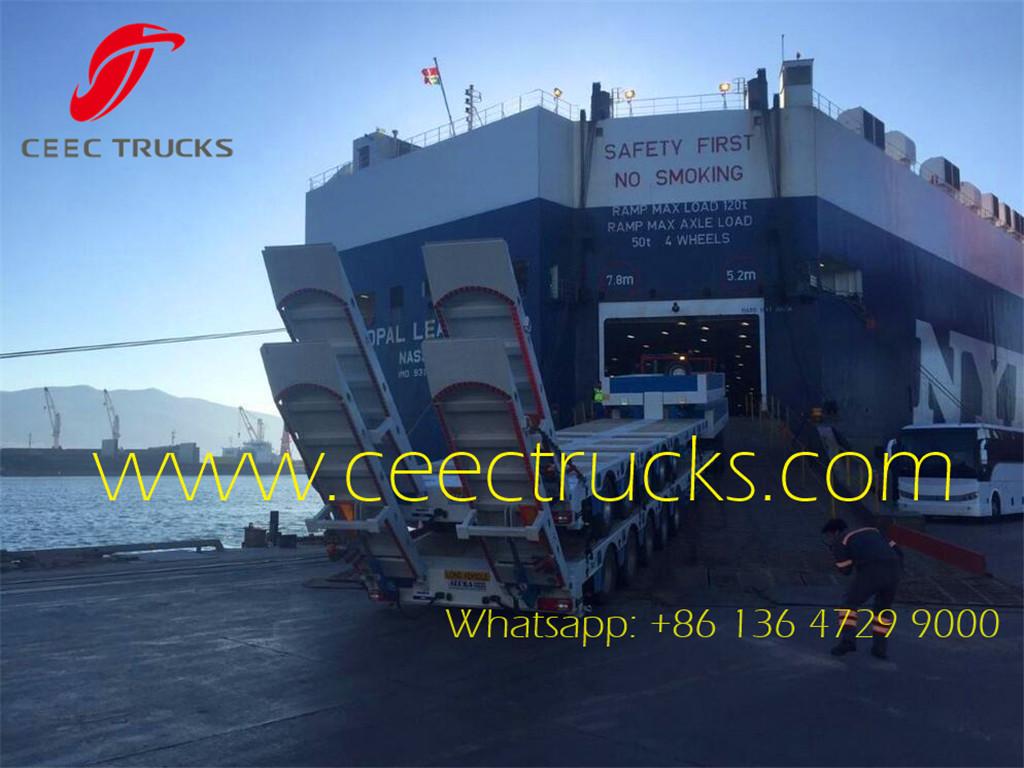

CEEC produced 4 axle low bed semi trailer shipping to Africa Congo



4 axle low bed semitrailers shipping to Africa

(4 axle low bed semitrailers shipping to Africa by beiben tractors)



4 axle low bed semitrailers shipping to Africa

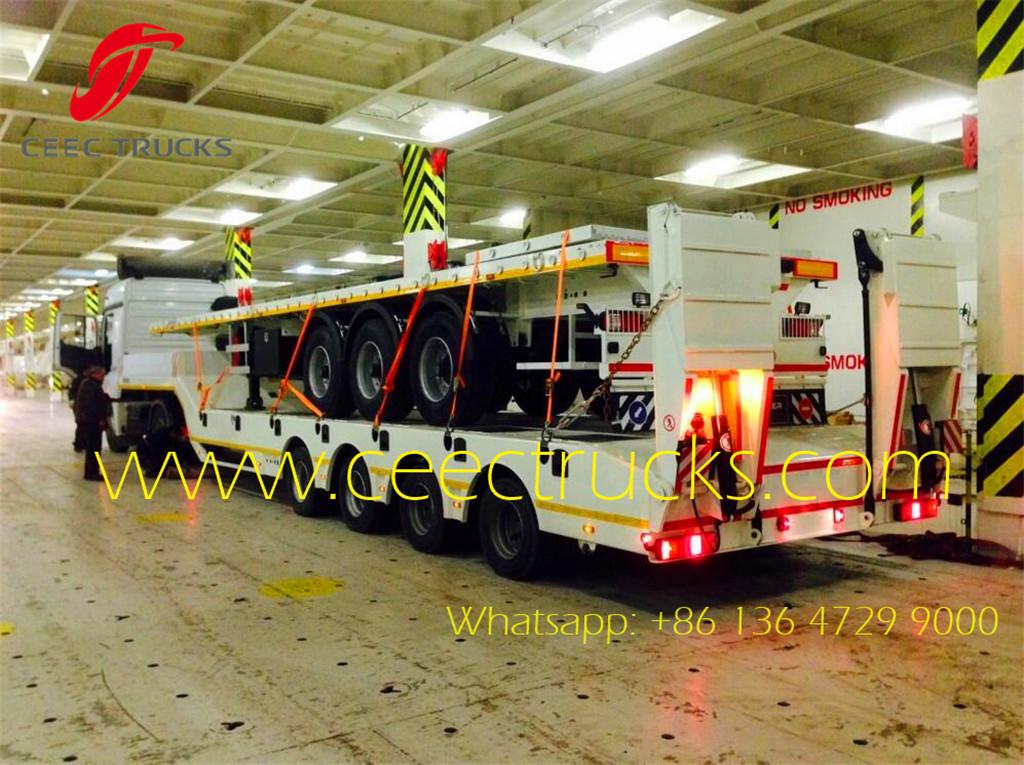

(4 alxe low bed semi trailer on roro shipment and ready delivery to Africa Congo)



4 axle low bed semitrailers shipping to Africa

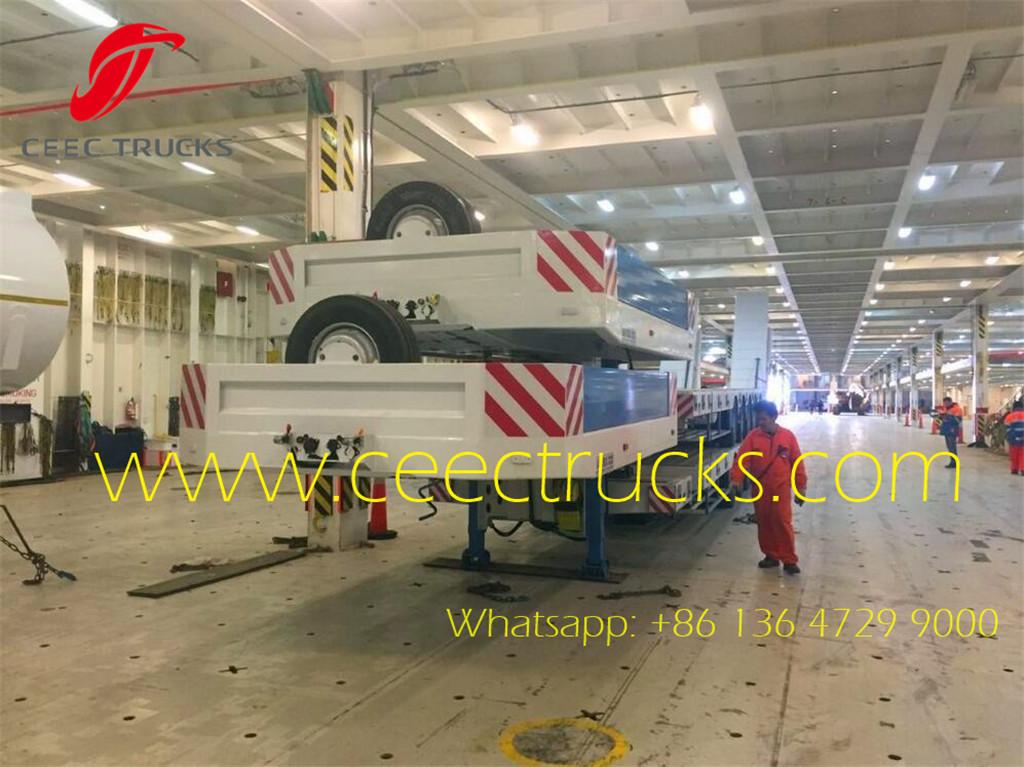

  (80 T low flatbed semitrailer on roro shipment for delivery to Africa Congo)



Save
Successful Cases
inquiry now

    Please feel free to inquiry trucks from us; our experience sale manager will give the quotation within 12 hours
