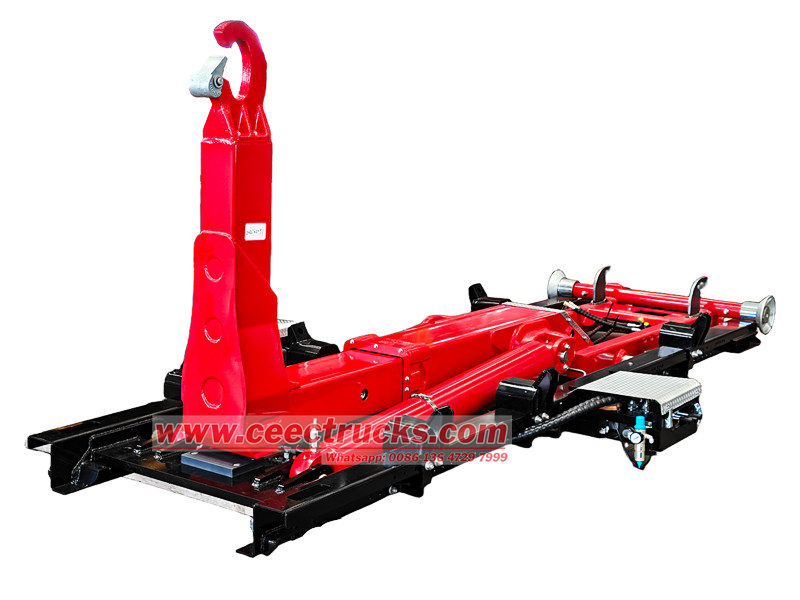

The 6-ton arm roll hook loader upper structure is a removable carriage primarily used for urban sanitation, construction site, and residential waste collection and transportation. The upper structure consists of a hook arm assembly, hydraulic system, locking mechanism, and carriage. Hydraulic power is used to load, unload, and dump the carriage. The carriage can be quickly separated from the chassis for easy recycling and improved transportation efficiency.

The arm roll hook loader upper structure boasts a compact design and easy operation, offering fast loading and unloading, convenient maintenance, and strong adaptability. It is widely used in solid waste transport and resource recovery applications.

● China best arm roll hook loader upper structure factory

● More than 30 years professional manufacturer experience.

● Be designed according to your requirements.

● Professional sales team which will help you to choose suitable truck.

● We can offer your a good after-sale service.

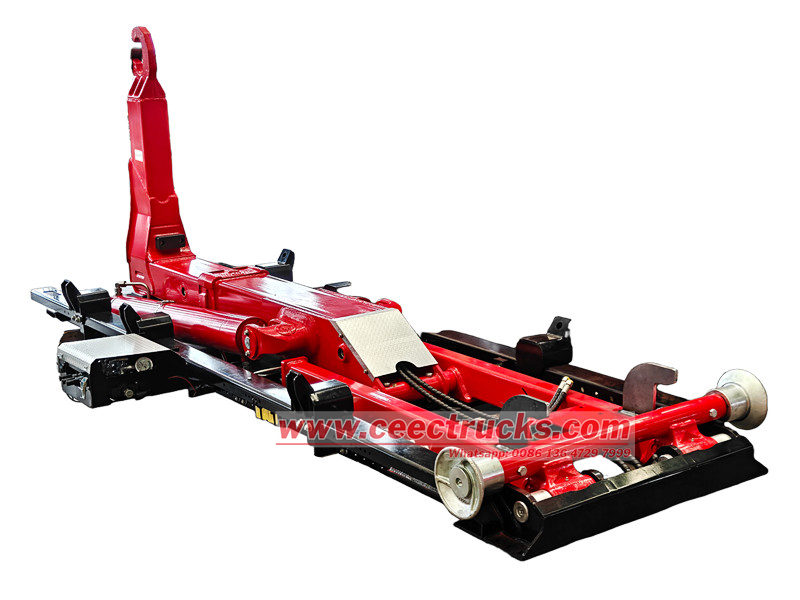

*6ton arm roll hook loader upper structure

hook loader truck upper body kit*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Product Features

●Efficiency: The carriages can be quickly loaded and unloaded, improving waste transfer efficiency.

●Flexibility: The carriages can be separated and reused, adapting to various scenarios.

●Reliability: The hydraulic system is stable and the structure is sturdy and durable.

●Convenience: Simple operation and easy maintenance save labor costs.

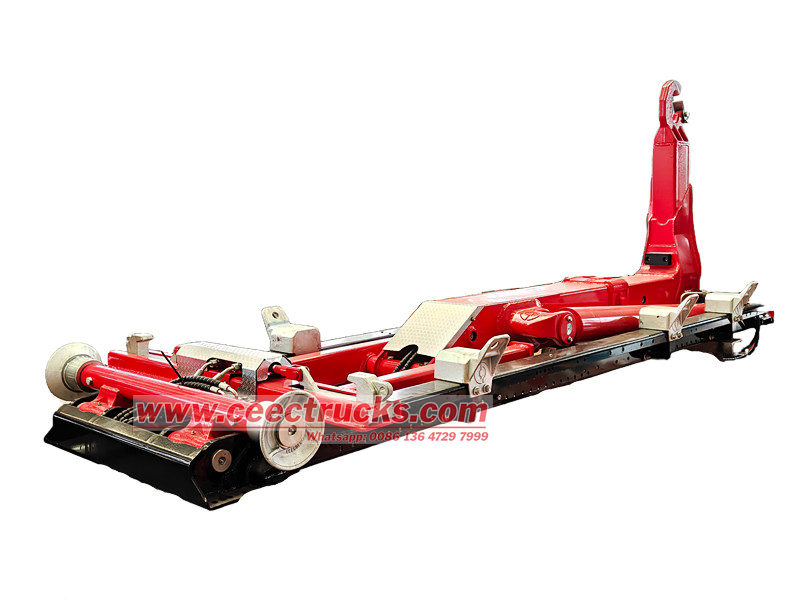

6ton arm roll hook loader upper structure (also called hook loader truck upper body kit ,hook-arm garbage truck upper body, arm garbage truck superstructure, hook garbage truck upper body kit, hook lift garbage truck kit, etc.) It is mainly used for the collection, transfer and unloading of urban sanitation, community and construction site garbage, realizing the separation of the carriage and chassis, improving transportation efficiency, and is suitable for use in multiple scenarios.

Power Transmission and Actuation Principle: The arm roll hook loader's upper structure uses the vehicle's engine as its power source, transmitting power to a hydraulic pump via a power take-off. The hydraulic pump converts mechanical energy into hydraulic energy, generating high-pressure oil.

This high-pressure oil is delivered via hydraulic lines to the hydraulic cylinders, driving the hook arm's extension, rotation, and lifting/lowering motions, while also controlling the opening and closing of the locking mechanism to hook, lift, and secure the waste bin. The entire process is precisely controlled by the hydraulic system, ensuring smooth and continuous movement.

The operating cycle works like this: During loading, the hook arm engages the front hook of the garbage container, and the hydraulic system pulls the container smoothly onto the frame and secures it. During unloading, the hook arm slowly pushes the container off the frame, separating it from the chassis for easy recycling.

During unloading, the hook arm system, combined with the hydraulic lift function, raises the rear end of the container, creating a certain tilt angle, allowing gravity to automatically dump the garbage. This safe, reliable, and easy-to-operate process eliminates manual contact with the garbage, effectively improving operational efficiency and environmental performance.

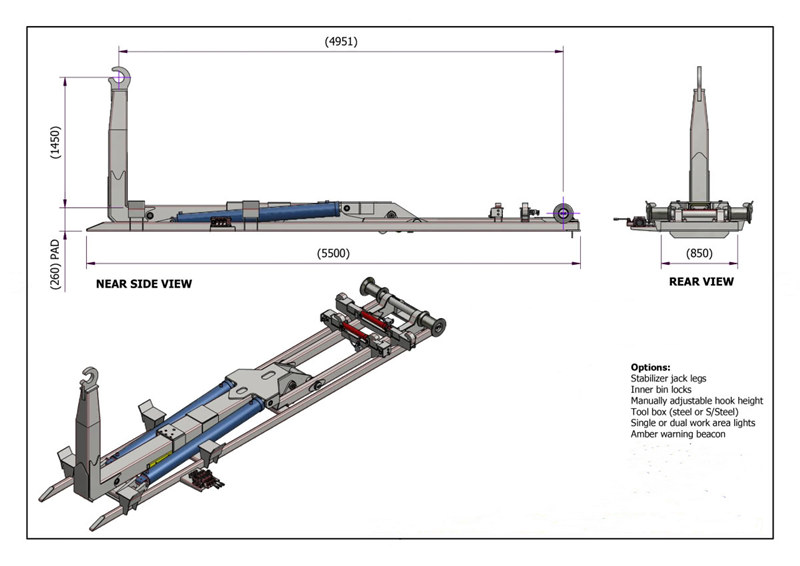

» Ⅱ.Product Parameter for 6ton arm roll hook loader upper structure：



Superstructure	Body capacity	6 ton capacity detachable container
	Hook Model	Telescopic heavy duty model
	Loading Model	Hook lift device, sliding type
	Container material	Anti-corrosive steel
	Hydraulic system	Chinese top brand cylinders and matched valves

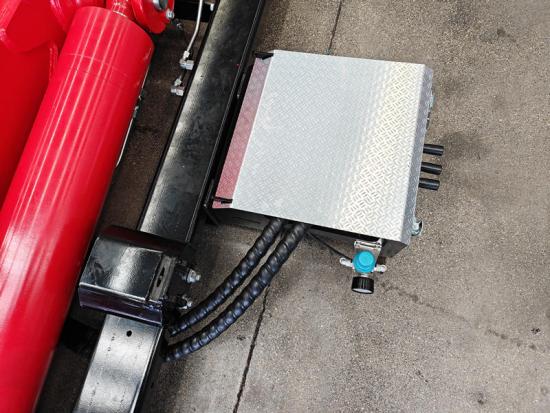

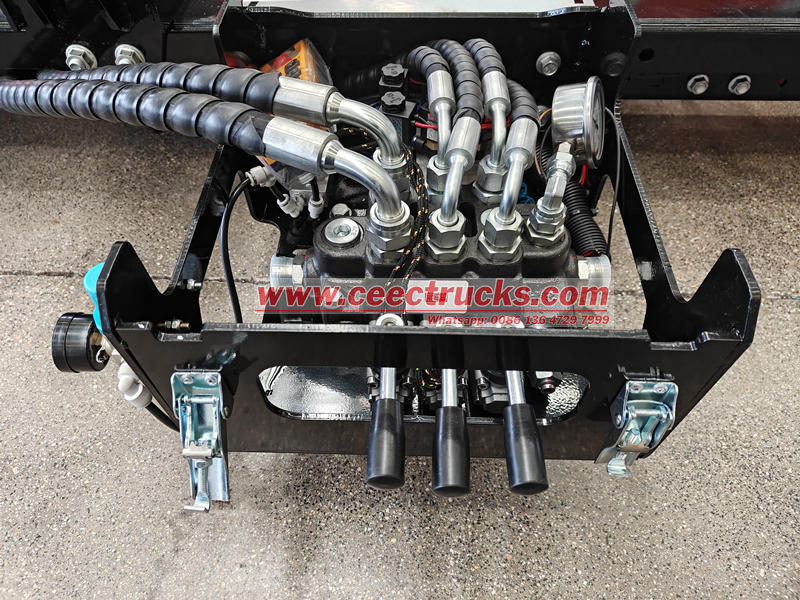

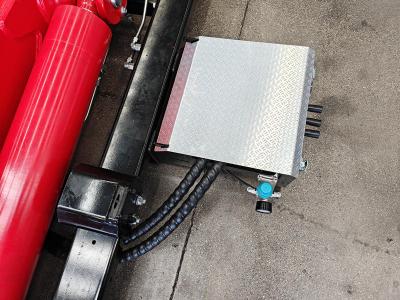

	Control Box	1. Electric Control Box in Cabin 2. Hydraulic control valve at rear
	Self-discharge angle	≥45 °
	Discharging time	≤45 s
	Lifting time	≤45 s
	Painting	Two primers, and one final paint coating
	Color and Logo	According to wish
	All standard accessories: Warning lights, music alarm, basic tool kit, English manual...

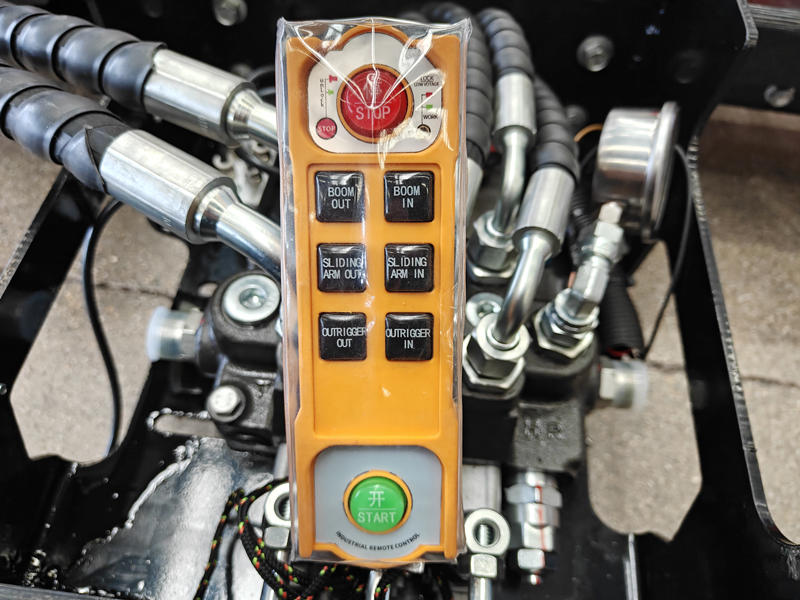

Optional	1.Back alarm and Camera can be equipped. 2.Remote Control Box can be optional. 3.Garbage container can be of stainless steel



» Ⅲ.Product Details & Advantages:

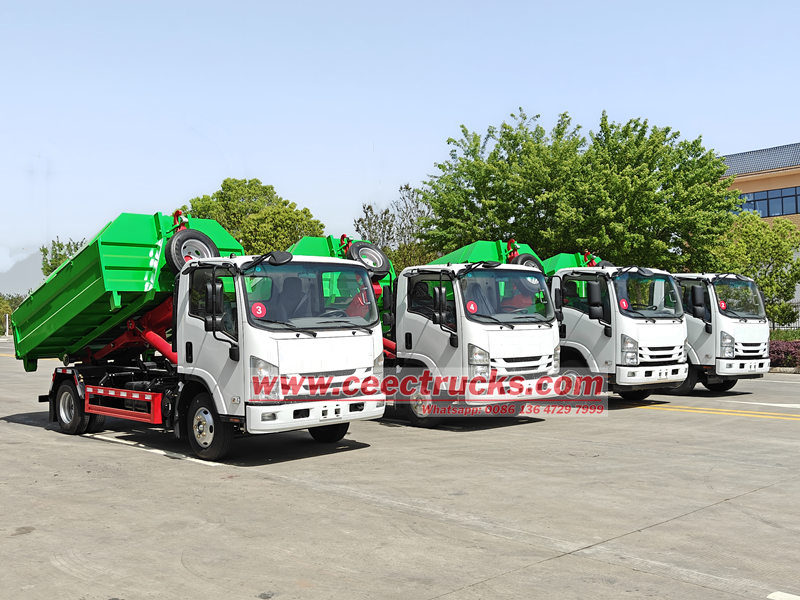

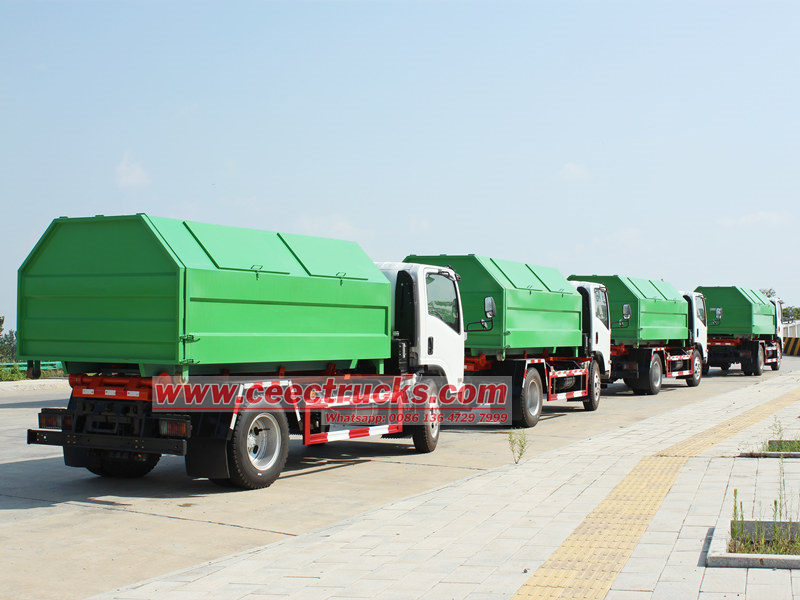

The hook loader truck upper body kit is a widely used detachable carriage equipment, mainly used for garbage collection and transportation in urban sanitation, community areas, construction sites and various solid waste treatment sites.

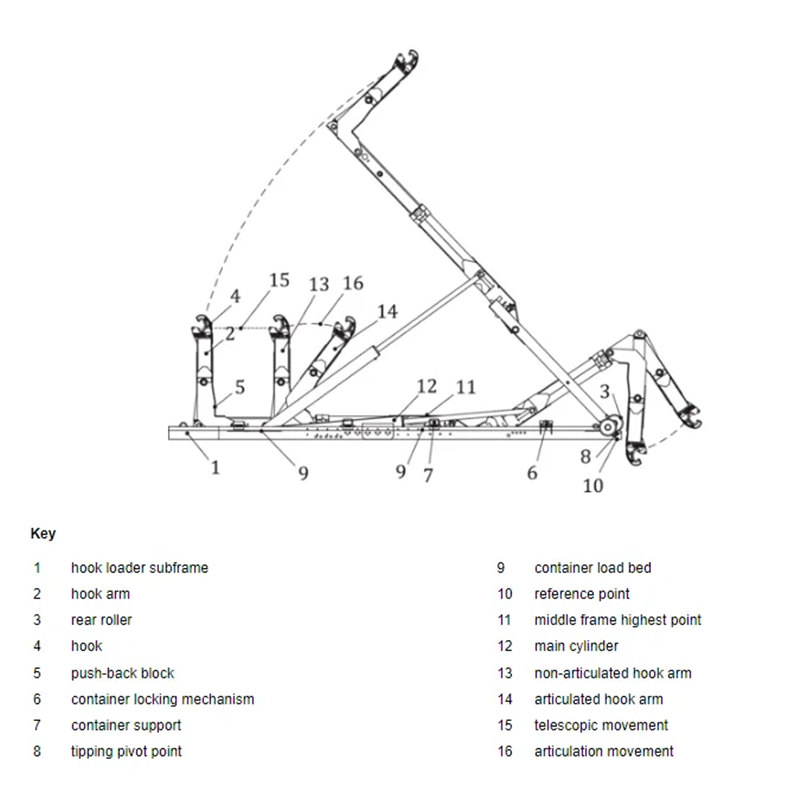

1.Structure and Function:

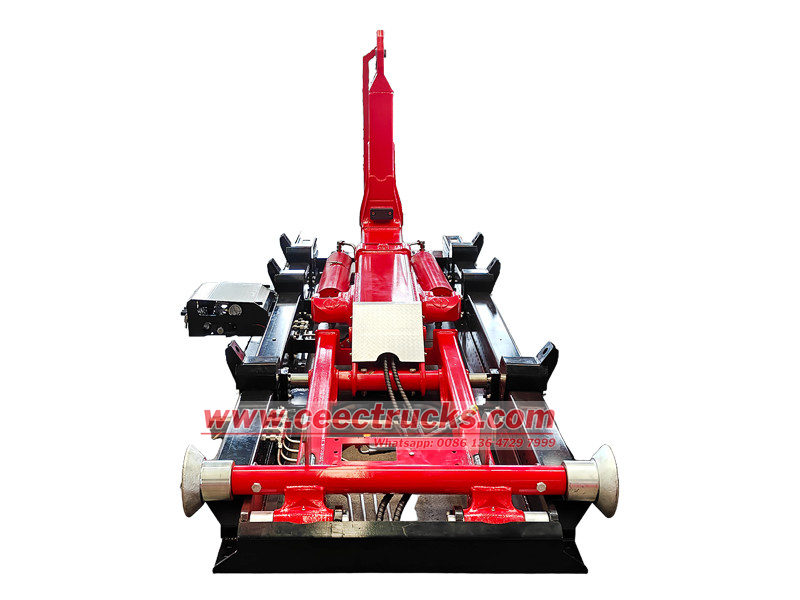

●The arm roll hook loader upper structure utilizes a linked hook arm and hydraulic cylinder design, hydraulically actuating the entire process of hooking, lifting, unloading, and placing the carriage.

●The carriage design is standardized, allowing for customized capacity and material. It features excellent sealing and durability, effectively preventing waste spillage and leakage, ensuring a clean and environmentally friendly transport process.

2. Operation and Performance:

●The hook-arm system is easy to operate, allowing the driver to easily load, unload, and dump waste through in-vehicle controls, ensuring high efficiency and safety.

●The hydraulic system operates stably and features overload protection, ensuring smooth and reliable operation even under high-intensity use.

●The carriages can be quickly replaced, meeting multi-point collection and transportation needs in different scenarios and improving vehicle utilization.



3. Advantages and Applications:

●The arm roll hook loader upper structure offers advantages such as fast loading and unloading, easy maintenance, and strong adaptability. Its multi-compartment operation allows for waste sorting and recycling, reducing empty trips and lowering operating costs.

●It is widely applicable in urban and rural sanitation, municipal engineering, and industrial waste treatment, providing a strong foundation for improving solid waste management and resource utilization efficiency.



•

•

•
