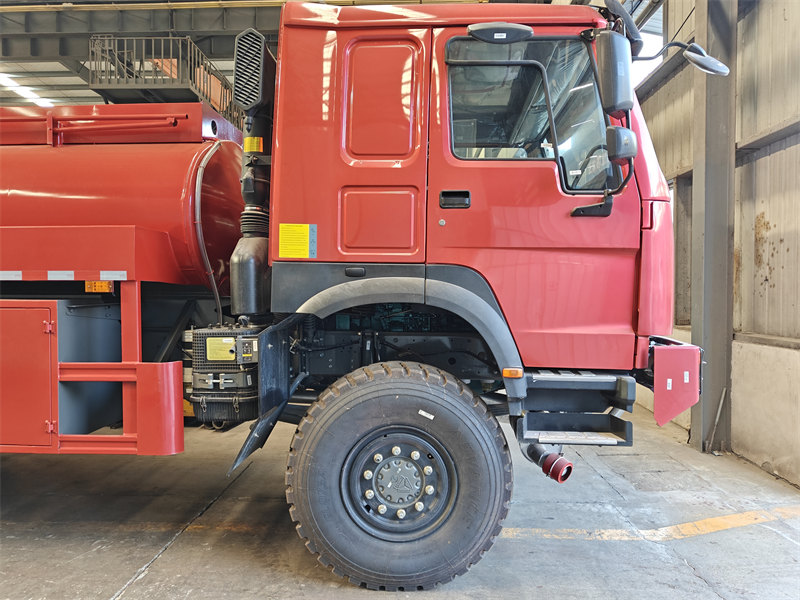

The Howo off road mining water tanker is equipped with a WP12S400E201 inline 6 cylinder, 6 stroke engine featuring supercharged, intercooled, and water-cooled technology. It delivers 400 HP and a maximum torque of 2000 N.m, available at 1400 rpm and rated at 1800 rpm, ensuring the Howo all drive mining water tanker's powerful power for starting and climbing. The Howo cabin features a one and a half row design with two seats and a sleeper. Equipped with A/C and radio, it provides a comfortable driving environment while also supporting long-distance water transport missions.

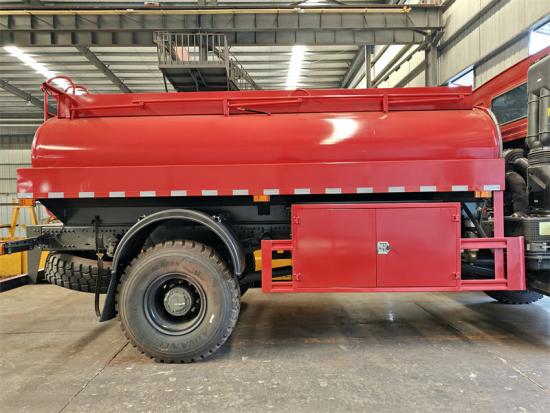

With a large water tank and high-quality materials, the Howo mining water truck boasts a tank capacity of over 10,000 liters, meeting the needs of large scale water spraying operations, reducing frequent refills and improving operational efficiency. The water tank is made of high quality carbon steel (Q235) and is made into an oval-shaped tank body. It has the advantages of high strength and corrosion resistance, ensuring the service life of the water tank.

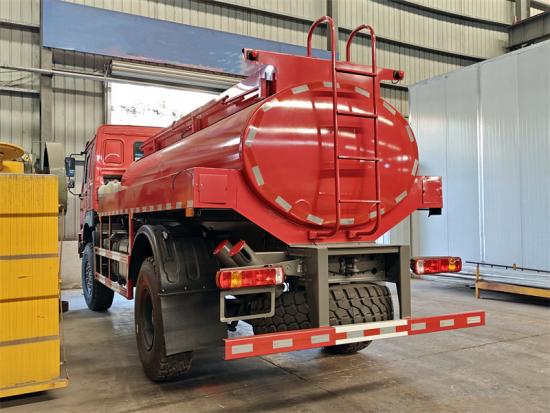

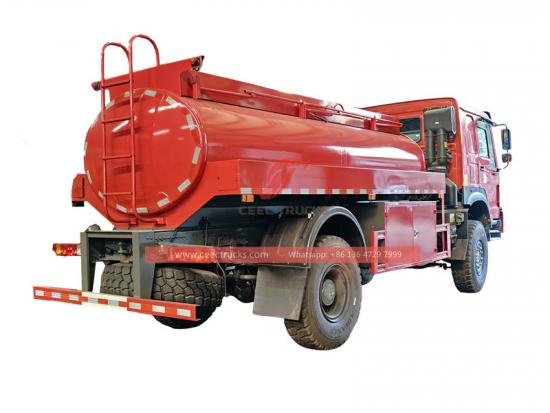

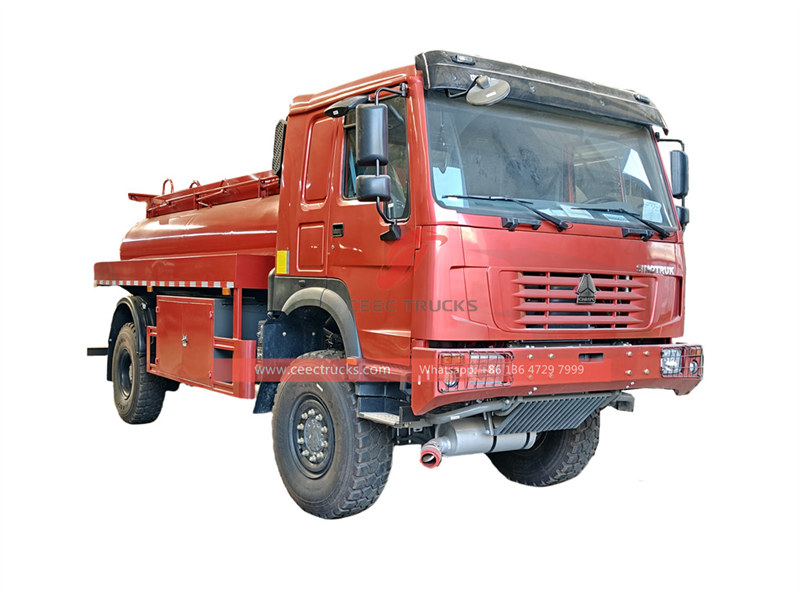

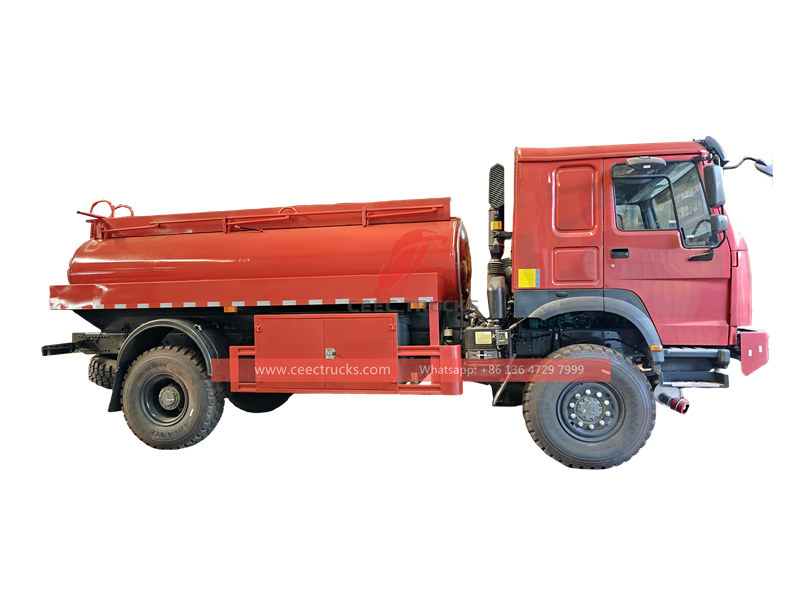

*Howo 4x4 water tank truck

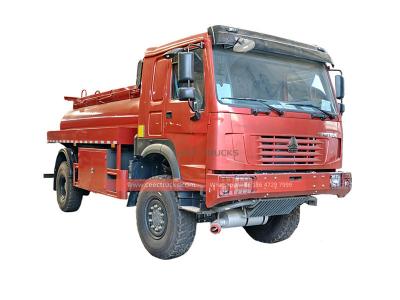

Howo 400HP 10000L water bowser Truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC Trucks

Features:

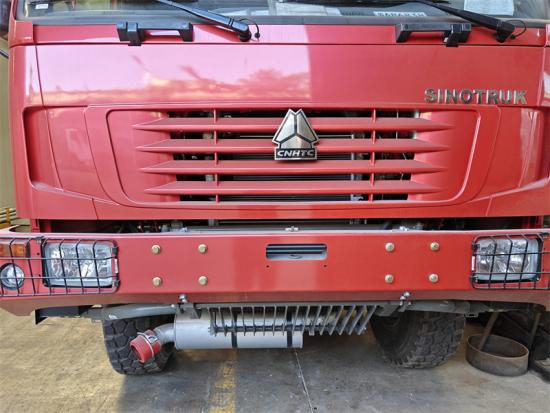

1. Truck Chassis: Howo heavy truck chassis, 4X4 model

                              WP model with 400HP and Euro 2,3,4

2. Tank material: 6mm thick stainless steel for prolonged service lier
                             carbon steel, aluminum alloy can be choose

3. Water Pump: China TOP water pump, flow rate 60L/s, working distance over 38m
                           Optional famous Imported pump









» Ⅱ.Product Parameter for Howo 10000L mining water tank truck

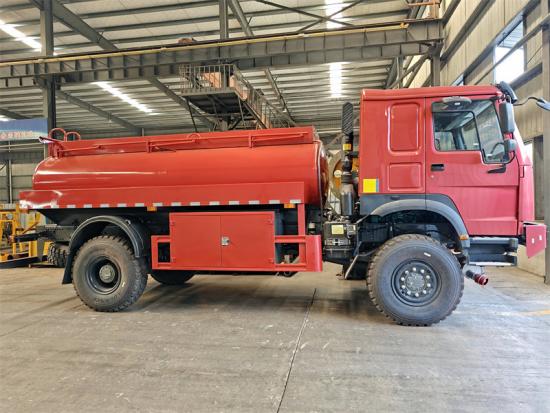

Howo off road 10000L mining water tanker
Main parameter	Overall dimension(LxWxH)		8300*2580*3250mm
	Wheel base(mm)		4600 mm
	Driving Type		4×4,left/right hand drive
	Color		White,red,blue,green,color can choose
	Front/rear overhang		1535/2215
	Max speed		100 km/h
Weight in KGS	GVW		18000 kg
	Curb weight		8500 kg
	Loading capacity		10000L
	Front axles loading capacity		7.5T
	Rear axles loading capacity		16 T
Engine	Engine model		WP12S400E201
	Engine type		Inline 6-cylinder 6-stroke, supercharged, intercooled, water-cooled
	Horsepower		400HP
	Max. output (kw)		294Kw
	Rated speed		1500rpm
	Maximum Torque		2000N.m
	Displacement(L)		12.72 L
	Emission standard		Euro 3
Transmission	HW19710 12 forward ,2 reserve
Tire	315/80R22.5 standard tire,12 tires+1 spare tire
Brake	Air brake
Steering	Power steering
Body	Capacity		10000L
	Structure	TANK MATERAIL	6mm,Q235 stee
		Pipe	Galvanized pipe
		Discharge nozzle	SS,at side bottom of tank,quick coupling
		Discharge nozzle option	Stainless steel faucet
Water pump	Model		WEILONG 80QZF-60/90S pump
	Flow rate(L/m):		60m3/h
	Head of delivery(m)		90m
	Self-priming function(min/4m)		1.5
	Efficiency(%)		95%
	Related rotate speed(r/min)		1180
	Matched power(kw)		22
Water sprinkler system	Front sprinkler jet		14m
	Rear sprinkler jet		13m
	Rear sprinkler nozzle range		12m
	Water cannon range		45m
	Water time		＞5 minutes
	Working condition		Flow≥60L/m, 1.55Mpa
	Max working pressure		≥0.9Mpa





-----Tanker material: Carbon steel, stainless steel, aluminum alloy, PP material

-----Water Pump: Based on tanker body and jetting distance, optional famous Import brand

-----Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)

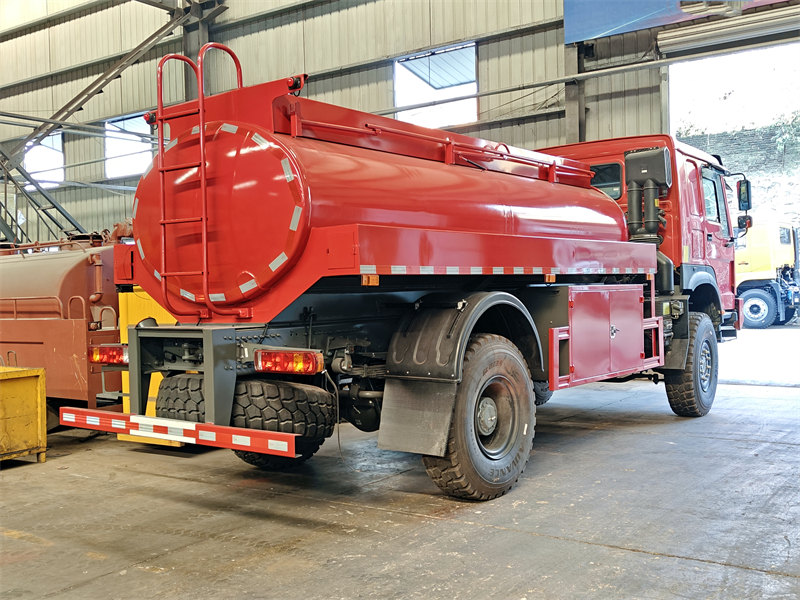

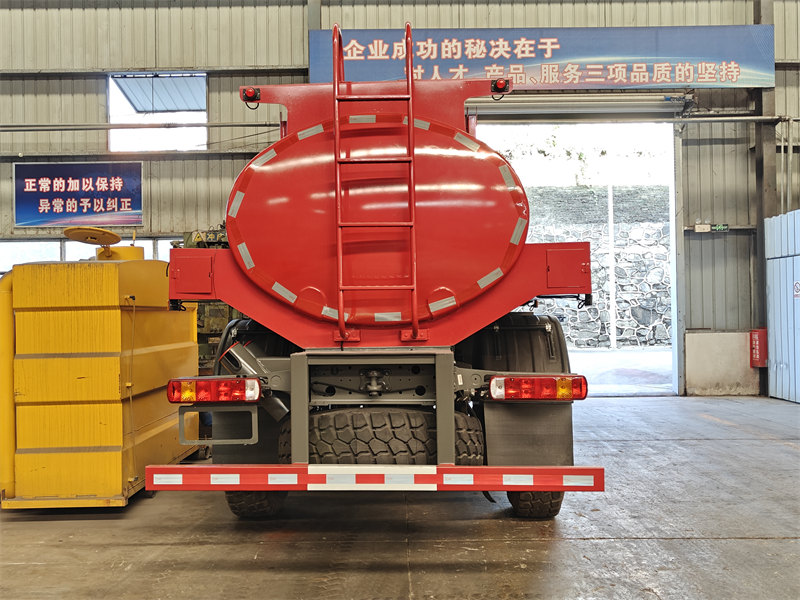

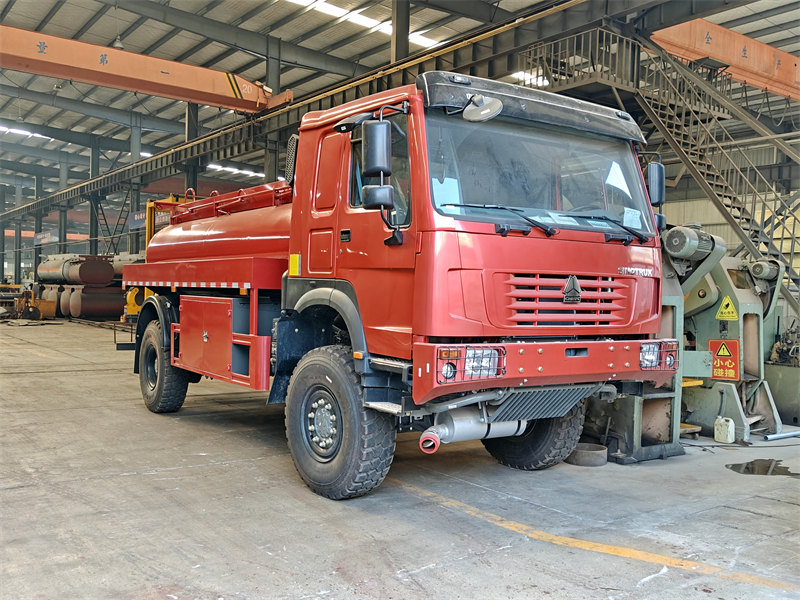

» Ⅲ.Advantage of the Howo 4X4 mining water tank truck?



1. Production Advantages:

♦ The production line utilizes cutting-edge robotic automated welding and laser precision cutting.

♦ This ensures extremely high assembly accuracy and consistency, enabling customized customization.

♦ For 10CBM tanks, high-strength, wear-resistant steel plates are used, utilizing CNC rolling and one-step spinning technology.

♦ This ensures uniform roundness and optimal stress distribution within the tank, eliminating dead corners.

♦ An advanced internal wave-shaped anti-wave plate design enhances structural strength while effectively reducing impact during liquid transportation.

2. Technical Advantages:

♦ Equipped with a high horsepower engine, it forms a golden powertrain with an HW1910 transmission and a low-ratio drive axle.

♦ It features an all drive system, high-strength frame materials, and a multi-leaf spring reinforced suspension system.

♦ The dual front axle steering design ensures exceptional load-bearing capacity while enhancing steering flexibility.

♦ The water pump, a renowned Chinese brand, boasts high flow, high head, and long service life, and is self-priming and self-discharging.

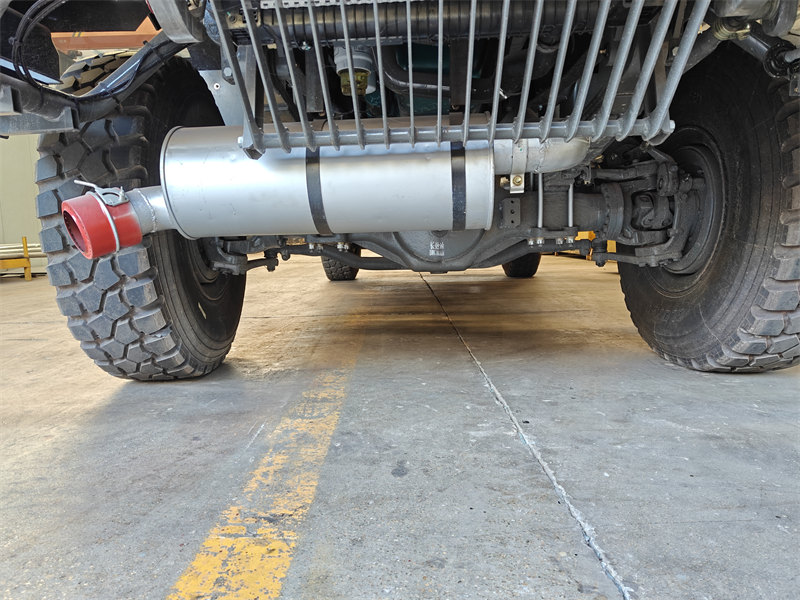

♦ It features front end flushing, side spraying, and a rear sprinkler all in one.

♦ The high-pressure water canon rotates 360 degrees and can be adjusted to a columnar configuration for maximum range.



3. Advantage of all drive system:

♦ Conquer muddy and soft roads:

In spoil dumps and mining areas after rain, where ground adhesion is extremely low, the 4x4 drivie system ensures that as long as one wheel has traction, the vehicle can escape, reducing the risk of getting stuck.

♦ Tackling steep slopes and heavy loads:

When driving uphill with a heavy load, the center of gravity shifts rearward, reducing front wheel adhesion. The 4x4 drivie system provides enhanced climbing ability and driving stability, eliminating the risk of the vehicle rolling due to rear wheel spin.

♦ Enhanced traction on rough roads:

On uneven roads, wheels often become suspended or lack adhesion. The Off-Road Drive system ensures that a wheel always receives power to propel the vehicle forward.
